SMA Connectors for Microwave Applications: High-Performance Solutions from Times Microwave Systems

Filter

Part #	Description	Gender	Orientation	Stock Code	Compatible With

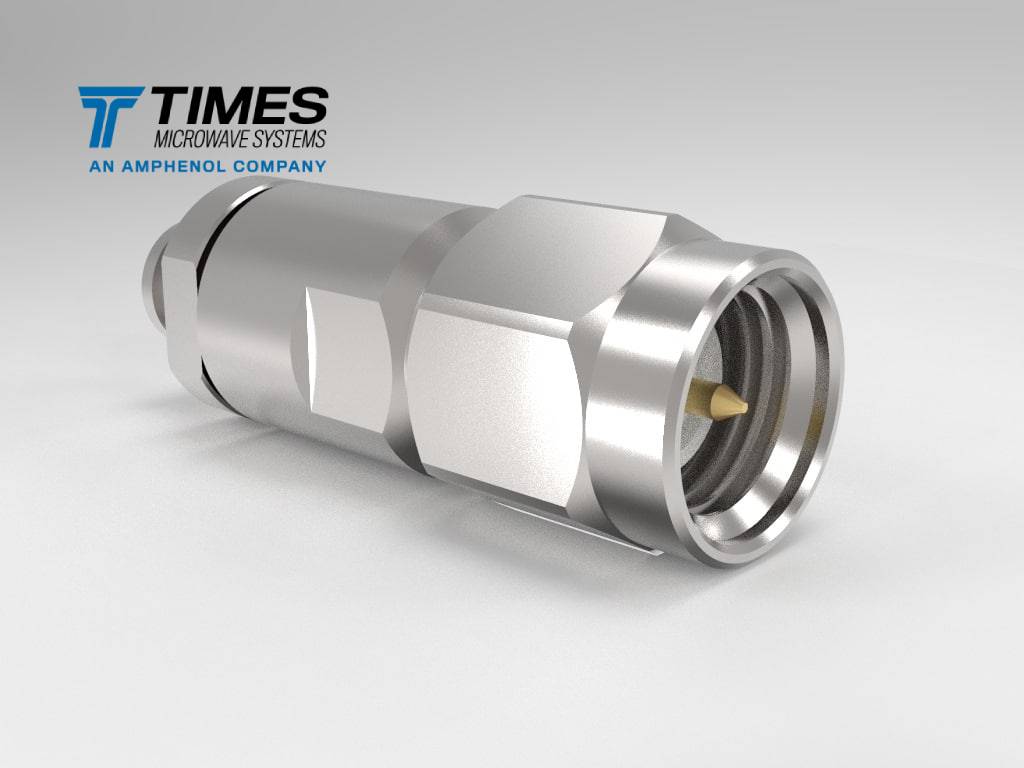

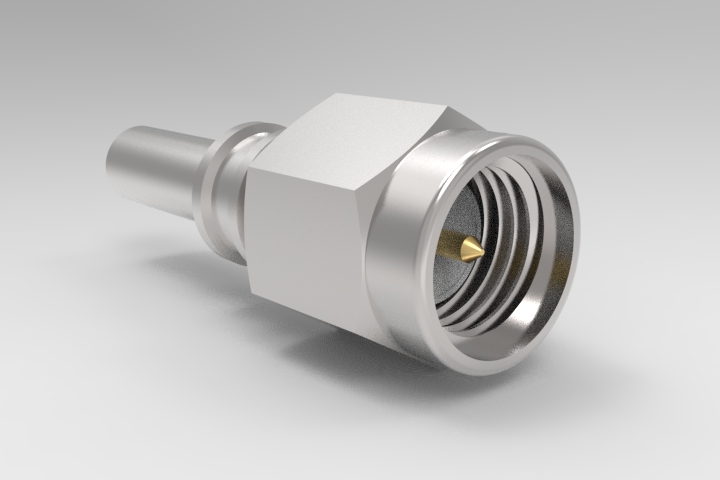

EZ-PT047-SM-SS	SMA, male, straight, for PT-047/SF-047/TF-047	Male (plug)	Straight	3190-6878	TF-047
SR-125I-SM-SL-90	Type SMA, male (plug), right angle, SR style connector for...	Male (plug)	Right Angle	48688	MT-210

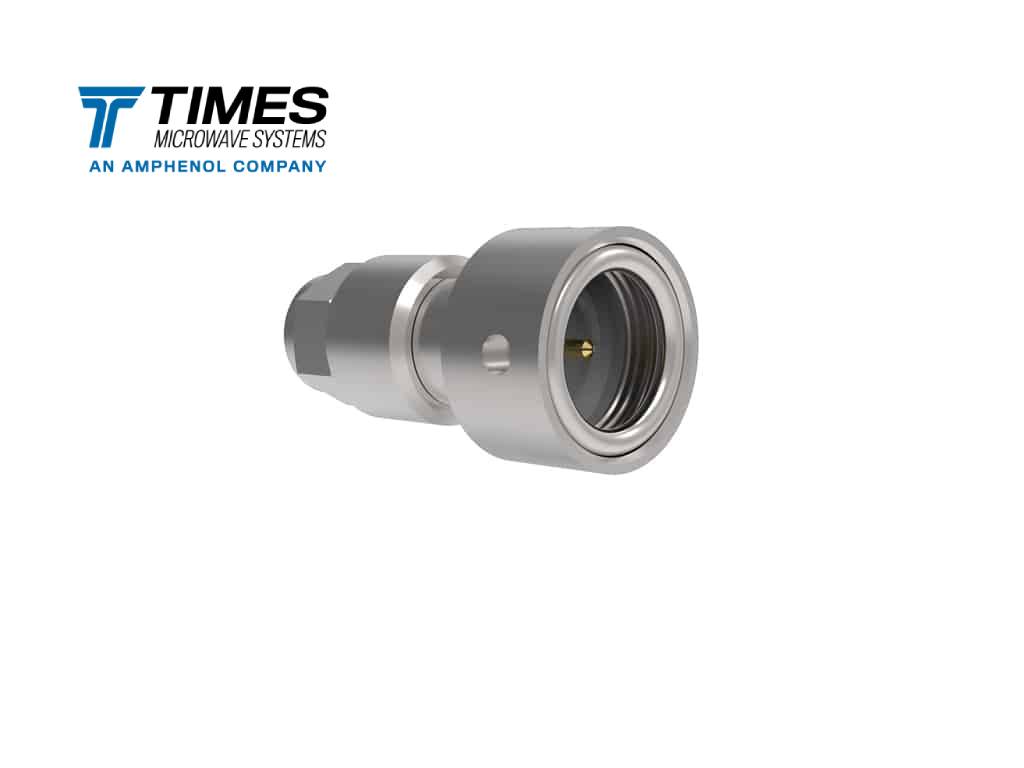

SR-125I-SM-SL	Type SMA, male (plug), straight, SR style connector for MT-210,...	Male (plug)	Straight	48689	MT-210

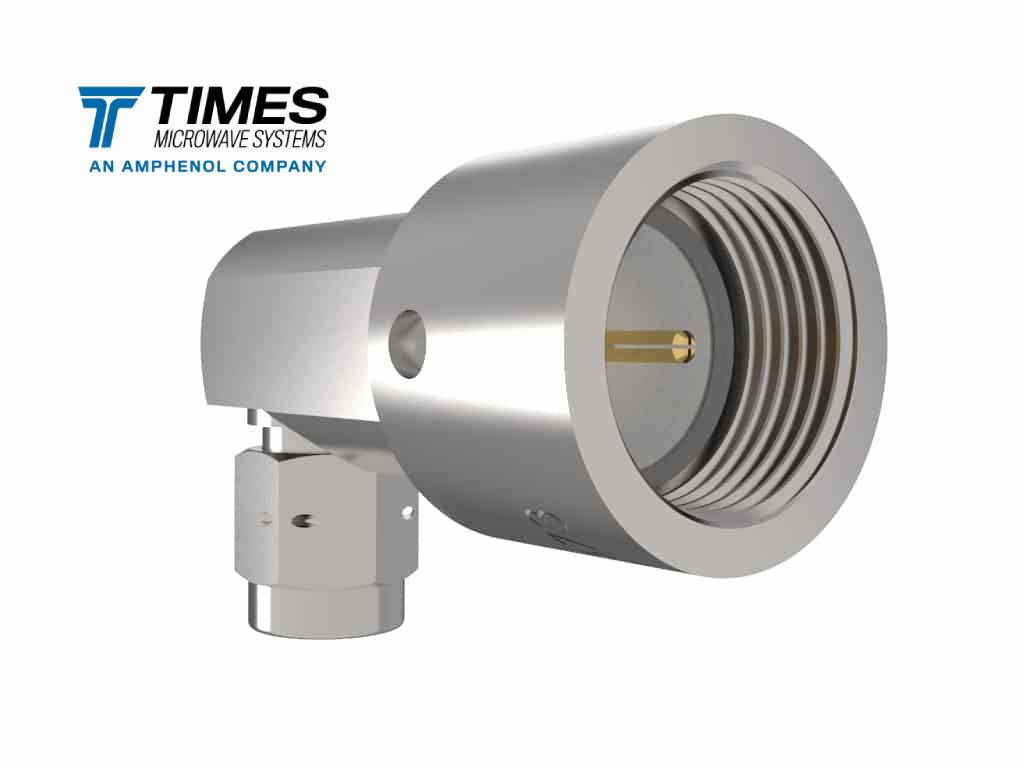

SR-125I-SM-90	Type SMA, male (plug), right angle, SR style connector for...	Male (plug)	Right Angle	48608	MT-210
SR-125I-SM	Type SMA, male (plug), straight, SR style connector for MT-210,...	Male (plug)	Straight	48530	MT-210
SP-IB047-SM	Type SMA, male (plug), straight, SP style connector for IB-047...	Male (plug)	Straight	SP112	IB-047

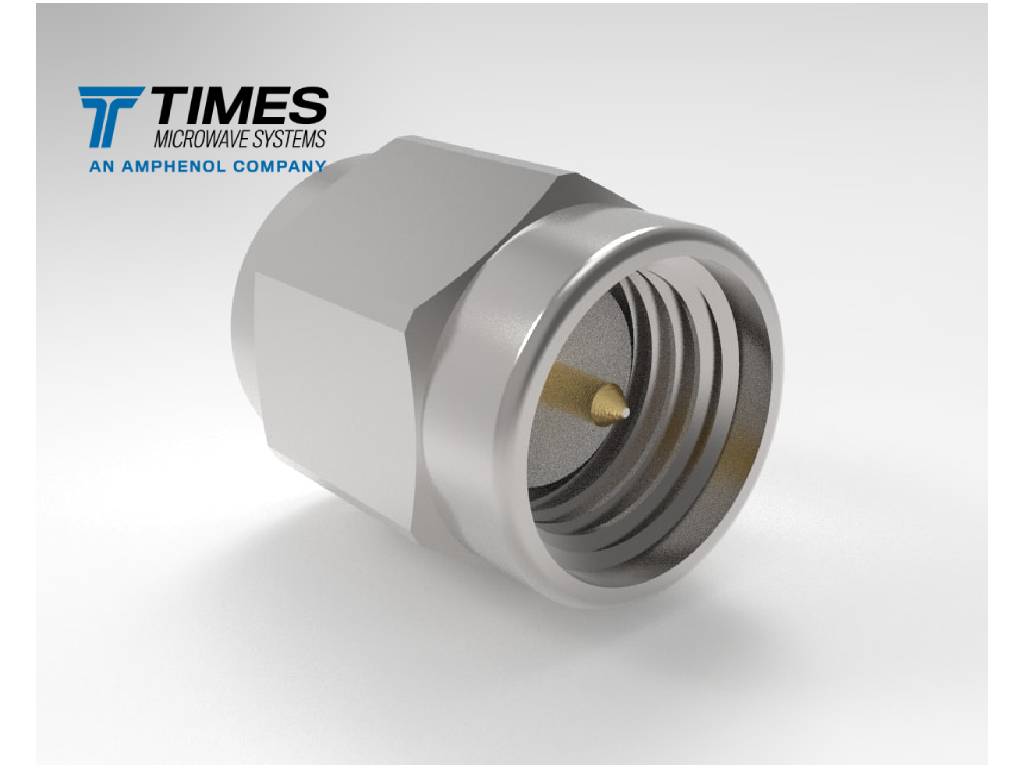

SP-IB405-SM	Type SMA, male (plug), straight, SP style connector for IB-086...	Male (plug)	Straight	SP110	IB-086
SC-405-SF-BH	Type SMA, female (jack), straight, SC style connector for TFLEX®-405...	Female (jack)	Straight	3190-6327	TFlex-405
EZ-142T-SM-RA-SS	Type SMA, male (plug), right angle, EZ style connector for...	Male (plug)	Right Angle	3190-6315	SFT-142
TC-402-SM-EF-SS	Type SMA, male (plug), straight, TC style connector for TFLEX®-402...	Male (plug)	Straight	3190-6248	TFlex-402
SC-405-SM	Type SMA, male (plug), straight, SC style connector for TFLEX®-405...	Male (plug)	Straight	3190-6236	TFlex-405
SC-402-SM	Type SMA, male (plug), straight, SC style connector for TFLEX®-402...	Male (plug)	Straight	3190-6181	TFlex-402
TC-304PUR-SM-SS	SMA-Male straight connector for 304 size cables.	Male (plug)	Straight	3190-6092
TC-205T-SM-SW-SS	Type SMA, male (plug), straight, TC style connector for SFT-205...	Male (plug)	Straight	3190-6089	SFT-205
TC-205PUR-SM-SW-SS	SMA-Male straight connector for 205 size cables.	Male (plug)	Straight	3190-6086
TC-205PUR-SM-RA-LW-SS	SMA-Male right angle connector for 205 size cables.	Male (plug)	Right Angle	3190-6085
TC-205PUR-SM-SS	SMA-Male straight connector for 205 size cables.	Male (plug)	Straight	3190-6082
TC-316T-SM-RA-LW-SS	Type SMA, male (plug), right angle, TC style connector for...	Male (plug)	Right Angle	3190-2952	SFT-316
SC-405-SM-RA	Type SMA, male (plug), right angle, SC style connector for...	Male (plug)	Right Angle	3190-2938	TFlex-405
EZ-402-SM-RA	Type SMA, male (plug), right angle, EZ style connector for...	Male (plug)	Right Angle	3190-2902	TFlex-402
TC-405-SM-RA	Type SMA, male (plug), right angle, TC style connector for...	Male (plug)	Right Angle	3190-2901	TFlex-405
TC-405-SF	Type SMA, female (jack), straight, TC style connector for TFLEX®-405...	Female (jack)	Straight	3190-2838	TFlex-405
TC-142T-SM-SS	Type SMA, male (plug), straight, TC style connector for SFT-142...	Male (plug)	Straight	3190-2793	SFT-142

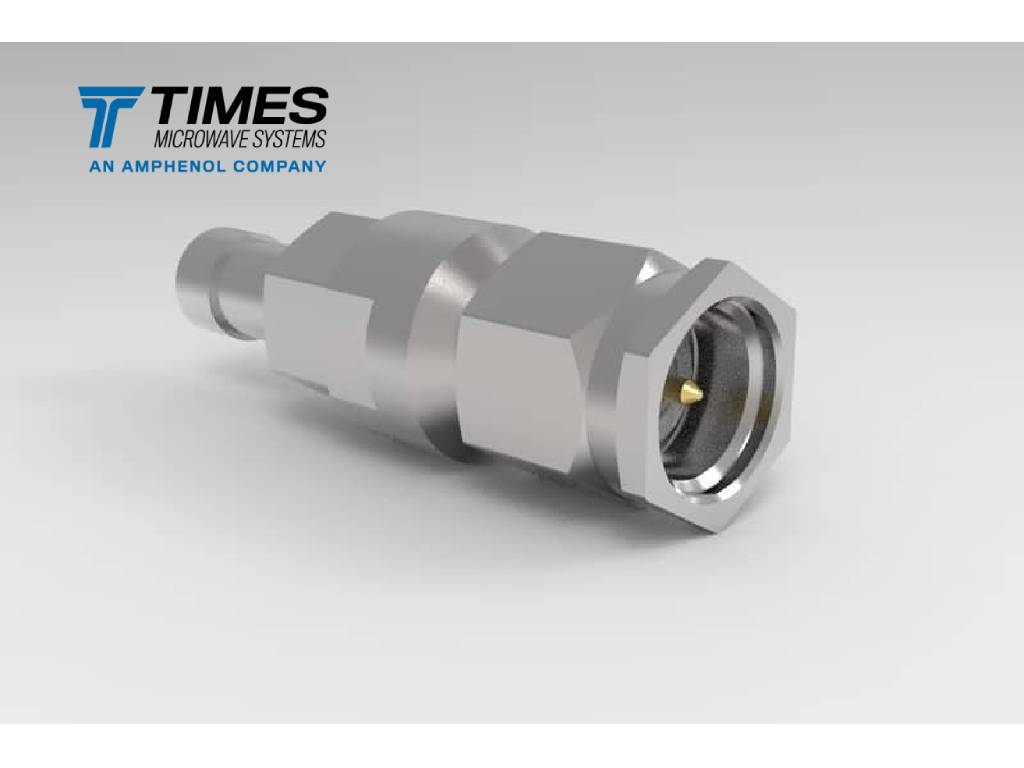

TC-316T-SM-SS	Type SMA, male (plug), straight, TC style connector for SFT-316...	Male (plug)	Straight	3190-2738	SFT-316
TC-3520-SM-RA-X	Type SMA, male (plug), right angle, TC style connector for...	Male (plug)	Right Angle	3190-8052	TCA-352001
TC-3520-SM-X	Type SMA, male (plug), straight, TC style connector for TCA352001.	Male (plug)	Straight	3190-8051	TCA-352001
TC-402-SM-RA-LP	Type SMA, male (plug), right angle, TC style connector for...	Male (plug)	Right Angle	3190-3005	TFT-5G-402

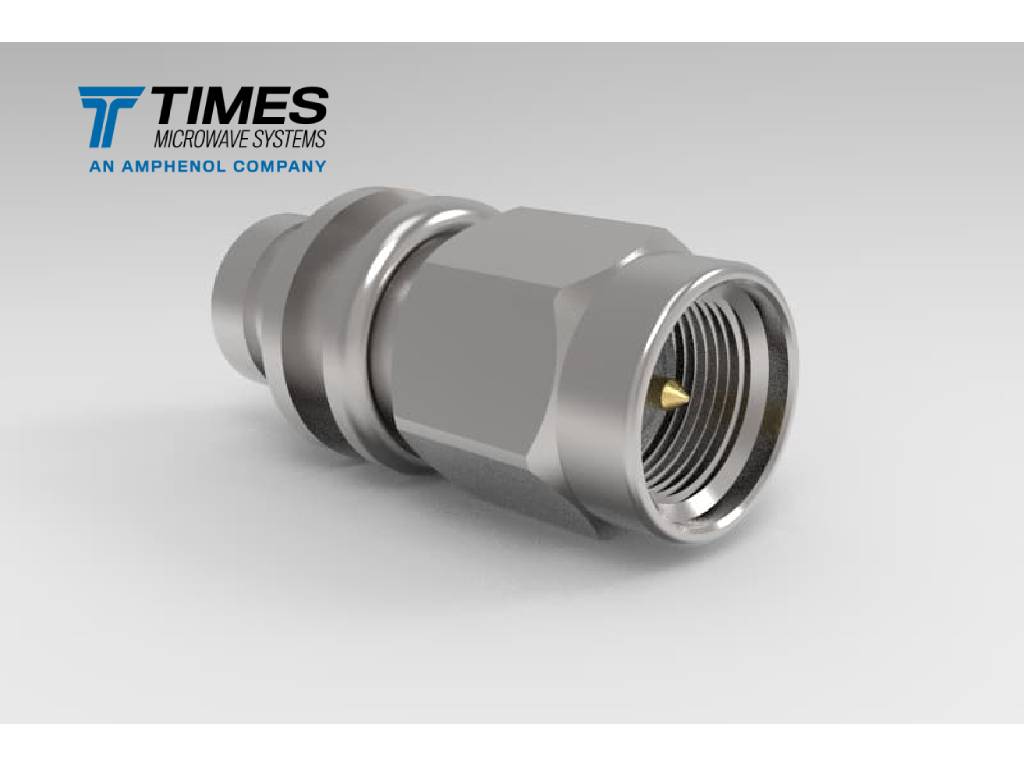

TC-402-SM-LP	Type SMA, male (plug), straight, TC style connector for TFT-402...	Male (plug)	Straight	3190-2903	TFT-5G-402
EZ-400-SM-RA-X	Type SMA, male (plug), right angle, EZ style connector for...	Male (plug)	Right Angle	3190-8022	LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-RR-DB TCOM-400 TCOM-400-FR T-RAD-400-FR
EZ-195-200-SF-X	Type SMA, female (jack), straight, EZ style connector for LMR-195...	Female (jack)	Straight	3190-8002	LMR-195 LMR-195-DB LMR-195-FR
TC-400-SM	SMA, male (plug), straight, TC style connector for LMR®-400 coaxial...	Male (plug)	Straight	3190-439	LMR-400
TC-240-SM-RP	SMA male (plug), straight, TC style connector for FBT-240, LMR®-240,...	Female (jack)	Straight	3190-326	FBT-240 LMR-240 LMR-240-DB LMR-240-FR LMR-240-LLPX LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
EZ-195-SM-RA-X	Type SMA, male (plug), right angle, EZ style connector for...	Male (plug)	Right Angle	3190-6431	LMR-195 LMR-195-DB LMR-195-FR
EZ-195-SM-X	Type SMA, male (plug), straight, EZ style connector for LMR®-195...	Male (plug)	Straight	3190-6140	LMR-195 LMR-195-DB LMR-195-FR
EZ-240-SF-X	Type SMA, female (jack), straight, EZ style connector for LMR®-240...	Female (jack)	Straight	3190-8008	LMR-240 LMR-240-DB LMR-240-FR LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
EZ-240-SM-PL-X	SMA male (plug), straight, EZ style connector for FBT-240 and...	Male (plug)	Straight	3190-3075	FBT-240 LMR-240-LLPX
EZ-240-SM-RA-X	Type SMA, male (plug), right angle, EZ style connector for...	Male (plug)	Right Angle	3190-6551	LMR-240 LMR-240-DB LMR-240-FR LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
EZ-240-SM-X	Type SMA, male (plug), straight, EZ style connector for LMR®-240...	Male (plug)	Straight	3190-6319	LMR-240 LMR-240-DB LMR-240-FR LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
EZ-400-SF-X	Type SMA, female (jack), straight, EZ style connector for LMR®-400,...	Female (jack)	Straight	3190-8023	LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-RR-DB TCOM-400 TCOM-400-FR T-RAD-400-FR
EZ-400-SM-X	Type SMA, male (plug), straight, EZ style connector for LMR®-400,...	Male (plug)	Straight	3190-8021	LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-RR-DB TCOM-400 TCOM-400-FR T-RAD-400-FR
TC-3116-SM-RA-X	Type SMA, male (plug), right angle, TC style connector for...	Male (plug)	Right Angle	3190-8058	TCA-311601
TC-3116-SM-X	Type SMA, male (plug), straight, TC style connector for TCA311601...	Male (plug)	Straight	3190-8057	TCA-311601
TC-3115-SM-RA-X	Type SMA, male (plug), right angle, TC style connector for...	Male (plug)	Right Angle	3190-8056	TCA-311501
TC-3115-SM-X	Type SMA, male (plug), straight, TC style connector for TCA311501....	Male (plug)	Straight	3190-8055	TCA-311501
TC-3112-SM-RA-X	Type SMA, male (plug), right angle, TC style connector for...	Male (plug)	Right Angle	3190-8054	TCA-311201

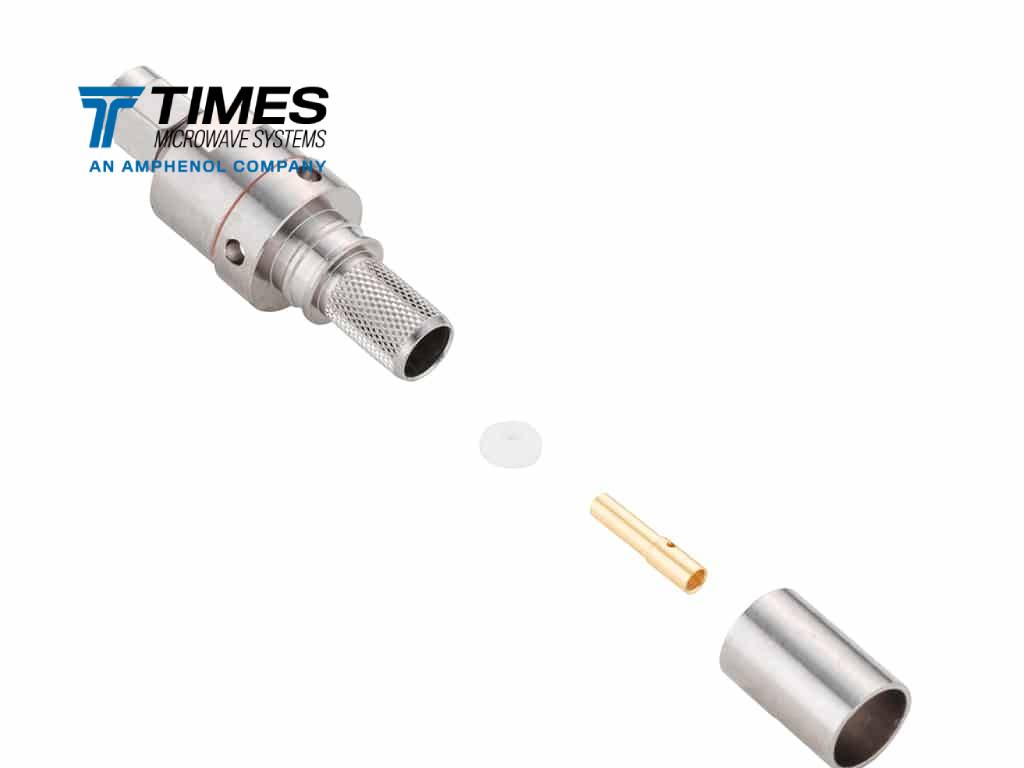

TC-3112-SM-X	Type SMA, male (plug), straight, TC style connector for TCA311201....	Male (plug)	Straight	3190-8053	TCA-311201
TC-195-SM-SS-X	SMA male (plug) straight TC connector for FBT-195, LMR®-195 types...	Male (plug)	Straight	3190-2878	FBT-195 LMR-195 LMR-195-DB LMR-195-FR LMR-195-LLPX
TC-240-SF-BH-SS-X	SMA female, (jack), straight TC style connector for FBT-240, LMR®-240,...	Female (jack)	Straight	3190-2896	FBT-240 LMR-240 LMR-240-DB LMR-240-FR LMR-240-LLPX LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
TC-240-SM-RA-SS-D	Type SMA, male (plug), straight, TC style connector for FBT-240,...	Male (plug)	Straight	3190-6546	FBT-240 LMR-240 LMR-240-DB LMR-240-FR LMR-240-LLPX LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
TC-240-SM-SS-X	SMA, male (plug), straight, TC style connector for FBT-240, LMR®-240,...	Male (plug)	Straight	3190-2898	FBT-240 LMR-240 LMR-240-DB LMR-240-FR LMR-240-LLPX LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
TC-400-SF-X	Type SMA, female (jack), straight, TC style connector for FBT-400,...	Female (jack)	Straight	3190-6174	FBT-400 LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-LLPX LMR-400-RR-DB TCOM-400
TC-400-SM-X	SMA, male (plug), straight, TC style connector for FBT-400, TCOM®-400,...	Male (plug)	Straight	3190-3046	FBT-400 LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-LLPX LMR-400-RR-DB TCOM-400
