Connector

A wide variety of connectors to meet even the most exacting electrical and mechanical requirements

InstaBend

Instabend connectors are designed to minimize footprints and save space for inside-the-box applications. Instabend cables can be bent very closely behind the connector, which eliminates the need to protect the back of the connector.

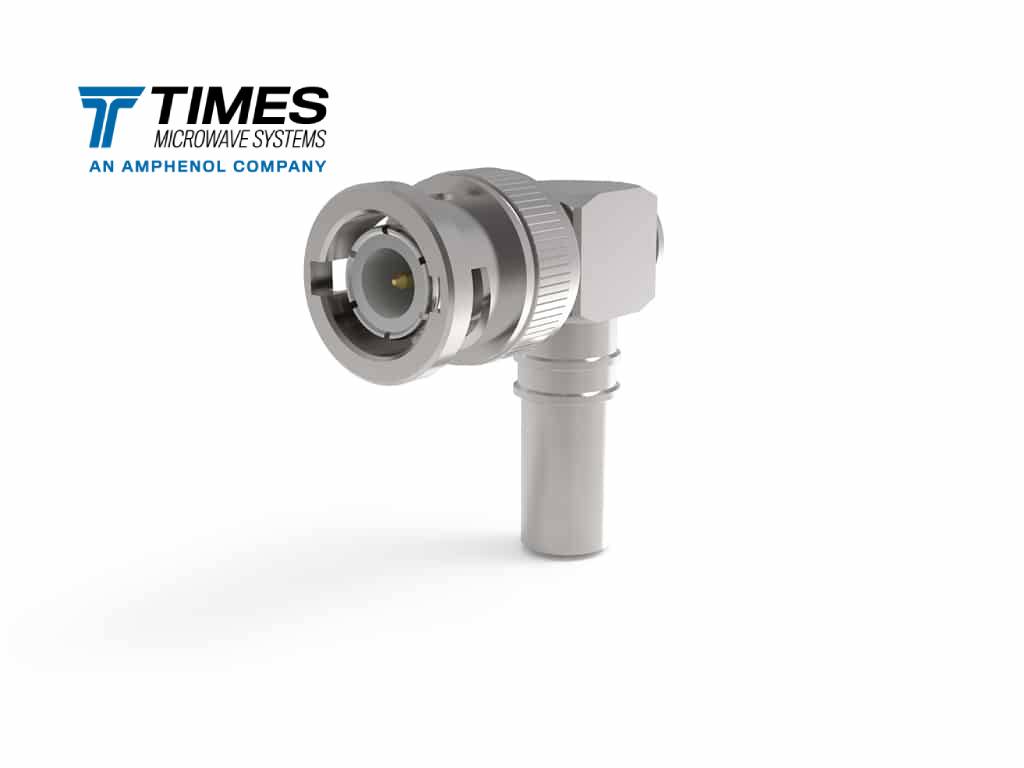

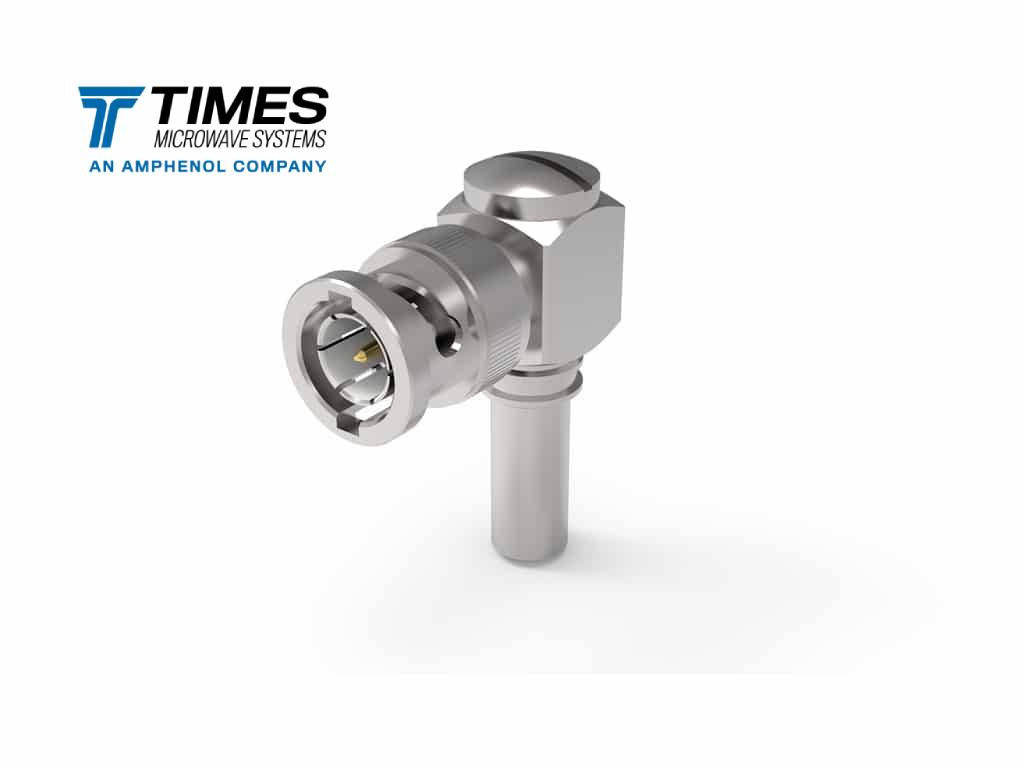

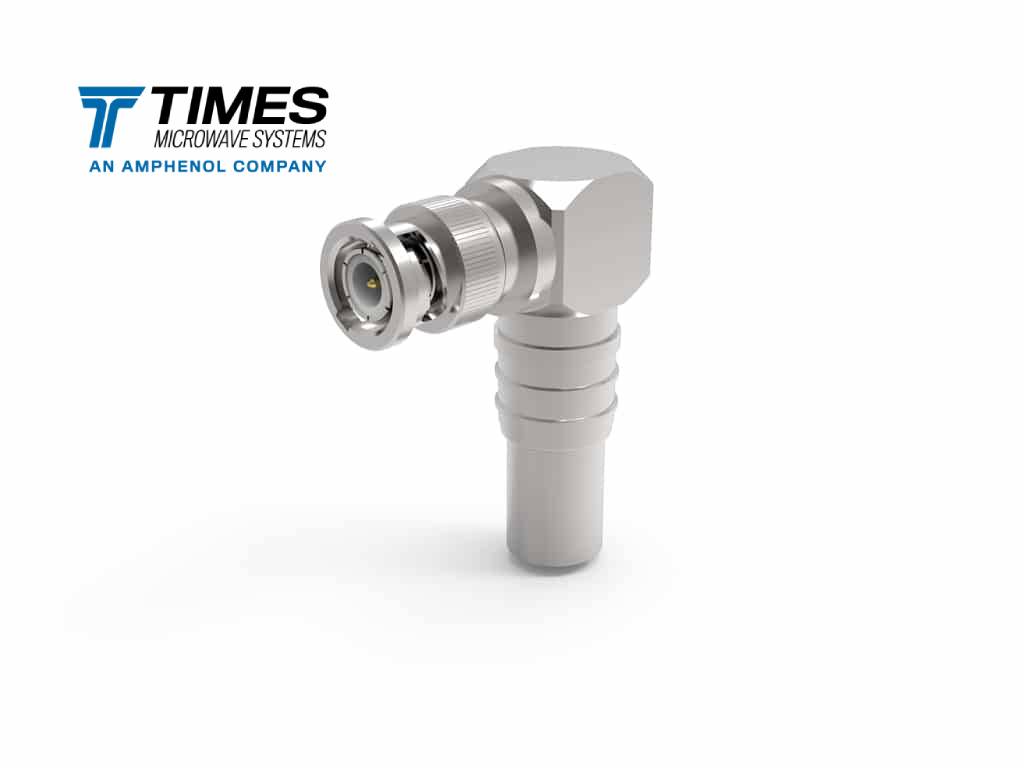

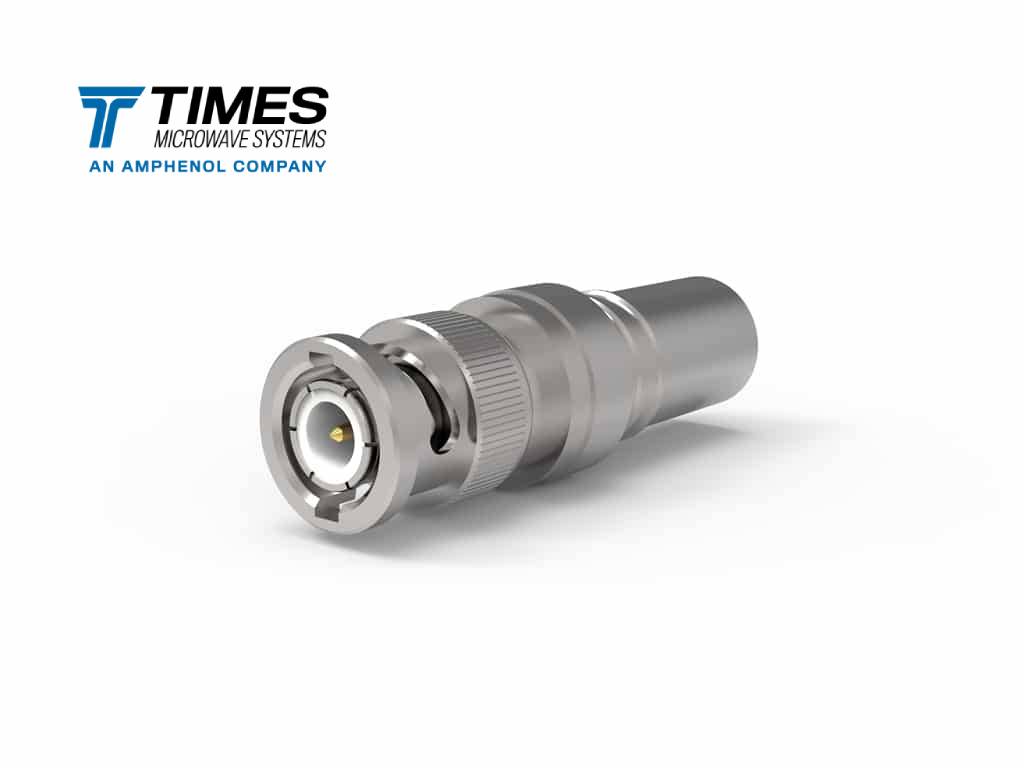

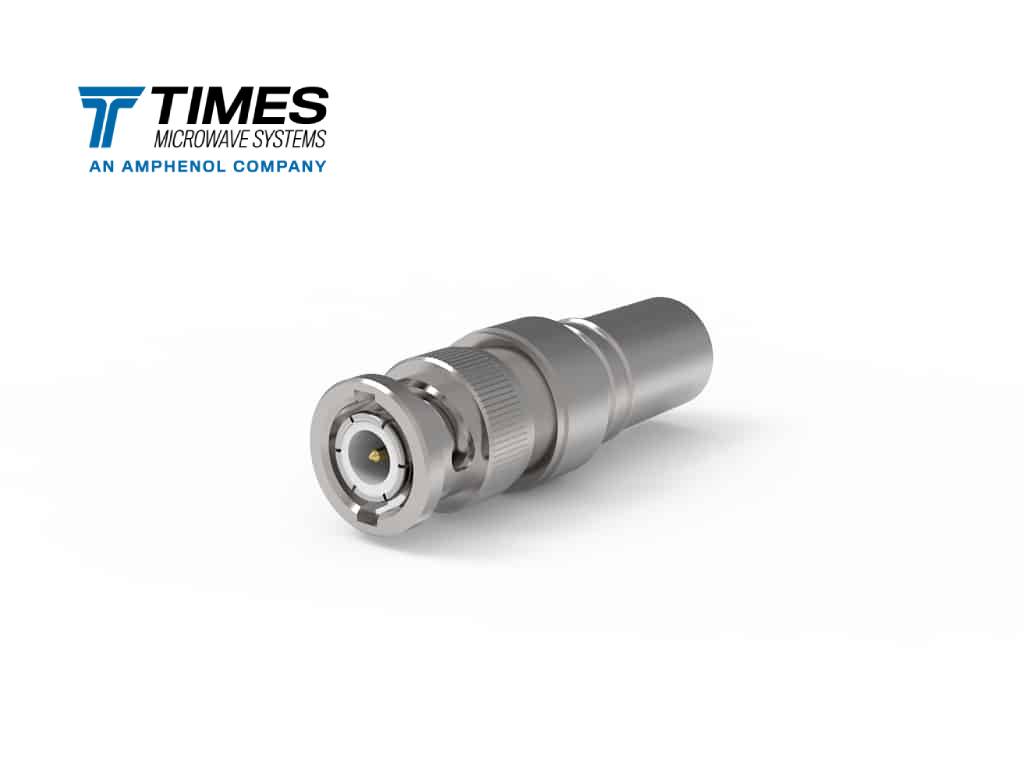

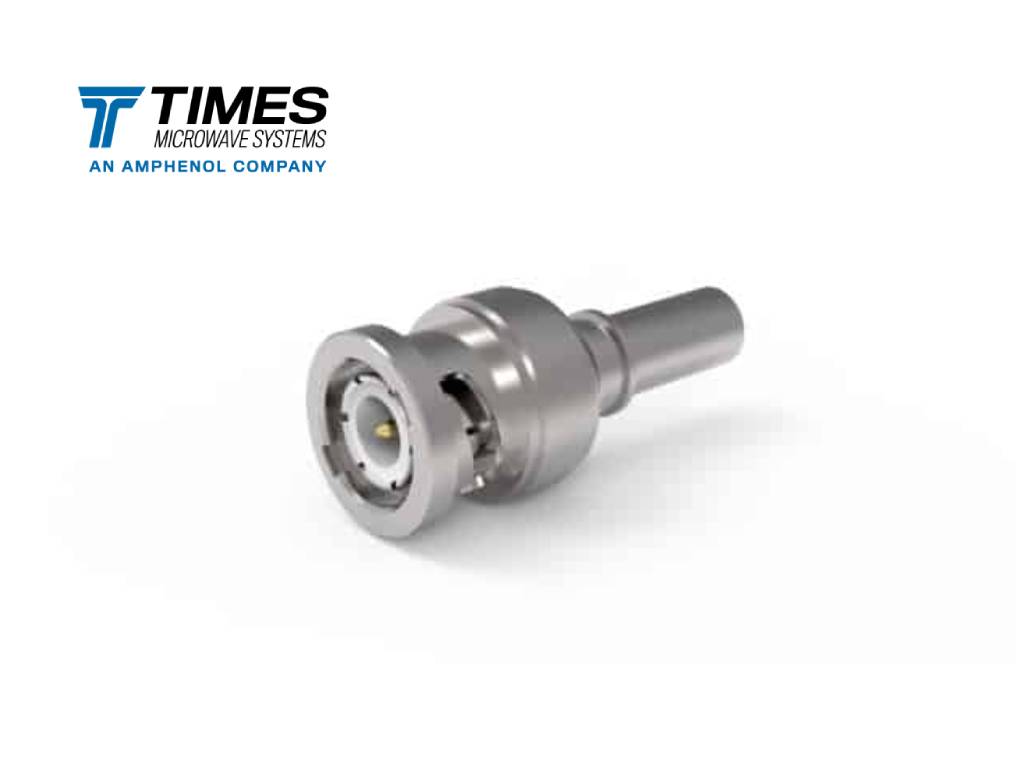

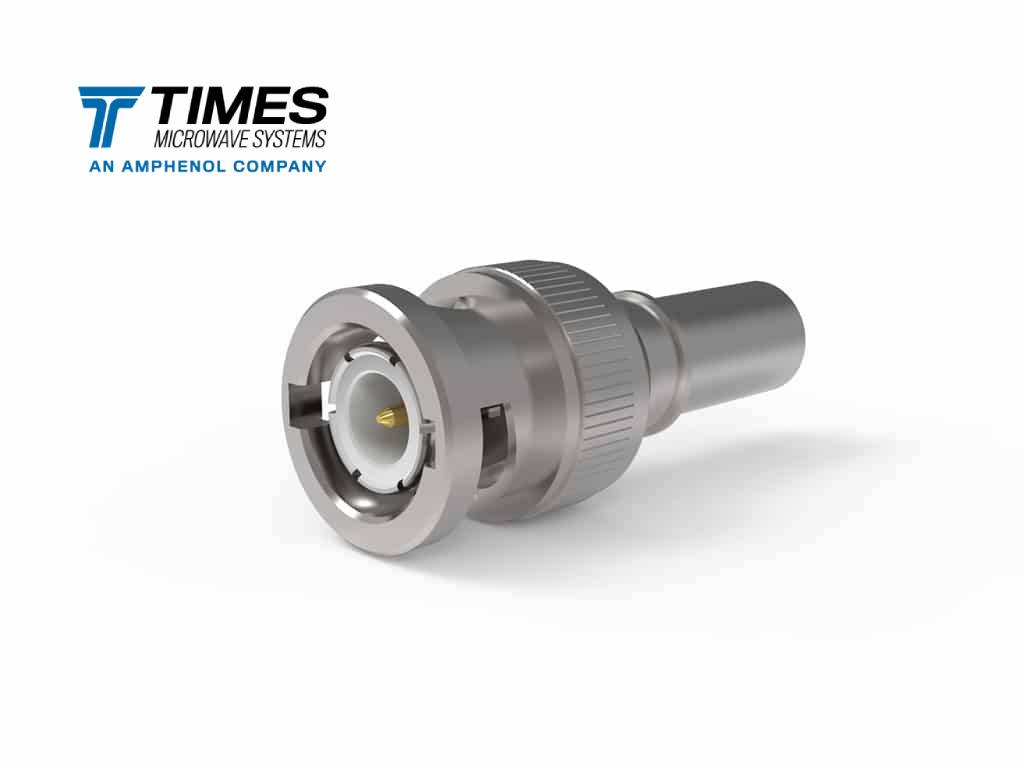

    BNC

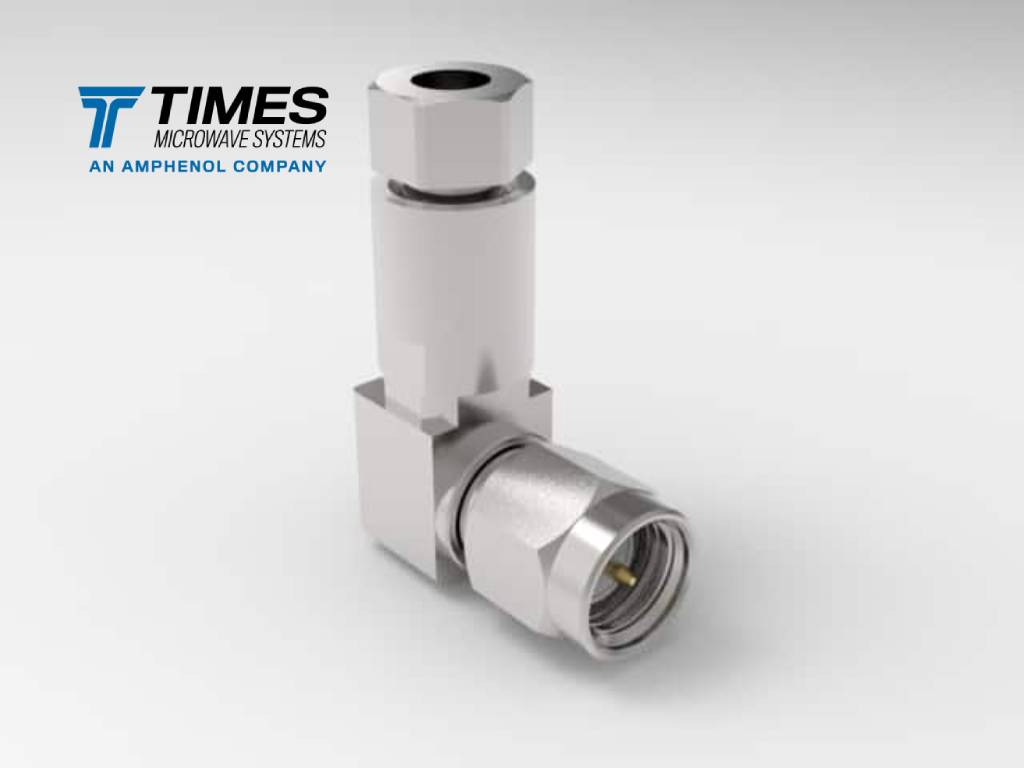

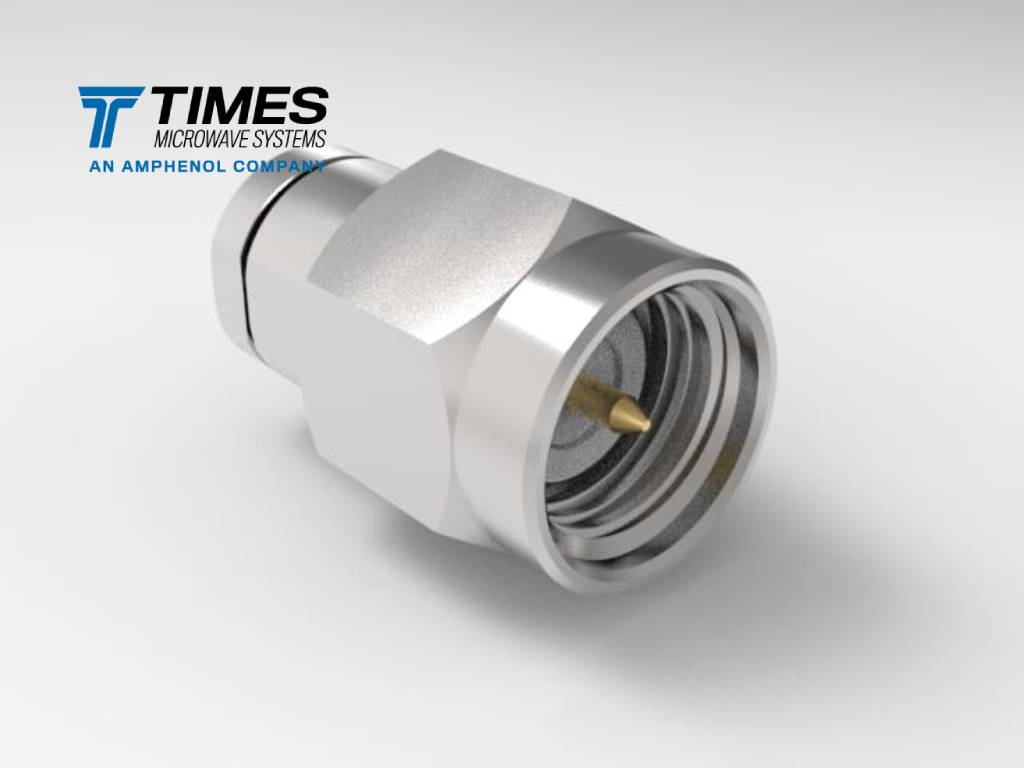

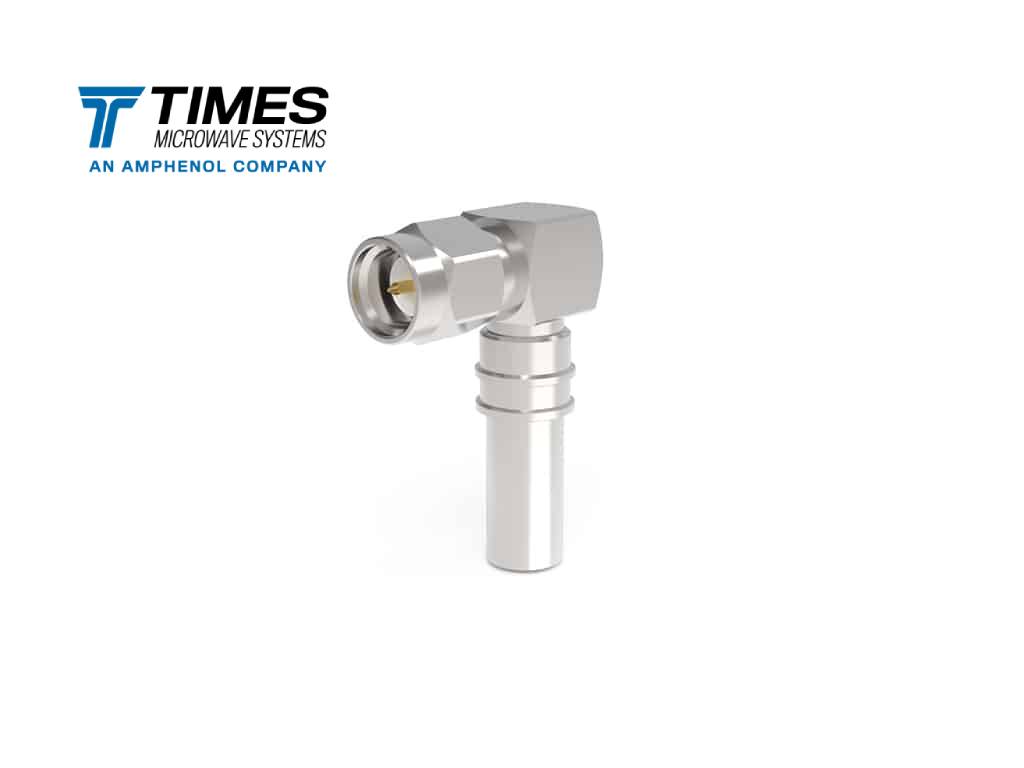

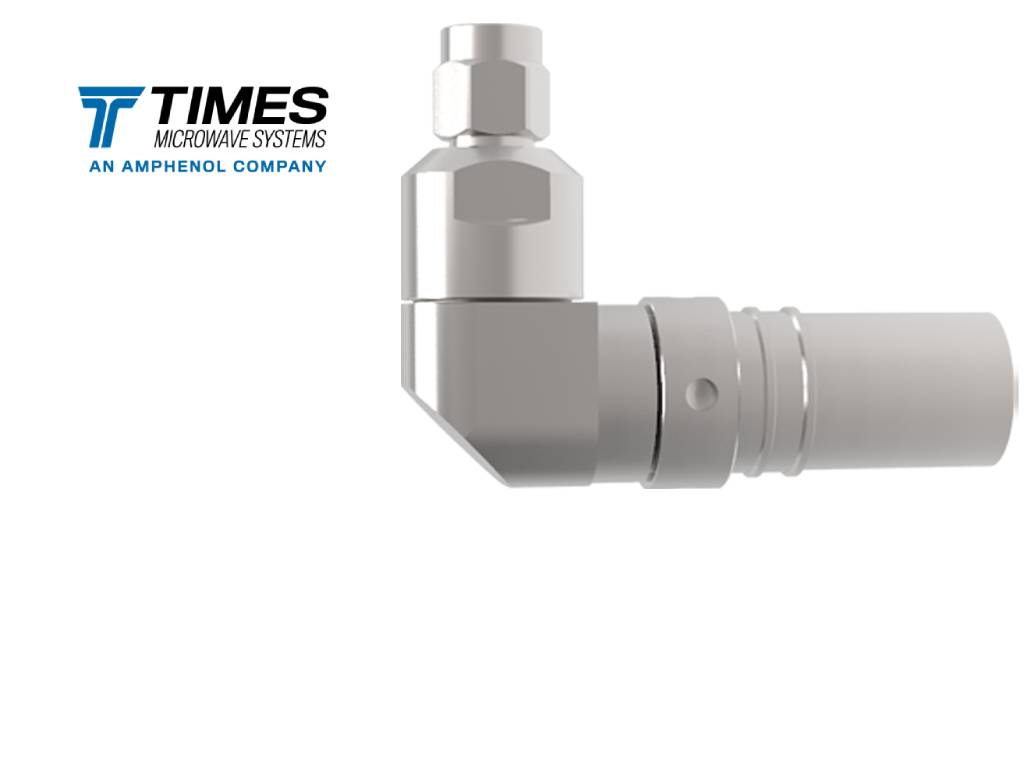

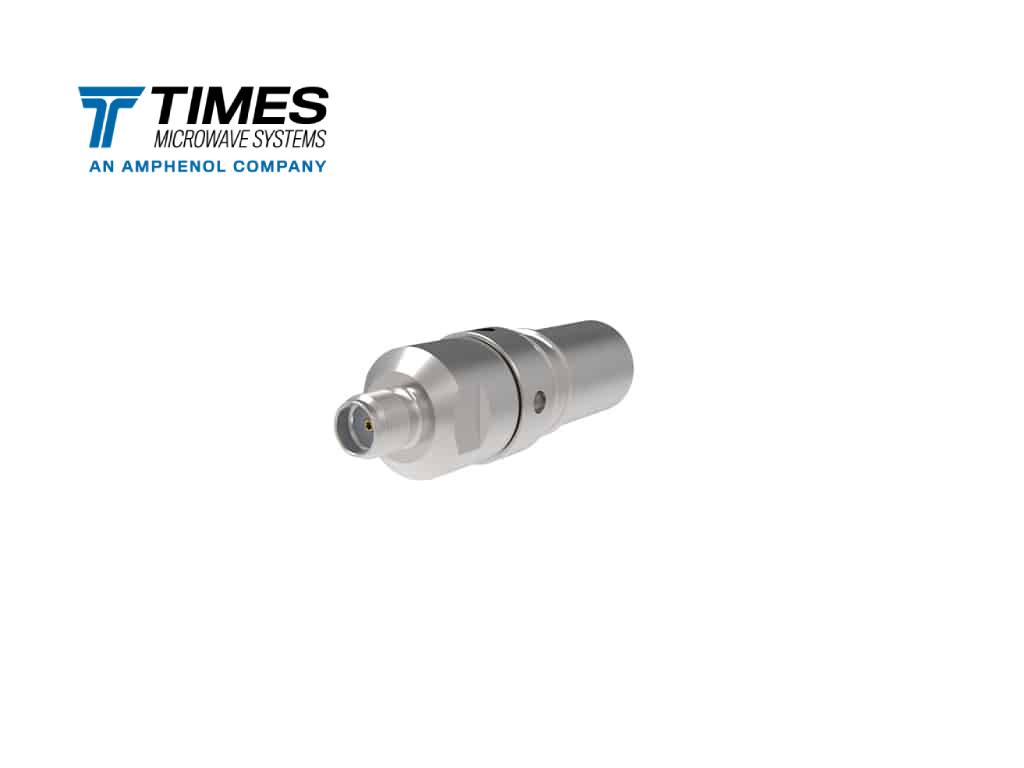

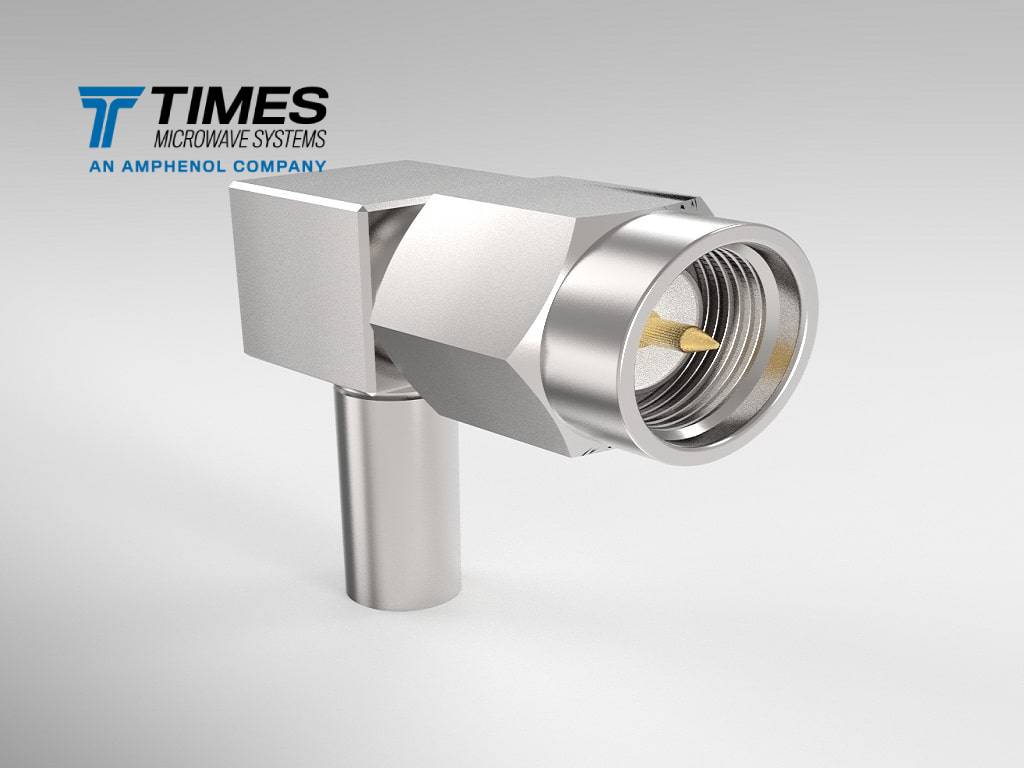

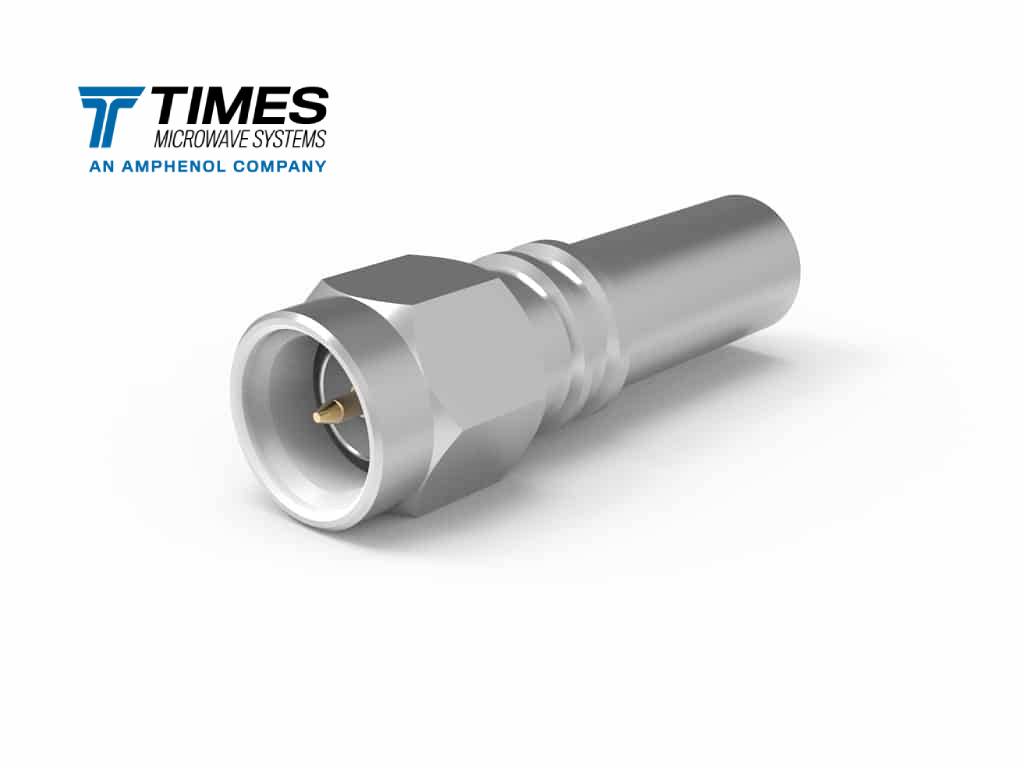

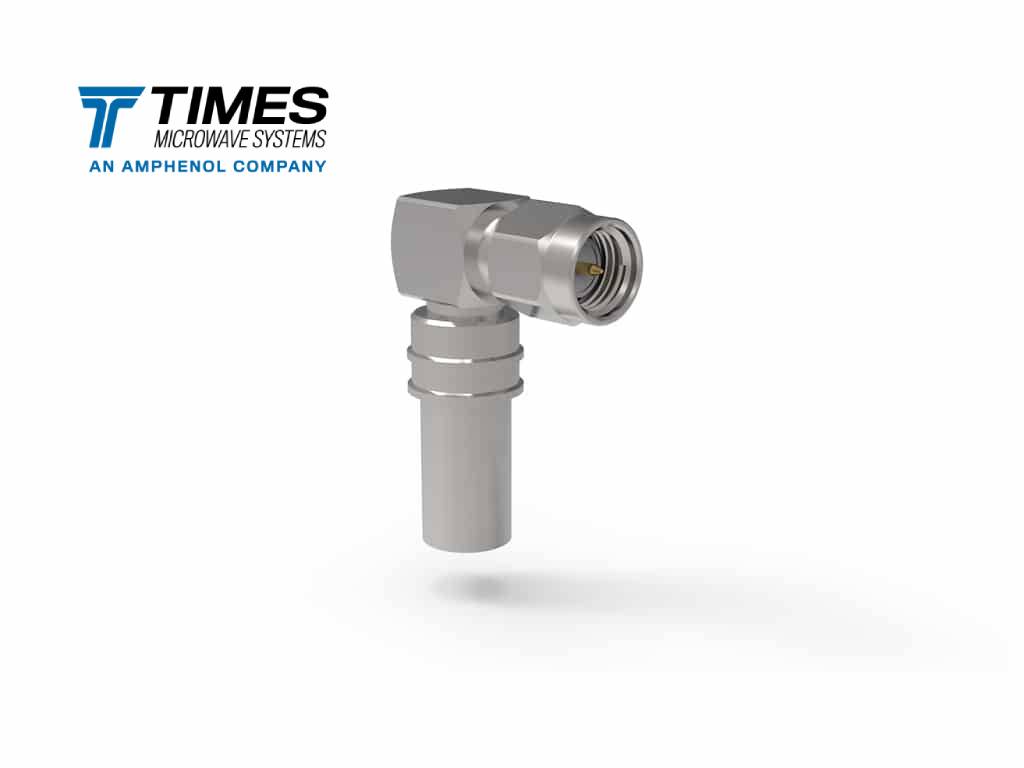

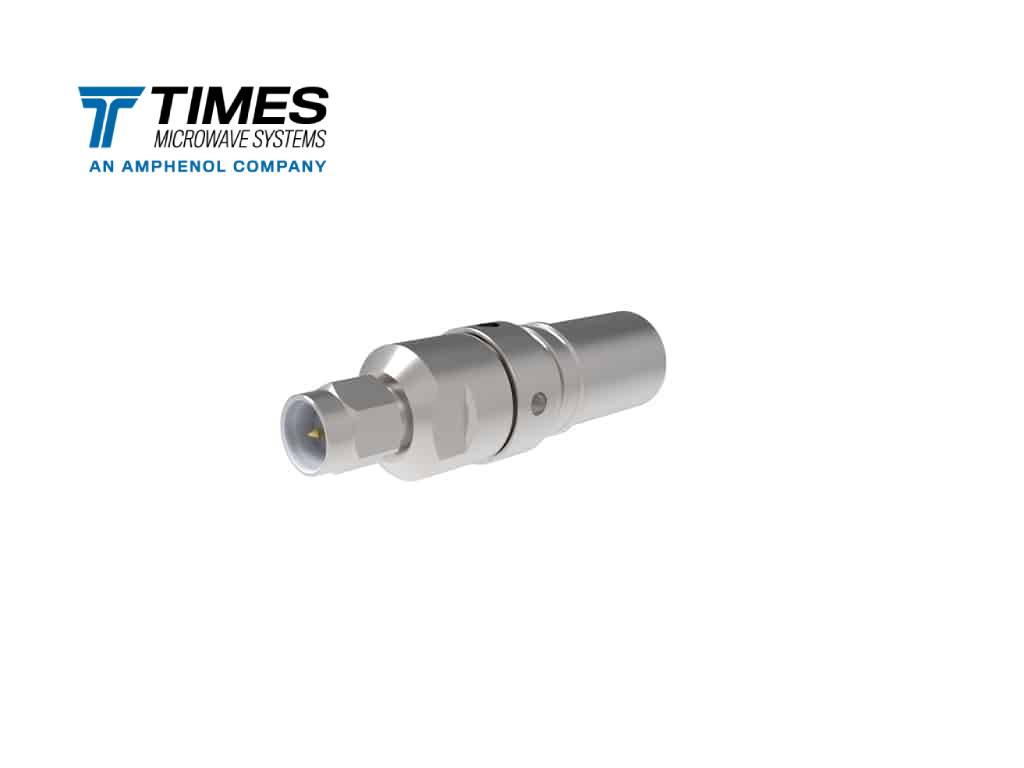

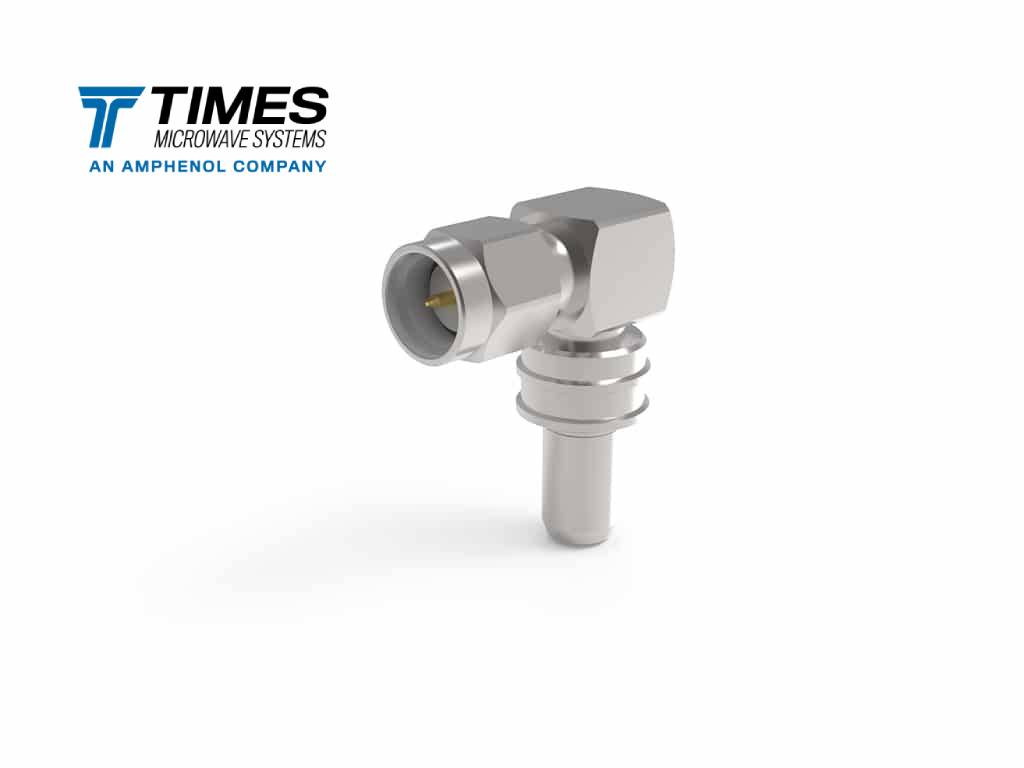

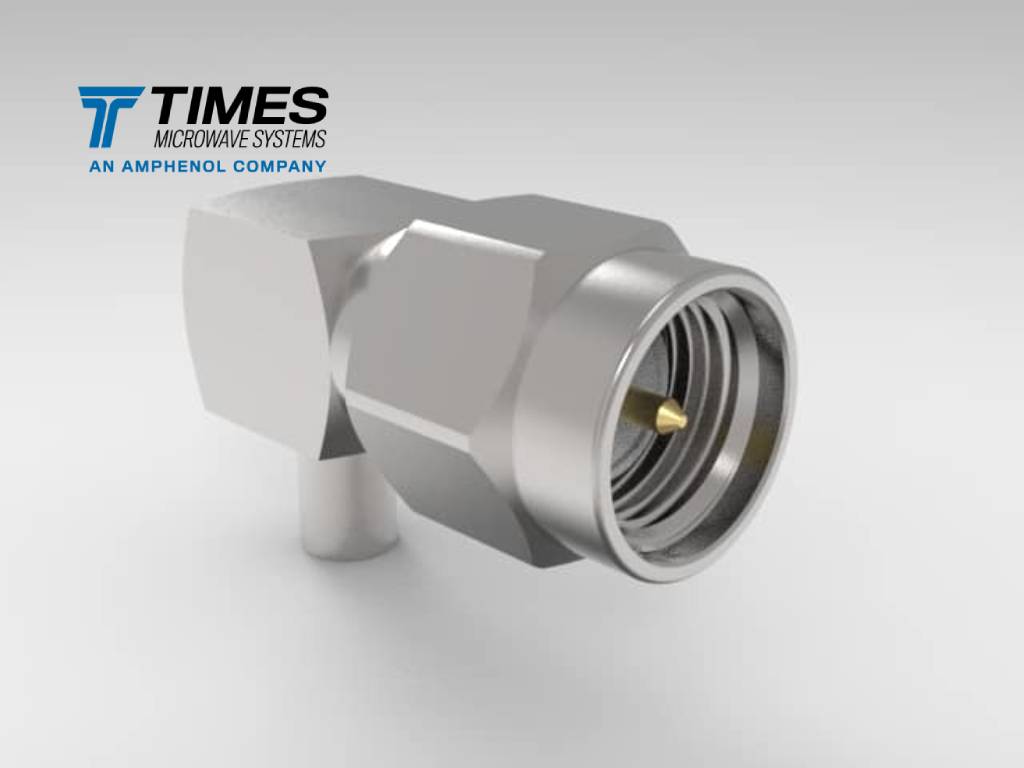

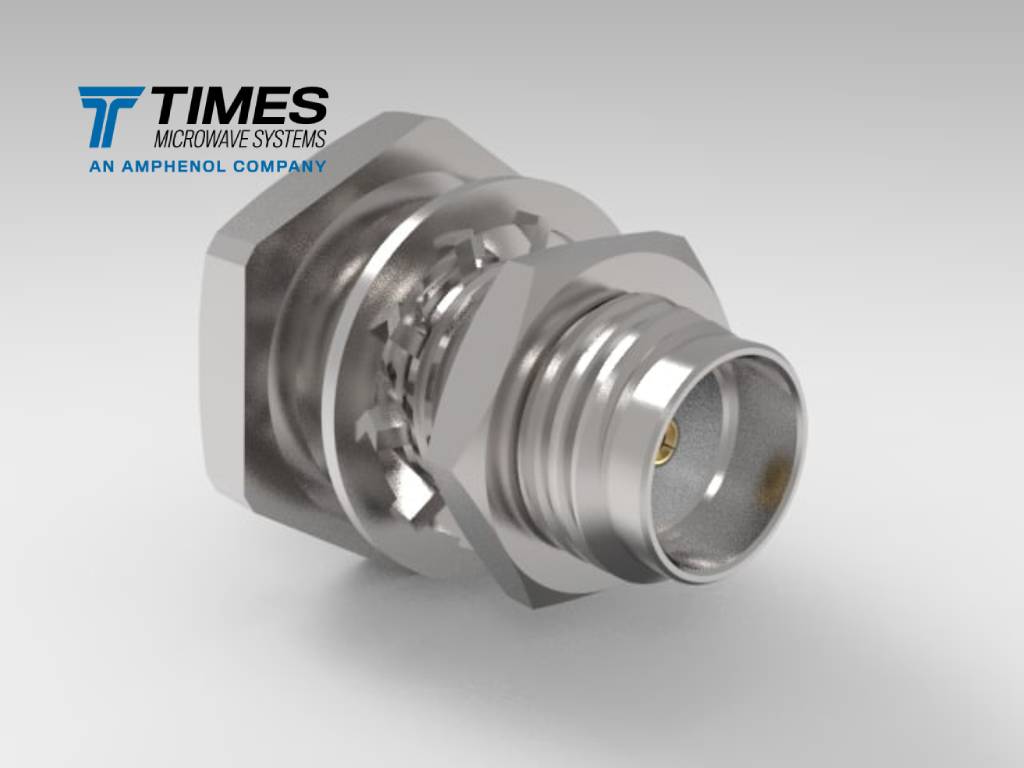

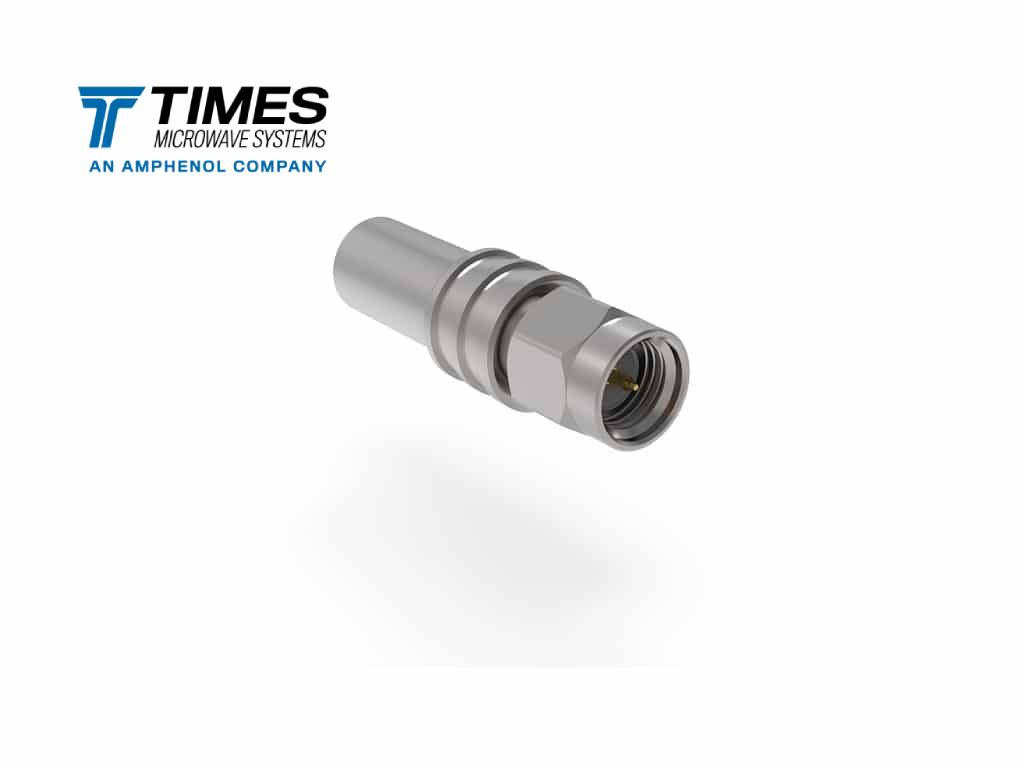

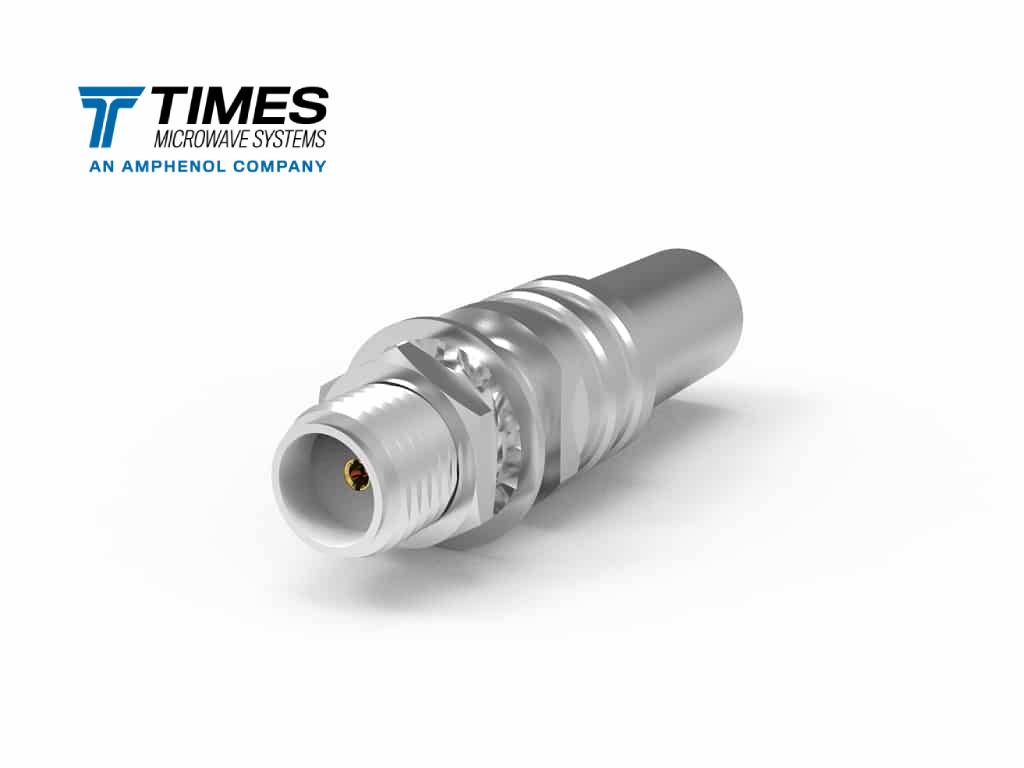

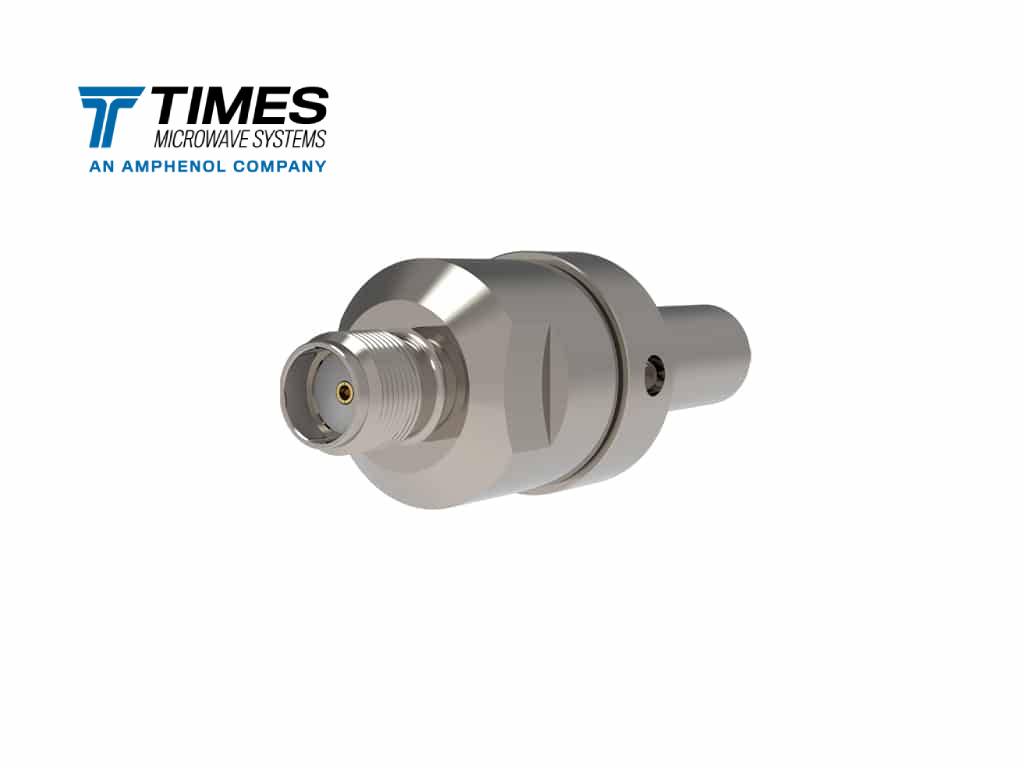

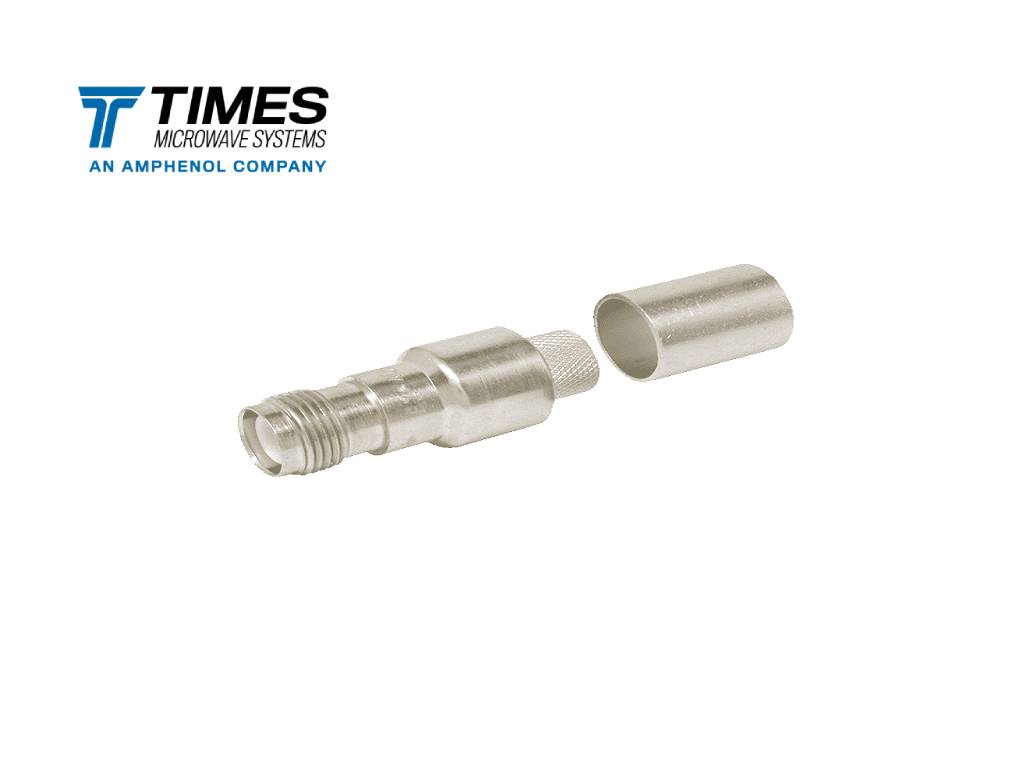

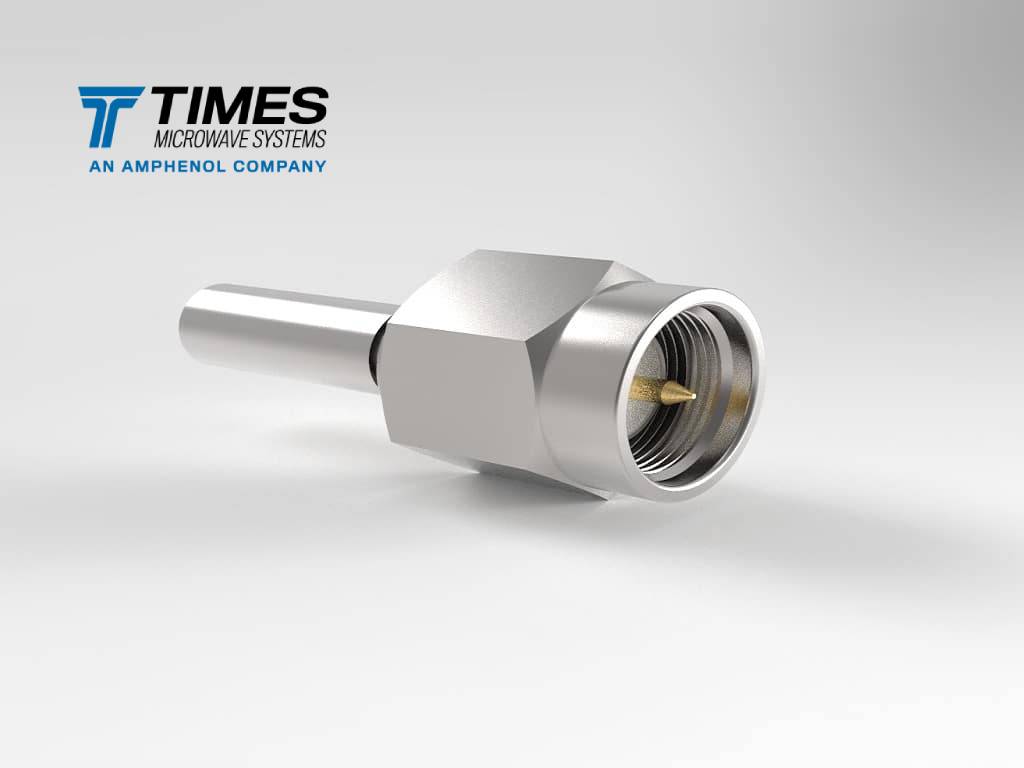

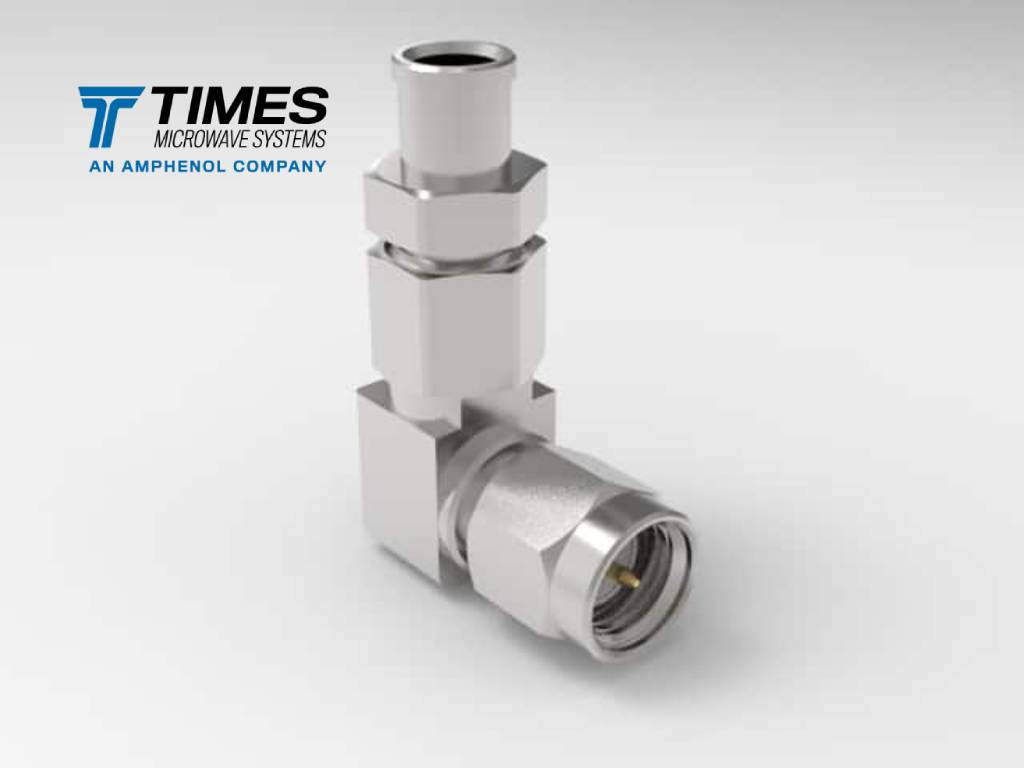

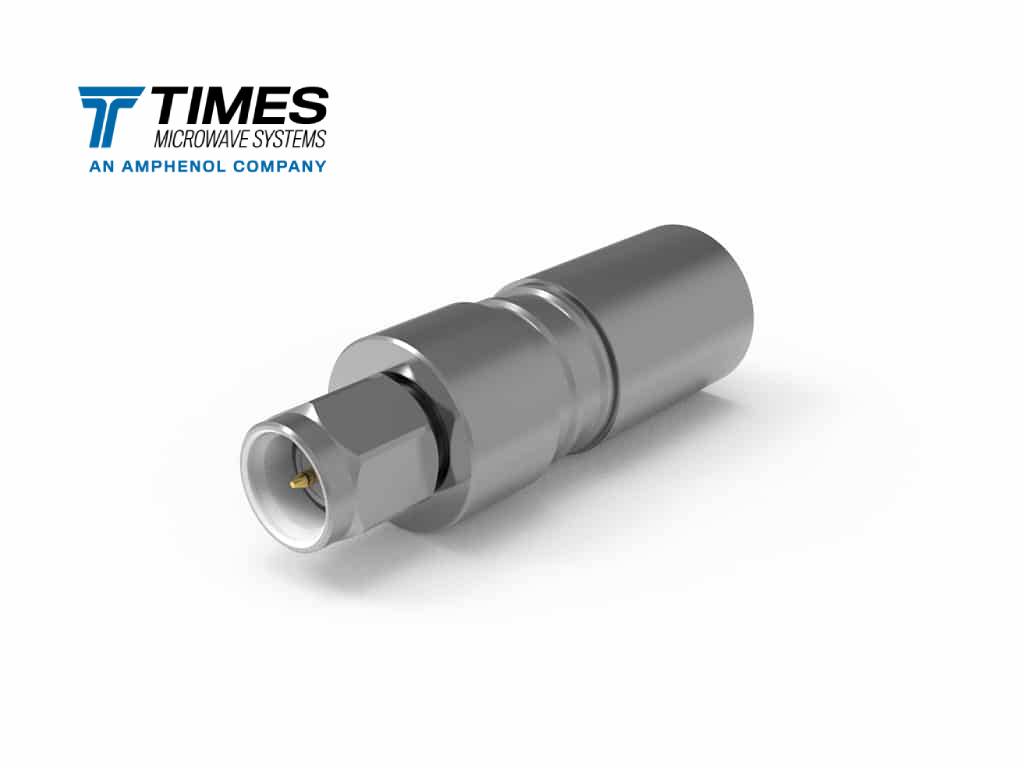

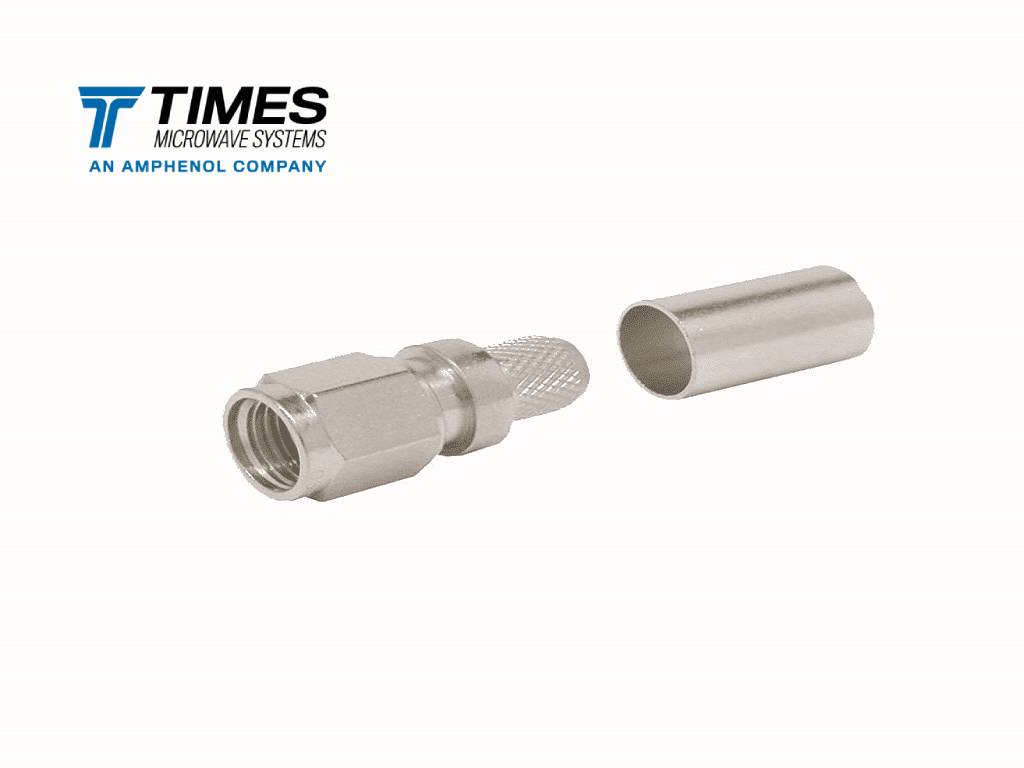

      SMA

      SMA connectors are a lightweight, compact, high-performance coaxial RF connectors designed with a threaded coupling.

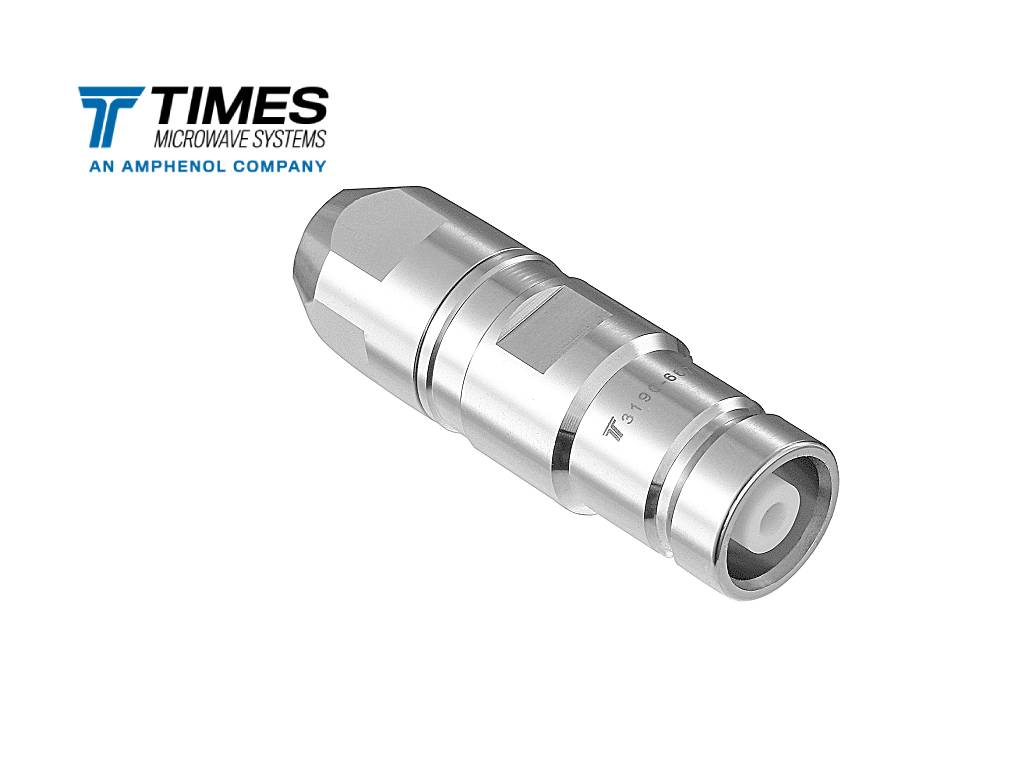

        TMQ4 TMQ5

        TMQ4/TMQ5 bundled solutions incorporate multiple RF ports and significantly reduce the number of cables that need to be hooked up and have an error proof keyed connection. The TMQ4/TMQ5 bundled solutions offer improved ruggedization with an IP67 weather seal and no need to torque wrench each individual connection.

          mini-UHF

          The Mini-UHF connectors are a miniature UHF 3/8-24 thread size, with excellent RF performance for applications where size, weight, and cost factors are critical.

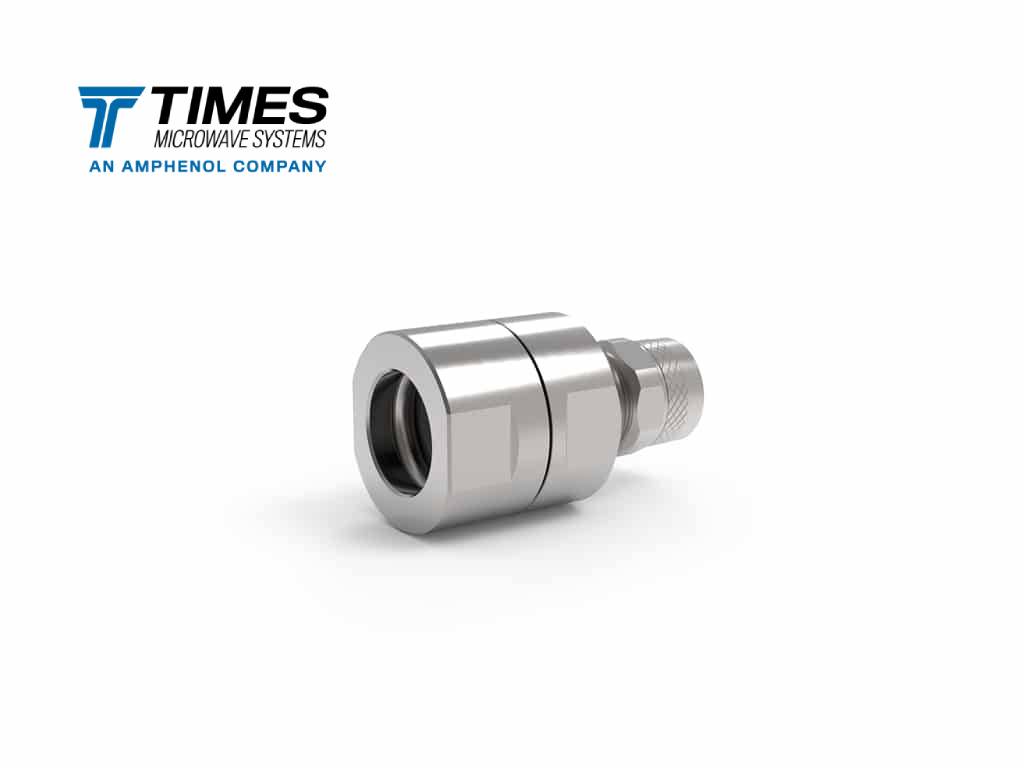

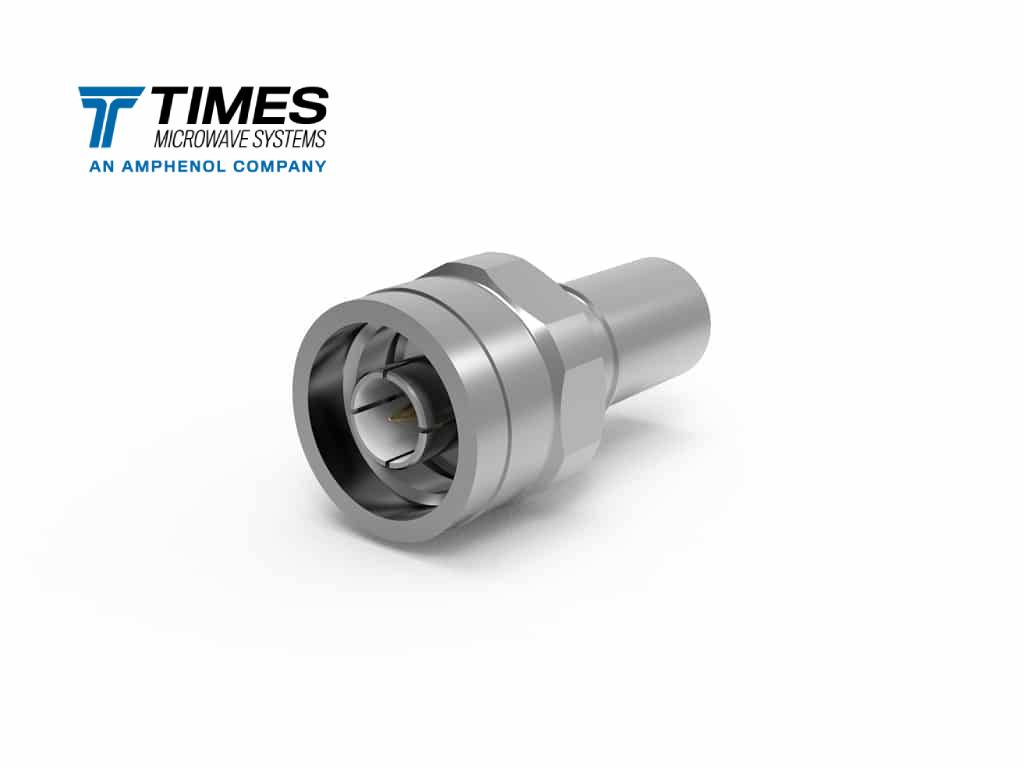

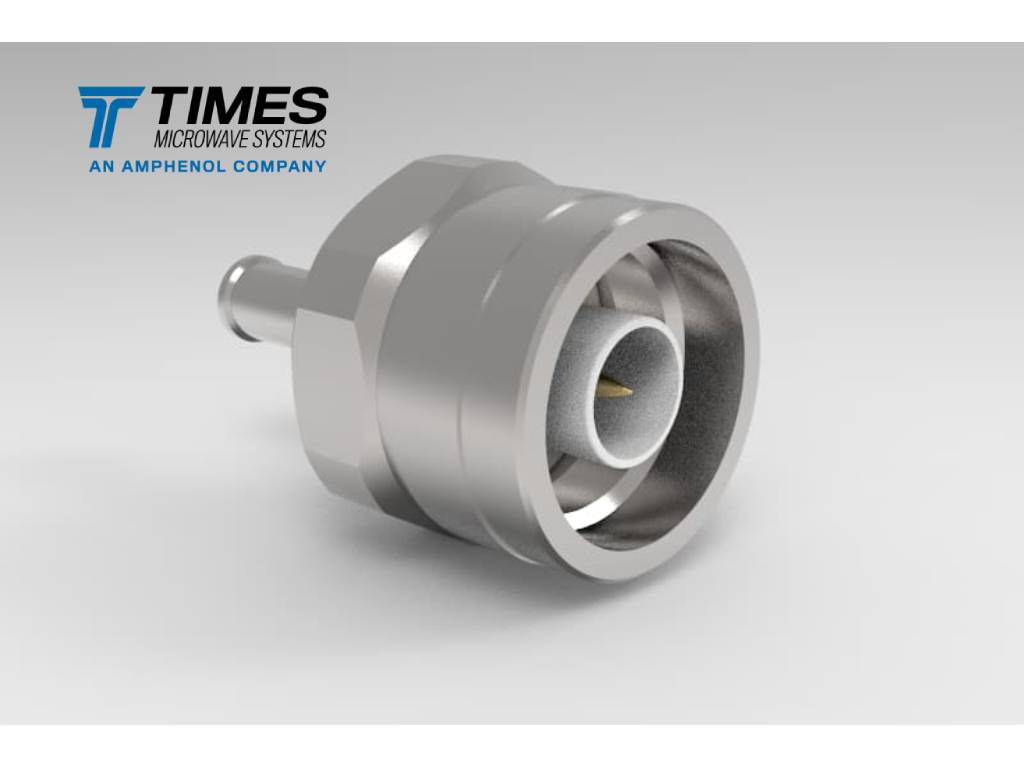

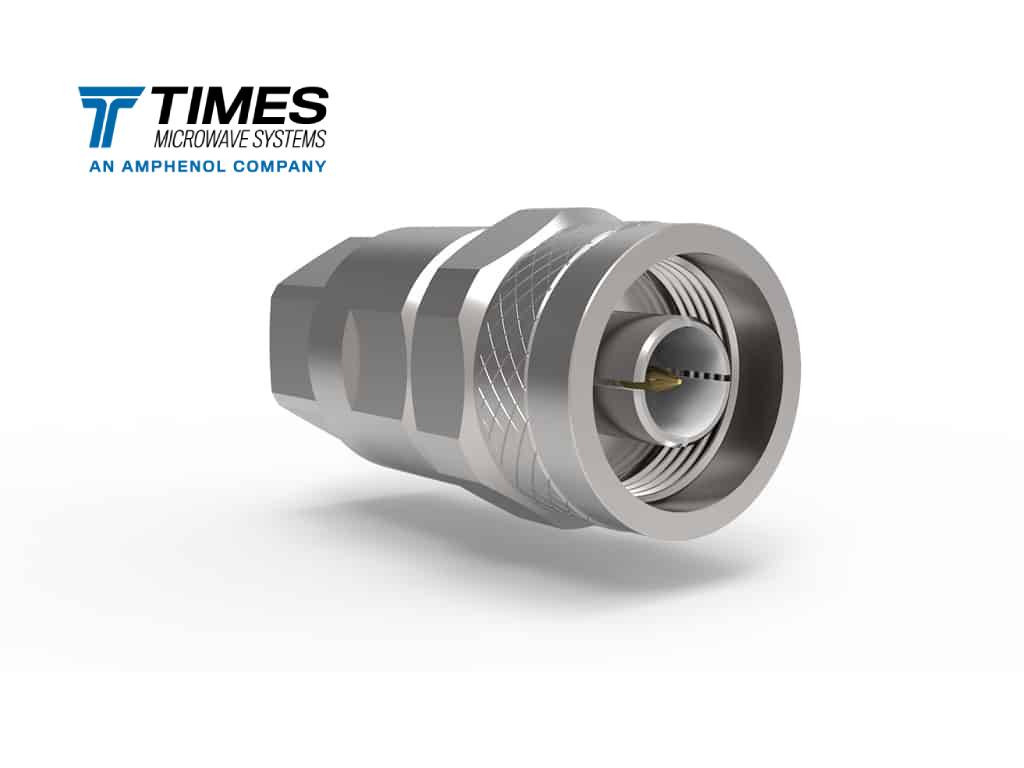

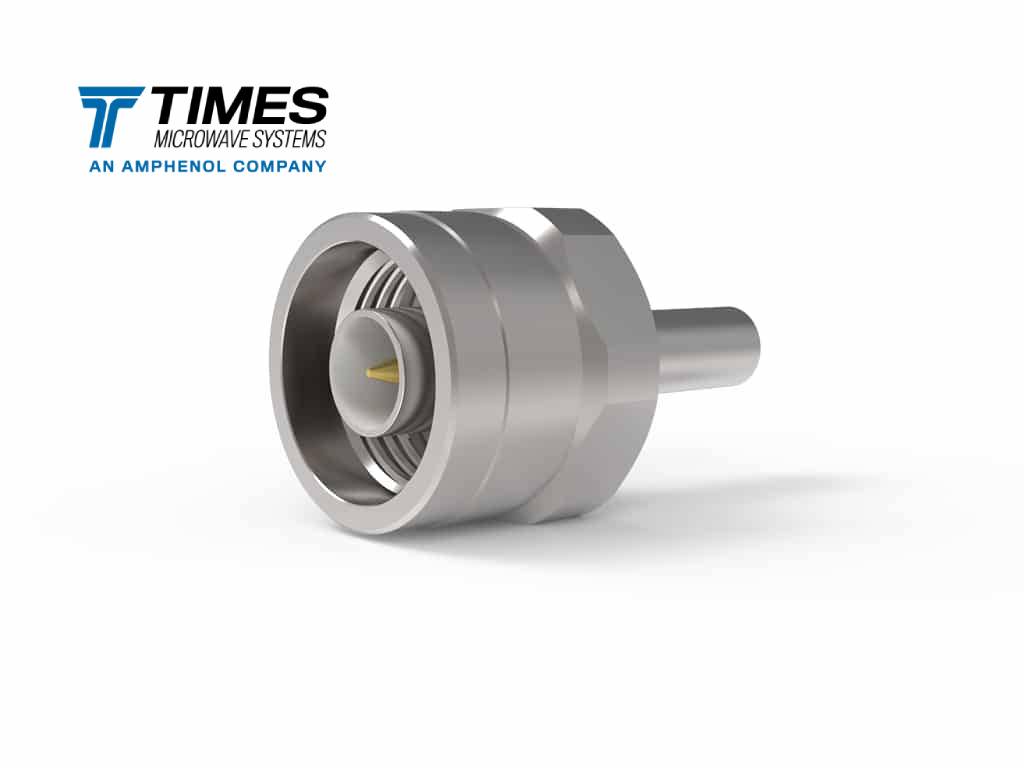

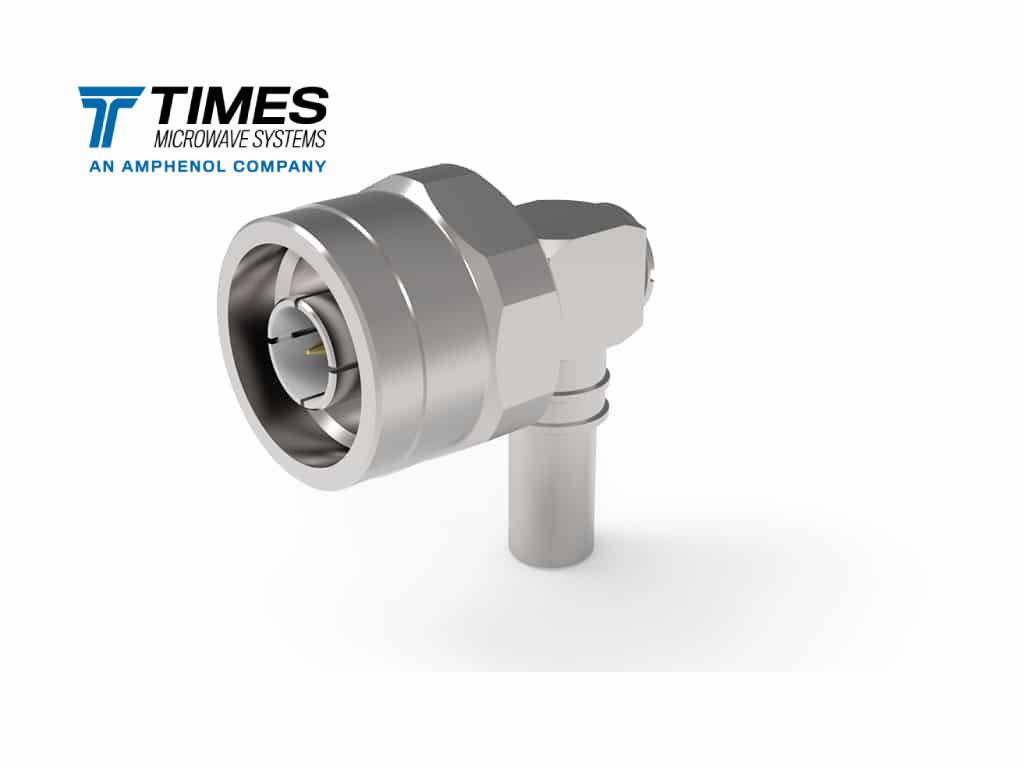

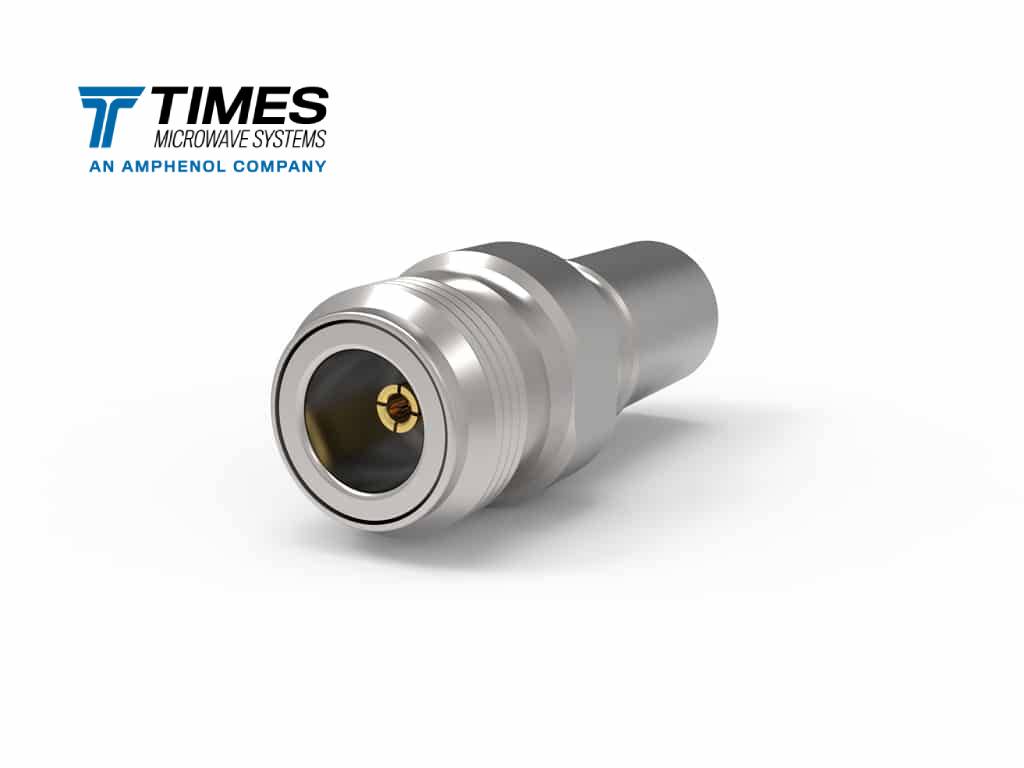

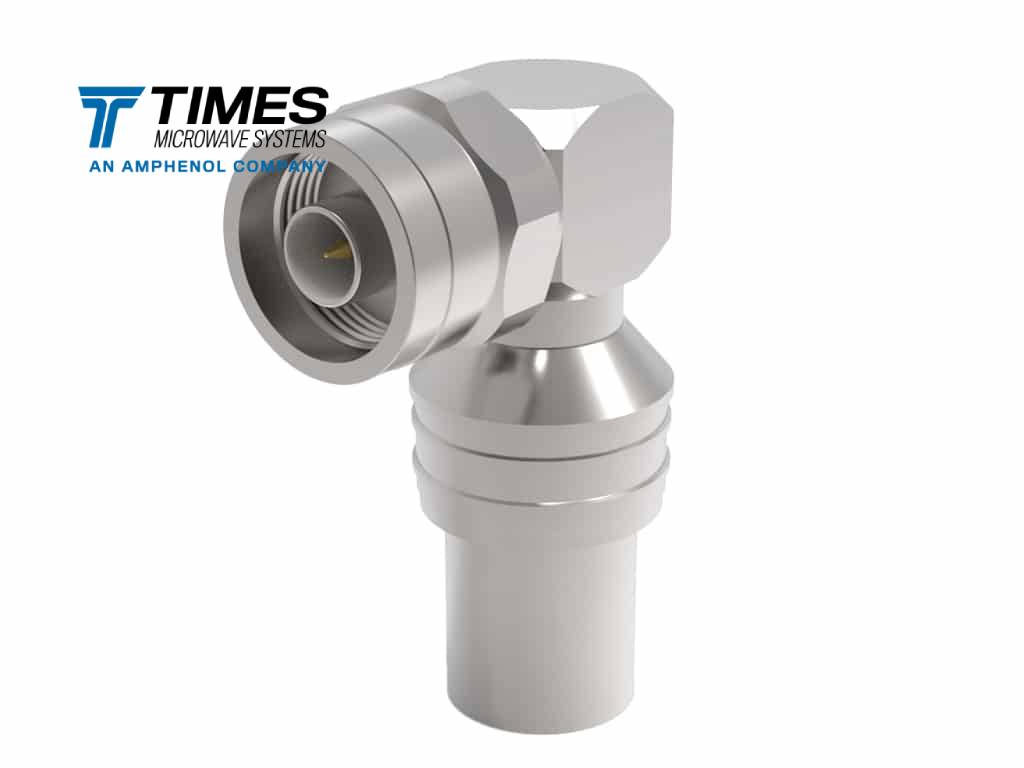

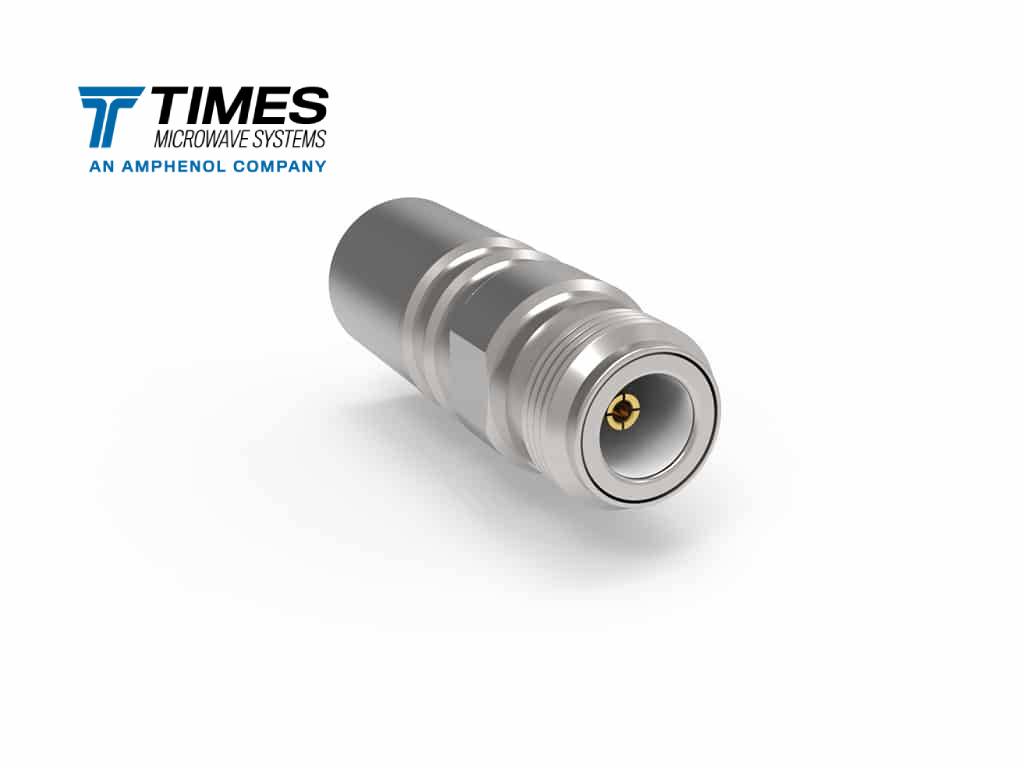

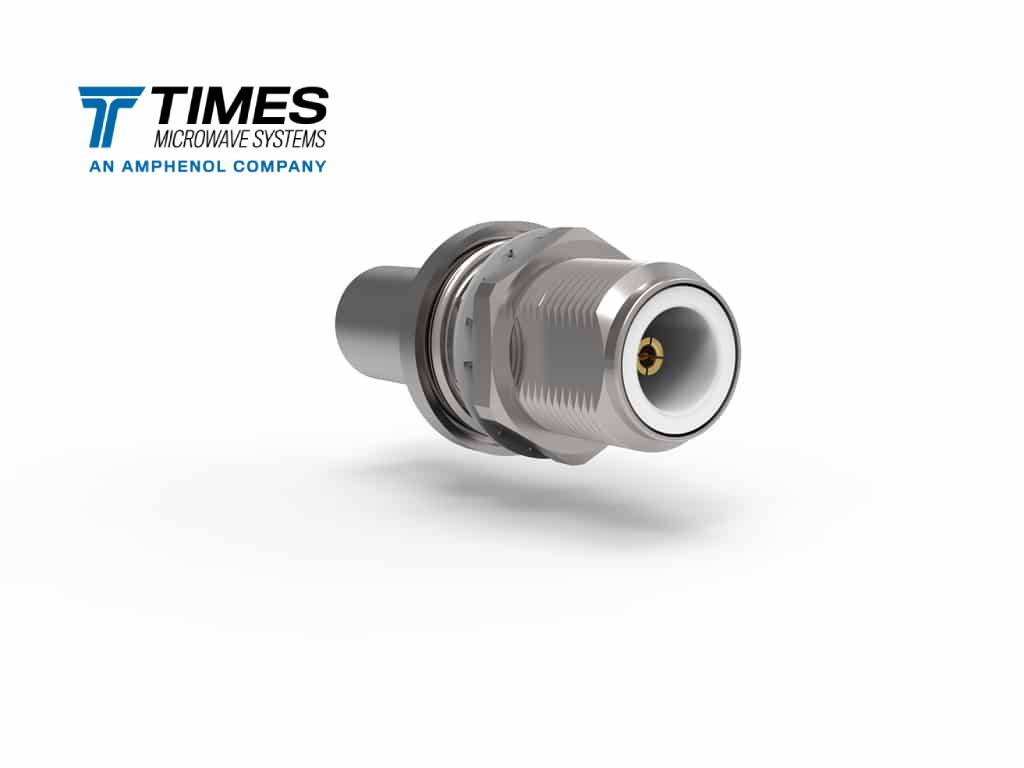

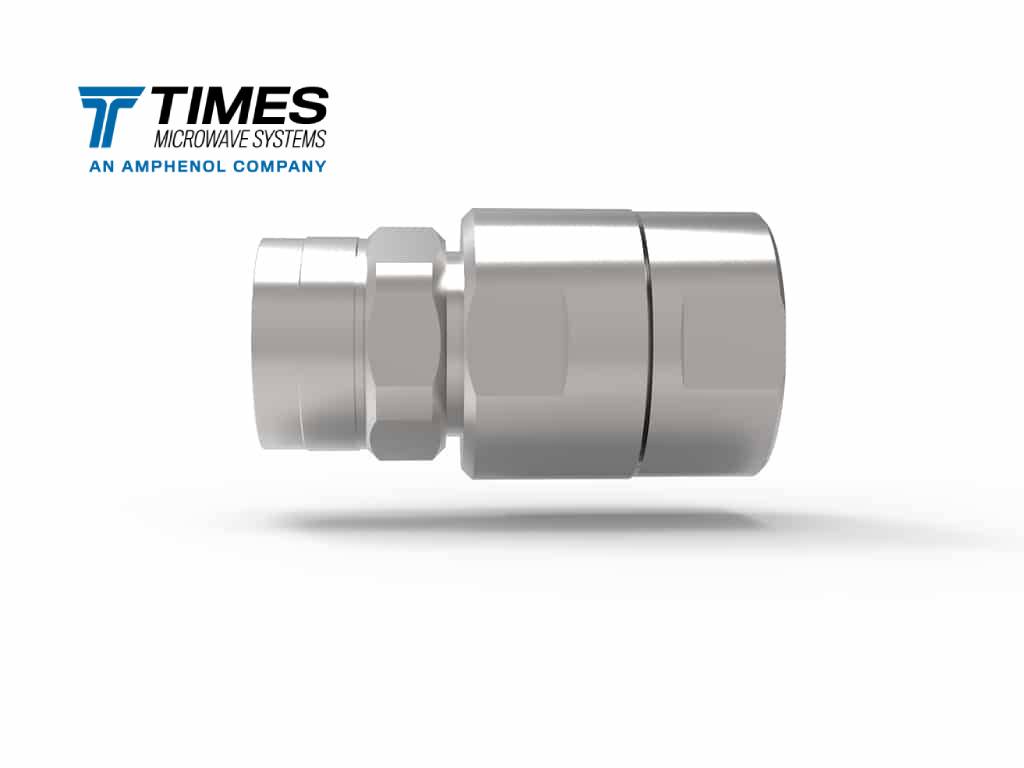

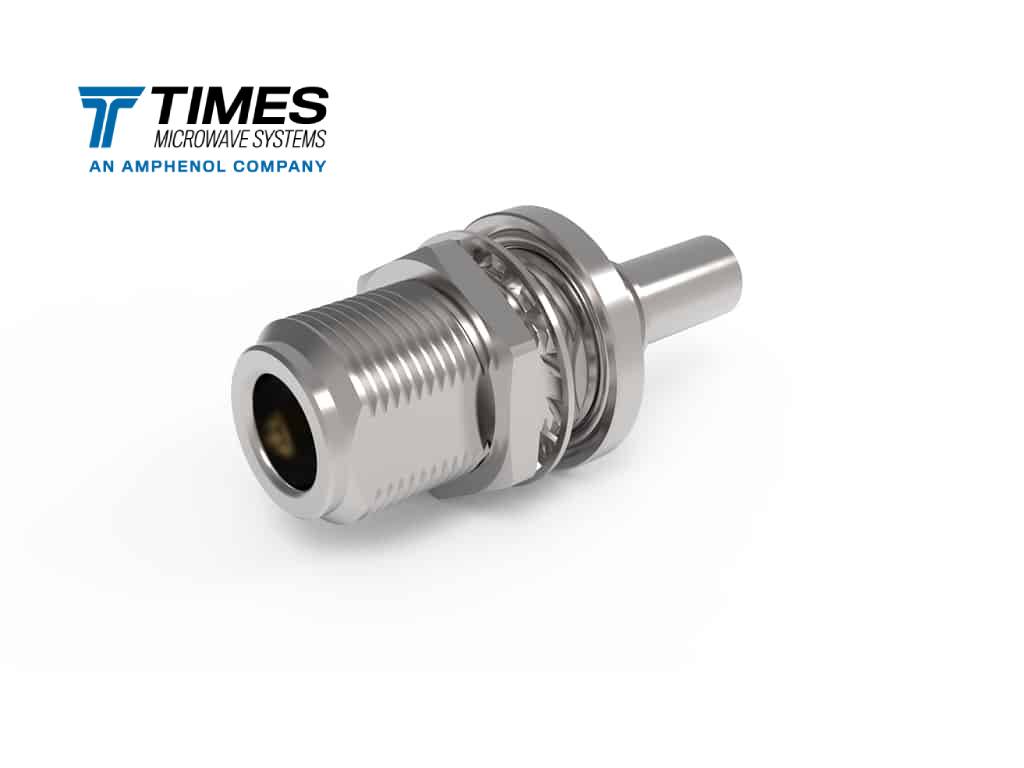

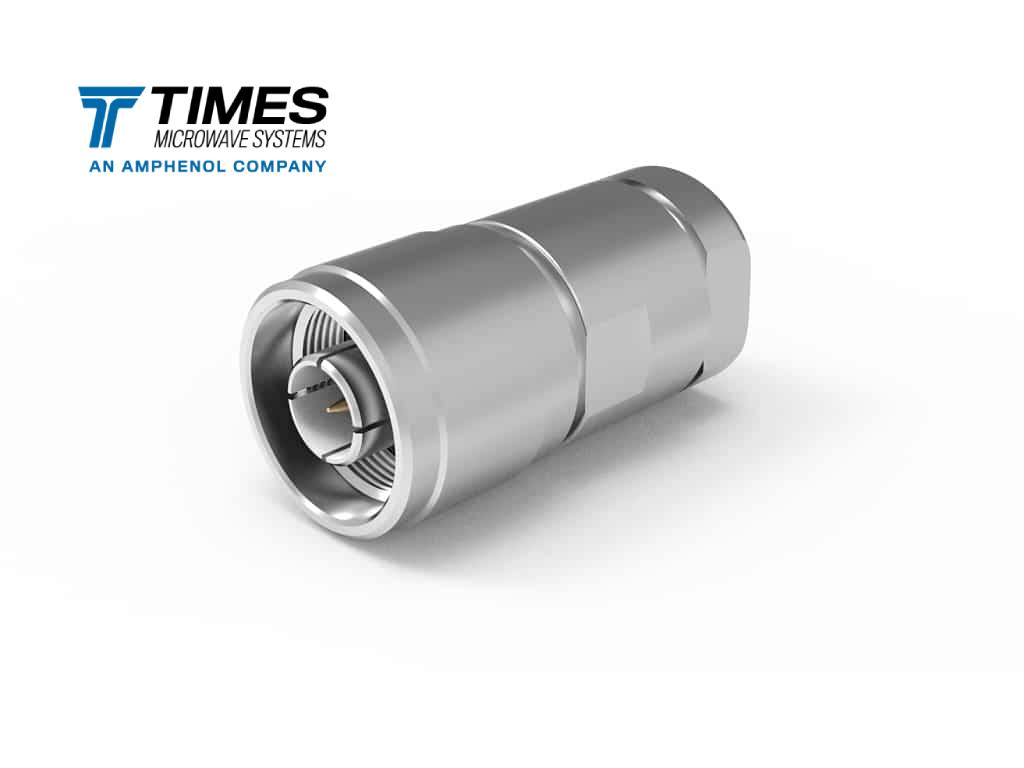

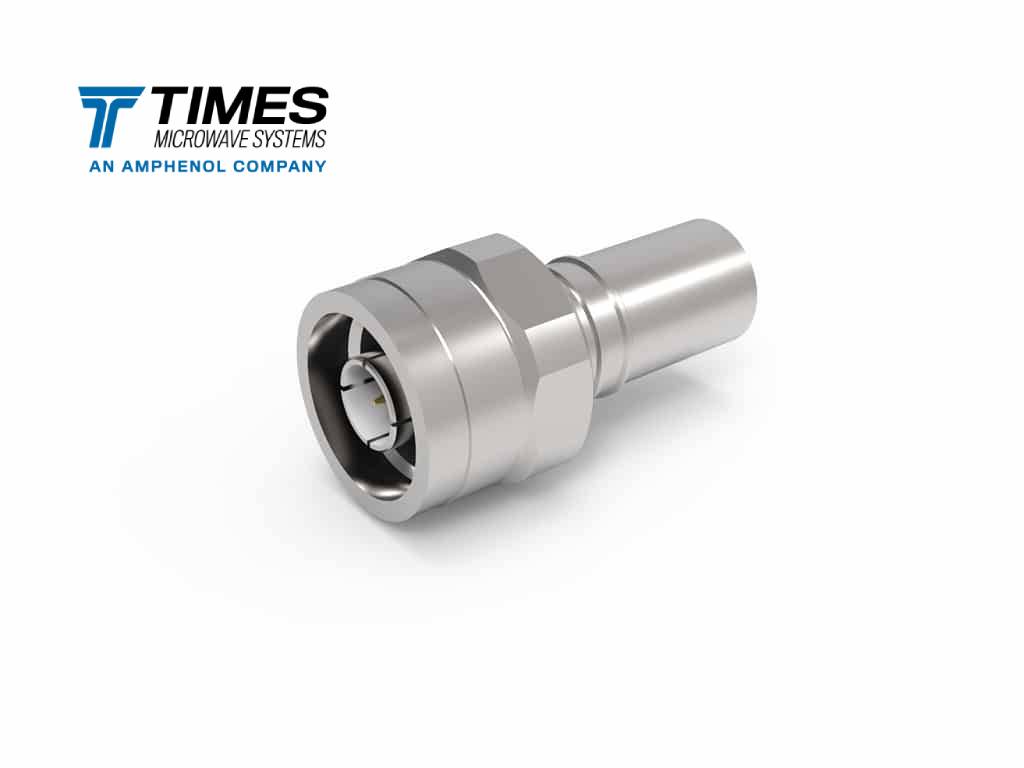

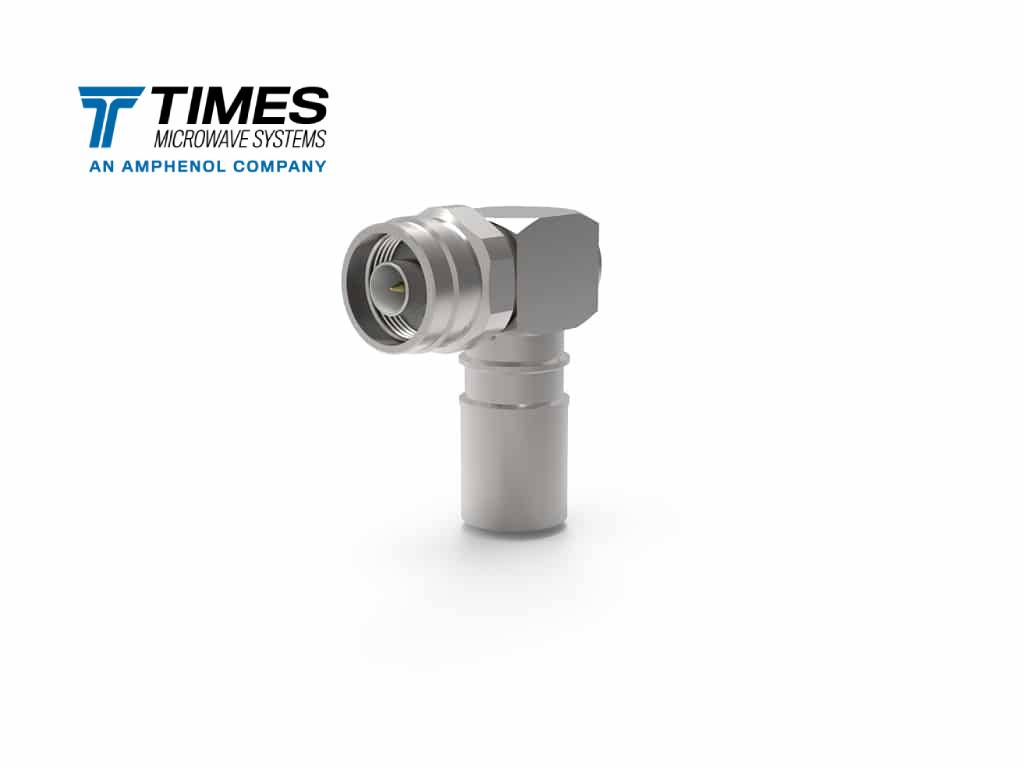

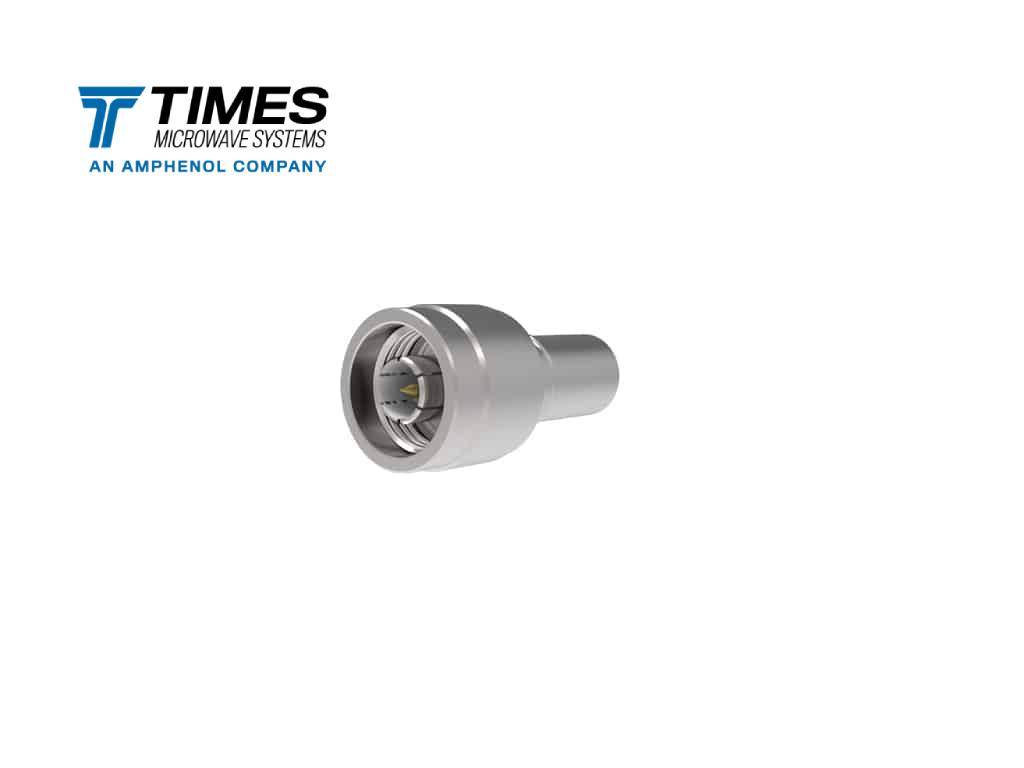

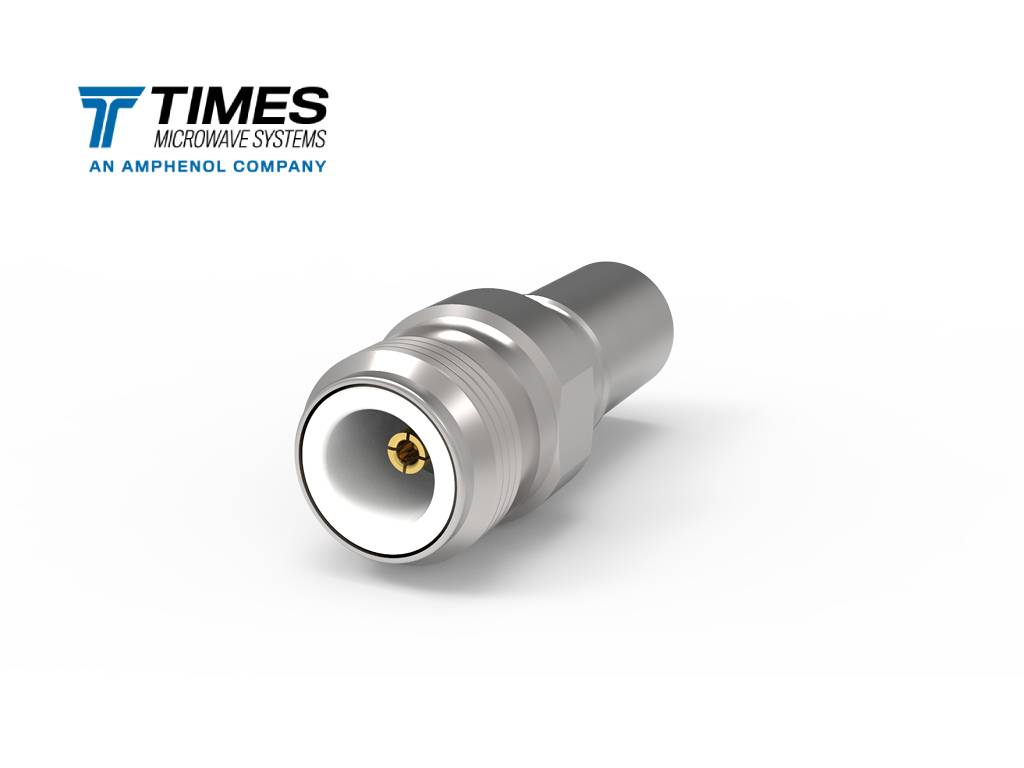

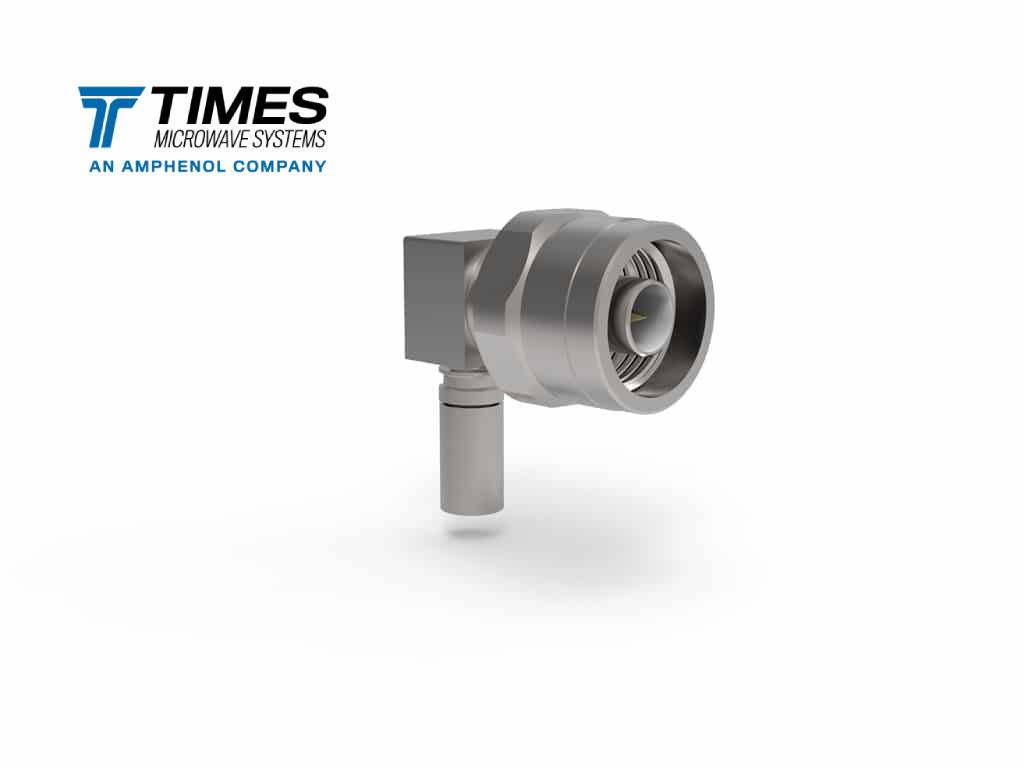

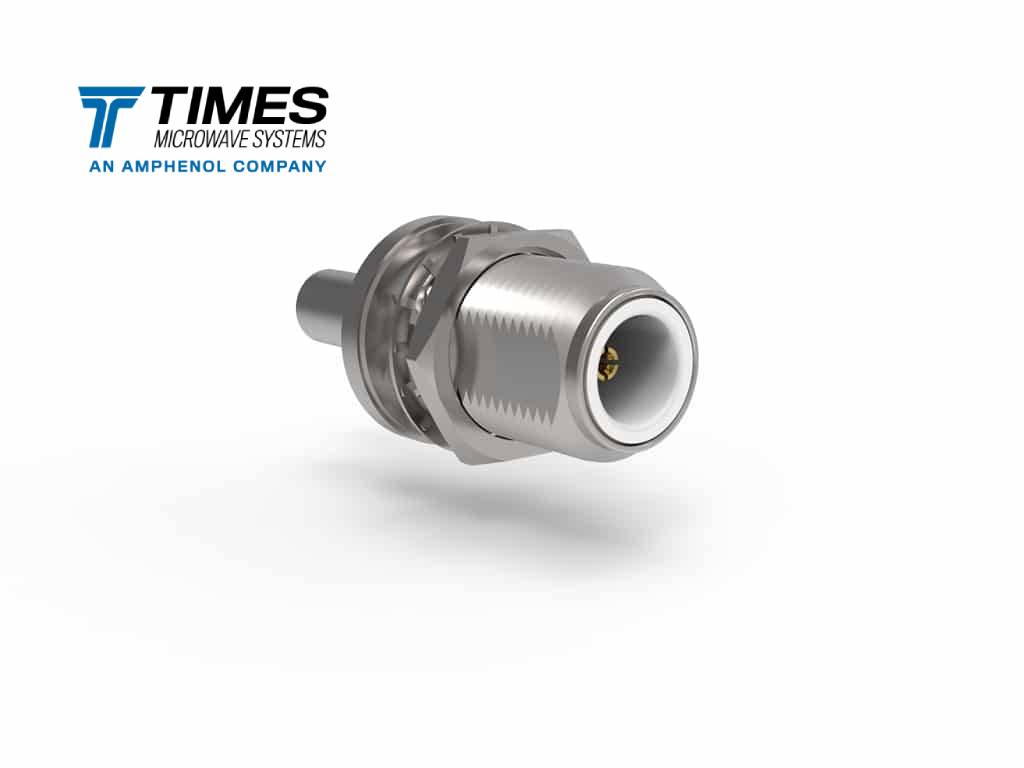

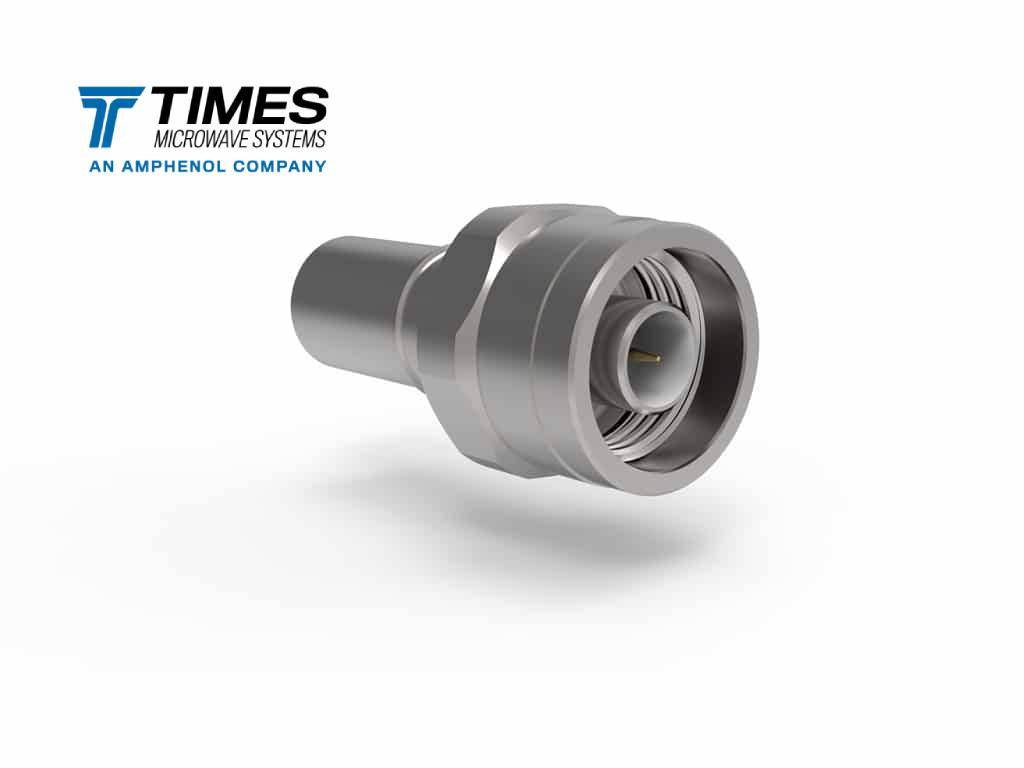

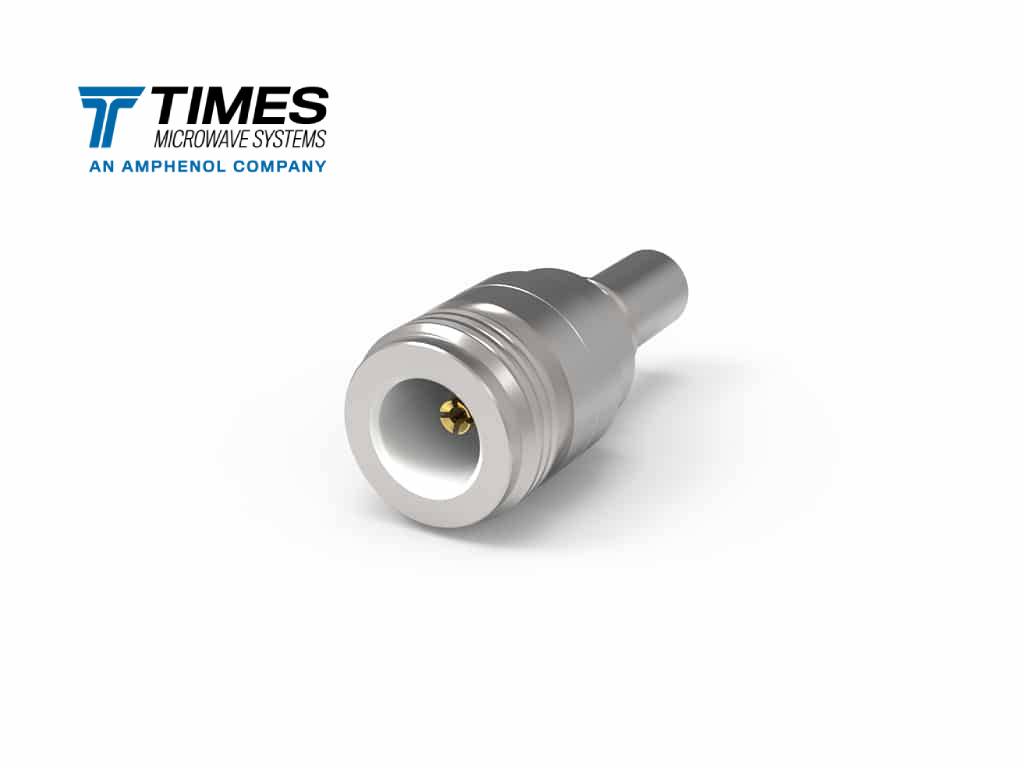

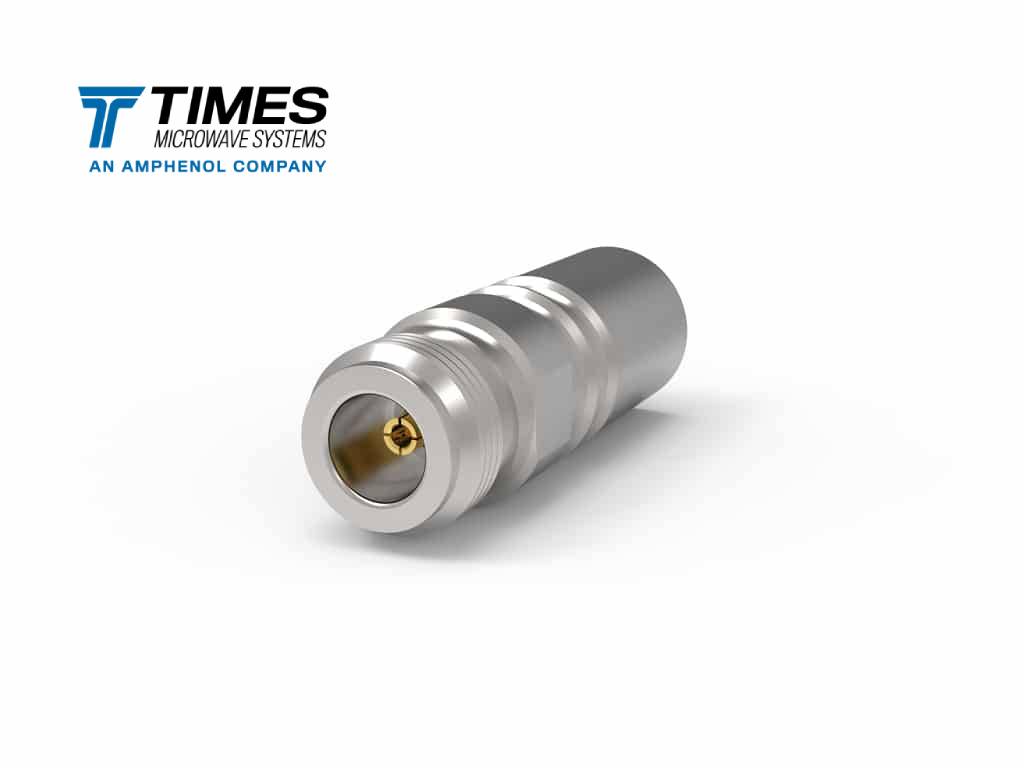

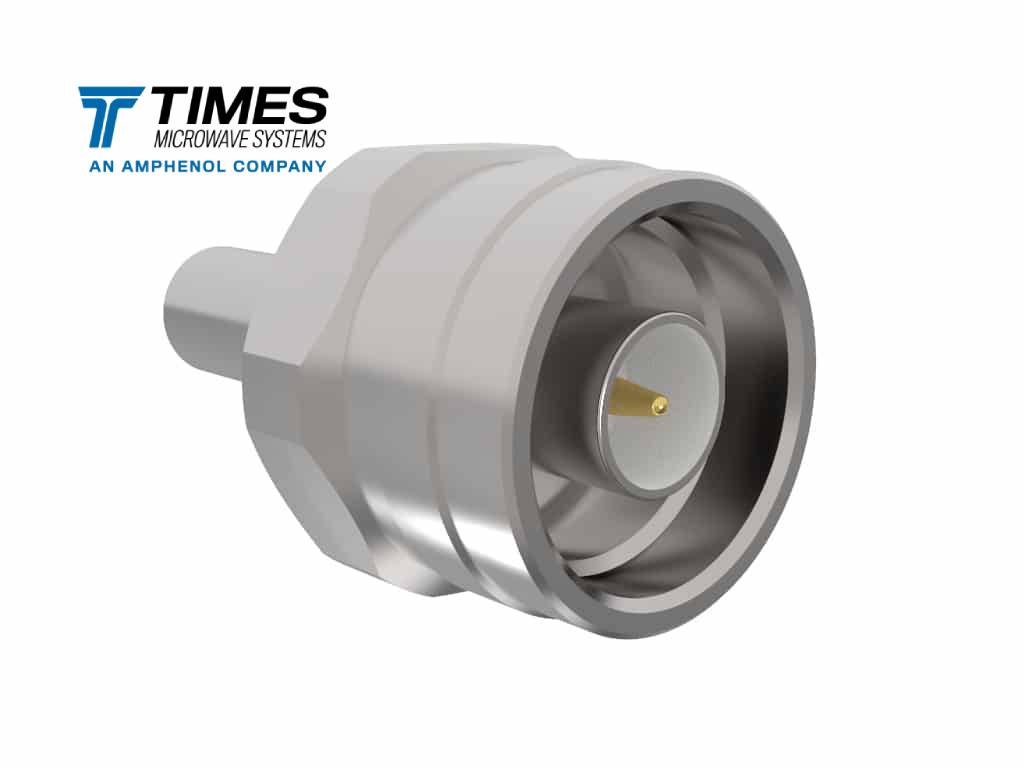

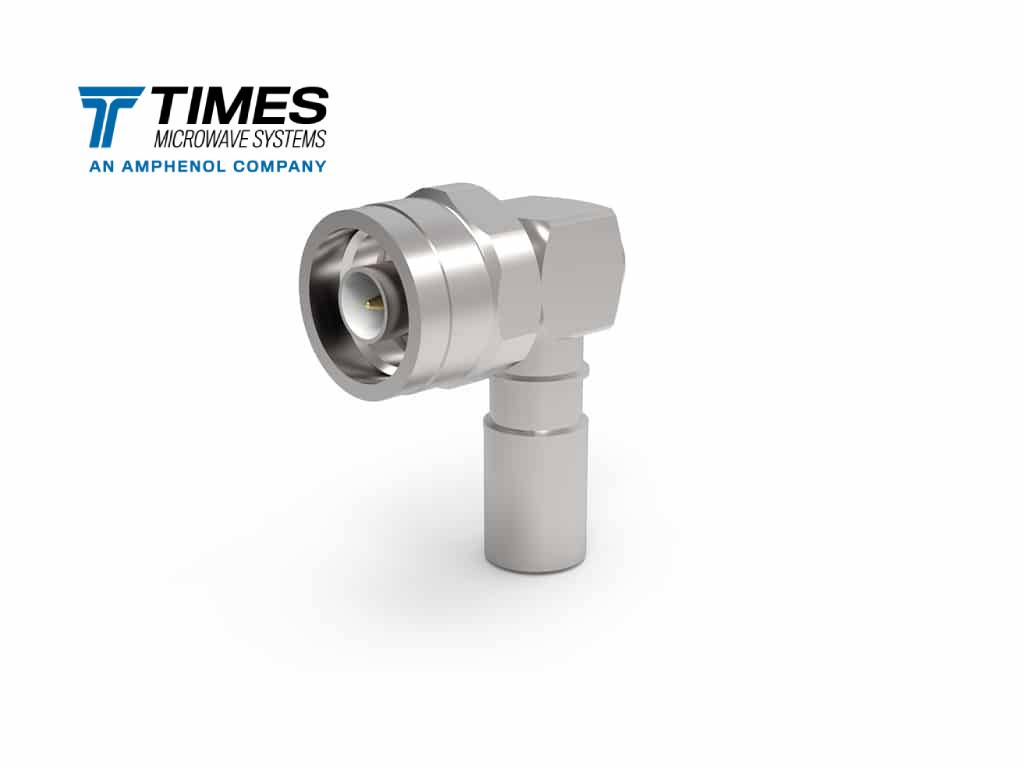

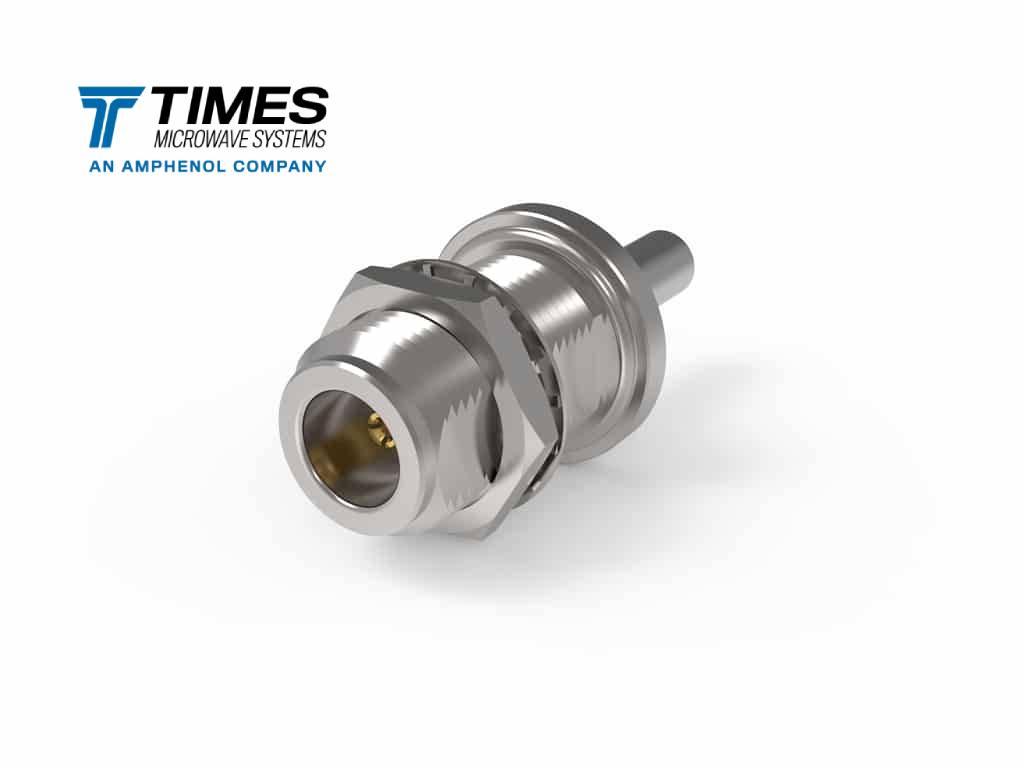

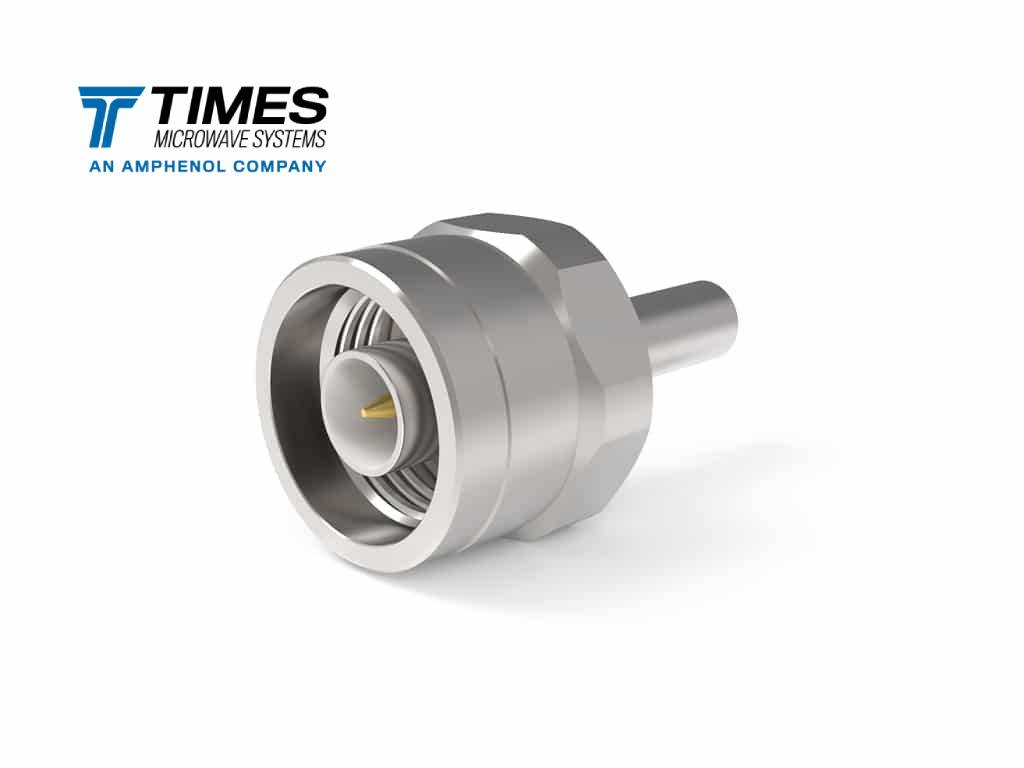

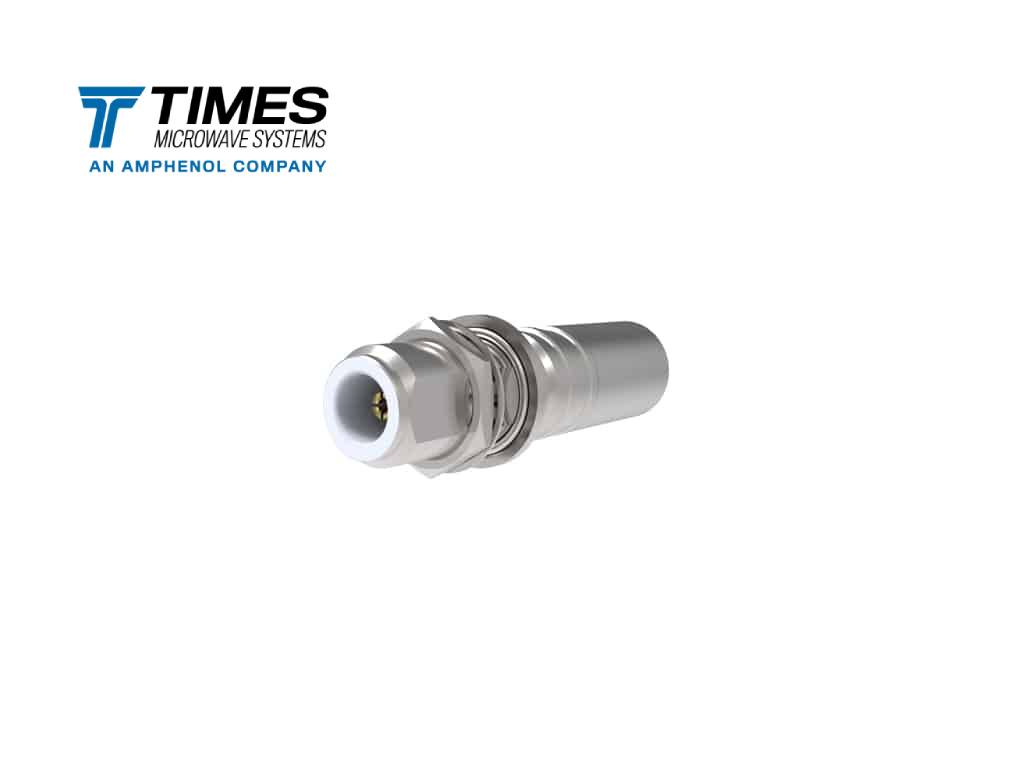

            N

            The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification.

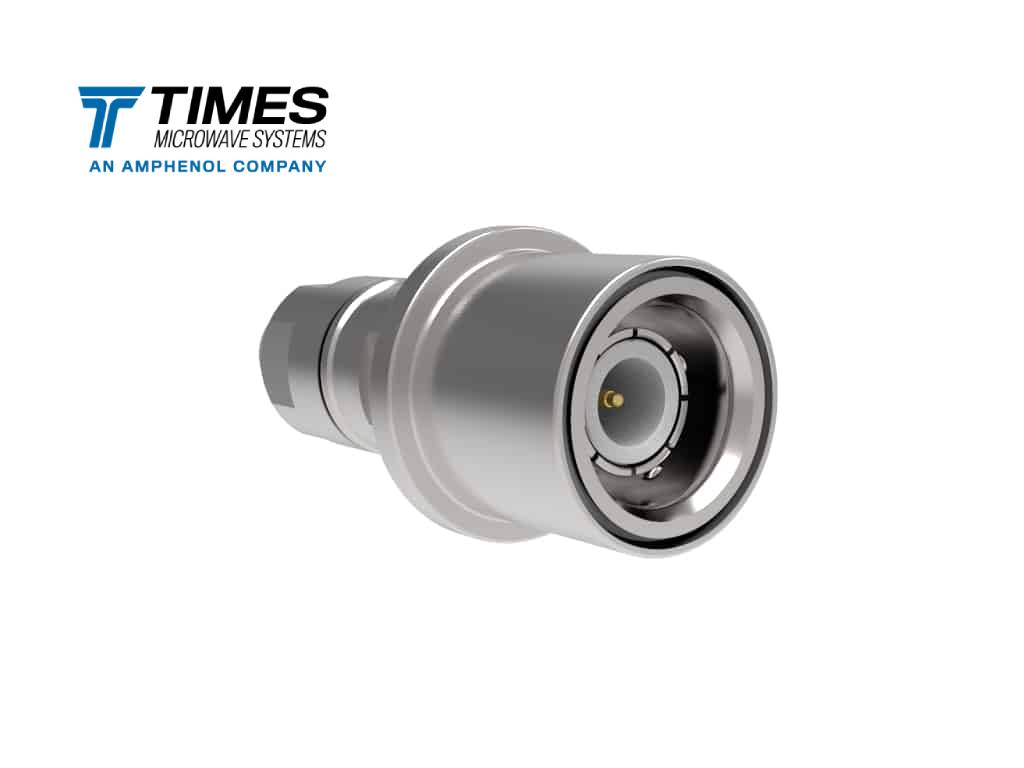

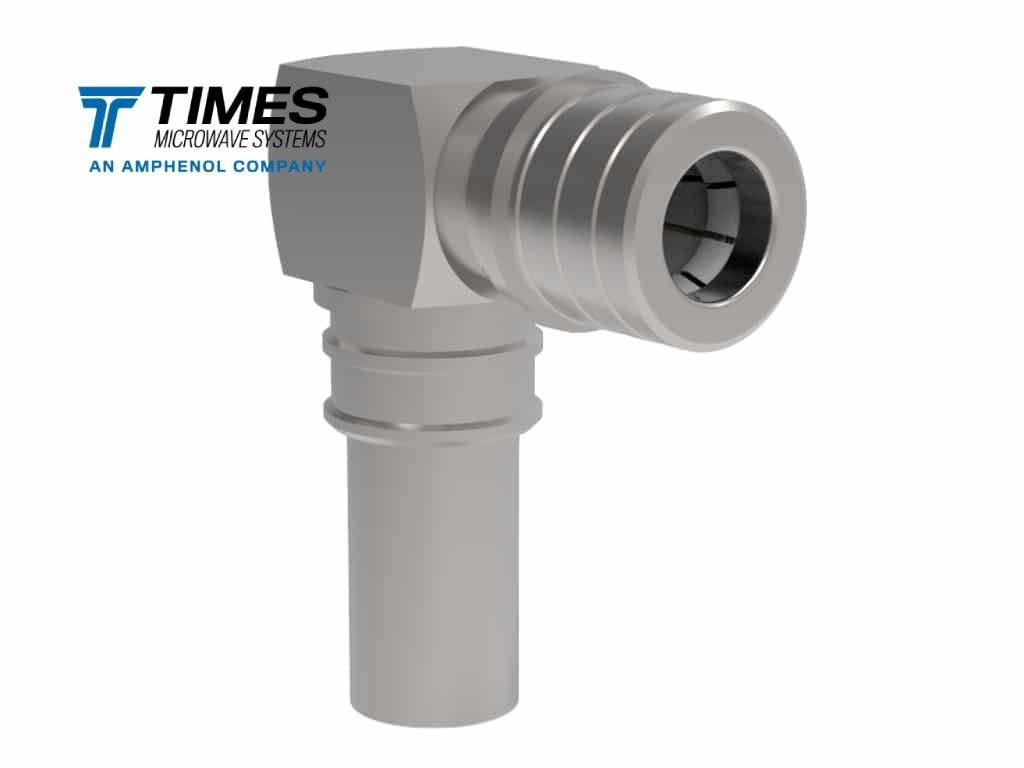

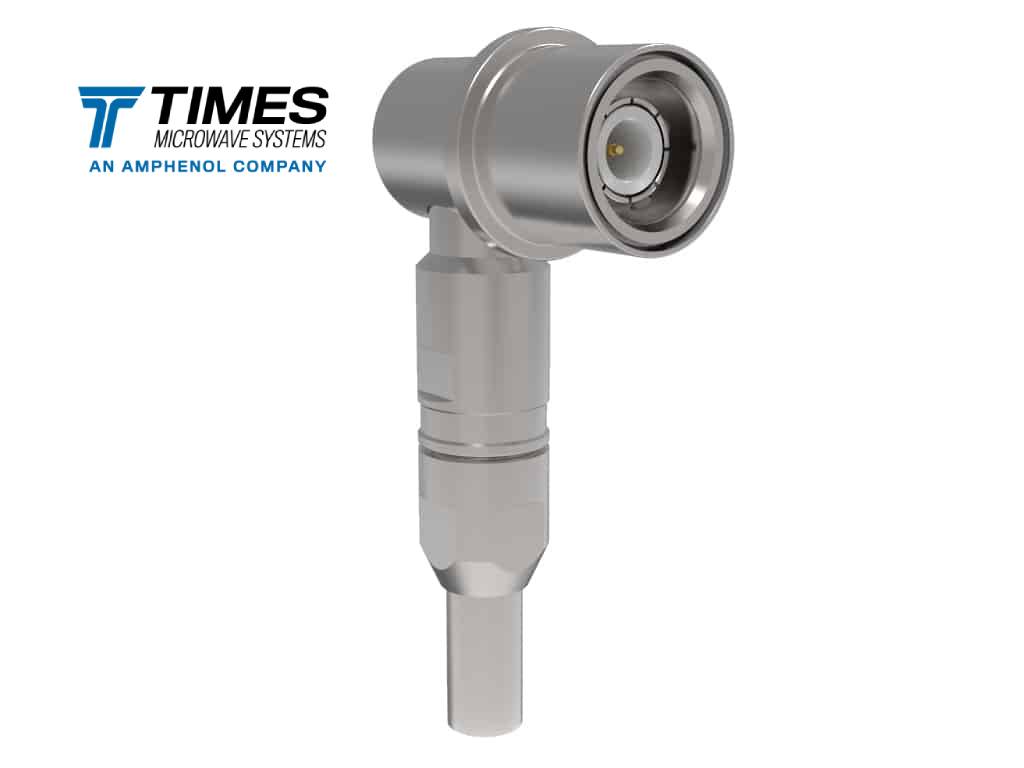

              QMA

              The QMA connector is a quick disconnect version of the SMA with low RF leakage. It features a similar high-power handling capability of an SMA providing a significant advantage over other quick disconnect connectors. The QMA series offers a more convenient installation than SMA connectors, with a snap-on instead of a threaded coupling. Another benefit of eliminating the threaded coupling is the denser packaging since there is no requirement for wrench clearance.

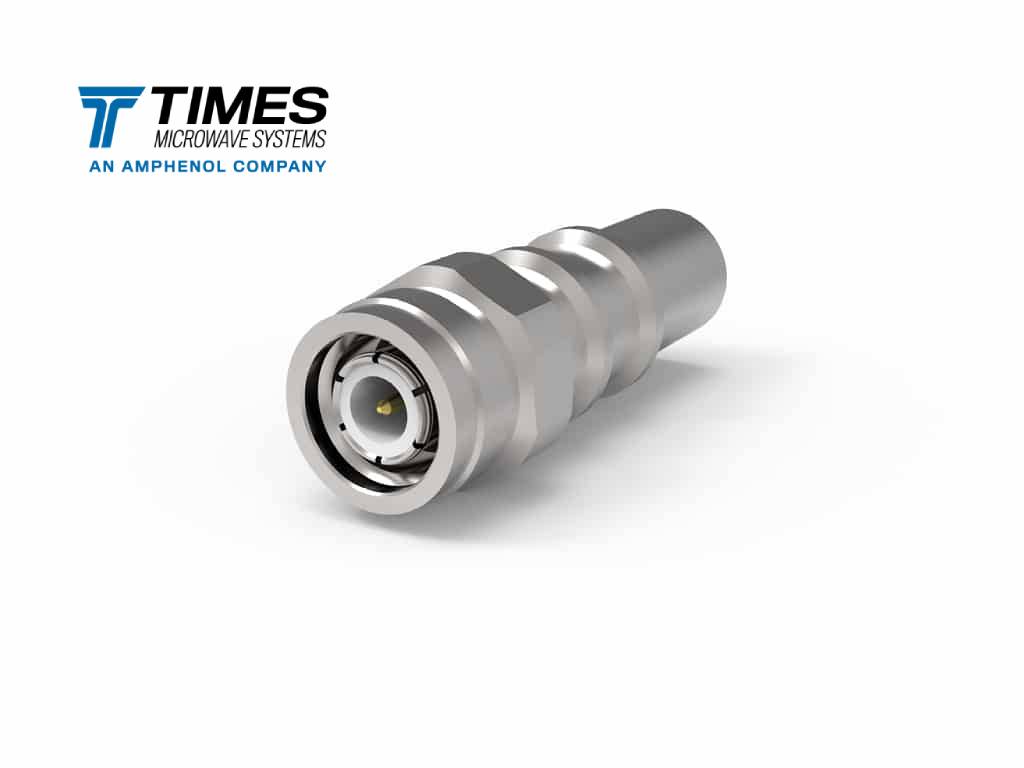

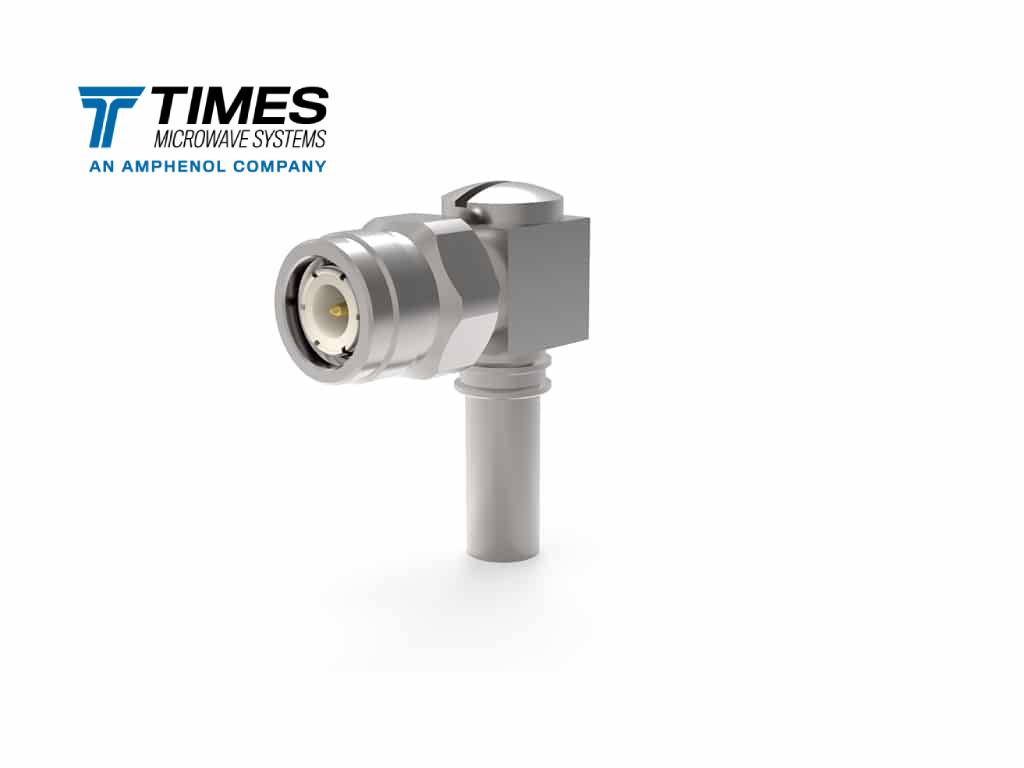

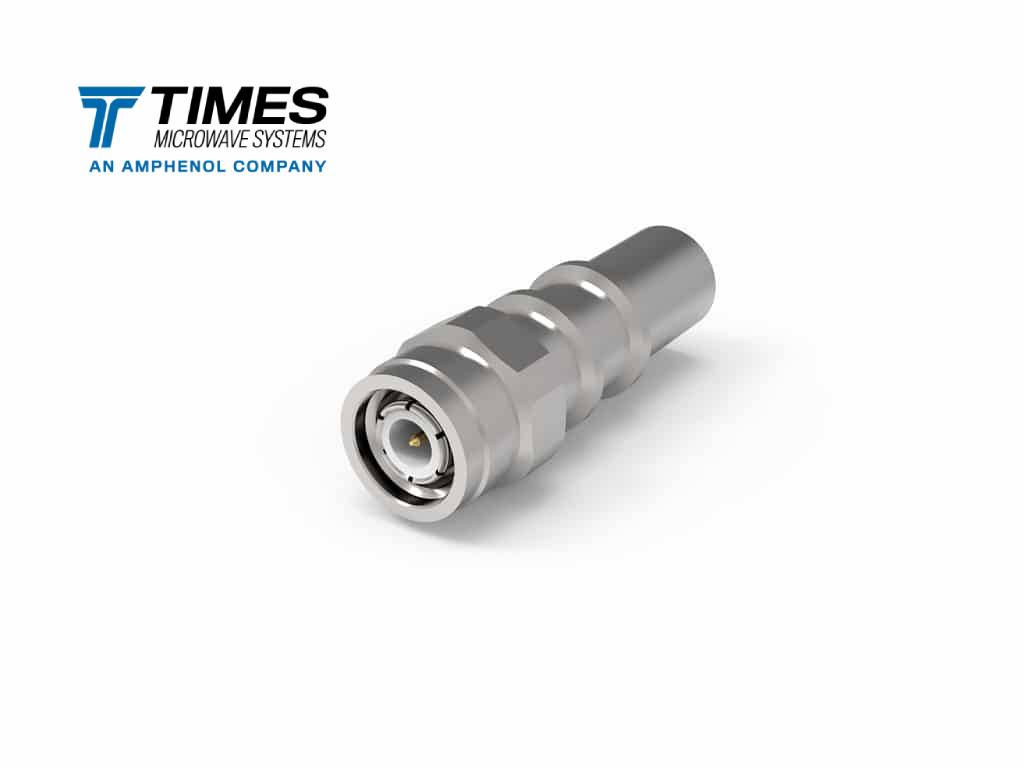

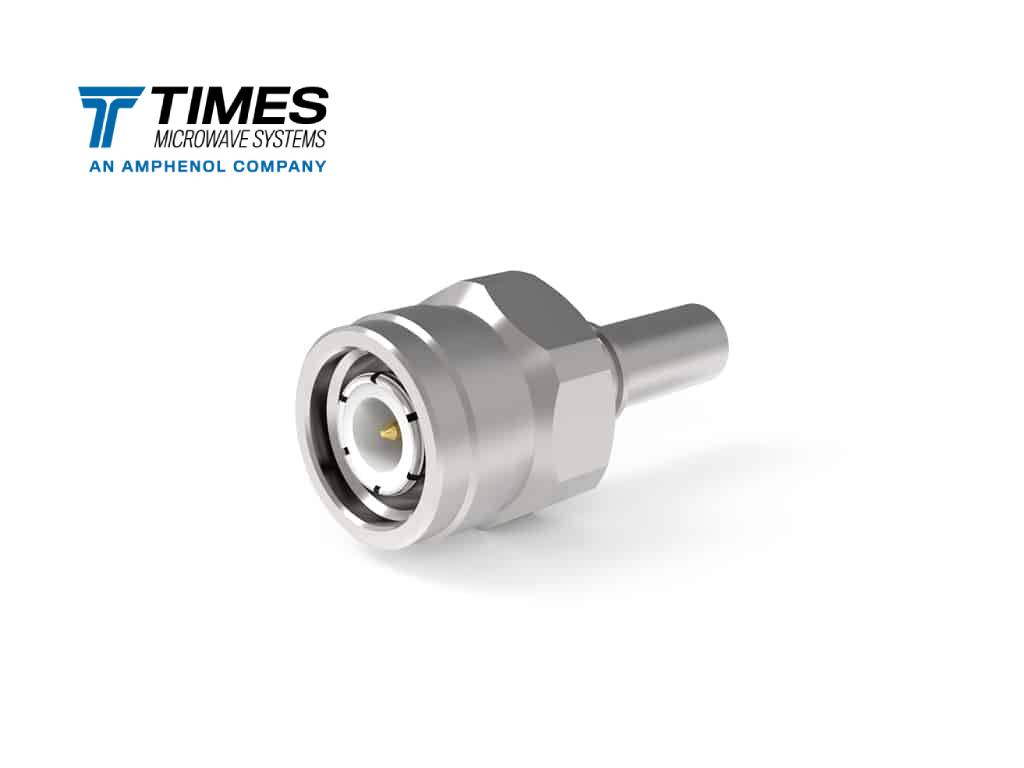

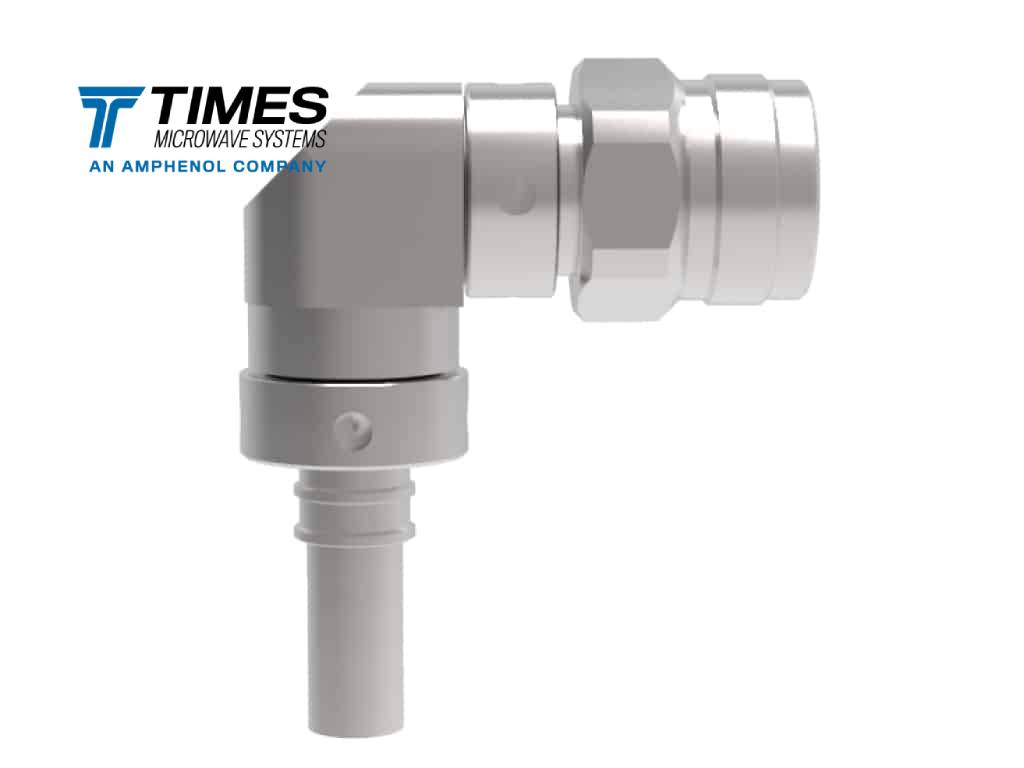

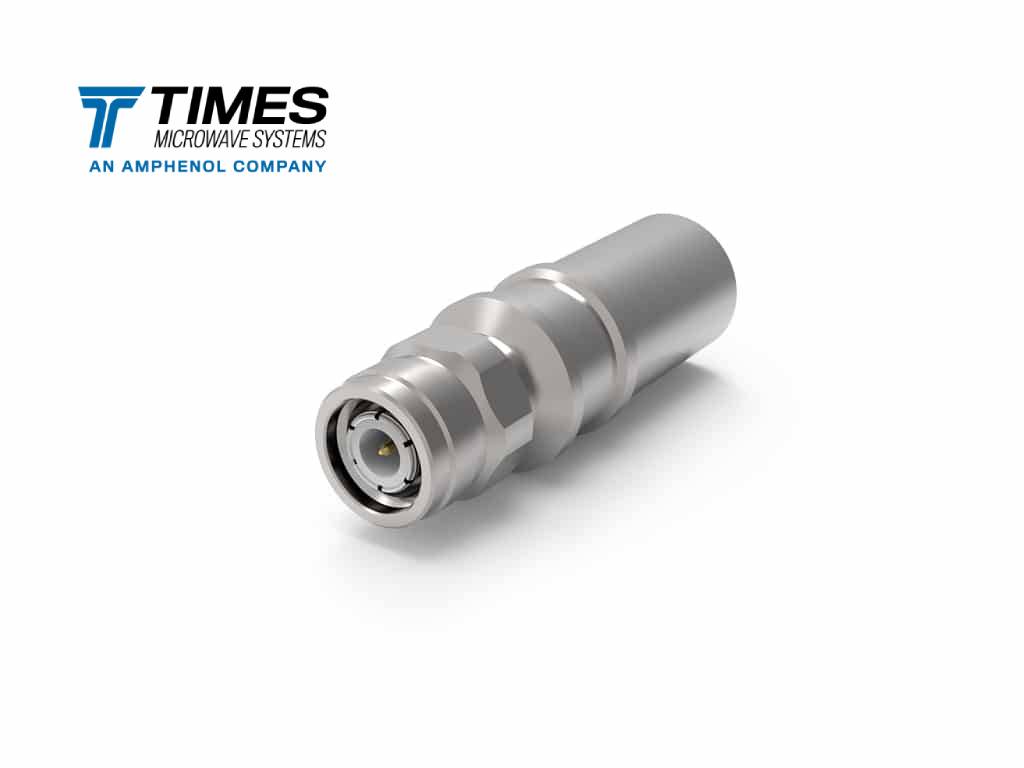

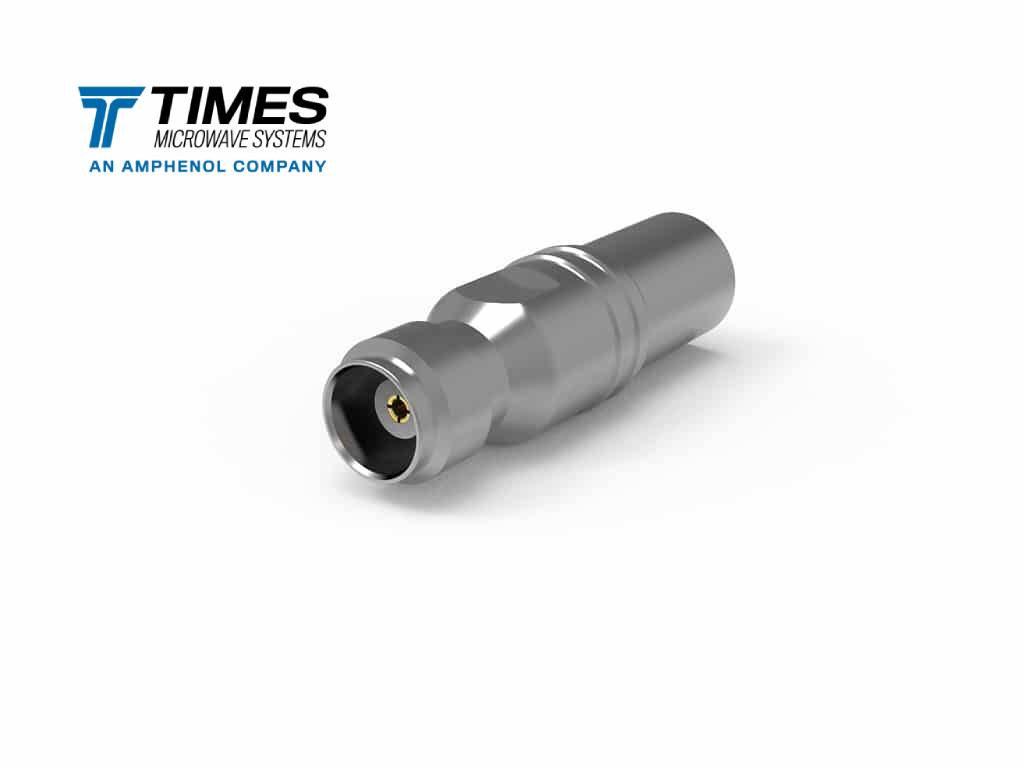

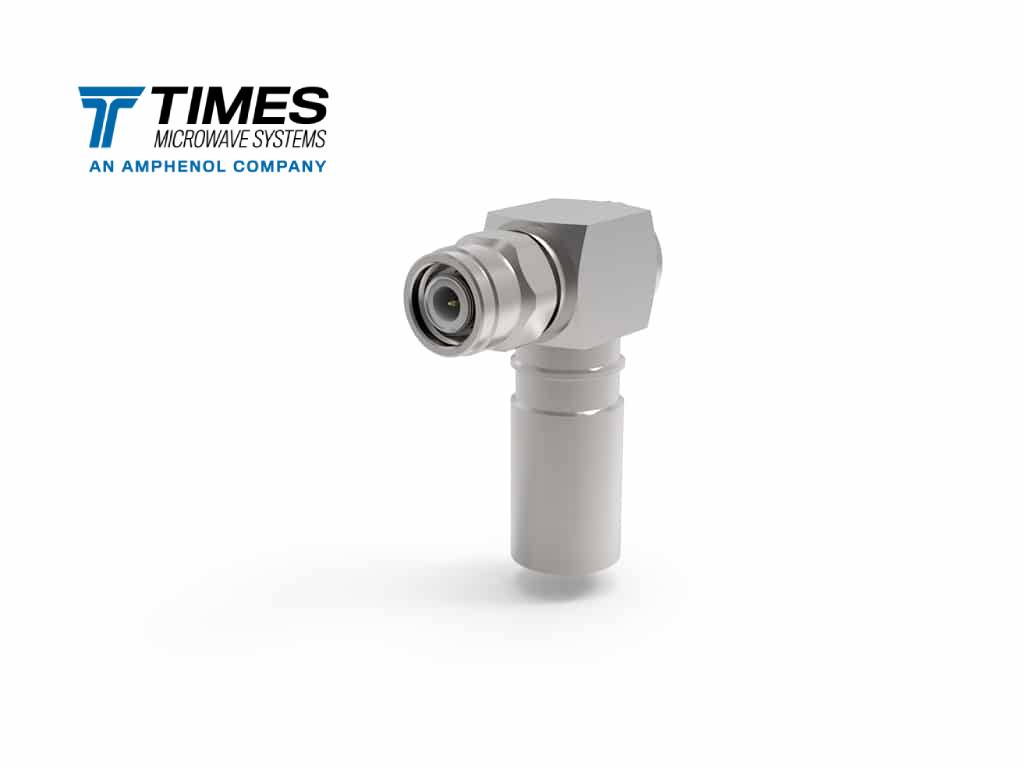

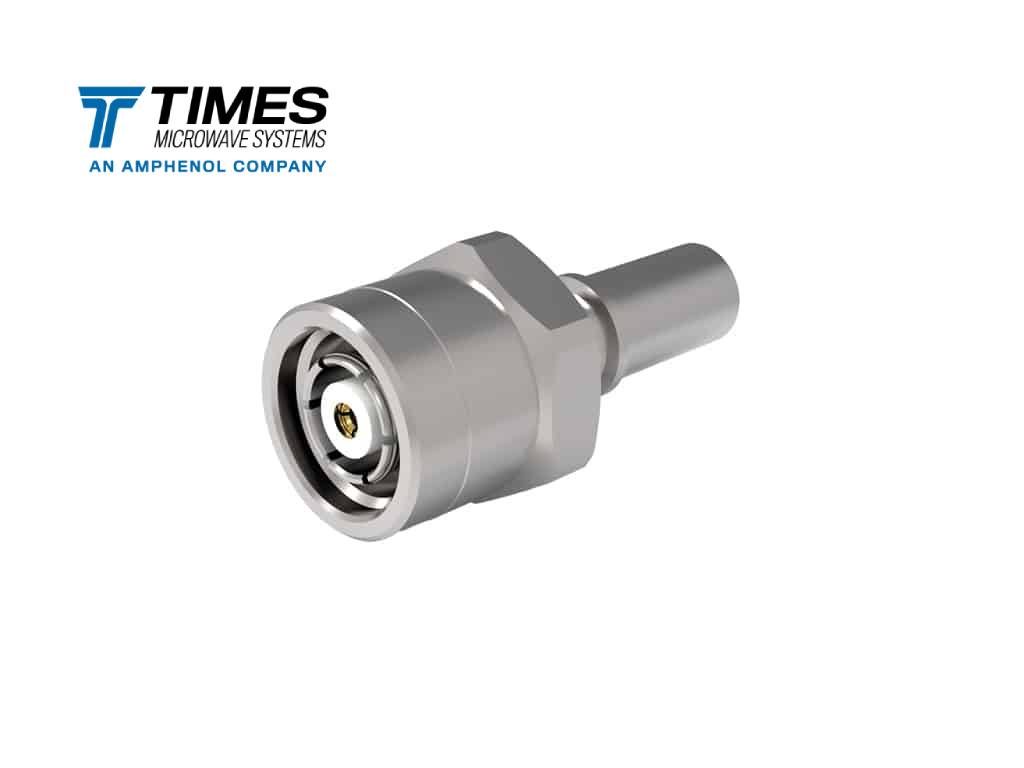

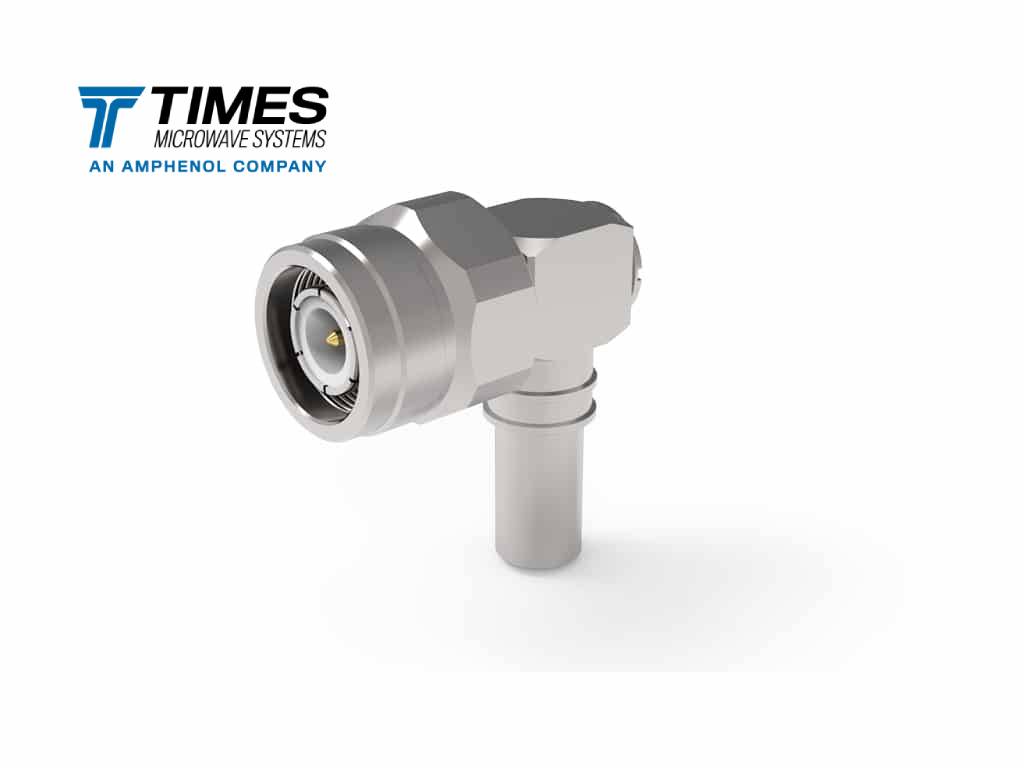

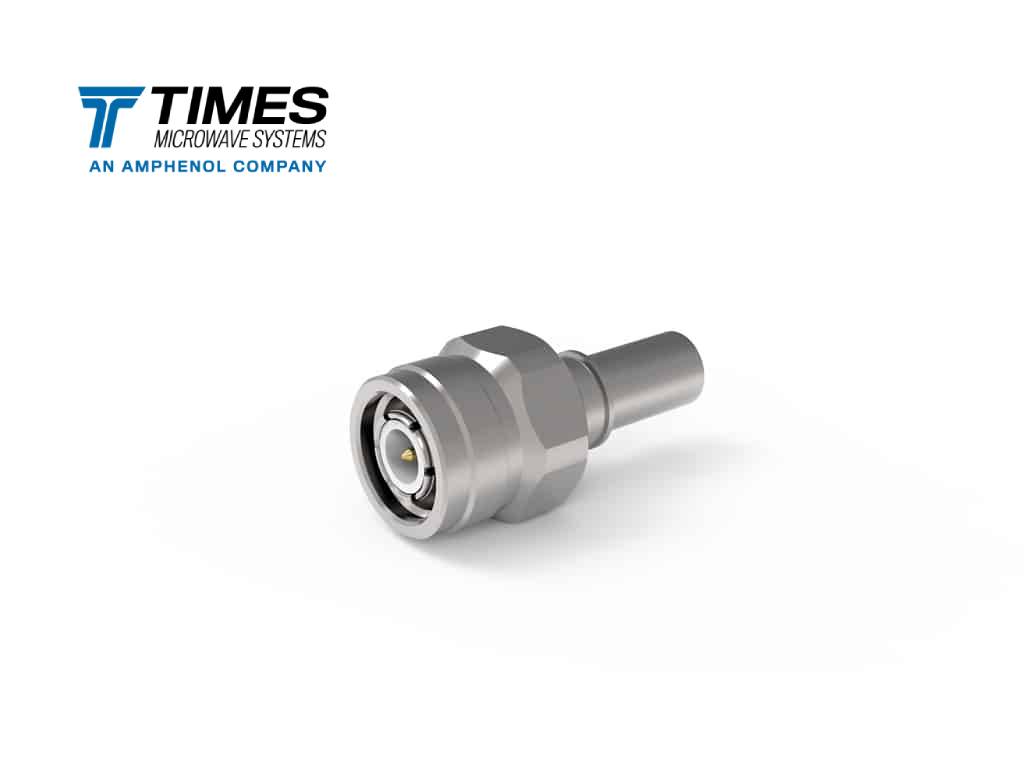

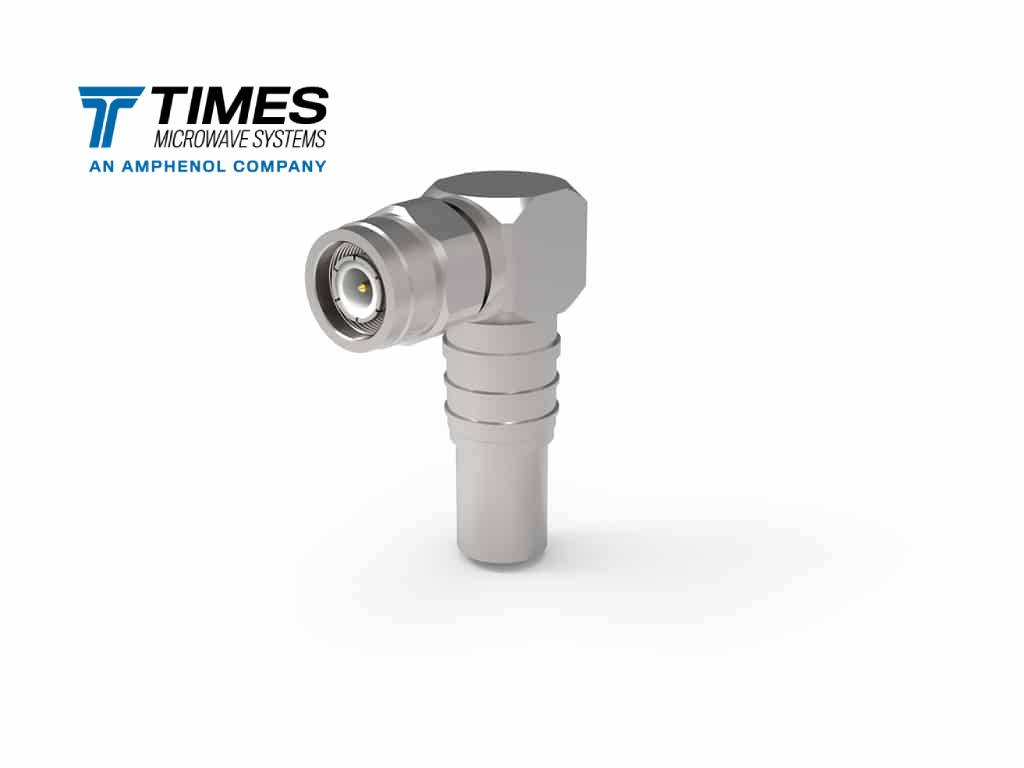

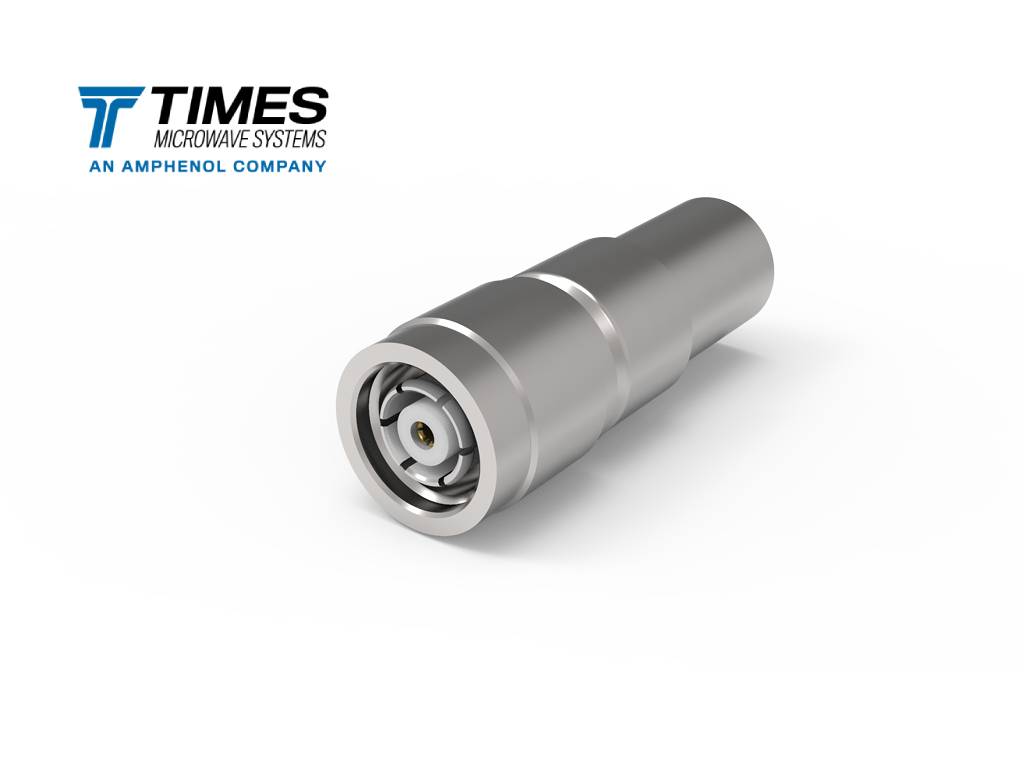

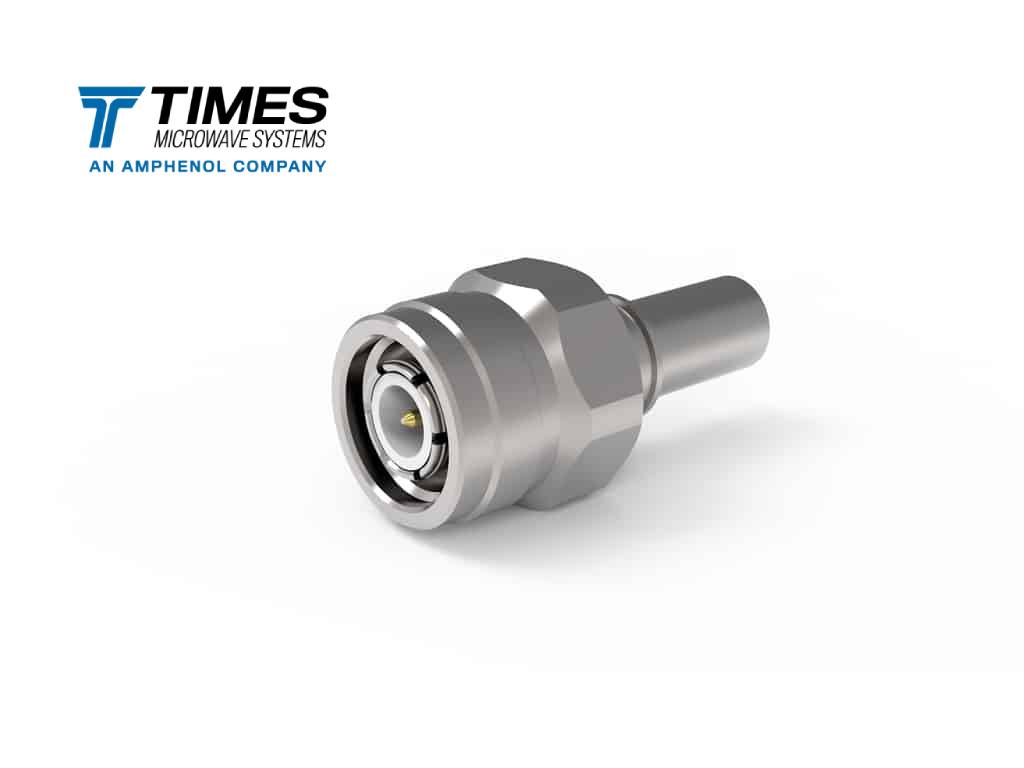

                TNC

                The TNC connector series is a medium-sized threaded weatherproof series with a contact design similar to a BNC series. It features a threaded coupling nut for secure mating and higher frequency performance than the BNC. TNC connectors are well suited for a large variety of applications.

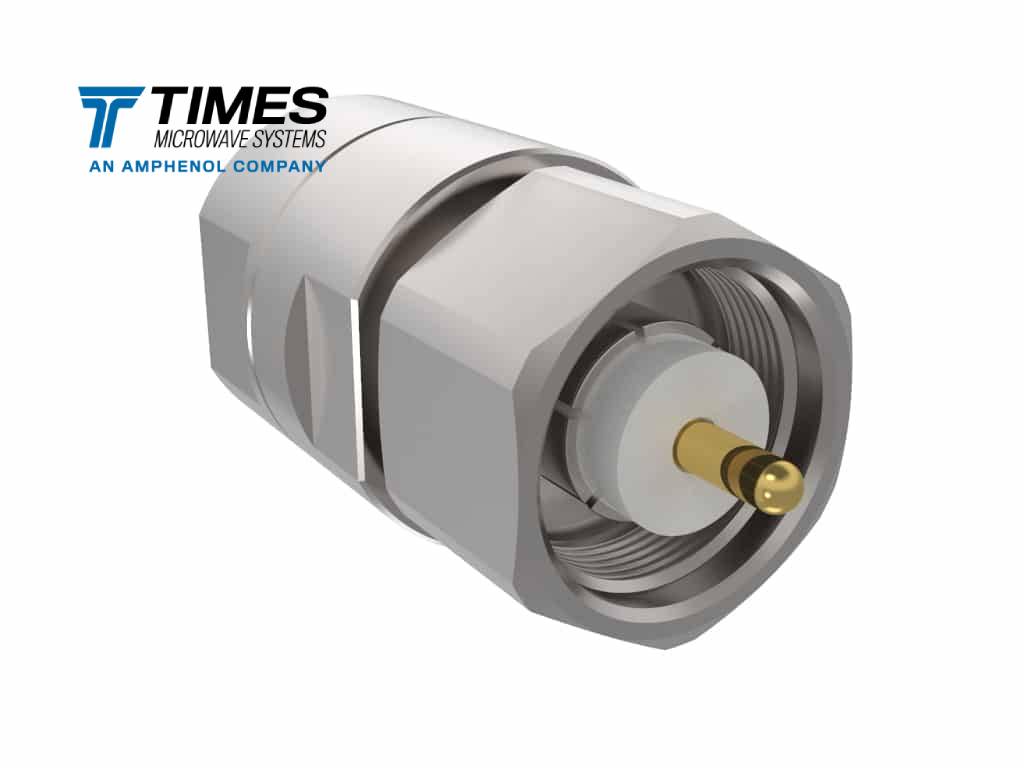

                  UHF

                  The UHF connector is a legacy interface design that is still used extensively in public safety and laboratory environments. It is used primarily to interconnect RF components.

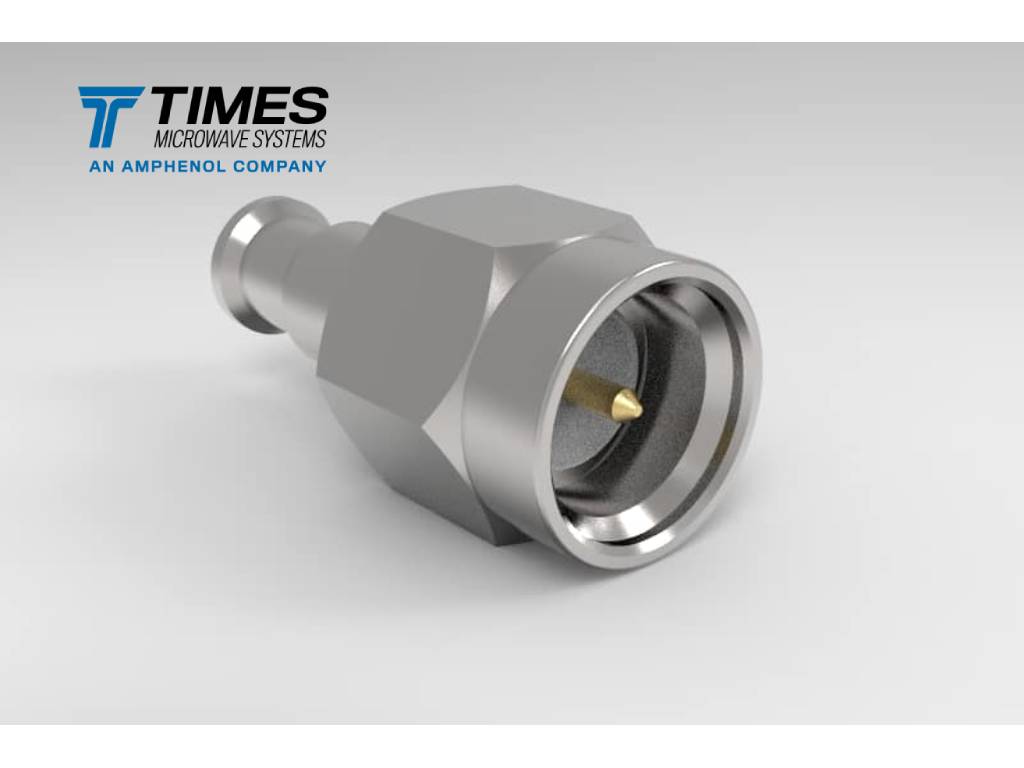

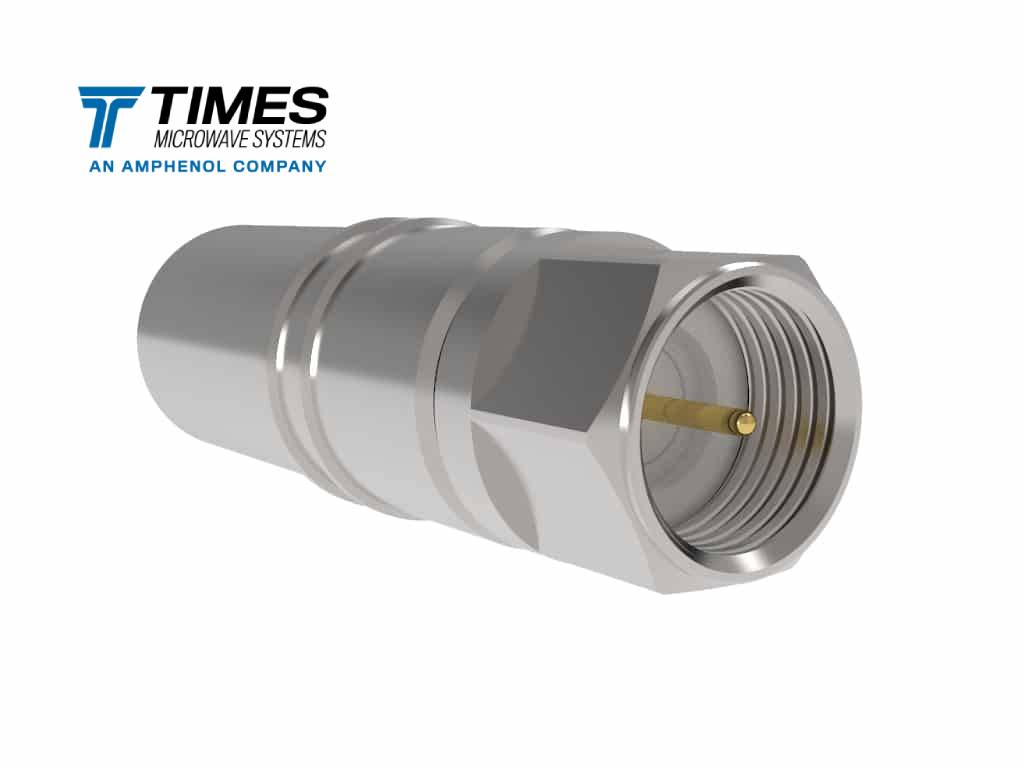

                    F

                    The type-F connector series is a durable, high-performance threaded interface primarily used for satellite and video communications. It is often used with 75 Ohm cable options.

                      Low PIM Connectors

                      Low PIM connectors are designed specifically for applications where low PIM performance is a priority.

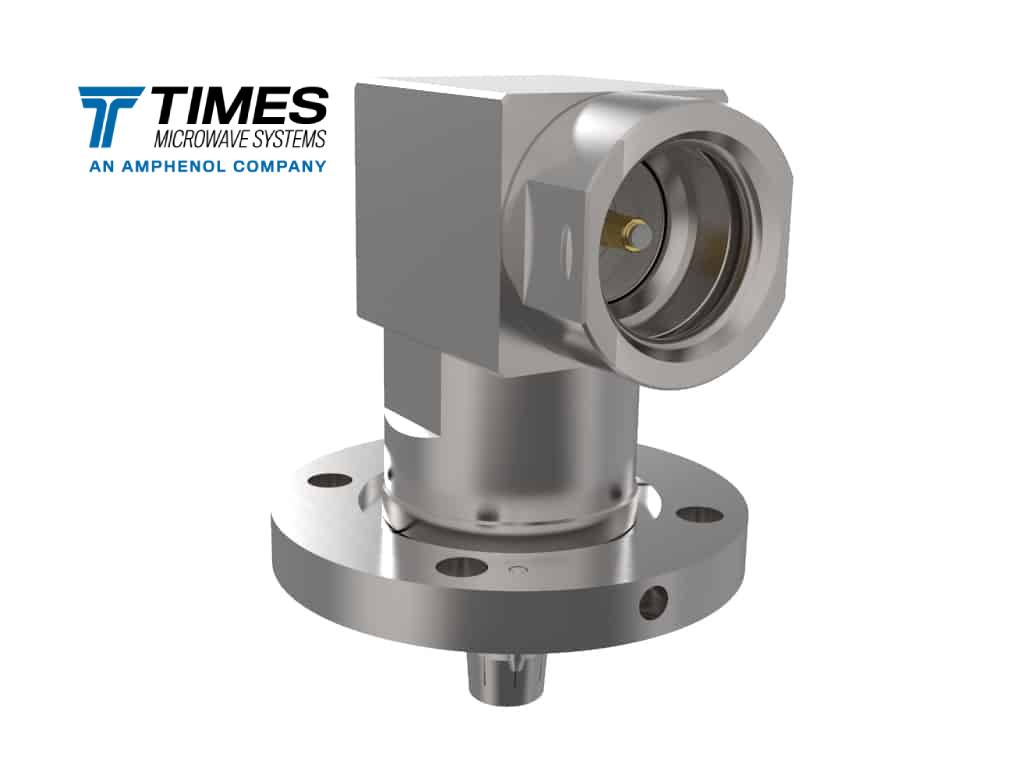

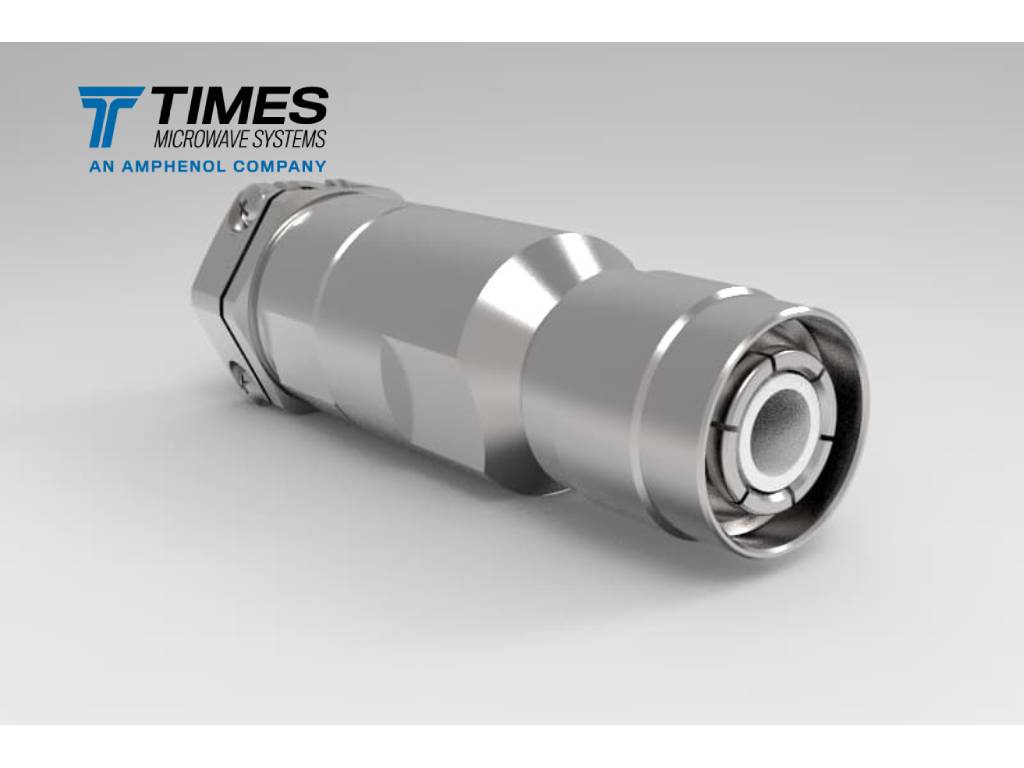

                        High Power Connectors

                        High power connectors are used in a variety of applications from military to telecom to healthcare. High power connectors are robust and depending on the design can handle power in the kilowatt range.

                          Microwave Connectors

                          Microwave connectors are small connectors designed for high frequency environments up to 60 GHz.

                            Test and Measurement

                            Times Microwave Test & Measurement connectors are designed to withstand the rigors of testing. They incorporate a proprietary tail piece that deflects the strain away from the solder joint which is the most delicate part of any RF cable assembly. This results in a very stable and robust assembly.

                              Other Interfaces

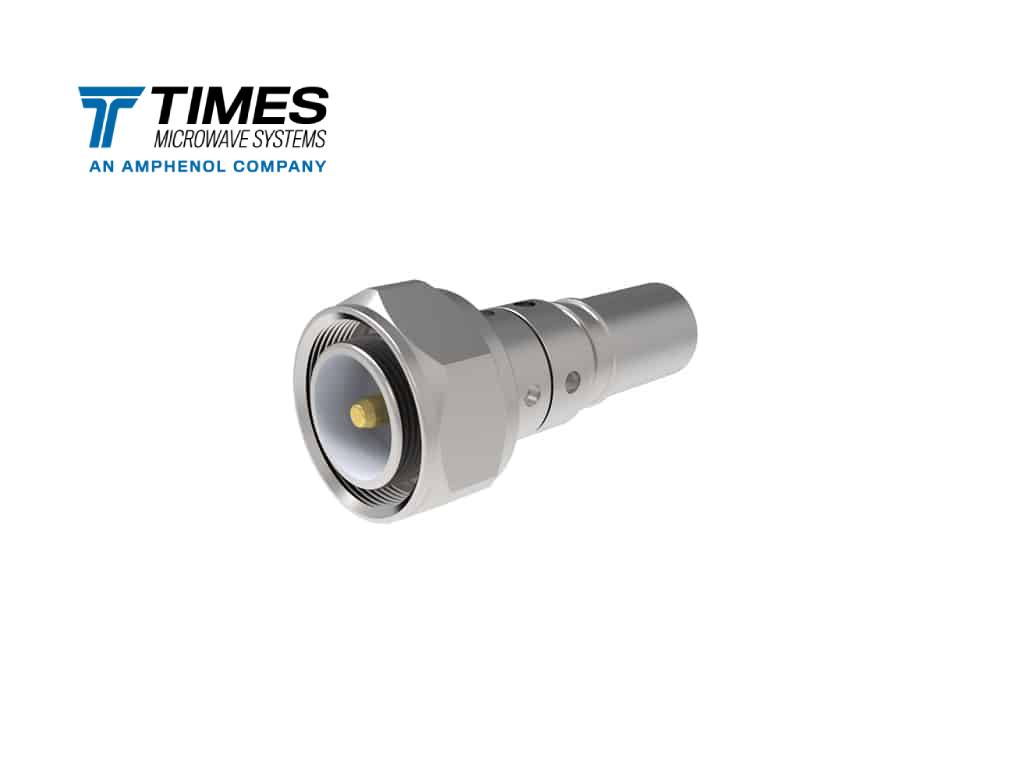

                              Other connector interfaces include: ATNC, FME, QN, 1.0-2.3, and 4.3-10.

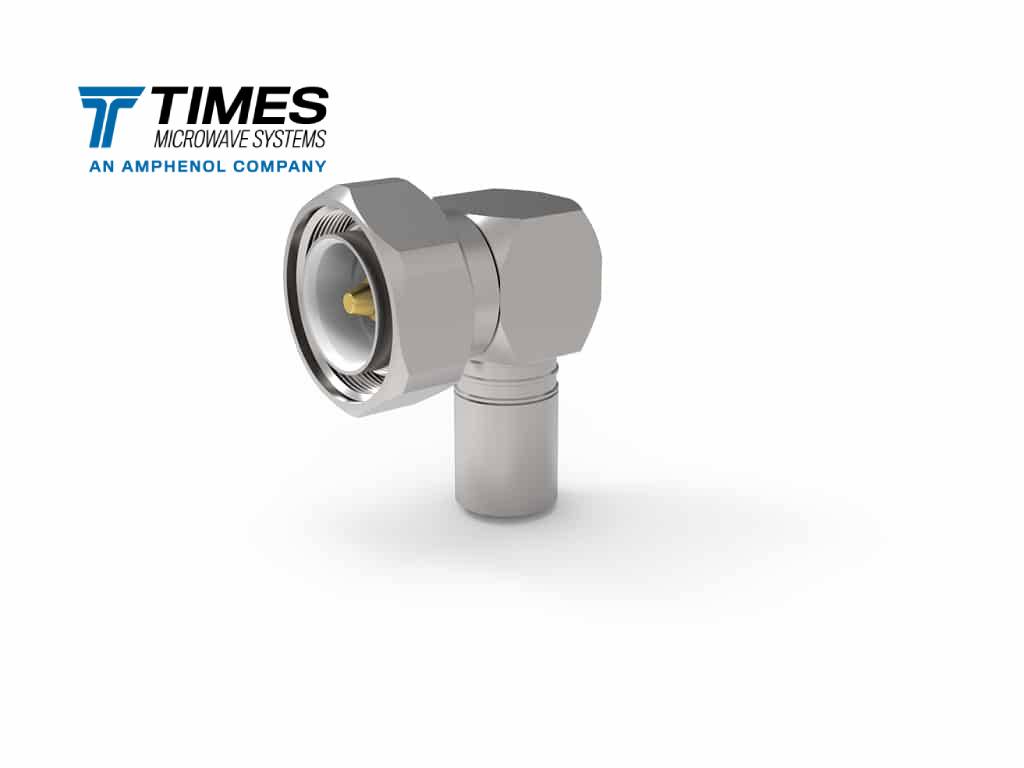

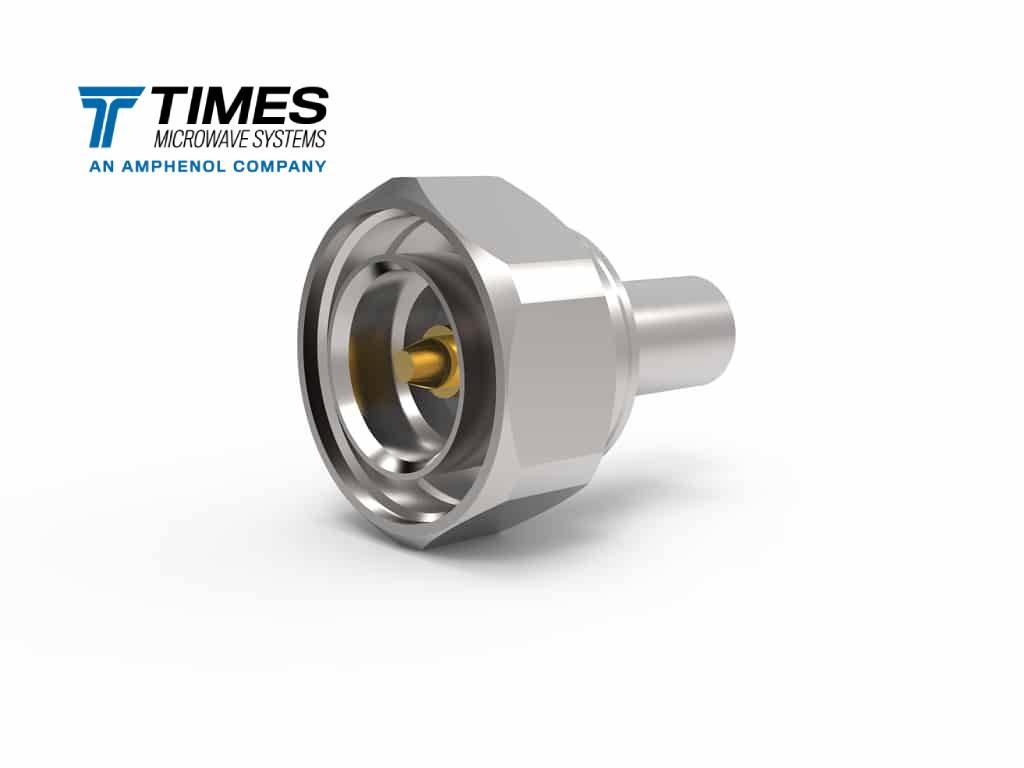

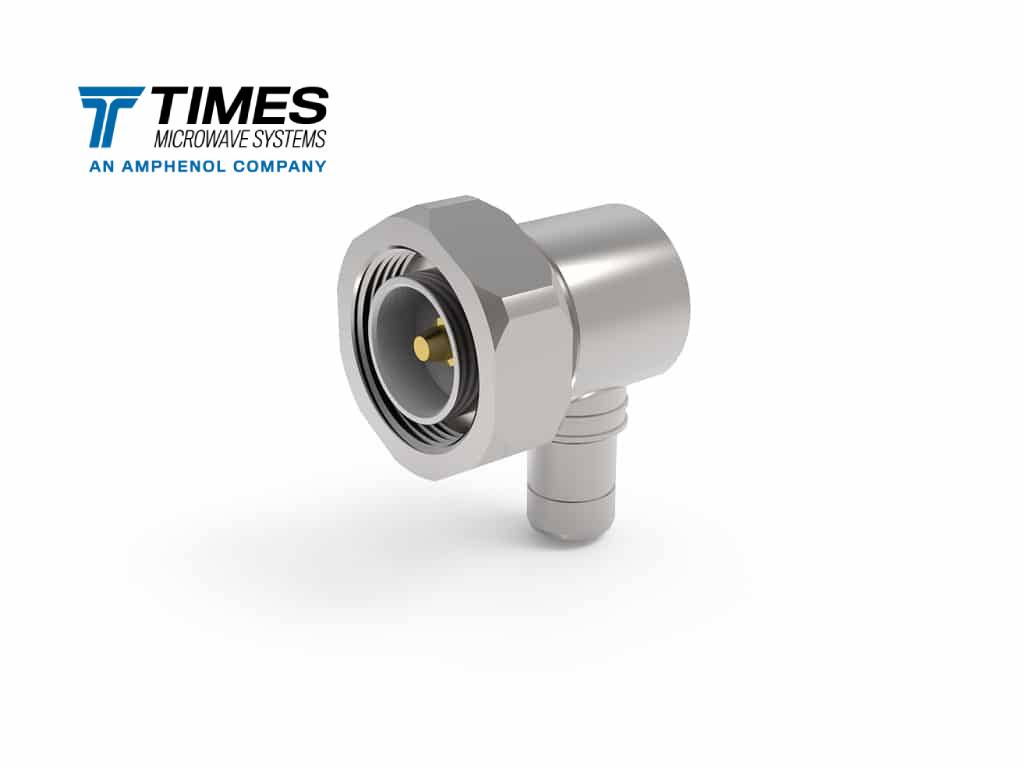

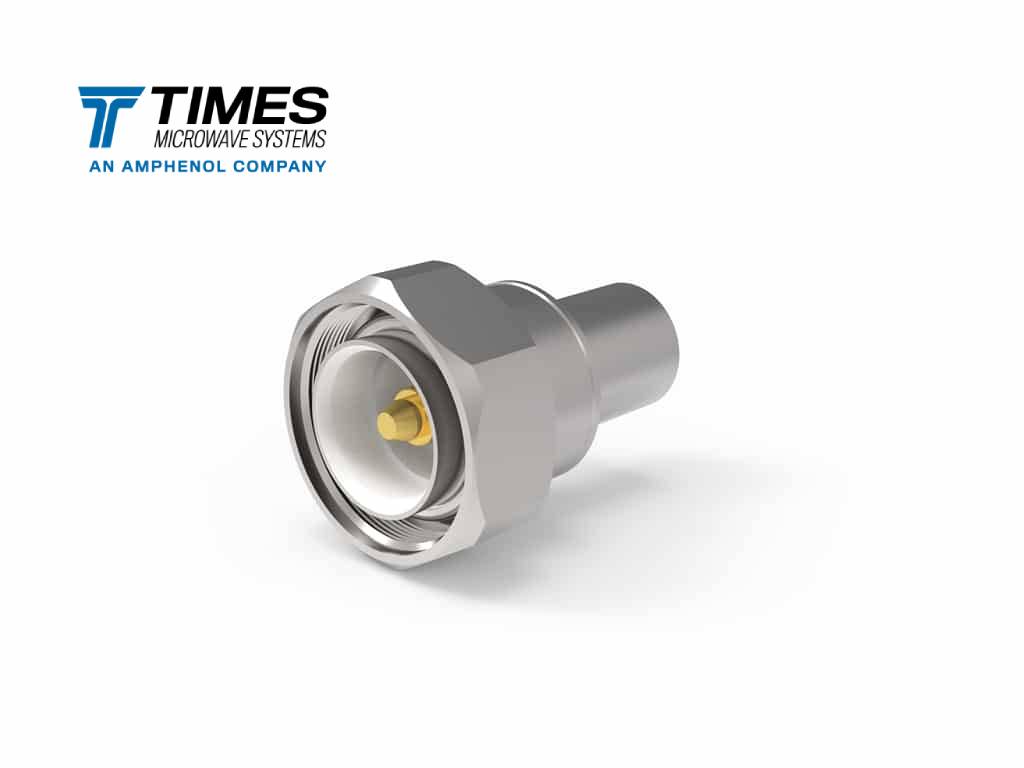

                                7-16

                                The 7-16 is a large high-power interface traditionally used in telecom applications. The 7-16 is also used in a variety of high-power applications.
