Clarity

Clarity connectors are designed to withstand the rigors of testing. They incorporate a proprietary tail piece that deflects the strain away from the solder joint which is the most delicate part of any RF cable assembly. This results in a very stable and robust assembly.

Filter-ind-ic Filter Arrow left
Filter-ind-ic Filter Arrow left
Part # Description Interface Gender Orientation Stock Code Compatible With

SP-SPFLT140-SF-BH

 		Type SMA, female (jack), straight, SP style connector for SPFLT140... SMA female (jack) Straight SP046 SPFLT-140

SP-SPFLT310-SM-E

 		Type SMA, male (plug), elbow, SP style connector for SPFLT310... SMA male (plug) Elbow SP044 SPFLT-310

CL-050-24F

 		Type 2.4mm, female (jack), straight, CL style connector for CLS50... Test and Measurement Clarity 2.4mm female (jack) Straight 3190-6565 Clarity 50

CL-110-10F

 		Type 1.0mm, female (jack), straight, CL style connector for CLS110... Test and Measurement Clarity 1.0mm female (jack) Straight 3190-6977 Clarity 110

CL-110-10M

 		Type 1.0mm, male (plug), straight, CL style connector for CLS110... Test and Measurement Clarity 1.0mm male (plug) Straight 3190-6976 Clarity 110

CL-070-18FR

 		Type 1.85mm, female (jack), straight, CL style connector for CLS70... Test and Measurement Clarity 1.85mm female (jack) Straight 3190-6931 Clarity 70

CL-070-18F

 		Type 1.85mm, female (jack), straight, CL style connector for CLS70... Test and Measurement Clarity 1.85mm female (jack) Straight 3190-6930 Clarity 70

CL-070-18M

 		Type 1.85mm, male (plug), straight, CL style connector for CLS70... Test and Measurement Clarity 1.85mm male (plug) Straight 3190-6868 Clarity 70

CL-050-KM

 		Type 2.92mm, male (plug), straight, CL style connector for CLS50... Test and Measurement Clarity 2.92mm male (plug) Straight 3190-6984 Clarity 50

CL-050-18FR

 		Type 1.85mm, female (jack), straight, CL style connector for CLS50... Test and Measurement Clarity 1.85mm female (jack) Straight 3190-6890 Clarity 50

CL-050-18M

 		Type 1.85mm, male (plug), straight, CL style connector for CLS50... Test and Measurement Clarity 1.85mm male (plug) Straight 3190-6838 Clarity 50

CL-050-24FR

 		Type 2.4mm, female (jack), straight, CL style connector for CLS50... Test and Measurement Clarity 2.4mm female (jack) Straight 3190-6567 Clarity 50

CL-050-24M

 		Type 2.4mm, male (plug), straight, CL style connector for CLS50... Test and Measurement Clarity 2.4mm male (plug) Straight 3190-6566 Clarity 50

CL-040-24FR

 		Type 2.4mm, female (jack), straight, CL style connector for CLS40... Test and Measurement Clarity 2.4mm female (jack) Straight 3190-6555 Clarity 40 Armored Clarity 40 Unarmored

CL-040-24F

 		Type 2.4mm, female (jack), straight, CL style connector for CLS40... Test and Measurement Clarity 2.4mm female (jack) Straight 3190-6505 Clarity 40 Armored Clarity 40 Unarmored

CL-040-24M

 		Type 2.4mm, male (plug), straight, CL style connector for CLS40... Test and Measurement Clarity 2.4mm male (plug) Straight 3190-6504 Clarity 40 Armored Clarity 40 Unarmored

CL-040-KFR

 		Type 2.92mm, female (jack), straight, CL style connector for CLS40... Test and Measurement Clarity 2.92mm female (jack) Straight 3190-6554 Clarity 40 Armored Clarity 40 Unarmored

CL-040-KF

 		Type 2.92mm, female (jack), straight, CL style connector for CLS40... Test and Measurement Clarity 2.92mm female (jack) Straight 3190-6478 Clarity 40 Armored Clarity 40 Unarmored

CL-040-KM-RA

 		Type 2.92mm, male (plug), right angle, CL style connector for... Test and Measurement Clarity 2.92mm male (plug) Right Angle 3190-6557 Clarity 40 Armored Clarity 40 Unarmored

CL-040-KM

 		Type 2.92mm, male (plug), straight, CL style connector for CLS40... Test and Measurement Clarity 2.92mm male (plug) Straight 3190-6477 Clarity 40 Armored Clarity 40 Unarmored

CL-018-NM-RA

 		Type N, male (plug), right angle, CL style connector for... Clarity Test and Measurement N male (plug) Right Angle 3190-6501 Clarity 18 Armored Clarity 18 Unarmored

CL-018-NF

 		Type N, female (jack), straight, CL style connector for CLS18... N Clarity Test and Measurement female (jack) Straight 3190-6904 Clarity 18 Armored Clarity 18 Unarmored

CL-018-NM

 		Type N, male (plug), straight, CL style connector for CLS18... N Clarity Test and Measurement male (plug) Straight 3190-6480 Clarity 18 Armored Clarity 18 Unarmored

CL-026-35FR

 		Type 3.5mm, female (jack), straight, CL style connector for CLS26... Test and Measurement Clarity 3.5mm female (jack) Straight 3190-6553 Clarity 26 Armored Clarity 26 Unarmored

CL-026-35F

 		Type 3.5mm, female (jack), straight, CL style connector for CLS26... Test and Measurement Clarity 3.5mm female (jack) Straight 3190-6503 Clarity 26 Armored Clarity 26 Unarmored

CL-026-35M

 		Type 3.5mm, male (plug), straight, CL style connector for CLS26... Test and Measurement Clarity 3.5mm male (plug) Straight 3190-6502 Clarity 26 Armored Clarity 26 Unarmored

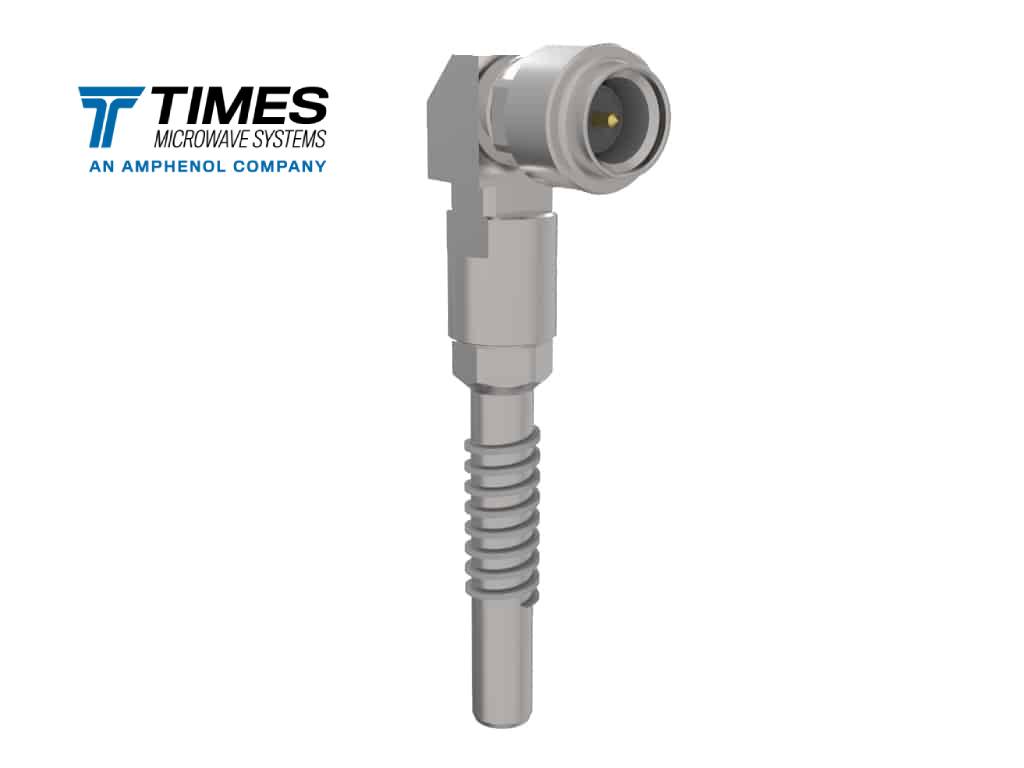

CL-018-SM-RA

 		Type SMA, male (plug), right angle, CL style connector for... SMA Clarity Test and Measurement male (plug) Right Angle 3190-6500 Clarity 18 Armored Clarity 18 Unarmored

CL-018-SF

 		Type SMA, female (jack), straight, CL style connector for CLS18... SMA Clarity Test and Measurement female (jack) Straight 3190-6556 Clarity 18 Armored Clarity 18 Unarmored

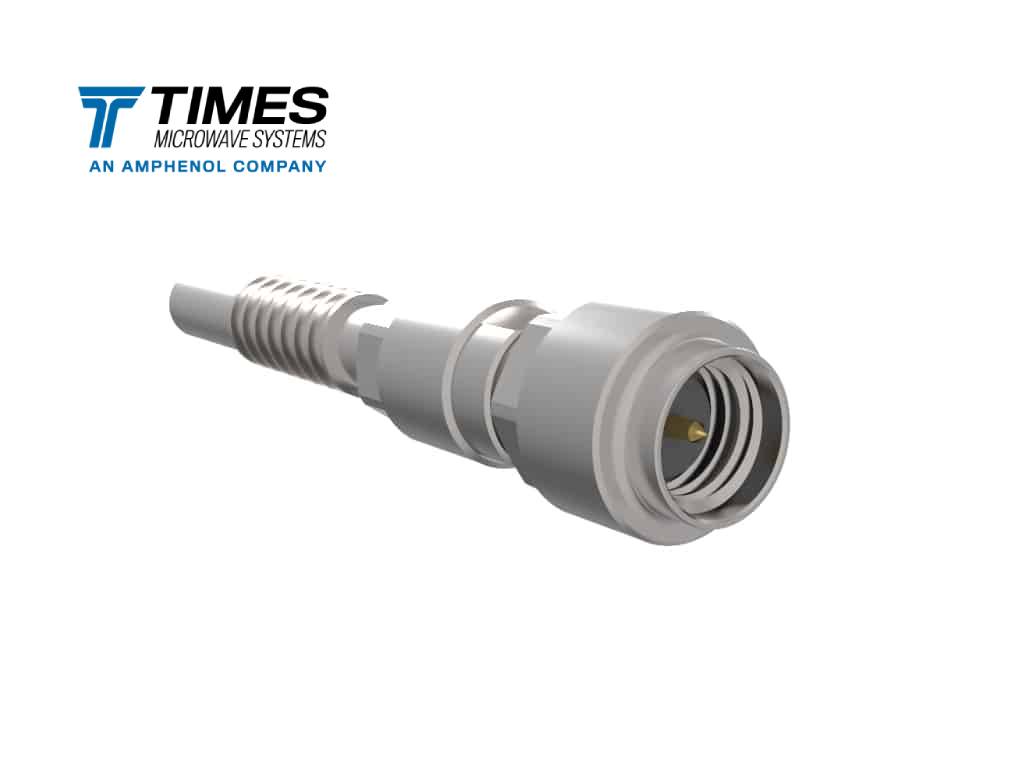

CL-018-SM

 		Type SMA, male (plug), straight, CL style connector for CLS18,... SMA Clarity Test and Measurement male (plug) Straight 3190-6479 Clarity 18 Armored Clarity 26 Armored Clarity 18 Unarmored Clarity 26 Unarmored
