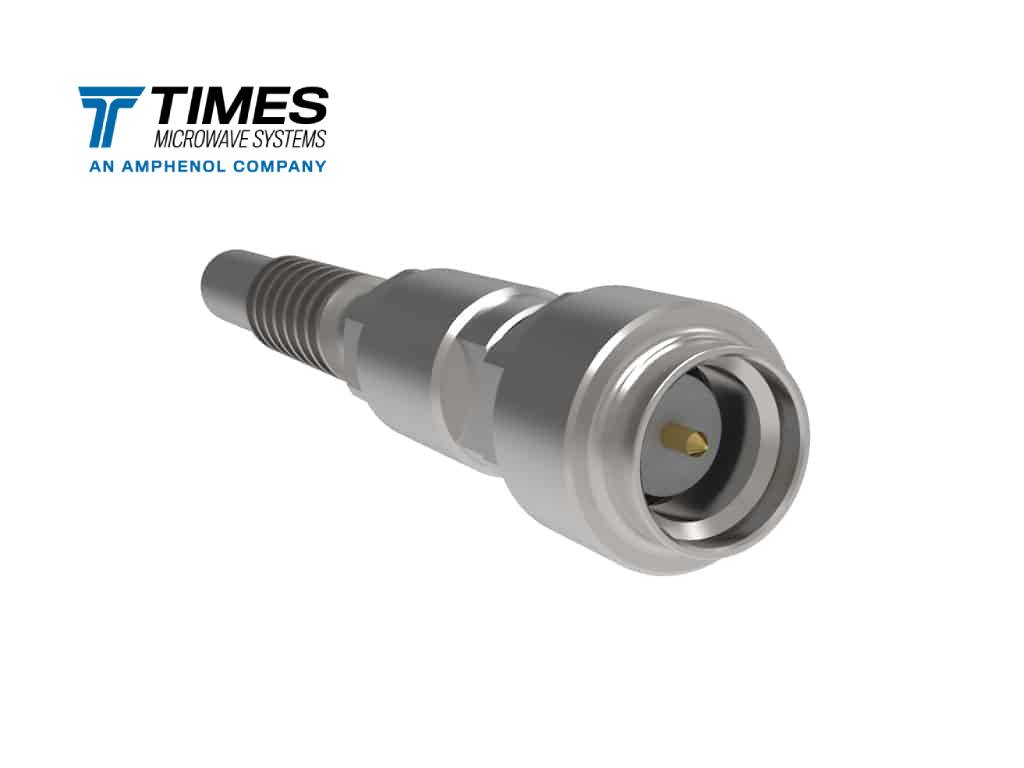

CL-026-35M

Type 3.5mm, male (plug), straight, CL style connector for CLS26 and CLU26 type cables.

Stock Code: 3190-6502

3.5mm male SureGrip knurl

Request a Quote

Specifications

Part NumberCL-026-35M

Stock Code3190-6502

Interface3.5mm

Gender Male (plug)

Orientation Straight

PIM RatingN/A

Impedance (ohms)50

Max Frequency (GHz)26.5

VSWR Freq1.25:1

VSWR Frequency (GHz)26.5

Coupling NutHex/Knrul

Inner Contact AttachSolder

Outer Contact AttachSolder

Body FinishPassivated

Pin FinishGold

Length (mm)

Length (in)

Width (mm)

Width (in)

Weight (g)8.7

Weight (lb)0.019
