LMR-900-RR-DB

LMR®-900-RR-DB uses a non-hazardous, non-toxic additive to deter rodents and other pests from chewing and gnawing on cable jackets, which can lead to damage and eventual failure in RF systems.

Stock Code: 54422

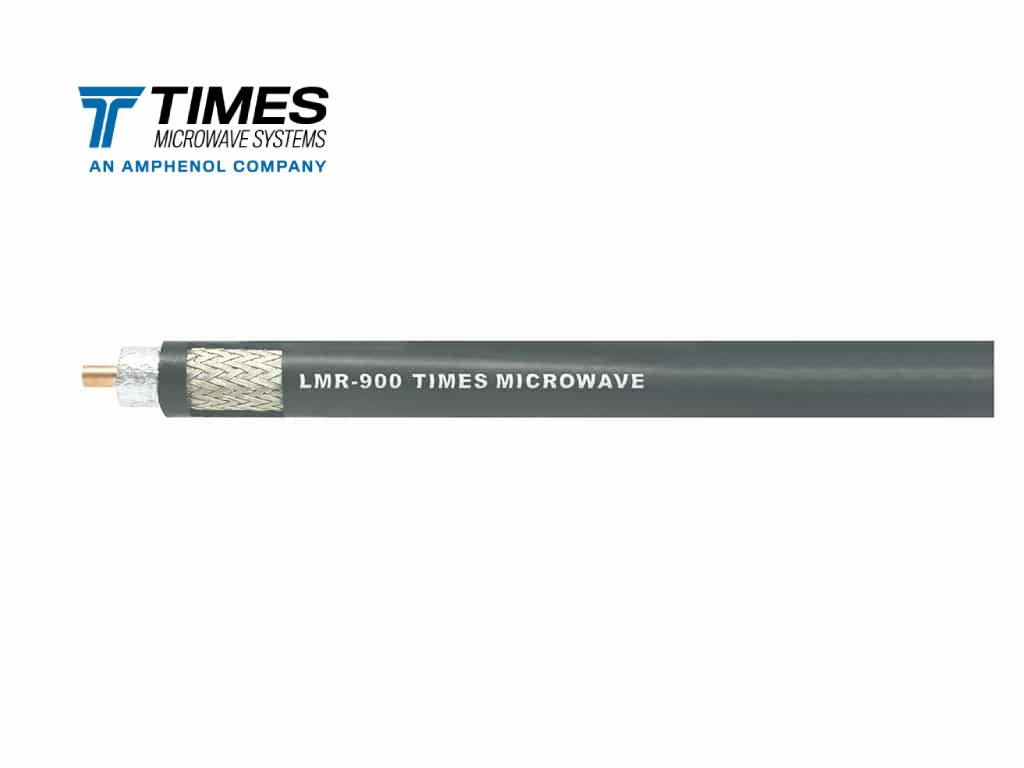

LMR-900 watertight, RodentRepel, black PE jacket

Inventory Status
In Stock Qty Order
Murray-Benjamin Electric1000Buy

Specifications

Part NumberLMR-900-RR-DB
EnvironmentOutdoor
JacketPE
Overall Diameter (mm)22.098
Overall Diameter (in)0.87
Weight Kg/m0.3959
Weight lb/ft0.266
Operating Temp.°C (°F)-40° to 85°C
(-40° to 185°F)
Min. Bend Radius (mm)76.2
Min. Bend Radius (in)3
Bending Moment (Nm)12.2
Bending Moment (ft-lb)9
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Part Number Structure

Part number structure

Cable Details

Cable details

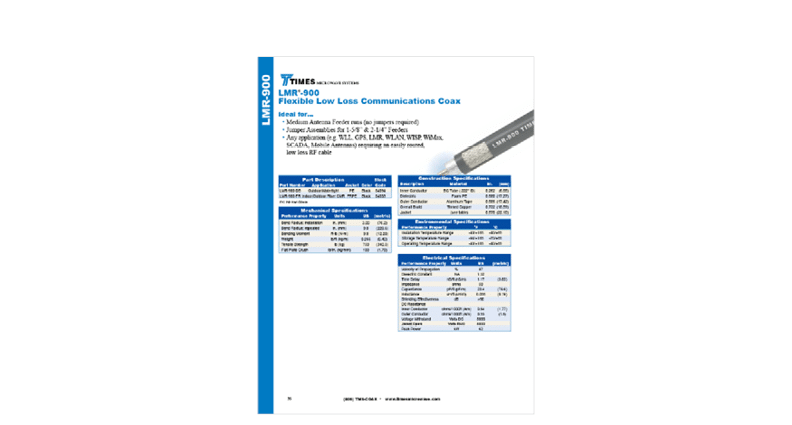

Resources
