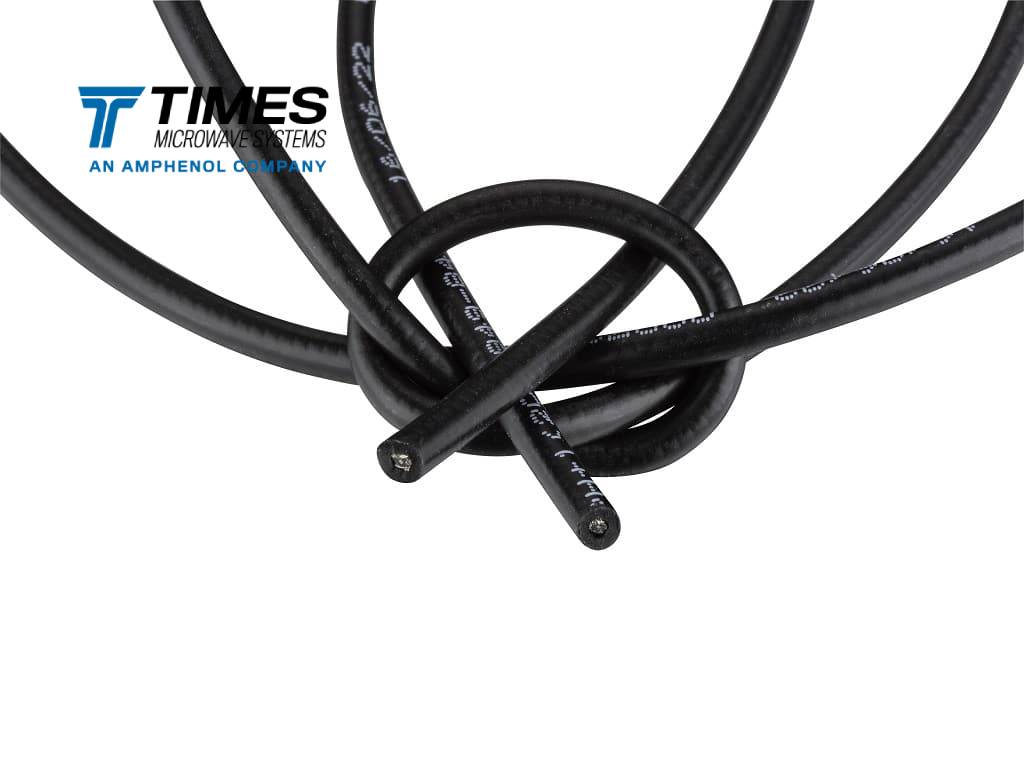

XtendedFlex® is a solution for applications requiring constant cable motion and flexibility. Its innovative design and unique material composition ensure consistent performance under millions of flexures.

Stock Code: 05851

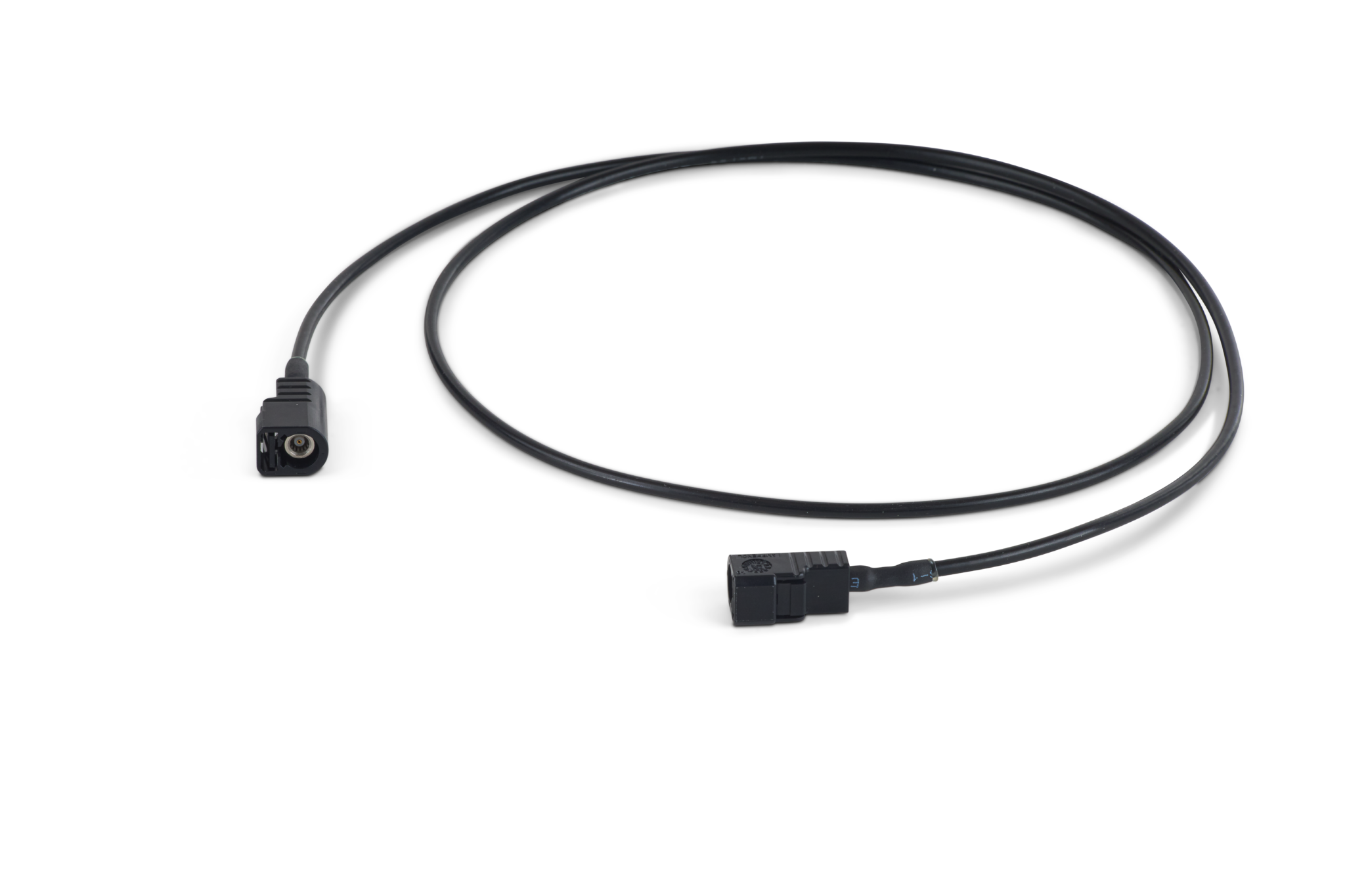

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

Connector A
Connector B
Design Your Assembly


Part NumberXF-178
Overall Diameter (mm)3.1242
Overall Diameter (in)0.123
Weight Kg/m0.00359
Weight lb/ft0.00791
Operating Temp.°C (°F)-40° to 105°C
(-40° to 221°F)
Min. Bend Radius (mm)16.891
Min. Bend Radius (in)0.665
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)3
Impedance (ohms)50
Power Handling (DWV)

Compatible with

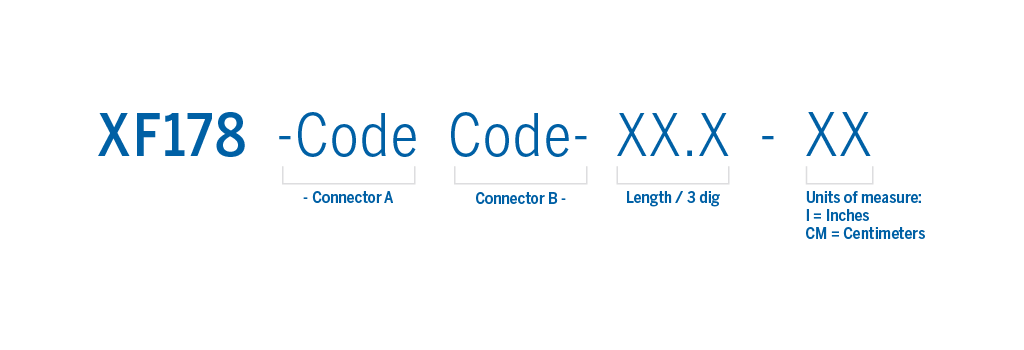

Part Number Structure

Part number structure

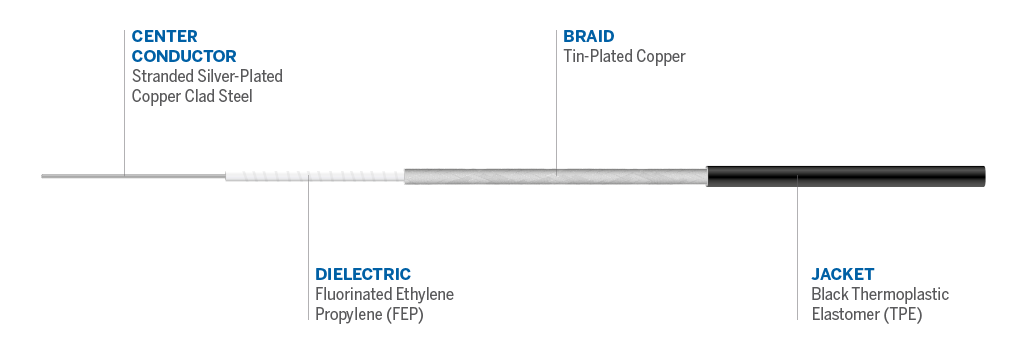

Cable Details

Cable details
