LMR-195-LLPX

LMR®-195-LLPX® is an indoor highly fire retardant cable intended specifically for runs within return air handling plenums (e.g. dropped ceilings, raised floors). It has a UL/NEC & CSA rating of 'CMP' and 'FT6' respectively.

Stock Code: 54425

LMR-195 Low Loss Plenum, listed CMP/MPP (PCC-FT6), red jacket

Inventory Status
In Stock Qty Order

Specifications

Part NumberLMR-195-LLPX
EnvironmentOutdoor
JacketFP
Overall Diameter (mm)4.953
Overall Diameter (in)0.195
Weight Kg/m0.0313
Weight lb/ft0.021
Operating Temp.°C (°F)-40° to 125°C (-40° to 257°F)
Min. Bend Radius (mm)12.7
Min. Bend Radius (in)0.5
Bending Moment (Nm)0.14
Bending Moment (ft-lb)0.1
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Part Number Structure

Part number structure

Cable Details

Cable details

Tools and Accessories

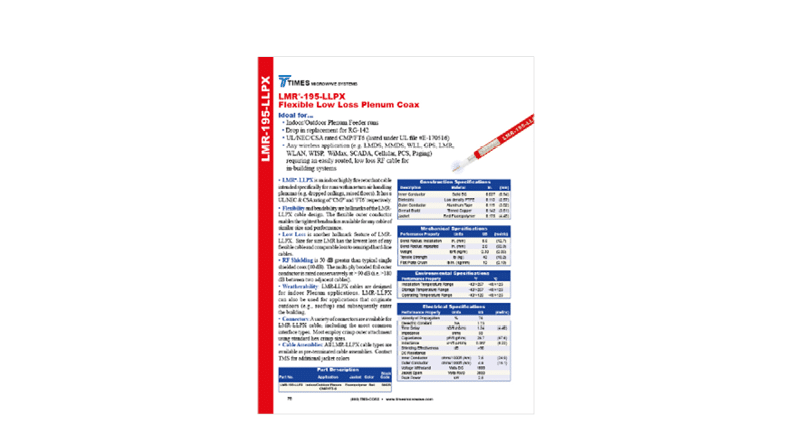

Documentation

Resources
