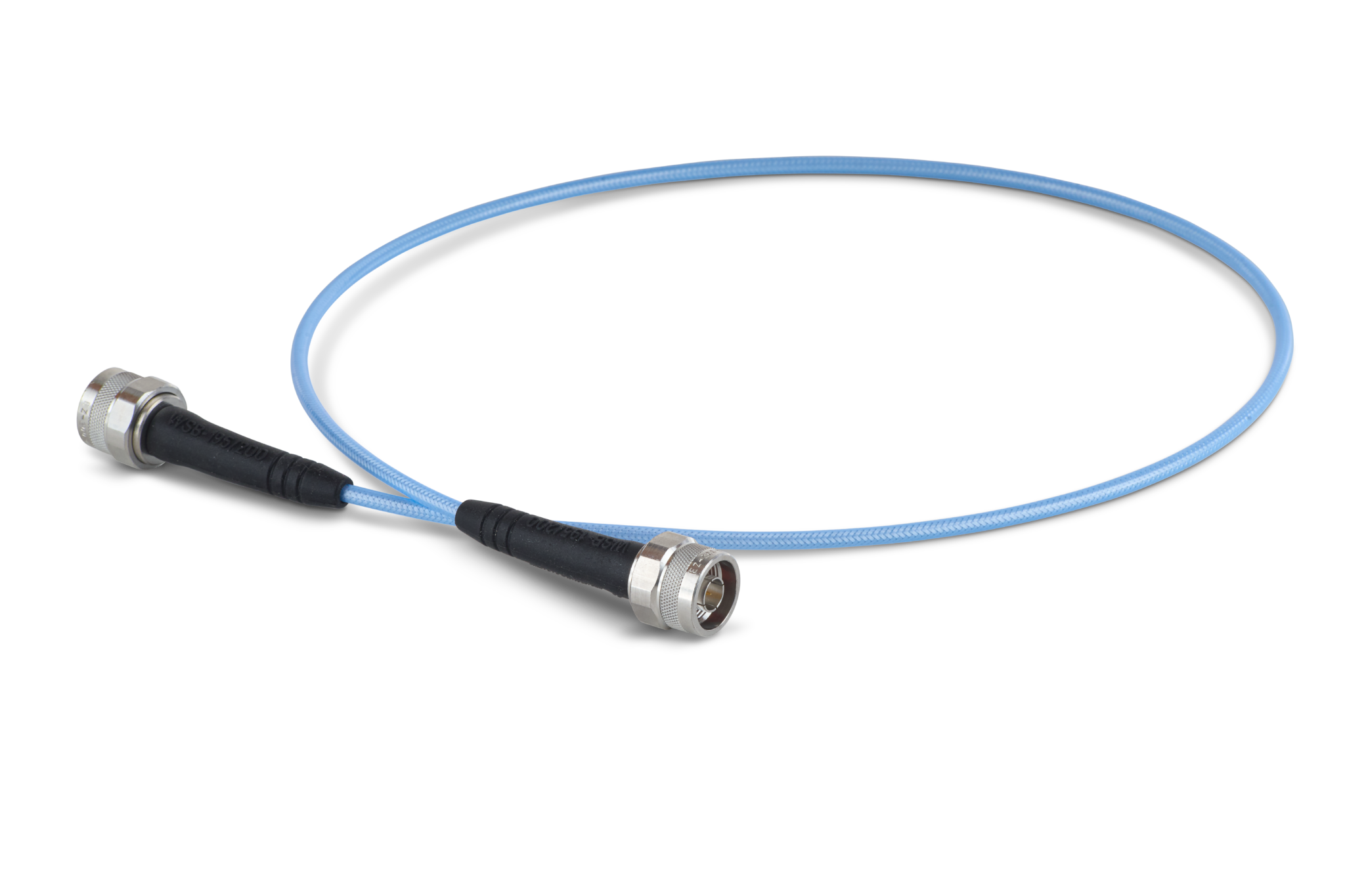

XF-142
XtendedFlex® 142 combines low loss with long flex life to make it an excellent solution for dynamic applications that demand high power transfer efficiency or signal integrity. With operating frequency well into K band, it is the ideal coaxial transmission line for microwave antenna, telescopic mast, and rotary joints, especially in harsh environments.
Stock Code:
XF-142
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberXF-142 |
| EnvironmentIndoor |
| JacketFEP |
| Overall Diameter (mm)4.47 |
| Overall Diameter (in)0.176 |
| Weight Kg/m0.015 |
| Weight lb/ft0.032 |
| Operating Temp.°C (°F)
-65° to 150°C
(-85° to 302°F) |
| Min. Bend Radius (mm)19.05 |
| Min. Bend Radius (in)0.75 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)26.5 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with

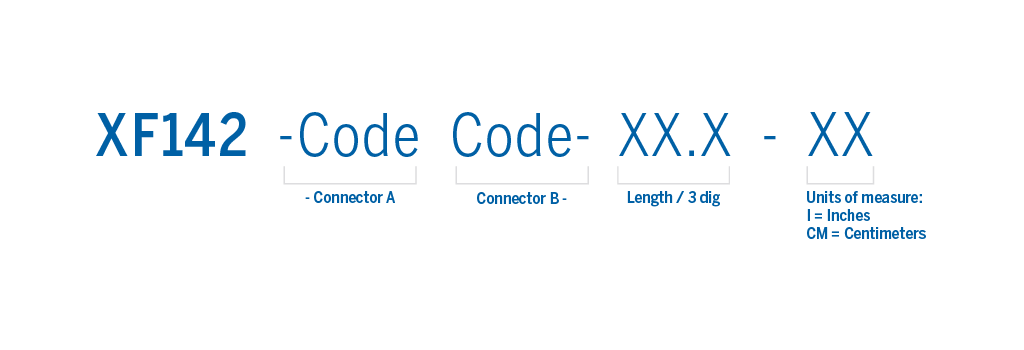

Part Number Structure

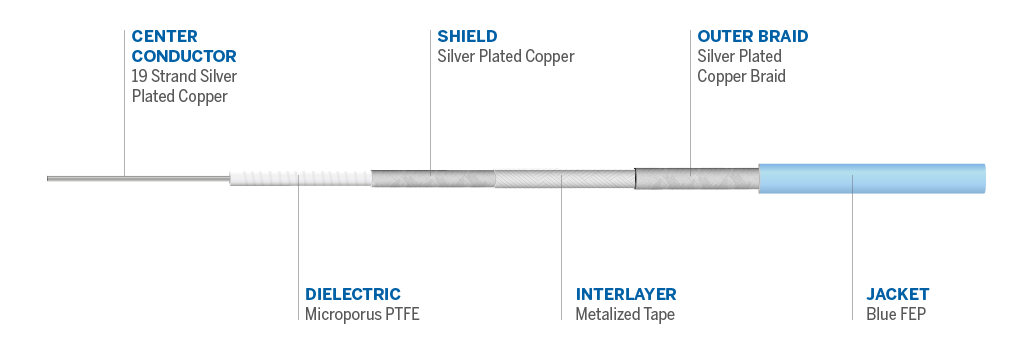

Cable Details
