CCT-02

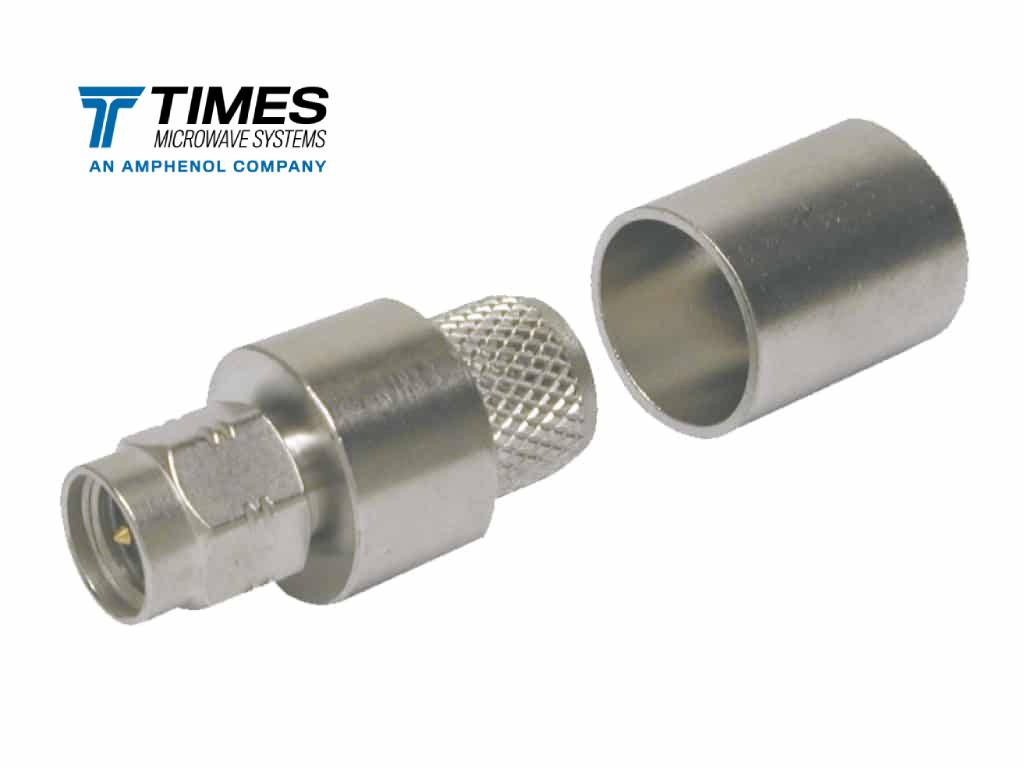

SMA, male (plug), straight, TC style connector for LMR®-400 coaxial cables.
SMA male straight
Distributor | Qty | Order |
Part NumberTC-400-SM |
Stock Code3190-439 |
InterfaceSMA |
Gender male (plug) |
OrientationStraight |
PIM Rating |
Impedance (ohms)50 |
Max Frequency (GHz)8 |
VSWR Freq<1.25:1 |
VSWR Frequency (GHz)2.5 |
Coupling NutHex |
Inner Contact AttachSolder |
Outer Contact AttachCrimp |
Body FinishNickel |
Pin FinishGold |
Length (mm)31.8 |
Length (in)1.25 |
Width (mm)12.7 |
Width (in)0.5 |
Weight (g)14.5 |
Weight (lb)0.032 |
