TC-3115-SM-RA-X

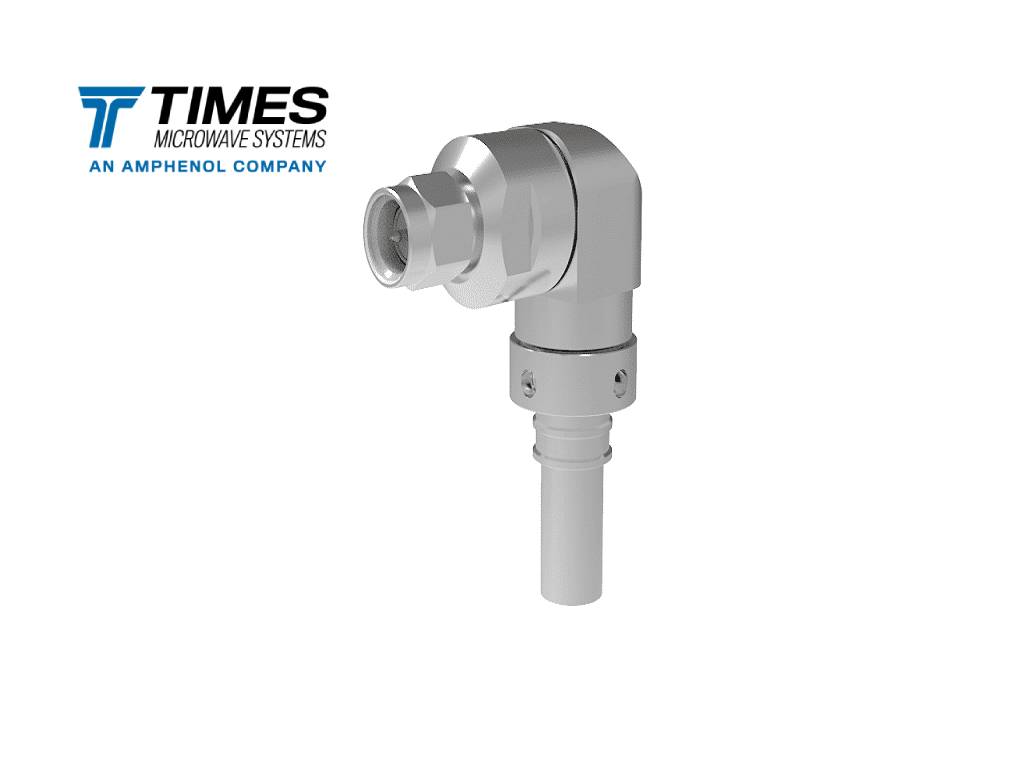

The TC-3115-SM-RA-X features a solder-pin connector and is a perfect option for stranded center conductors. SMA connectors are a lightweight, compact, high-performance coaxial RF connectors designed with a threaded coupling. This is a Male, Right Angle connector for size cables.

Stock Code: 3190-8056

Right Angle SMA male (plug) connector for TCA assemblies

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

TC-3115-SM-RA-X
Cable
Connector B
Design Your Assembly

Specifications

Part NumberTC-3115-SM-RA-X
Stock Code3190-8056
InterfaceSMA
Gendermale (plug)
Orientationright angle
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)-
VSWR Freq<1.3:1
VSWR Frequency (GHz)6
Coupling NutHex
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishBi-Metal
Pin FinishGold
Length (mm)39.25
Length (in)1.55
Width (mm)35.7
Width (in)1.41
Weight (g)39.91
Weight (lb)0.09
