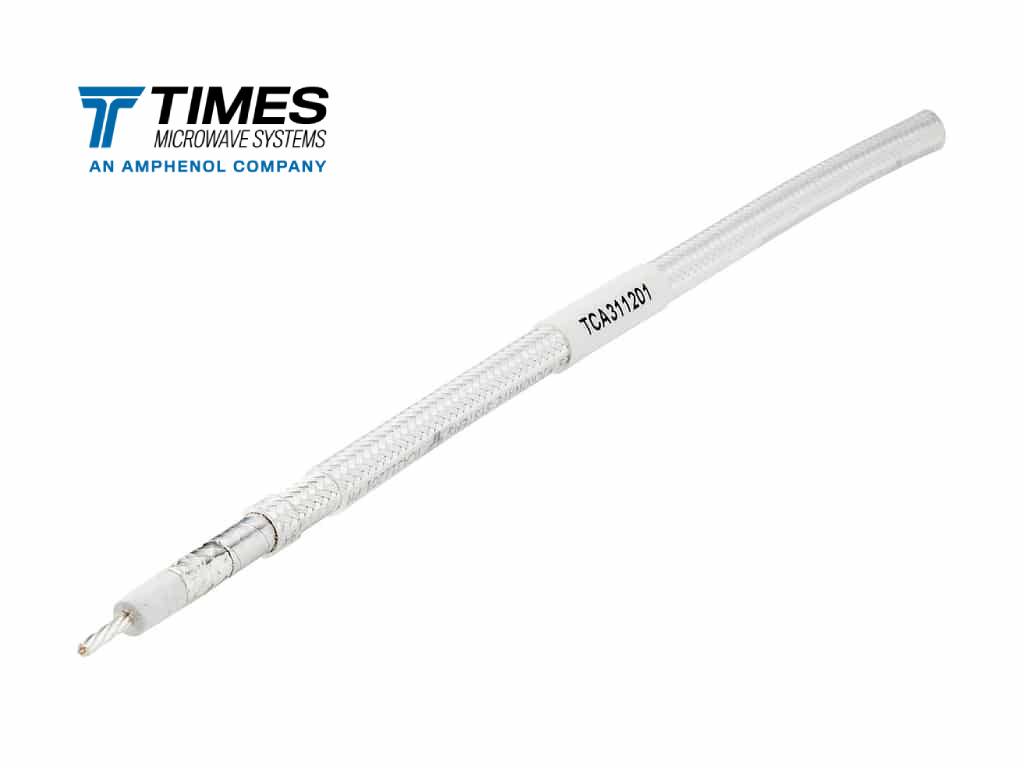

TCA-311201
TCA-311201 is a lightweight, low-loss coaxial cable rated for high temperatures and engineered for navigation, collision-avoidance, and communication systems. With exceptional flexibility, it excels in tight routing paths and harsh environments. Built to meet critical electrical integrity and mechanical strength requirements, this cable ensures reliable performance in aerospace, defense, and industrial installations.
Stock Code: 510-0155
TCA311201 0.089" Stranded CC , 0.317" FEP Jacket
Request a Quote
Specifications
| Part NumberTCA-311201 |
| EnvironmentIndoor/Outdoor |
| JacketFEP |
| Overall Diameter (mm)8.05 |
| Overall Diameter (in)0.317 |
| Weight Kg/m0.0128 |
| Weight lb/ft0.0086 |
| Operating Temp.°C (°F)
-55° to 200°C
(-67° to 392°F) |
| Min. Bend Radius (mm)40.386 |
| Min. Bend Radius (in)1.59 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)5 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure
Cable Details
Documentation
Resources
