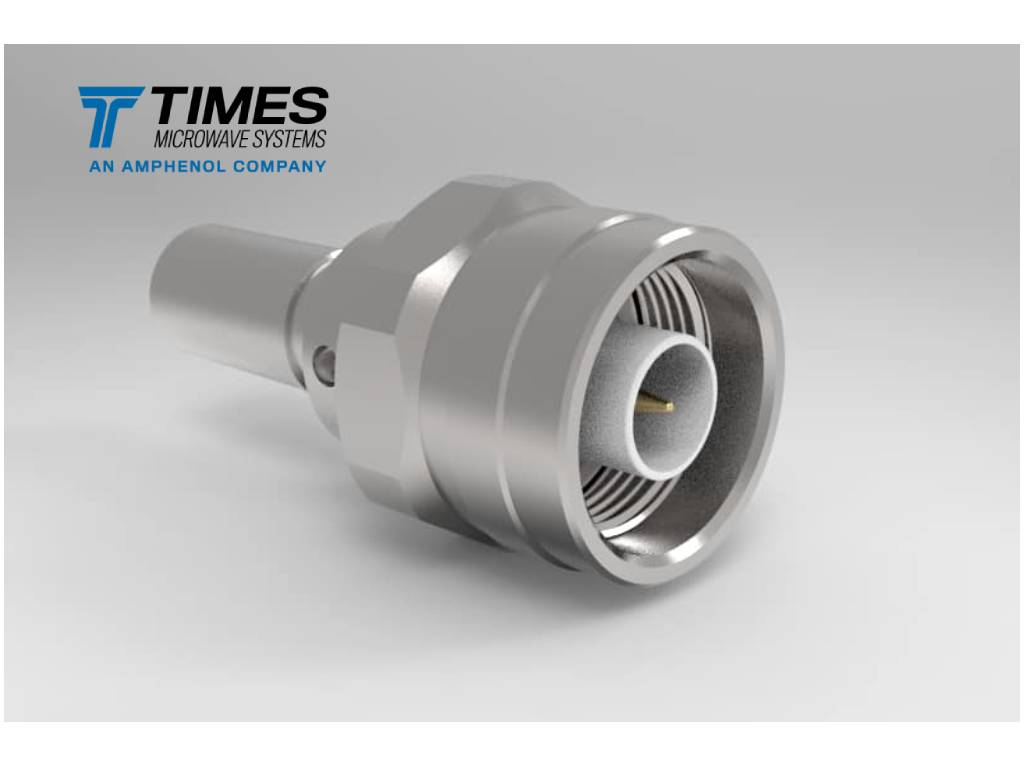

TC-3112-NMH-X
Type N, male (plug), straight, TC style connector for TCA311201. The TC-3112-NMH-X features a solder-pin connector and is a perfect option for stranded center conductors. The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification.
Stock Code: 3190-8063
Straight N male (plug) connector for TCA assemblies
Request a Quote
Specifications
| Part NumberTC-3112-NMH-X |
| Stock Code3190-8063 |
| InterfaceN |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq<1.3:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex/Knurl |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishBi-Metal |
| Pin FinishGold |
| Length (mm)39.6 |
| Length (in)1.56 |
| Width (mm)22 |
| Width (in)0.87 |
| Weight (g)38.7 |
| Weight (lb)0.09 |
