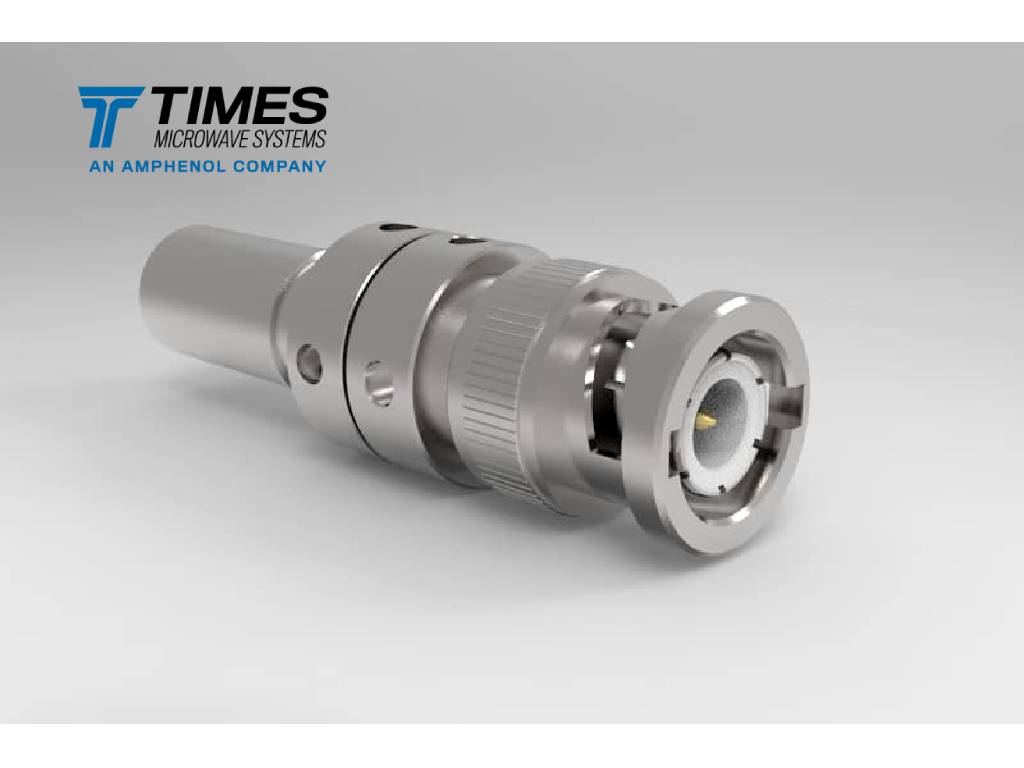

TC-3112-BM-X
Type BNC, male (plug), straight, TC style connector for TCA311201. The TC-3112-BM-X features a solder-pin connector and is a perfect option for stranded center conductors. BNC connectors are a classic, dependable design, suited to accommodate a large variety of RG and industry-standard coaxial cables, in a variety of termination styles. Its bayonet-style coupling mechanism enables quick-connect and disconnect with positive locking. Mating is achieved with just a quarter-turn of the coupling nut.
Stock Code: 3190-8083
Straight BNC male (plug) connector for TCA assemblies
Request a Quote
Specifications
| Part NumberTC-3112-BM-X |
| Stock Code3190-8083 |
| InterfaceBNC |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq<1.3:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutKnurl |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishBi-Metal |
| Pin FinishGold |
| Length (mm)45.1 |
| Length (in)1.78 |
| Width (mm)15 |
| Width (in)0.59 |
| Weight (g)27.24 |
| Weight (lb)0.06 |
Compatible with
