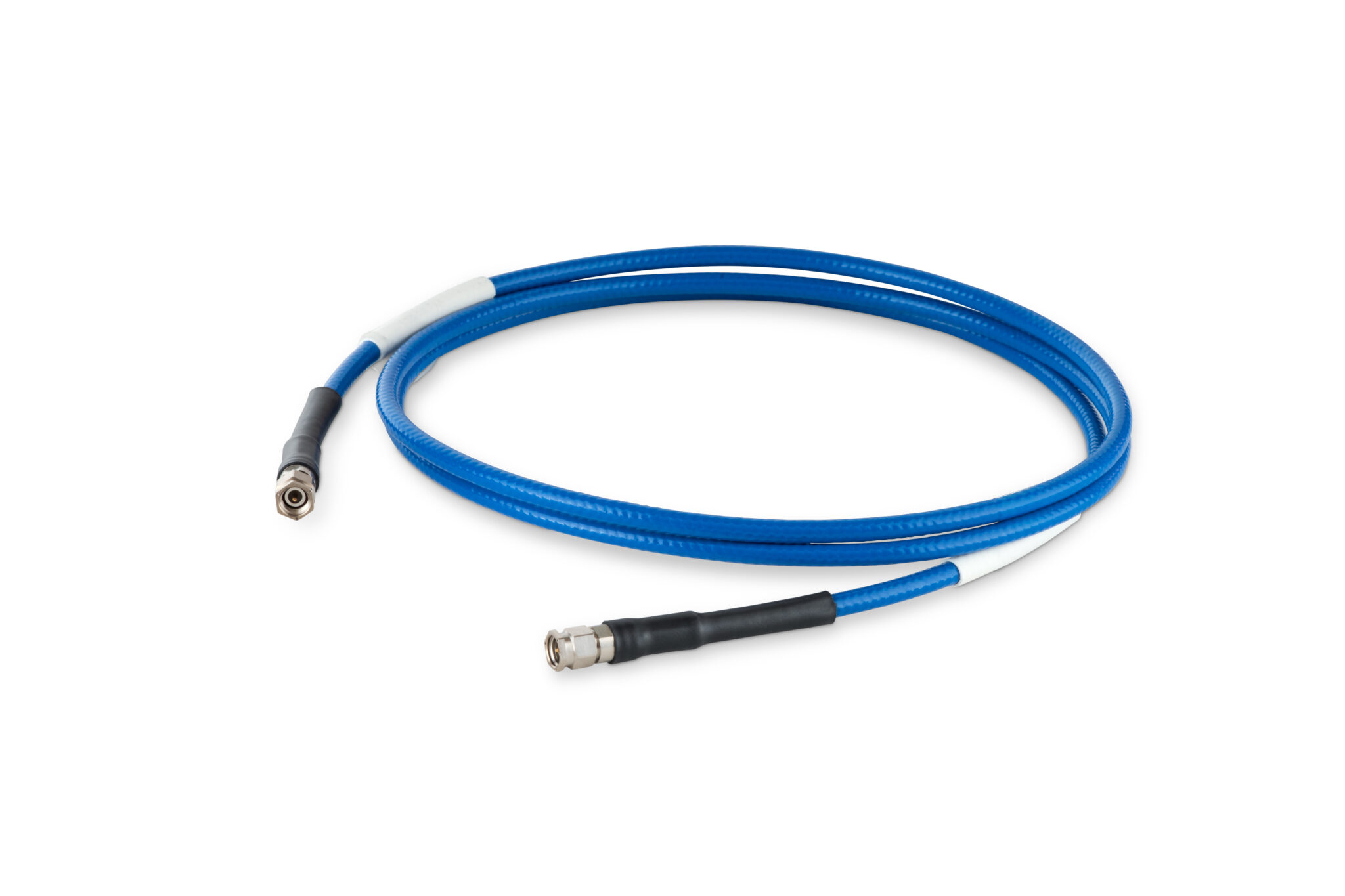

LVT-196
Levitate® 196 is engineered to meet the modern demands of both military and commercial RF systems. Offering an ultra-lightweight construction with minimal signal loss, these assemblies are built to support critical RF runs connecting antennas to LRU’s. With a budget-friendly price and product available in distribution, Levitate is ideal for UAV platforms and all other applications requiring the perfect blend of cost, performance, and lead time.
Stock Code: LVT-196
LVT-196
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberLVT-196 |
| Environment |
| JacketETFE |
| Overall Diameter (mm)5.06 |
| Overall Diameter (in)0.199 |
| Weight Kg/m0.0435 |
| Weight lb/ft0.0292 |
| Operating Temp.°C (°F)
-65° to 150°C
(-85° to 302°F) |
| Min. Bend Radius (mm)25 |
| Min. Bend Radius (in)1 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)8 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure

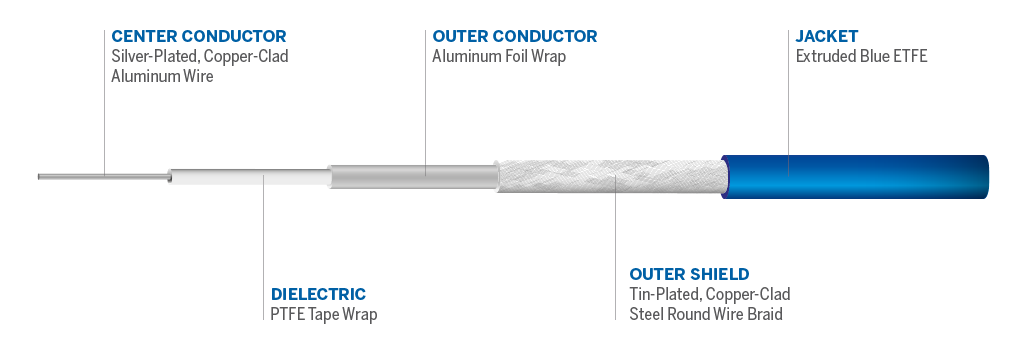

Cable Details
