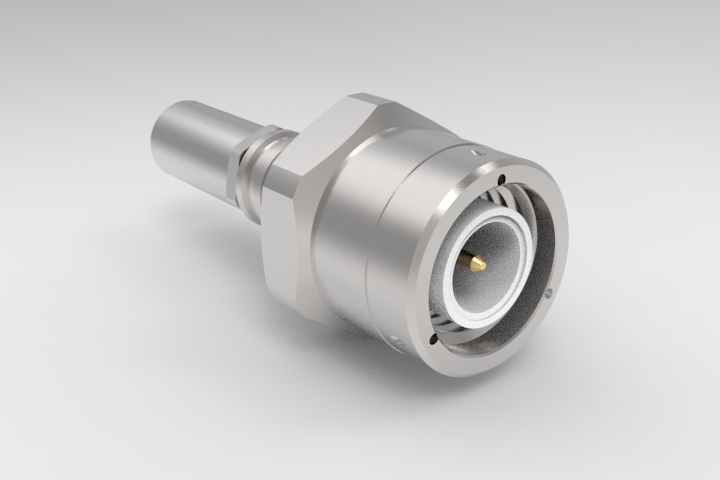

LVT-196-TM

LVT-196-TM

Stock Code: 3190-3543

TNC, male, straight connector for Levitate® 196

Inventory Status
Distributor Qty Order

Specifications

Part NumberLVT-196-TM
Stock Code3190-3543
InterfaceTNC
Gender Male (plug)
Orientation Straight
PIM Rating
Impedance (ohms)50
Max Frequency (GHz)12.4
VSWR Freq1.2
VSWR Frequency (GHz)6
Coupling NutHex
Inner Contact Attach
Outer Contact Attach
Body FinishElectroless Nickel
Pin FinishGold Plate, MIL-DTL-45204
Length (mm)38.66
Length (in)1.522
Width (mm)17.48
Width (in)0.688
Weight (g)8.4
Weight (lb)0.018

Compatible with

LVT-196
