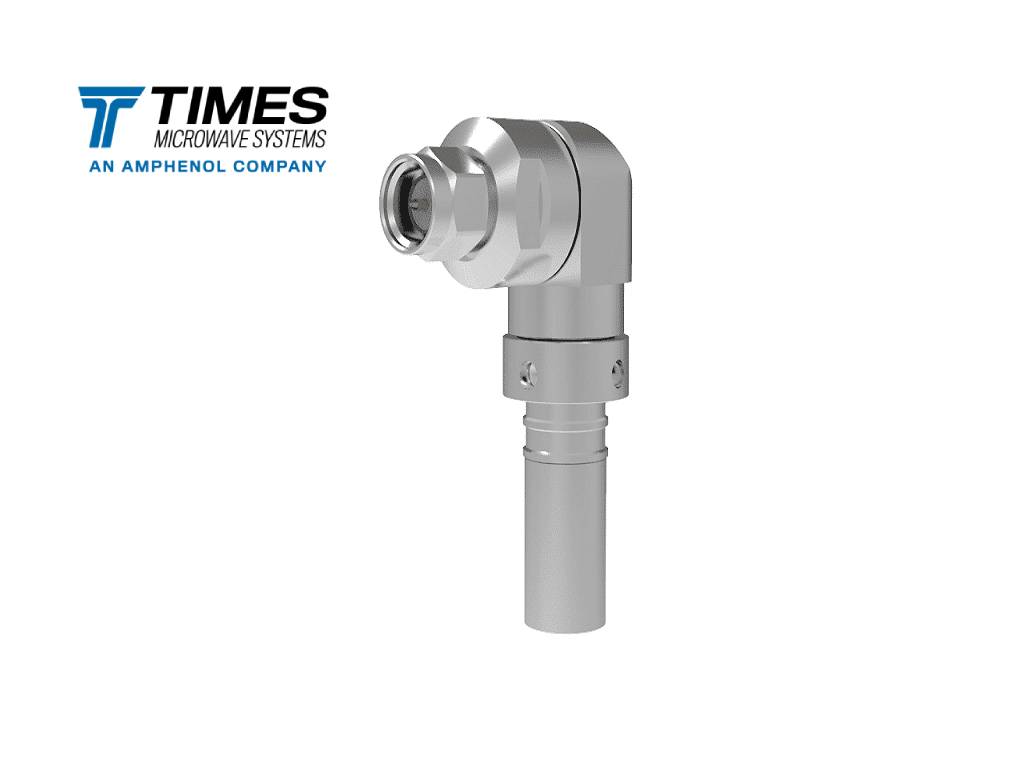

TC-3112-SM-RA-X
Type SMA, male (plug), right angle, TC style connector for TCA311201. The TC-3112-SM-RA-X features a solder-pin connector and is a perfect option for stranded center conductors. SMA connectors are a lightweight, compact, high-performance coaxial RF connectors designed with a threaded coupling.
Stock Code: 3190-8054
Right Angle SMA male (plug) connector for TCA assemblies
Request a Quote
Specifications
| Part NumberTC-3112-SM-RA-X |
| Stock Code3190-8054 |
| InterfaceSMA |
| Gender Male (plug) |
| OrientationRight Angle |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq<1.3:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishBi-Metal |
| Pin FinishGold |
| Length (mm)40.7 |
| Length (in)1.6 |
| Width (mm)35.7 |
| Width (in)1.41 |
| Weight (g)41.25 |
| Weight (lb)0.09 |
