XF-174
XtendedFlex™ 174 is a versatile high-flexure cable for a wide array of applications. With a double-shield construction, XF-174 provides the high shielding effectiveness required in high-density applications – with an expected lifespan of over 1 million flexure cycles.
Stock Code: XF-174
XF-174
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberXF-174 |
| EnvironmentIndoor |
| JacketPUR |
| Overall Diameter (mm)2.9 |
| Overall Diameter (in)0.114 |
| Weight Kg/m0.006 |
| Weight lb/ft0.0135 |
| Operating Temp.°C (°F)
-65° to 105°C
(-85° to 221°F) |
| Min. Bend Radius (mm)12.7 |
| Min. Bend Radius (in)0.50 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)8.0 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with

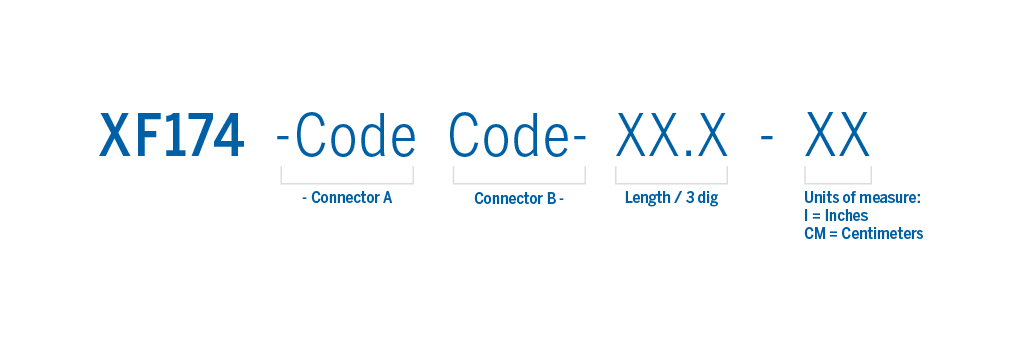

Part Number Structure

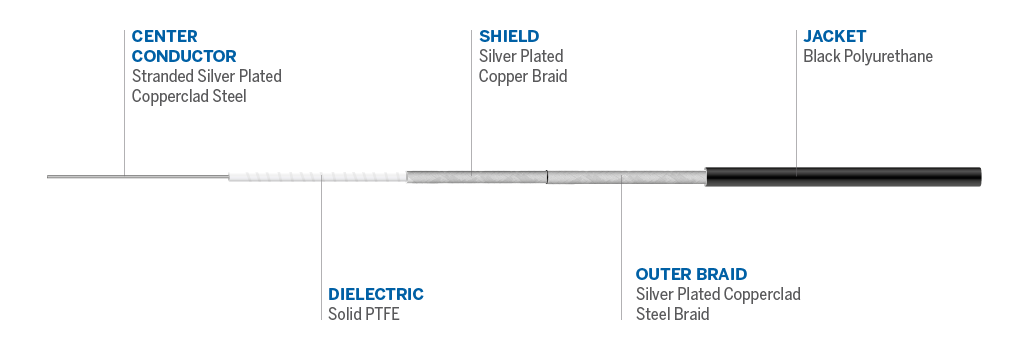

Cable Details
