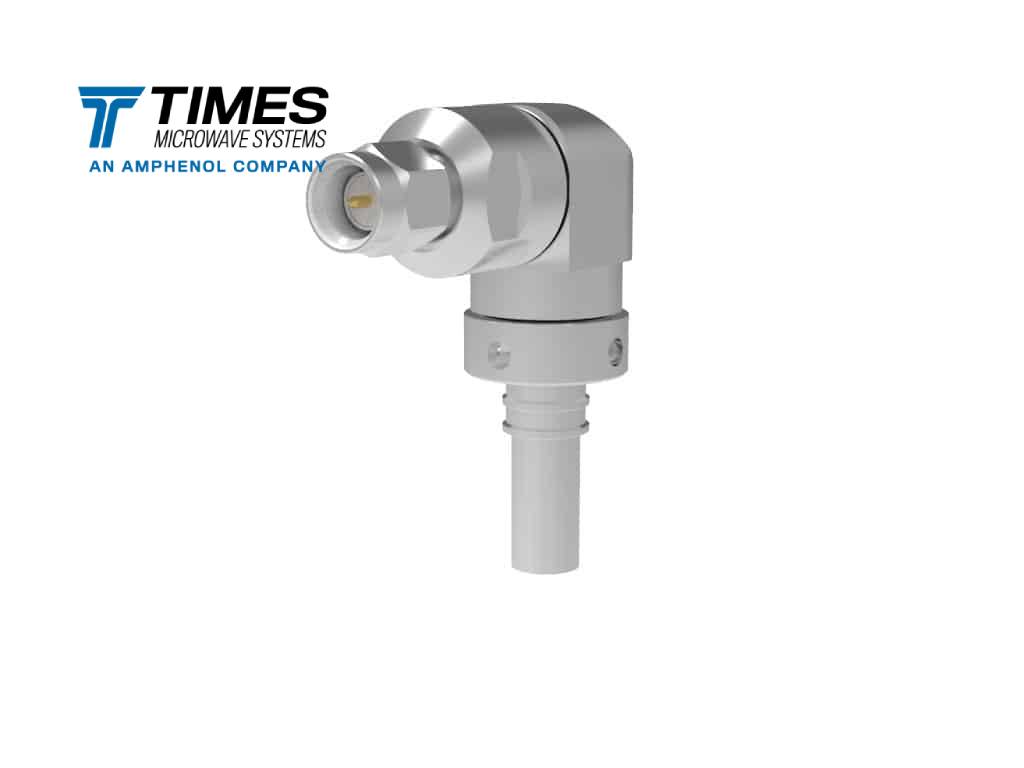

TC-3520-SM-RA-X
Type SMA, male (plug), right angle, TC style connector for TCA352001.
Stock Code: 3190-8052
Right Angle SMA male (plug) connector for TCA assemblies
Request a Quote
Specifications
| Part NumberTC-3520-SM-RA-X |
| Stock Code3190-8052 |
| InterfaceSMA |
| Gender Male (plug) |
| OrientationRight Angle |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq<1.35:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex |
| Inner Contact AttachSolder/Crimp |
| Outer Contact AttachCrimp |
| Body FinishBi-Metal |
| Pin FinishGold |
| Length (mm)39.4 |
| Length (in)1.55 |
| Width (mm)35.7 |
| Width (in)1.41 |
| Weight (g)39.39 |
| Weight (lb)0.087 |
