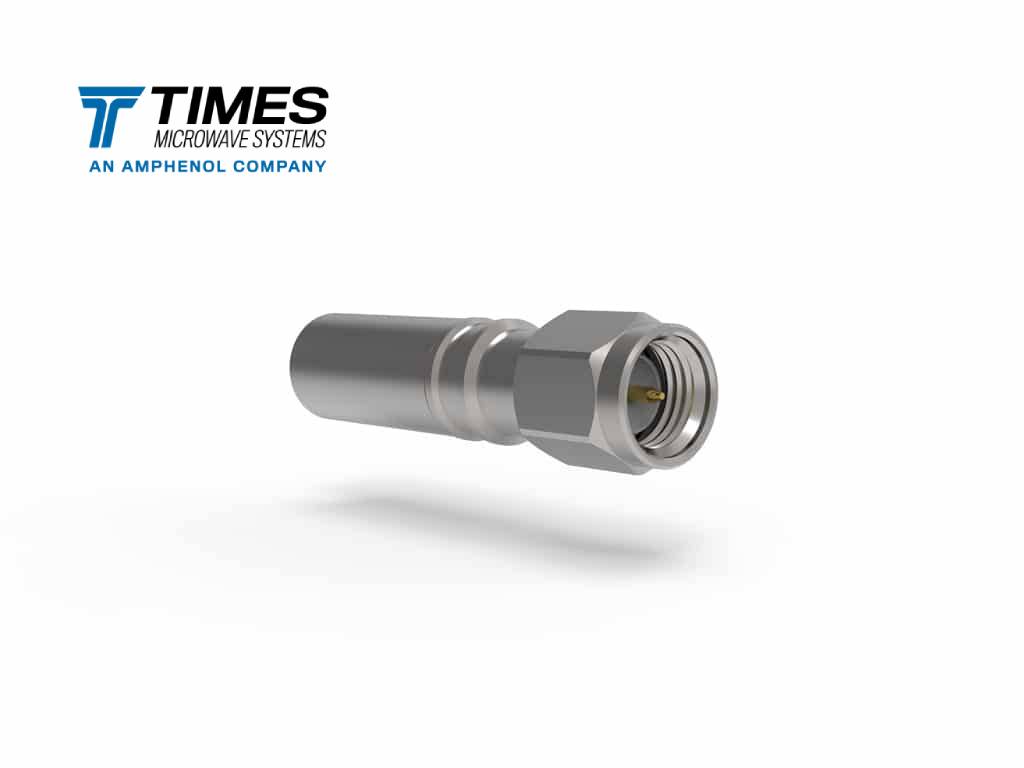

SMA male (plug), straight, EZ style connector for FBT-240 and LMR®-240-LLPX® cables. The EZ-240-SM-PL-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination. The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high-vibration applications where the center conductor might contract. SMA connectors are a lightweight, compact, high-performance coaxial RF connectors designed with a threaded coupling.
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
|Max Frequency (GHz)6|
|VSWR Frequency (GHz)6|
|Inner Contact AttachSpring Finger|
|Outer Contact AttachCrimp|
Weather Seal Strain Relief Boots
