Part #	Description	Gender	Orientation	Stock Code	Compatible With

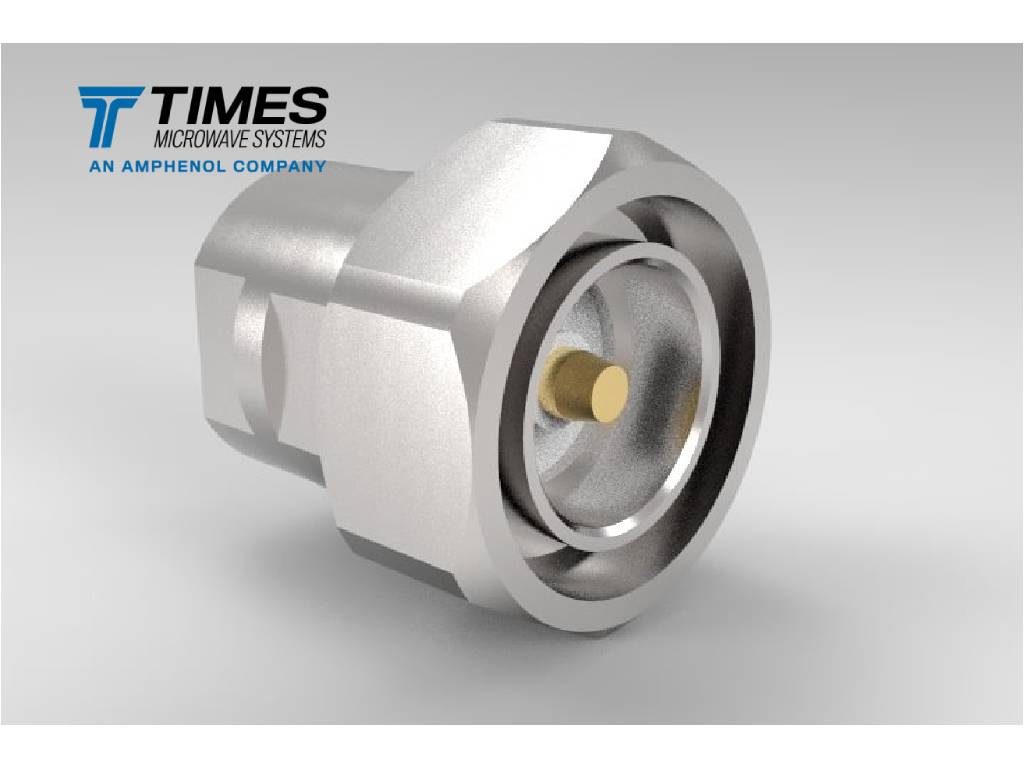

TC-400-716MC	Type 716 DIN male (plug) for LMR-400 coaxial cable	Male (plug)	Straight	3190-279	LMR-400 LMR-400-DB LMR-400-FR LMR-400-LLPX LMR-400-UF LMR-400-UF-FR TCOM-400 TCOM-400-FR TCOM-400-PUR-DB
TC-393-716F-BH-CL	Type 7/16 DIN, female (jack), straight, TC style connector for...	Female (jack)	Straight	3190-6075	HPL-393 RG-213 RG-214 RG-393-NPP-SN SFT-393
TC-500-716M-X	7/16 DIN -Male Straight connector for 500 size cables.	Male (plug)	Straight	3190-2905
TC-402-716M-RA-LP	Type 7/16 DIN, male (plug), right angle, TC style connector...	Male (plug)	Right Angle	3190-2967	TFT-5G-402
TC-402-716M-LP	Type 7/16 DIN, male (plug), straight, TC style connector for...	Male (plug)	Straight	3190-2942	TFT-5G-402
TC-402-716F-PM-LP	Type 7/16 DIN, female (jack), straight, TC style connector for...	Female (jack)	Straight	3190-3012	TFT-5G-402
TC-402-716F-LP	Type 7/16 DIN, female (jack), straight, TC style connector for...	Female (jack)	Straight	3190-3003	TFT-5G-402
TCP-401-716MC-LP	Type 7/16 DIN, male (plug), straight, TCP style connector for...	Male (plug)	Straight	3190-6275	TFT-5G-401
TCP-400-716MC-LP	Type 7/16 DIN, male (plug), straight, TCP style connector for...	Male (plug)	Straight	3190-6299	TCOM-400 TCOM-400-FR
TCP-240-716MC-LP	Type 7/16 DIN, male (plug), straight, TCP style connector for...	Male (plug)	Straight	3190-6292	TCOM-240 TCOM-240-FR
EZ-240-716M-RA-X	Type 7/16 DIN, male (plug), right angle, EZ style connector...	Male (plug)	Right Angle	3190-8104	LMR-240 LMR-240-DB LMR-240-FR LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
EZ-195-200-716M-RA-X	Type 7/16 DIN, male (plug), right angle, EZ style connector...	Male (plug)	Right Angle	3190-8103	LMR-195 LMR-195-DB LMR-195-FR

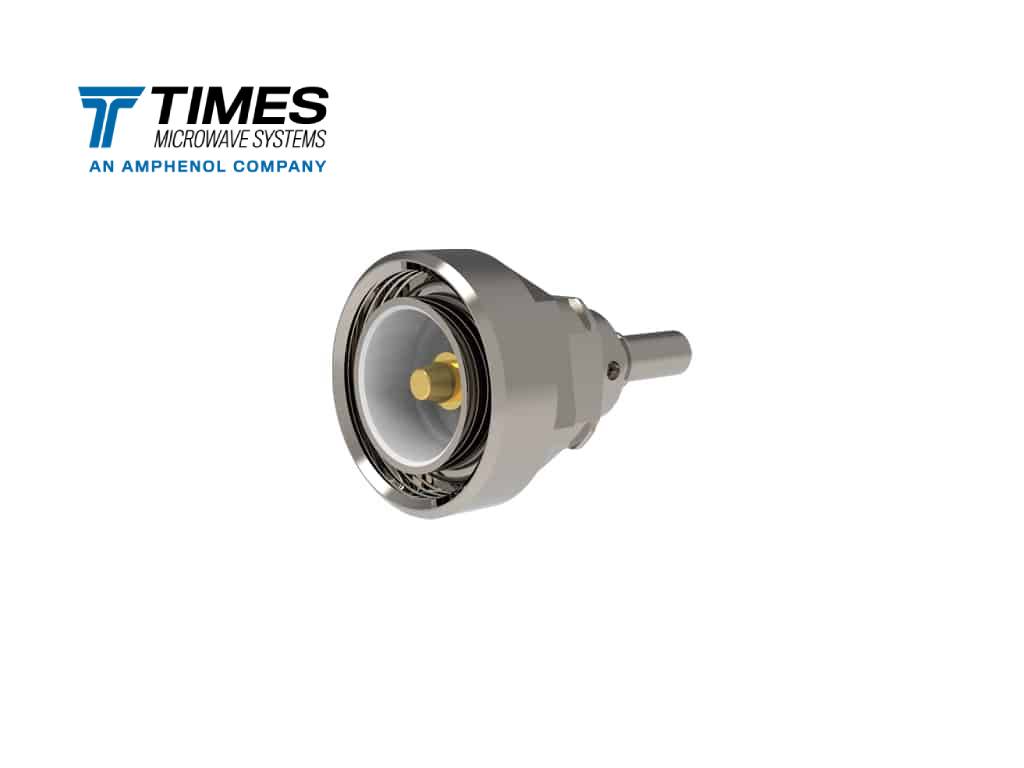

EZ-195-200-716M-X	Type 7/16 DIN, male (plug), straight, EZ style connector for...	Male (plug)	Straight	3190-8102	LMR-195 LMR-195-DB LMR-195-FR

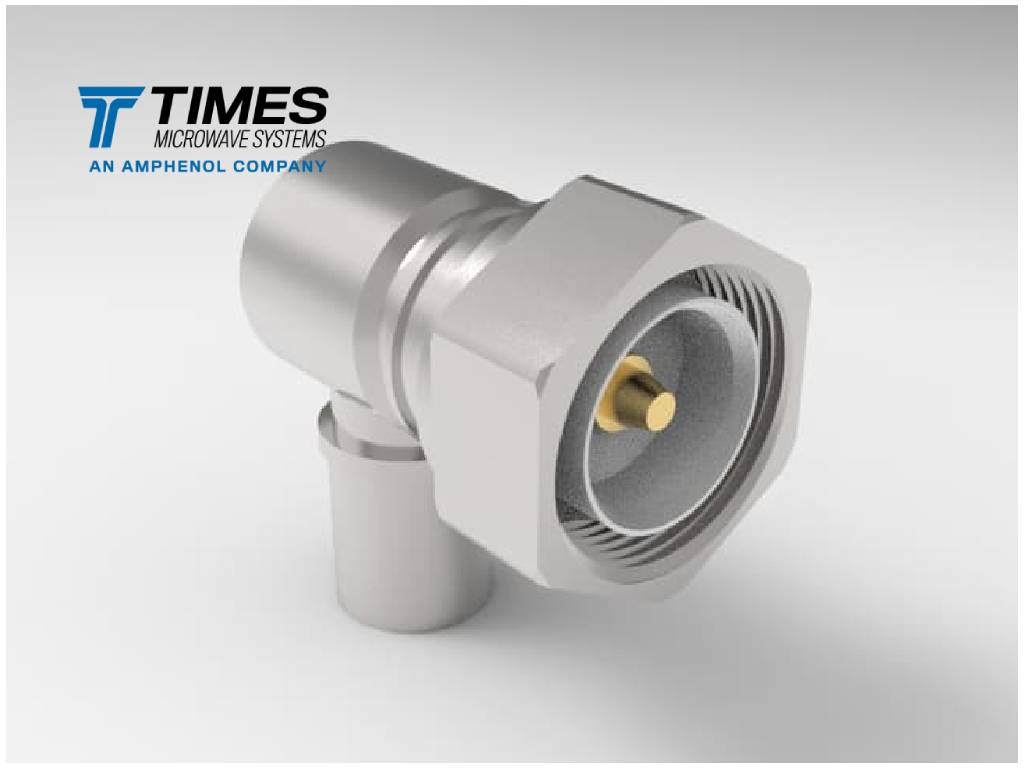

TC-600-716M-RA	7/16 DIN, male (plug), right-angle, TC style connector for LMR®-600...	Male (plug)	Right Angle	3190-395	LMR-600
TC-400-716FC	7/16 DIN female (jack) straight TC connector for LMR®-400, TCOM®-400...	Male (plug)	Straight	3190-376	LMR-400 LMR-400-DB LMR-400-FR LMR-400-LLPX LMR-400-UF LMR-400-UF-FR TCOM-400 TCOM-400-FR TCOM-400-PUR-DB
EZ-600-716F-X	7/16 DIN female (jack) straight EZ connector for LMR®-600, TCOM®-600,...	Female (jack)	Straight	3190-2447	LMR-600 LMR-600-DB LMR-600-FR LMR-600-FR-PVC TCOM-600 TCOM-600-FR T-RAD-600-FR-MSHA T-RAD-600-PVC
EZ-1200-716FC-2	7/16 DIN female (jack), straight EZ connector for LMR®-1200 type...	Female (jack)	Straight	3190-2784	LMR-1200-DB LMR-1200-FR
EZ-1200-716MC-2	7/16 DIN male (plug) straight EZ connector for LMR®-1200 type...	Male (plug)	Straight	3190-2781	LMR-1200-DB LMR-1200-FR
EZ-400-716M-RA-X	7/16 DIN male (plug) right angle EZ connector for LMR®-400,...	Male (plug)	Right Angle	3190-2545	LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-RR-DB TCOM-400 TCOM-400-FR T-RAD-400-FR
EZ-600-716F	The EZ-600-716F-X eliminates assembly errors and soldering with crimp-style outer...	Female (jack)	Straight	3190-2447	LMR-600 LMR-600-FR-PVC LMR-600-DB LMR-600-FR TCOM-600-FR TCOM-600 T-RAD-600-PVC T-RAD-600-FR-MSHA
EZ-600-716M-RA-X	Type 7/16 DIN, male (plug), right angle, EZ style connector...	Male (plug)	Right Angle	3190-6471	LMR-600 LMR-600-DB LMR-600-FR LMR-600-FR-PVC TCOM-600 TCOM-600-FR T-RAD-600-FR-MSHA T-RAD-600-PVC
EZ-600-716M-X	7/16 DIN male (plug) straight EZ connector for LMR®-600, T-RAD®-600,...	Male (plug)	Straight	3190-2643	LMR-600 LMR-600-DB LMR-600-FR LMR-600-FR-PVC TCOM-600 TCOM-600-FR T-RAD-600-FR-MSHA T-RAD-600-PVC

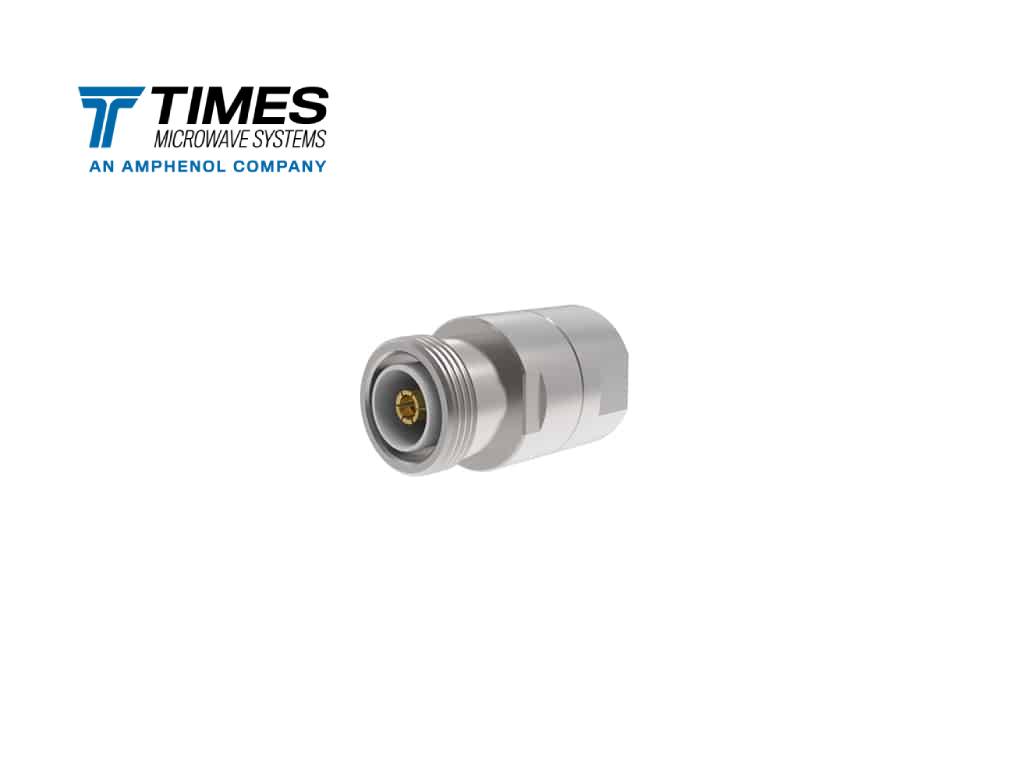

EZ-900-716FC-2-SP	Type 7/16 DIN, female (jack), straight, EZ style connector for...	Female (jack)	Straight	3190-6512	HP-900 LMR-900-DB LMR-900-FR LMR-900-LLPX LMR-900-RR-DB SFT-900 T-RAD-900-FR T-RAD-900-PVC

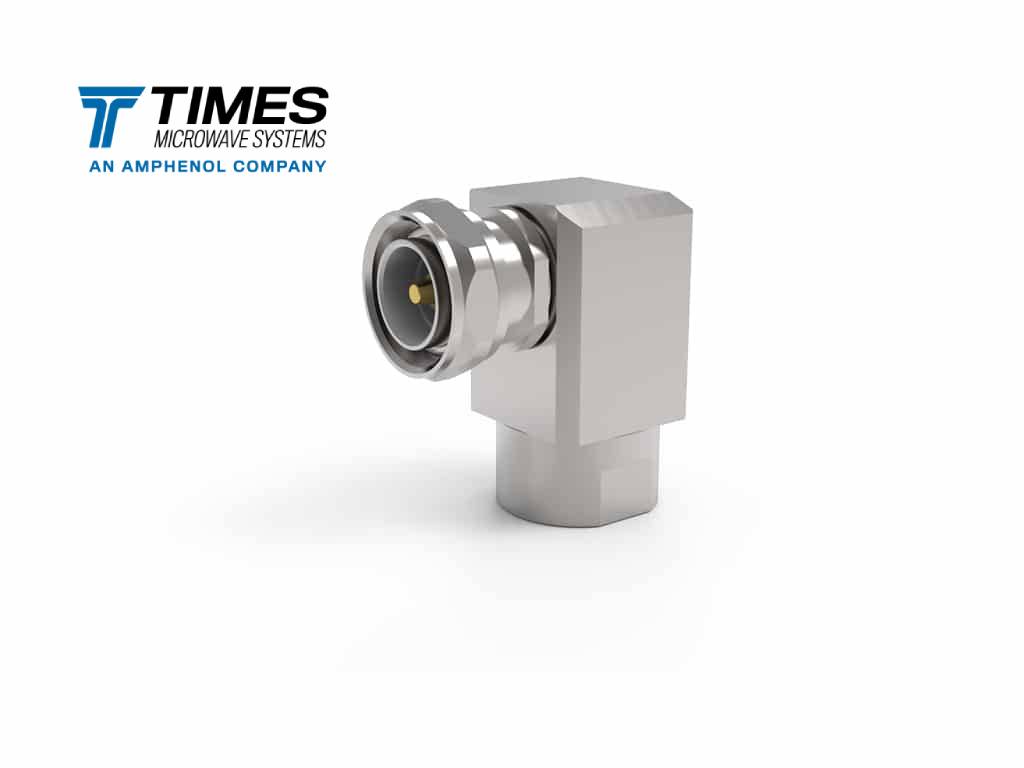

EZ-900-716MC-RA-2-SP	Type 7/16 DIN, male (plug), right angle, EZ style connector...	Male (plug)	Right Angle	3190-6423	HP-900 LMR-900-LLPX SFT-900
TC-240-716M	7/16 DIN male (plug), straight, TC style connector for FBT-240,...	Male (plug)	Straight	3190-2982	FBT-240 LMR-240 LMR-240-DB LMR-240-FR LMR-240-LLPX LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
TC-240-716M-RA-D	7/16 DIN male (plug), right-angle, TC style connector for FBT-240,...	Male (plug)	Right Angle	3190-2983	FBT-240 LMR-240 LMR-240-DB LMR-240-FR LMR-240-LLPX LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR
TC-400-716M-RA-D	7/16 DIN male (plug) right angle TC connector for FBT-400,...	Male (plug)	Right Angle	3190-2598	FBT-400 LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-LLPX LMR-400-RR-DB TCOM-400
TC-400-716M-X	7/16 DIN male (plug) straight TC connector for FBT-400, LMR®-400,...	Male (plug)	Straight	3190-2597	FBT-400 LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-LLPX LMR-400-RR-DB TCOM-400
TC-600-716MC	7/16 DIN, male (plug), straight. TC style connector for FBT-600,...	Male (plug)	Straight	3190-502	FBT-600 LMR-600 LMR-600-DB LMR-600-FR LMR-600-FR-PVC LMR-600-LLPX TCOM-600 TCOM-600-FR T-RAD-600-FR-MSHA T-RAD-600-PVC
TC-600-716M-RA-D	Type 7/16 DIN, male (plug), right angle, TC style connector...	Male (plug)	Right Angle	3190-6211	FBT-600 LMR-600 LMR-600-DB LMR-600-FR LMR-600-FR-PVC LMR-600-LLPX TCOM-600 TCOM-600-FR T-RAD-600-FR-MSHA T-RAD-600-PVC
TC-600-716M-X	7/16 DIN male (plug) straight TC connector for FBT-600, LMR®-600,...	Male (plug)	Straight	3190-2642	FBT-600 LMR-600 LMR-600-DB LMR-600-FR LMR-600-FR-PVC LMR-600-LLPX TCOM-600 TCOM-600-FR T-RAD-600-FR-MSHA T-RAD-600-PVC
EZ-400-716M-X	7/16 DIN male (plug) straight EZ connector for LMR®-400, TCOM®-400,...	Male (plug)	Straight	3190-2524	LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-RR-DB TCOM-400 TCOM-400-FR T-RAD-400-FR
