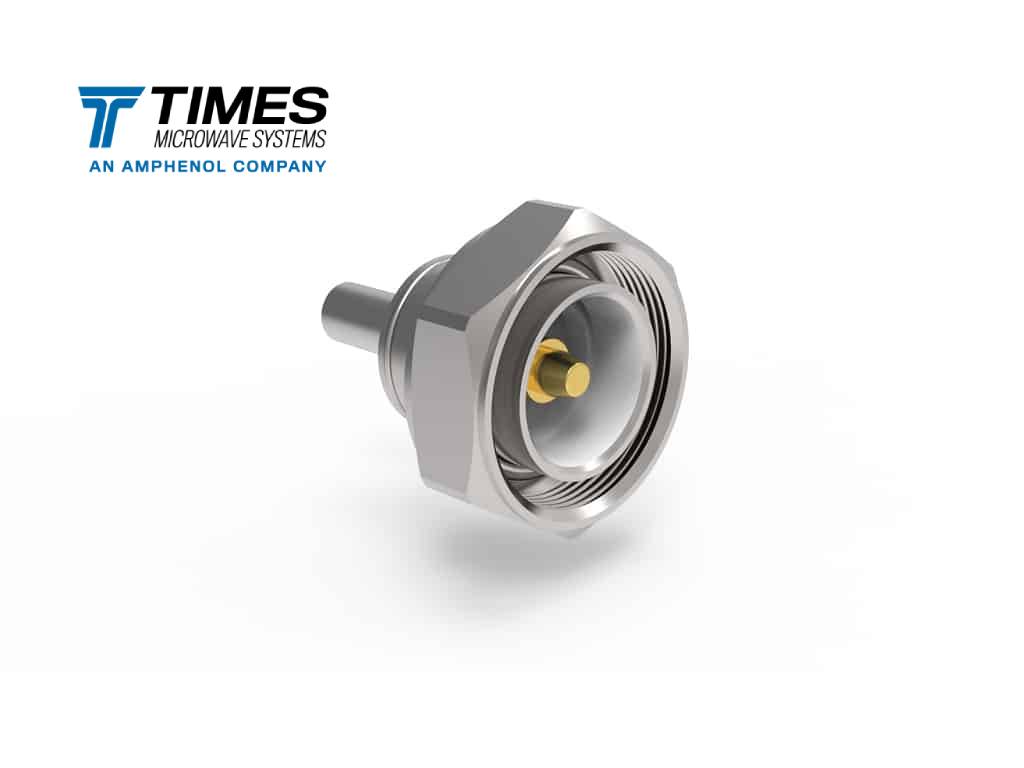

TC-240-716M

7/16 DIN male (plug), straight, TC style connector for FBT-240, LMR®-240, and TCOM®-240 type cables. The TC-240-716M features a solder-pin connector and is a perfect option for stranded center conductors. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems.

Stock Code: 3190-2982

7/16 DIN male

Inventory Status
Distributor Qty Order

Specifications

Part NumberTC-240-716M
Stock Code3190-2982
Interface7/16 DIN
Gender Male (plug)
OrientationStraight
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)3
VSWR Freq<1.15:1
VSWR Frequency (GHz)3
Coupling NutHex
Inner Contact AttachSpring Finger
Outer Contact AttachCrimp
Body FinishAlballoy
Pin FinishSilver
Length (mm)50.5
Length (in)2
Width (mm)32
Width (in)1.26
Weight (g)84.4
Weight (lb)0.19

Compatible with

FBT-240 LMR-240 LMR-240-DB LMR-240-FR LMR-240-LLPX LMR-240-MA LMR-240-PVC TCOM-240 TCOM-240-FR

Tools and Accessories

CST-240A

CST-240A

Grounding Kits

Grounding Kits

Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots

CCT-02

CCT-02

CCT-03

CCT-03
