WR-600

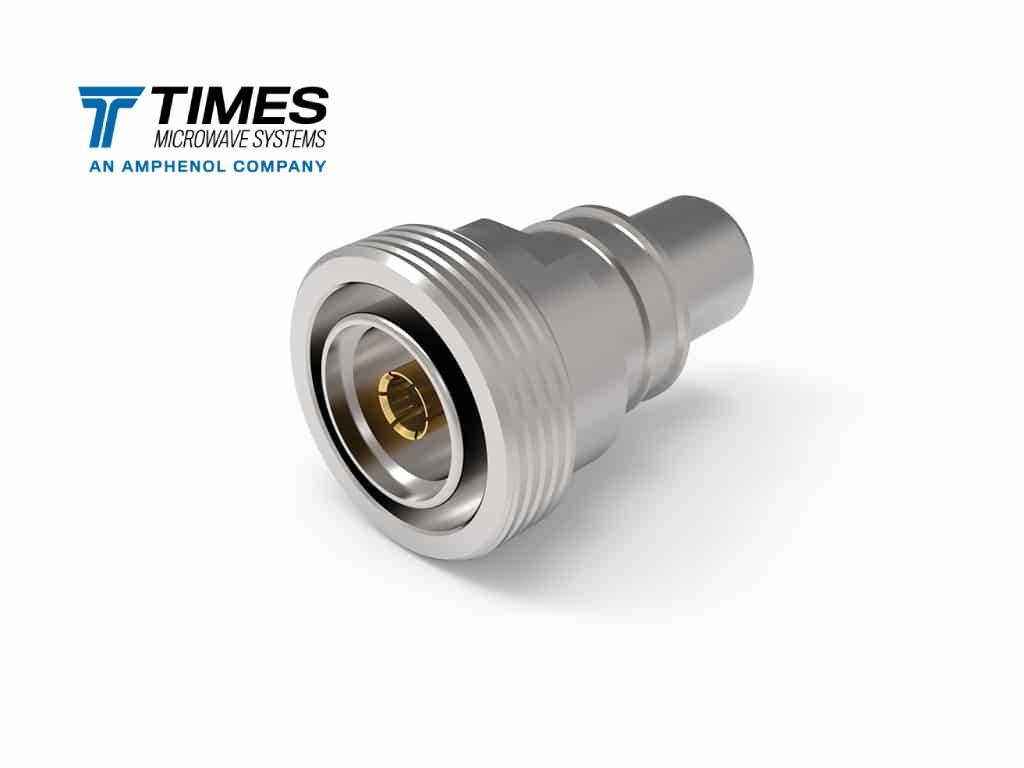

The EZ-600-716F-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination. The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high- vibration applications where the center conductor might contract. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems. This is a female (jack), straight connector for 600 size cables.
7/16 DIN female
Distributor | Qty | Order |
Part NumberEZ-600-716F-X |
Stock Code3190-2447 |
Interface7/16 DIN |
Genderfemale (jack) |
Orientationstraight |
PIM RatingN/A |
Impedance (ohms)50 |
Max Frequency (GHz)5 |
VSWR Freq<1.30:1 |
VSWR Frequency (GHz)6 |
Coupling NutN/A |
Inner Contact AttachSpring Finger |
Outer Contact AttachCrimp |
Body FinishAlballoy |
Pin FinishGold |
Length (mm)45 |
Length (in)1.8 |
Width (mm)33.6 |
Width (in)1.32 |
Weight (g)71.7 |
Weight (lb)0.158 |
