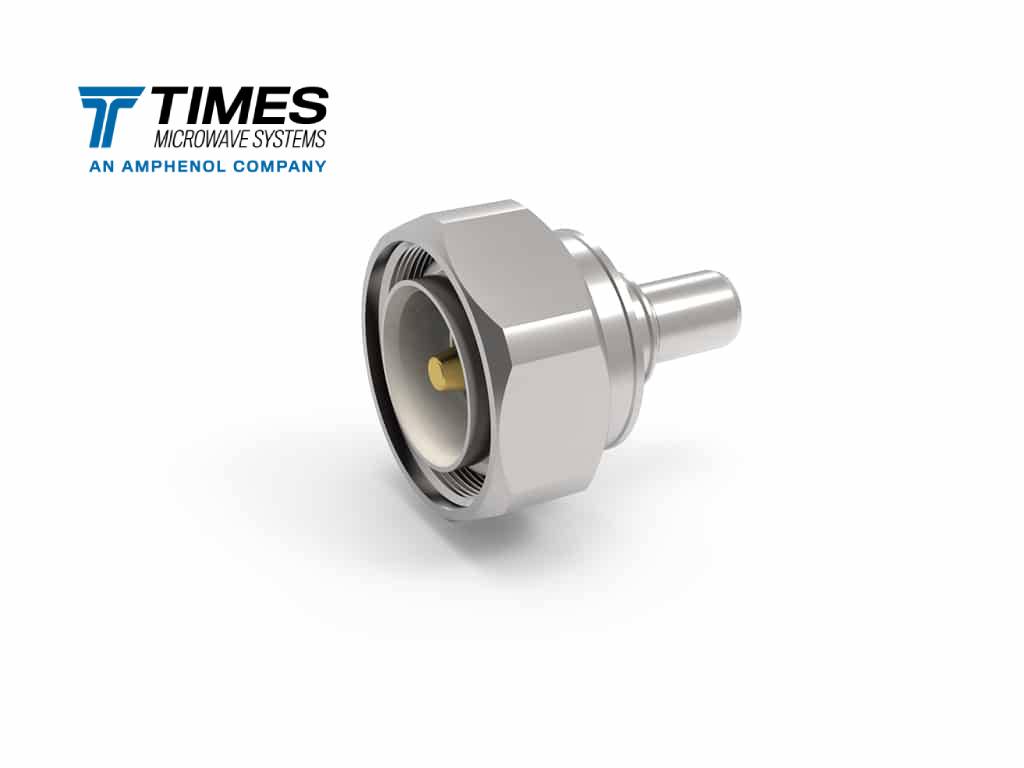

TC-400-716M-X

7/16 DIN male (plug) straight TC connector for FBT-400, LMR®-400, TCOM®-400, and T-RAD®-400-FR type cables. The TC-400-716M-X features a solder-pin connector and is a perfect option for stranded center conductors. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems. This is a male (plug), straight connector for 400-size cables.

Stock Code: 3190-2597

7/16 DIN male (plug)

Inventory Status
Distributor Qty Order
Mouser Electronics18Buy

Specifications

Part NumberTC-400-716M-X
Stock Code3190-2597
Interface7/16 DIN
Gender Male (plug)
OrientationStraight
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)6
VSWR Freq<1.30:1
VSWR Frequency (GHz)6
Coupling NutHex
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishAlballoy
Pin FinishSilver
Length (mm)39.5
Length (in)1.6
Width (mm)36
Width (in)1.42
Weight (g)145
Weight (lb)0.32

Compatible with

FBT-400 LMR-400 LMR-400-DB LMR-400-FR LMR-400-FR-PVC LMR-400-LLPX LMR-400-RR-DB TCOM-400

Tools and Accessories

CST-400

CST-400

Grounding Kits

Grounding Kits

Hoisting Grips

Hoisting Grips

Weather Seal Strain Relief Boots

Weather Seal Strain Relief Boots

CCT-02

CCT-02

CCT-03

CCT-03

Documentation

TC-400-716M-X Connector Drawing
