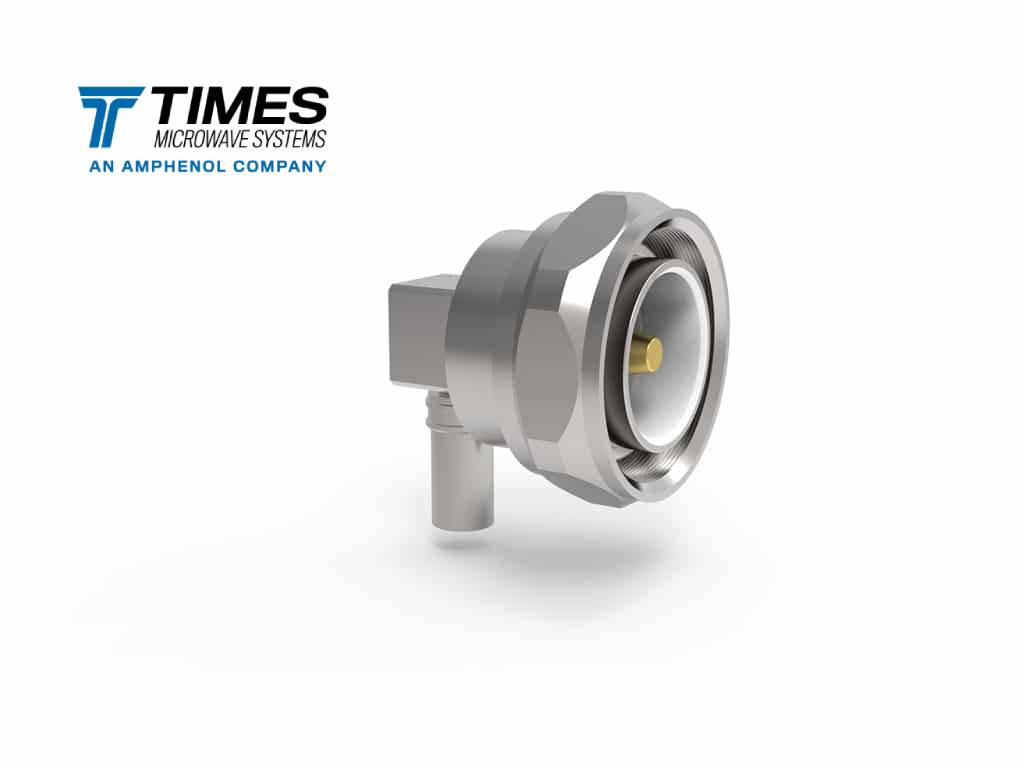

7/16 DIN male (plug), right-angle, TC style connector for FBT-240, LMR®-240, and TCOM®-240 type cables. The TC-240-716M-RA-D features a solder-pin connector and is a perfect option for stranded center conductors. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems.

Stock Code: 3190-2983

7/16 DIN male

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

Connector B
Design Your Assembly


Part NumberTC-240-716M-RA-D
Stock Code3190-2983
Interface7/16 DIN
Gender male (plug)
OrientationRight Angle
PIM Rating
Impedance (ohms)50
Max Frequency (GHz)3
VSWR Freq<1.15:1
VSWR Frequency (GHz)3
Coupling NutHex
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishAlballoy
Pin FinishSilver
Length (mm)40.7
Length (in)1.6
Width (mm)33.4
Width (in)1.31
Weight (g)108.5
Weight (lb)0.24
