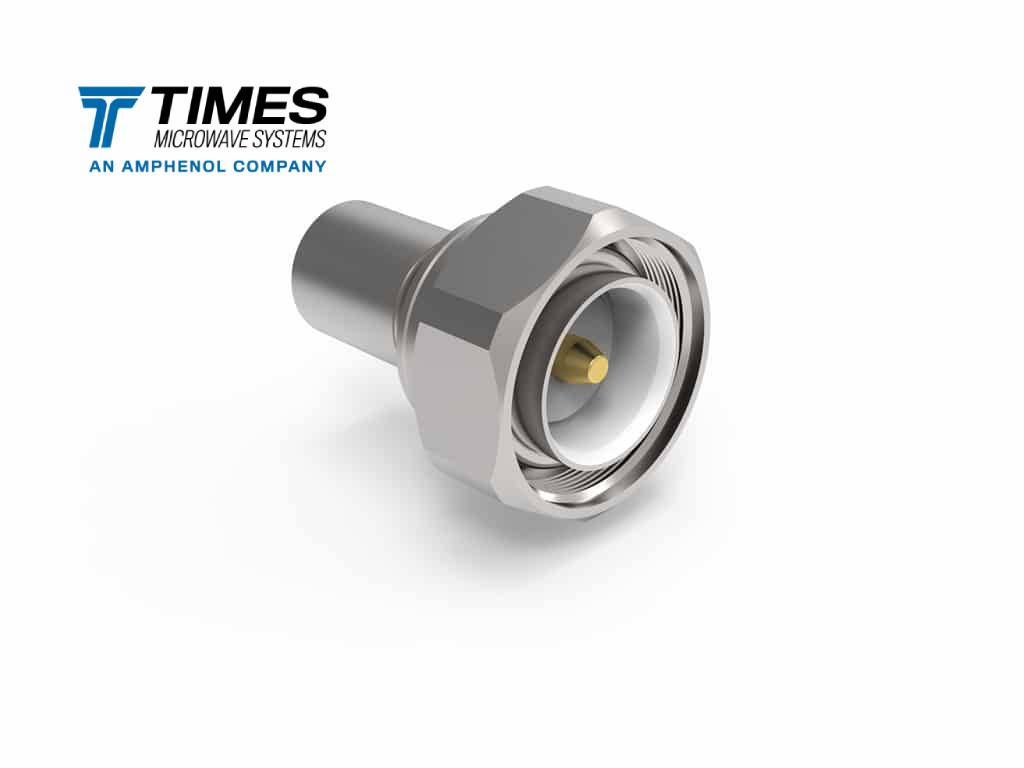

TC-600-716M-X

7/16 DIN male (plug) straight TC connector for FBT-600, LMR®-600, T-RAD®-600, and TCOM®-600 type cables. The TC-600-716M-X features a solder-pin connector and is a perfect option for stranded center conductors. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems.

Stock Code: 3190-2642

7/16 DIN male

Inventory Status
Distributor Qty Order
Talley3Buy
Mouser Electronics13Buy

Specifications

Part NumberTC-600-716M-X
Stock Code3190-2642
Interface7/16 DIN
Gender Male (plug)
OrientationStraight
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)6
VSWR Freq<1.30:1
VSWR Frequency (GHz)6
Coupling NutHex
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishAlballoy
Pin FinishSilver
Length (mm)40
Length (in)1.6
Width (mm)35
Width (in)1.38
Weight (g)86.6
Weight (lb)0.19
