EZ-400-716M-RA-X

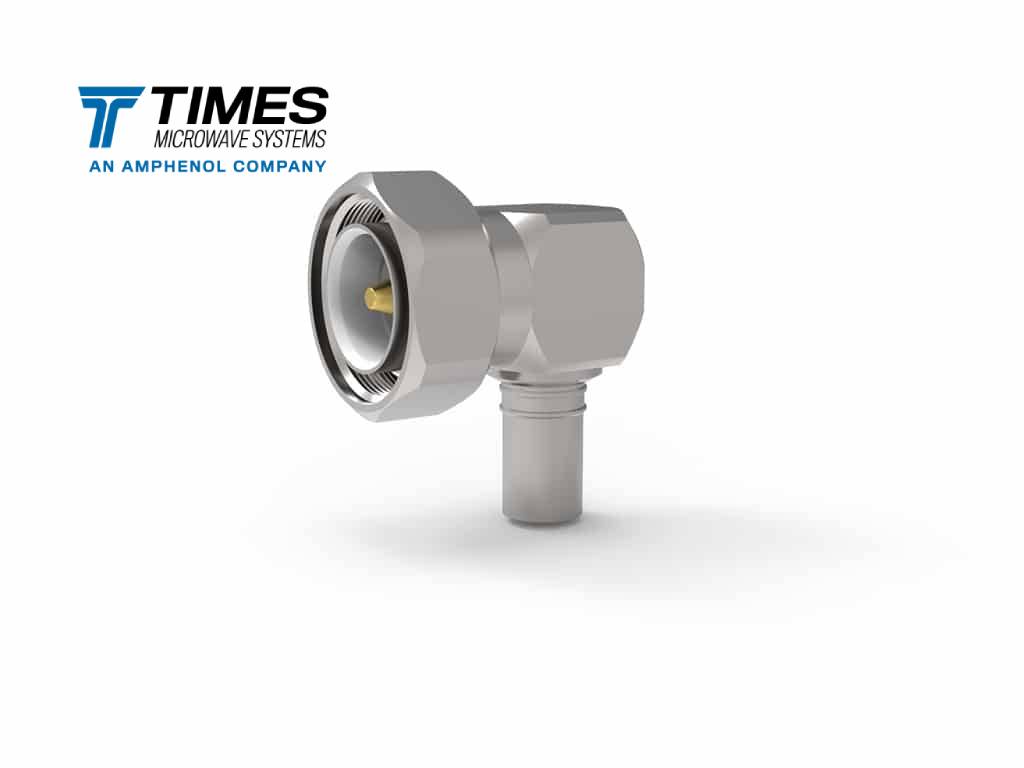

7/16 DIN male (plug) right angle EZ connector for LMR®-400, TCOM®-400, and T-RAD®-400-FR type cables. The EZ-400-716M-RA-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination. The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high-vibration applications where the center conductor might contract. The 7/16 DIN connectors are threaded RF connectors often used for applications that require water resistance such as base stations and broadcast communication systems. This is a male (plug), right-angle connector for 400-size cables.

Stock Code: 3190-2545

7/16 DIN male

Inventory Status
Distributor Qty Order
Interstate Connecting Components4Buy
Heilind Electronics4Buy
DigiKey4Buy
Mouser Electronics30Buy
RS1Buy

Specifications

Part NumberEZ-400-716M-RA-X
Stock Code3190-2545
Interface7/16 DIN
Gender Male (plug)
OrientationRight Angle
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)3
VSWR Freq<1.15:1
VSWR Frequency (GHz)6
Coupling NutHex
Inner Contact AttachSpring Finger
Outer Contact AttachCrimp
Body FinishAlballoy
Pin FinishGold
Length (mm)41.7
Length (in)1.6
Width (mm)44.3
Width (in)1.75
Weight (g)0.17
Weight (lb)0.374
