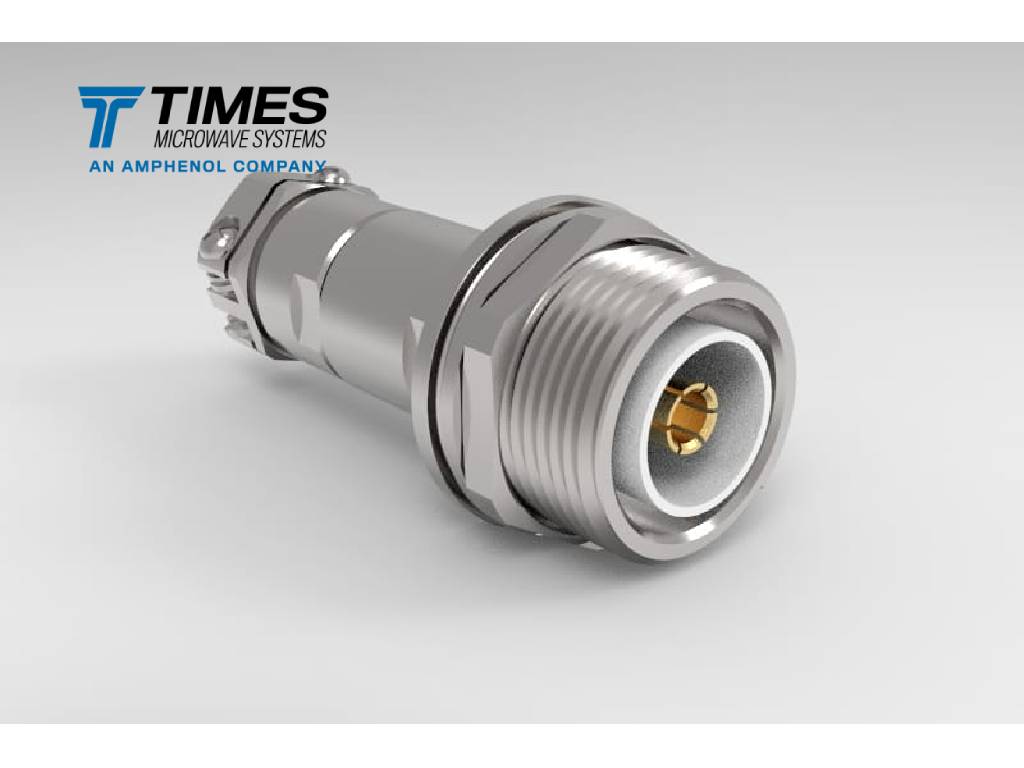

TC-393-716F-BH-CL

Type 7/16 DIN, female (jack), straight, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-214, and SFT-393 type cables.

Stock Code: 3190-6075

7/16 DIN, female, straight

Request a Quote

Specifications

Part NumberTC-393-716F-BH-CL
Stock Code3190-6075
Interface7/16 DIN
Gender Female (jack)
OrientationStraight
PIM RatingNo
Impedance (ohms)50
Max Frequency (GHz)2.5
VSWR Freq1.25
VSWR Frequency (GHz)2.5
Coupling Nut
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishAlbaloy
Pin FinishSilver
Length (mm)48.3
Length (in)1.902
Width (mm)34.9
Width (in)1.374
Weight (g)
Weight (lb)
