LMR® Cables: Unmatched Flexibility and Minimal Loss for High-Performance Networks

Our standard LMR^® is the industry standard in high-performance broadband, flexible, low-loss 50 Ohm coaxial cables. Features include 100% effective shielding; available as pre-terminated assemblies; and rugged UV, sunlight and weather resistance.

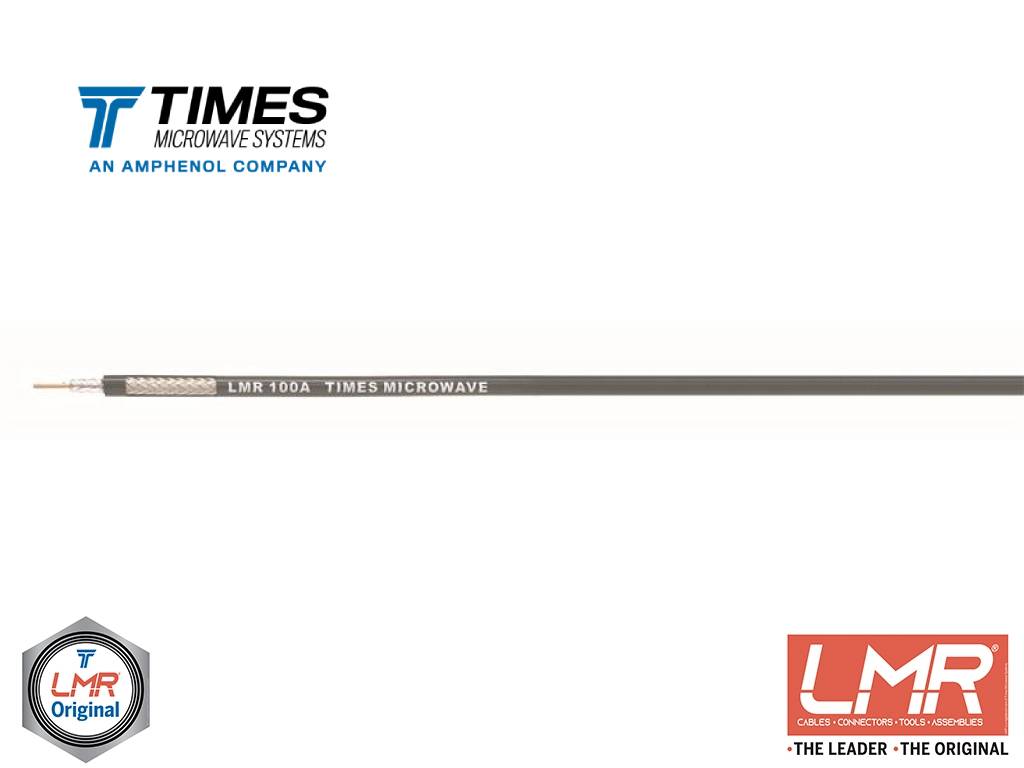

LMR-100-PUR

LMR-100-PUR 50 Ohm coax cable with UV and abrasion-resistance, flexible, polyurethane jacket.

LMR-100-FR

LMR-100-FR 50 Ohms coax cable with non-halogen (non-toxic), low smoke, fire retardant jacket.

LMR-195

LMR-195 50 Ohms coax cable with UV Resistant jacket.

LMR-195-DB

LMR-195-DB 50 Ohms coax cable for Direct Burial with UV Resistant jacket and watertight braids.

LMR-195-FR

LMR-195-FR 50 Ohms coax cable with non-halogen (non-toxic), low smoke, fire retardant jacket.

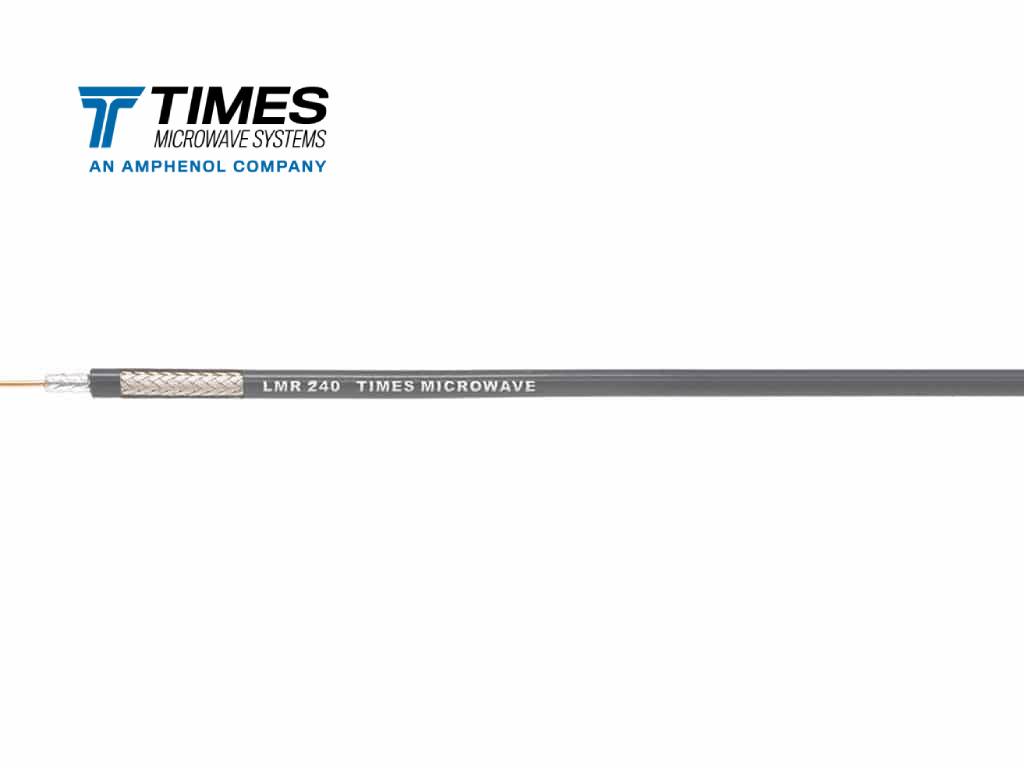

LMR-240

LMR-240 50 Ohms coax cable with UV and weather-resistant jacket.

LMR-240-FR

LMR-240-FR 50 Ohms coax cable with non-halogen (non-toxic), low smoke, fire retardant jacket.

LMR-240-DB

LMR-240-DB 50 Ohms coax cable for Direct Burial with UV Resistant jacket and watertight braids.

LMR-400

LMR-400 50 Ohms coax cable with UV Resistant jacket. Great drop-in replacement for RG-8/9913 cables.

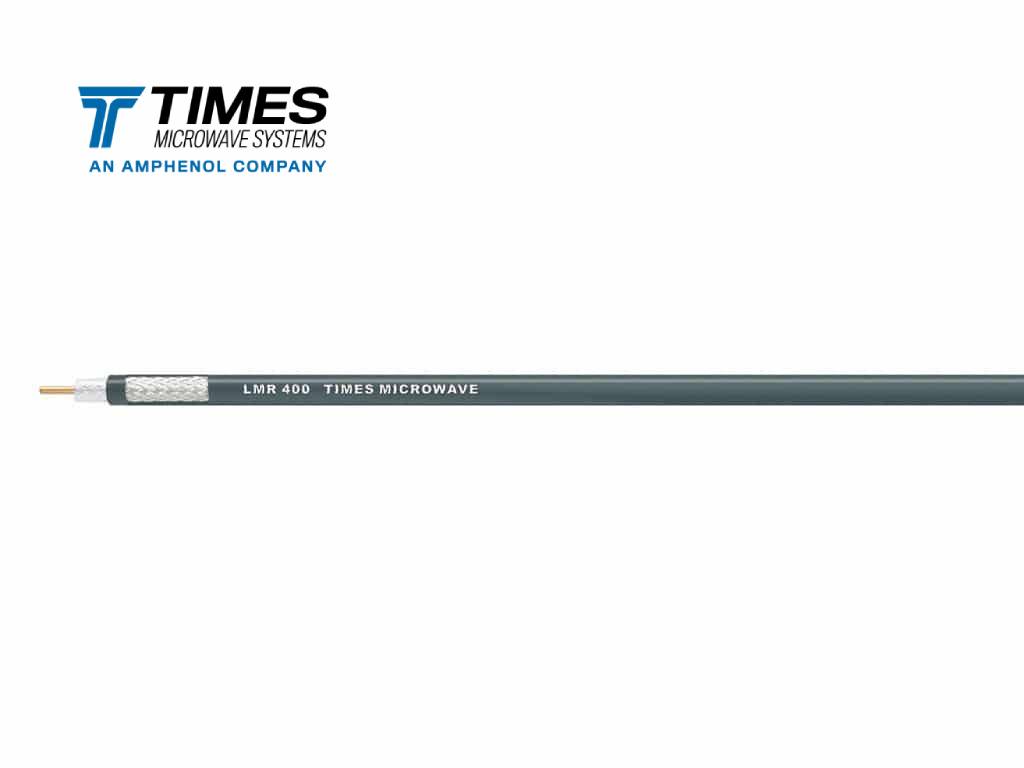

LMR-400-FR

LMR-400-FR 50 Ohms coax cable with non-halogen (non-toxic), low smoke, fire retardant jacket.

LMR-400-FR-PVC

LMR-400-FR-PVC 50 Ohms coax cable with a PVC, fire retardant jacket.

LMR-400-DB

LMR-400-DB 50 Ohms coax cable for Direct Burial with UV Resistant jacket and watertight braids.

LMR-400-RR-DB

LMR-400-RR-DB 50 Ohms coax cable with rodent and pest resistant, non-hazardous and non-toxic jacket.

LMR-600

LMR-600 coaxial cable is a high-performance, low-loss RF cable designed for use in applications where a flexible and durable cable with excellent electrical characteristics is required.

LMR-600-FR

LMR-600-FR 50 Ohms coax cable with non-halogen (non-toxic), low smoke, fire retardant jacket.

LMR-600-FR-PVC

LMR-600-FR-pvc 50 Ohms coax cable with a PVC, fire retardant jacket.

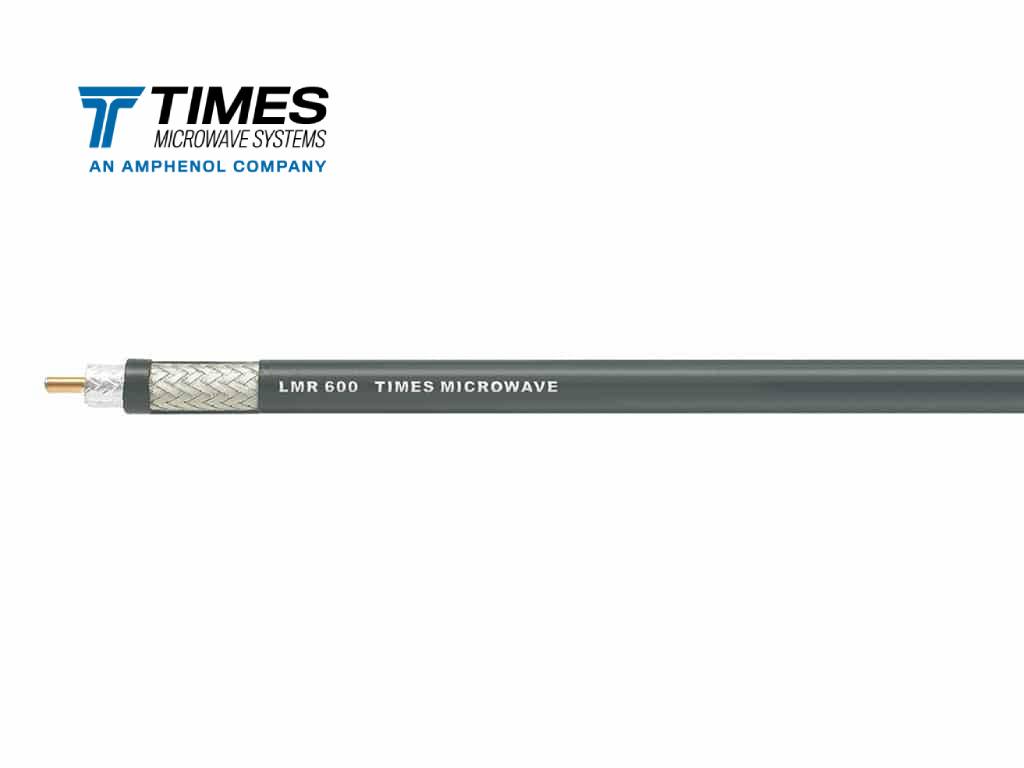

LMR-600-DB

The LMR-600-DB coaxial cable from is a low-loss, high-performance 50 Ohms coaxial cable designed for outdoor applications.

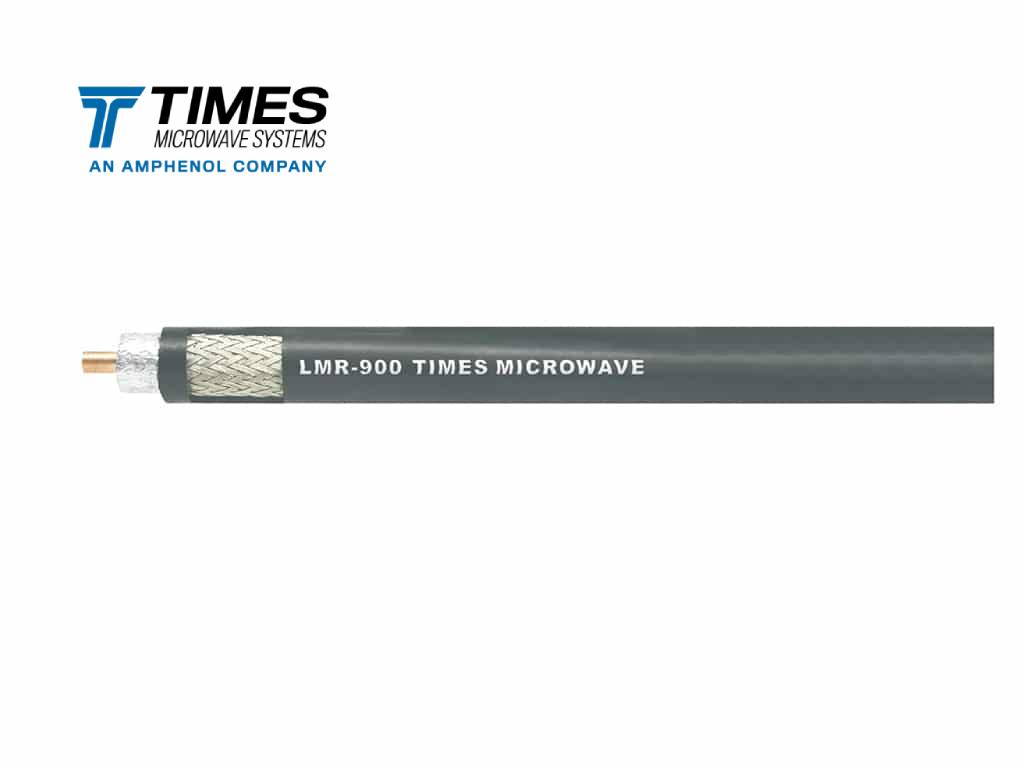

LMR-900-FR

LMR-900-FR 50 Ohms coax cable with non-halogen (non-toxic), low smoke, fire retardant jacket.

LMR-900-DB

LMR-900-DB 50 Ohms coax cable for Direct Burial with UV Resistant jacket and watertight braids.

LMR-900-RR-DB

LMR-900-RR-DB uses a non-hazardous, non-toxic additive to deter rodents and other pests from chewing and gnawing on cable jackets, which can lead to damage and eventual failure in RF systems.

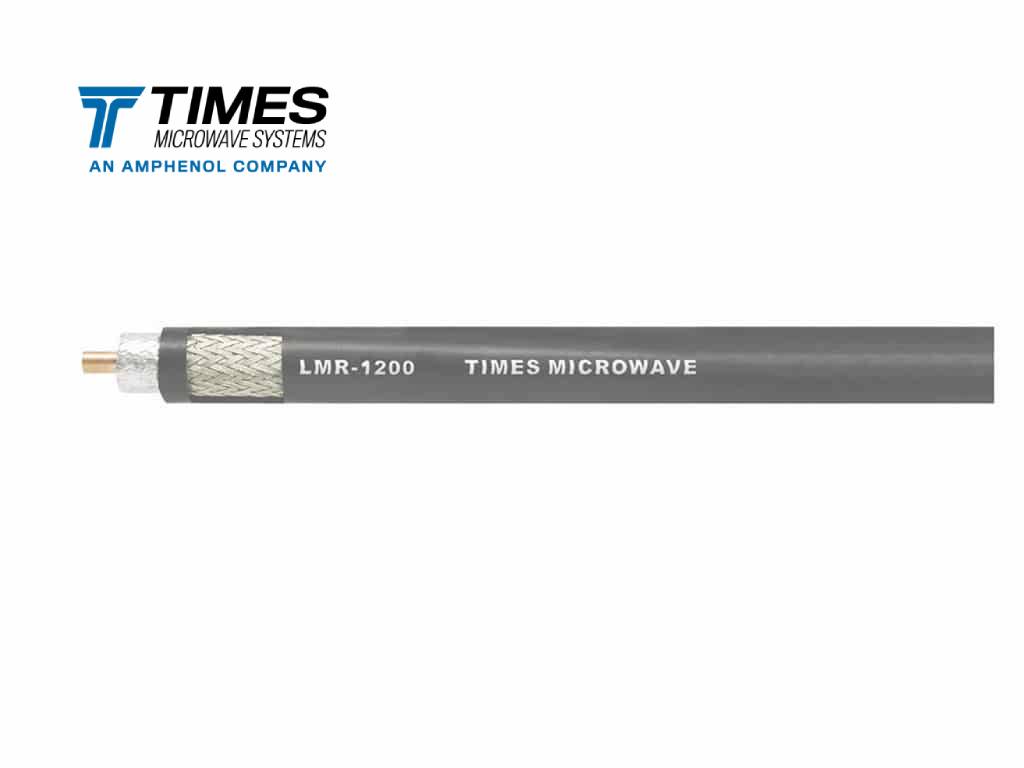

LMR-1200-DB

LMR-1200-DB 50 Ohms coax cable for Direct Burial with UV Resistant jacket and watertight braids.

LMR-1200-FR

LMR-1200-FR 50 Ohms coax cable with non-halogen (non-toxic), low smoke, fire retardant jacket.

LMR^®- UltraFlex has a stranded center conductor and rubber outer jacket designed for multiple bending/flexing cycles. It is used for both indoor and outdoor applications.

LMR-100A-UF

LMR-100-UF 50 Ohms coax cable with a stranded center conductor and rubber jacket. Perfect for applications requiring multiple bending/flexing cycles.

LMR-195-UF

LMR-195-UF 50 Ohms coax cable with a stranded center conductor and rubber jacket. Perfect for applications requiring multiple bending/flexing cycles.

LMR-240-UF

LMR-240-UF 50 Ohms coax cable with a stranded center conductor and rubber jacket. Perfect for indoor and outdoor applications requiring multiple bending/flexing cycles.

LMR-240-UF-FR

LMR-240-UF-FR 50 ohm coax cable with a stranded center conductor and a non-halogen (non-toxic), low smoke, fire retardant jacket.

LMR-400-UF

LMR-400-UF 50 Ohms coax cable with a stranded center conductor and rubber jacket.

LMR-400-UF-FR

LMR-400-UF-FR 50 ohm coax cable with a stranded center conductor and a non-halogen (non-toxic), low smoke, fire retardant jacket.

LMR-600-UF

LMR-600-UF 50 Ohms coax cable with a stranded center conductor and rubber jacket.

LMR^®- LLPX^® is an indoor highly fire-retardant cable intended specifically for runs within return air handling plenums. It has a UL/NEC & CSA rating of 'CMP' and 'FT6' respectively.

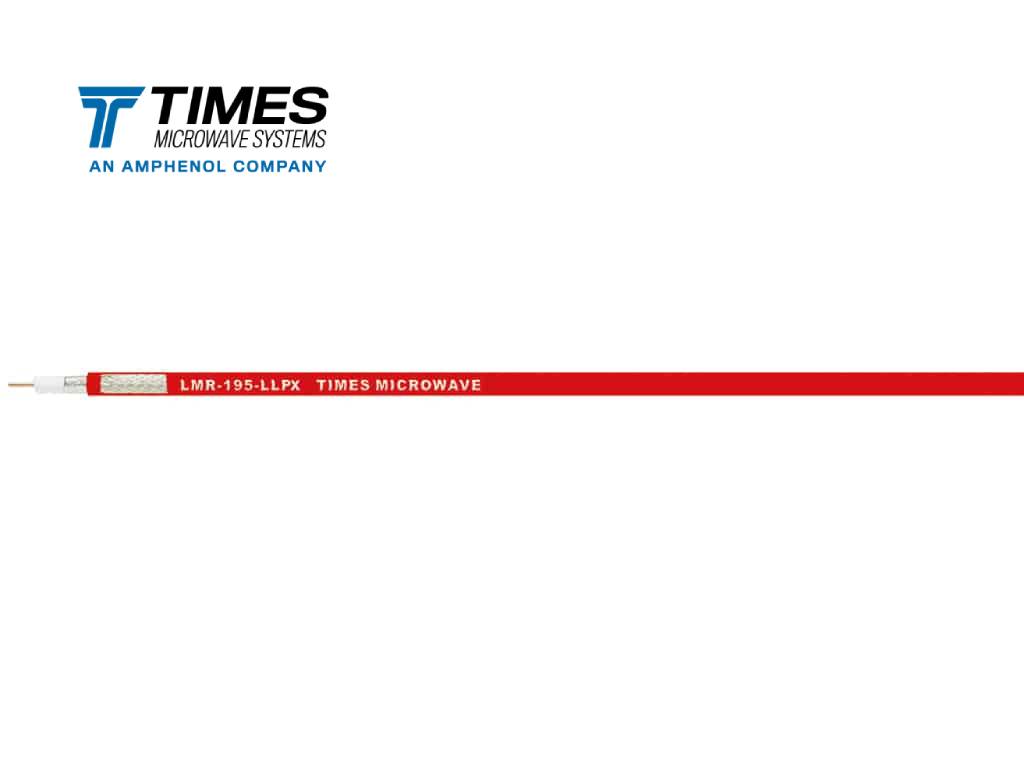

LMR-195-LLPX

LMR-195-LLPX Low Loss Plenum, listed CMP/MPP (PCC-FT6), red jacket.

LMR-240-LLPX

LMR-240-LLPX Low Loss Plenum, listed CMP/MPP (PCC-FT6), red jacket.

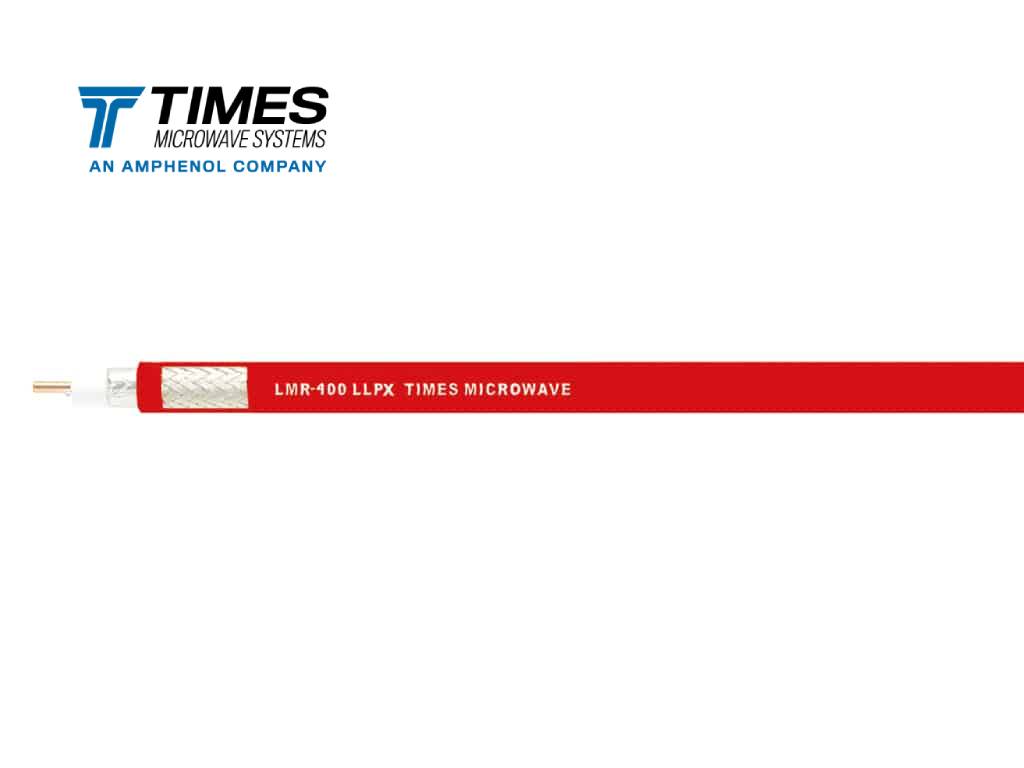

LMR-400-LLPX

LMR-400-LLPX Low Loss Plenum, listed CMP/MPP (PCC-FT6), red jacket.

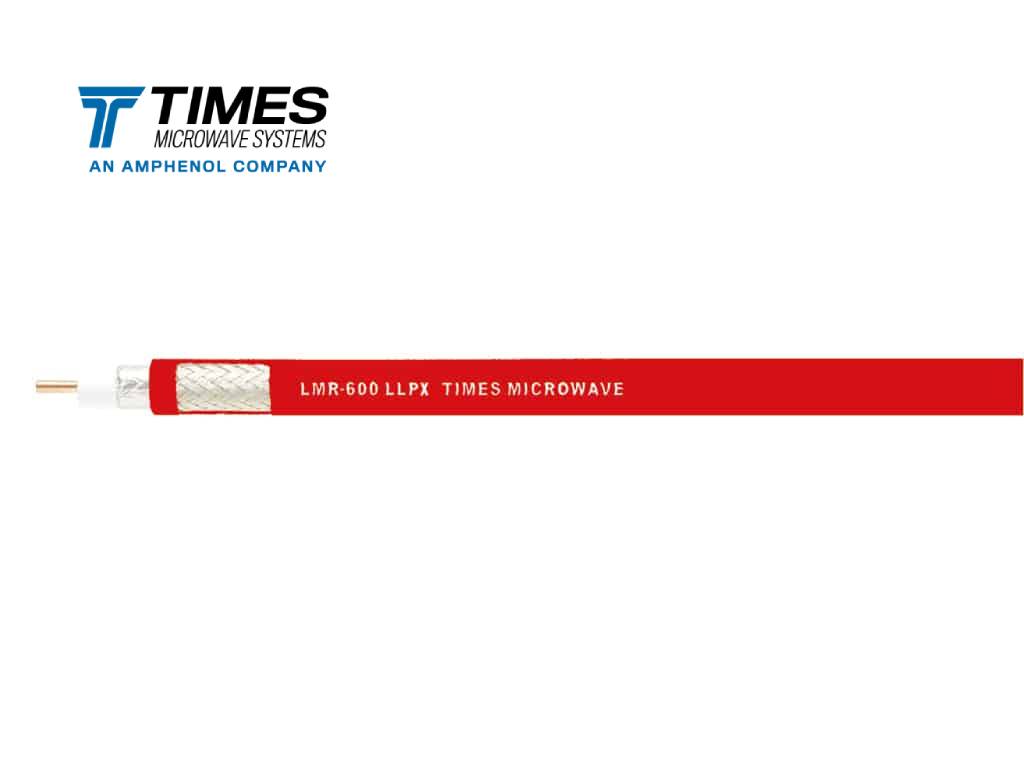

LMR-600-LLPX

LMR-600 Low Loss Plenum, listed CMP/MPP (PCC-FT6), red jacket

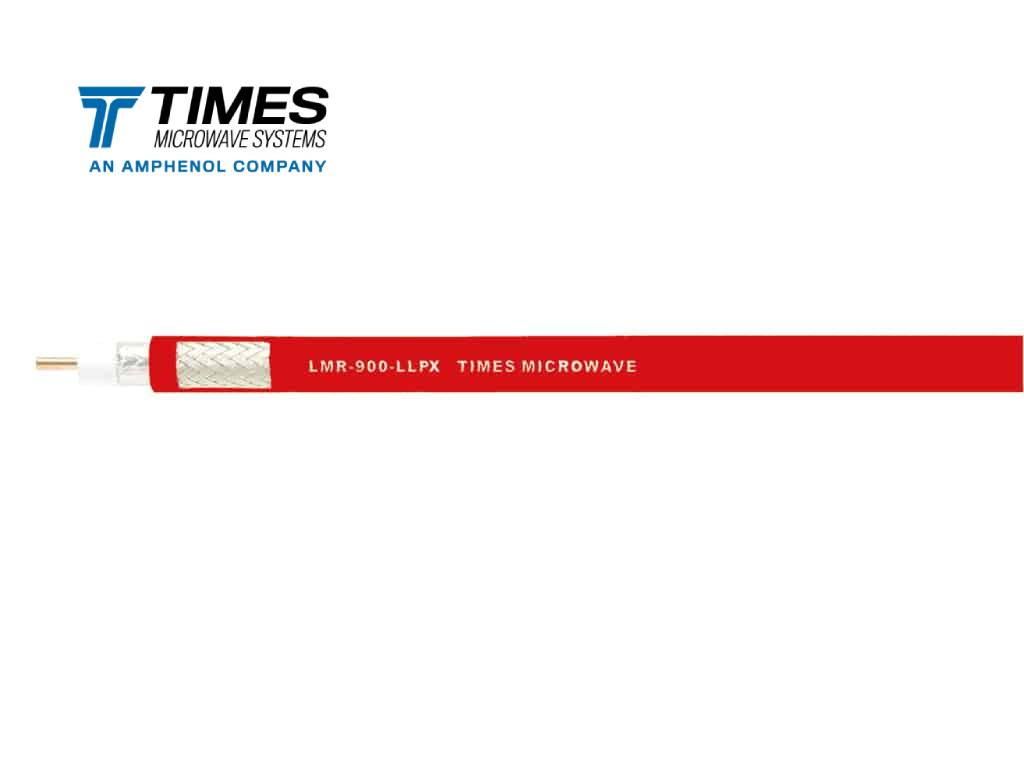

LMR-900-LLPX

LMR-900 Low Loss Plenum, listed CMP/MPP (PCC-FT6), red jacket

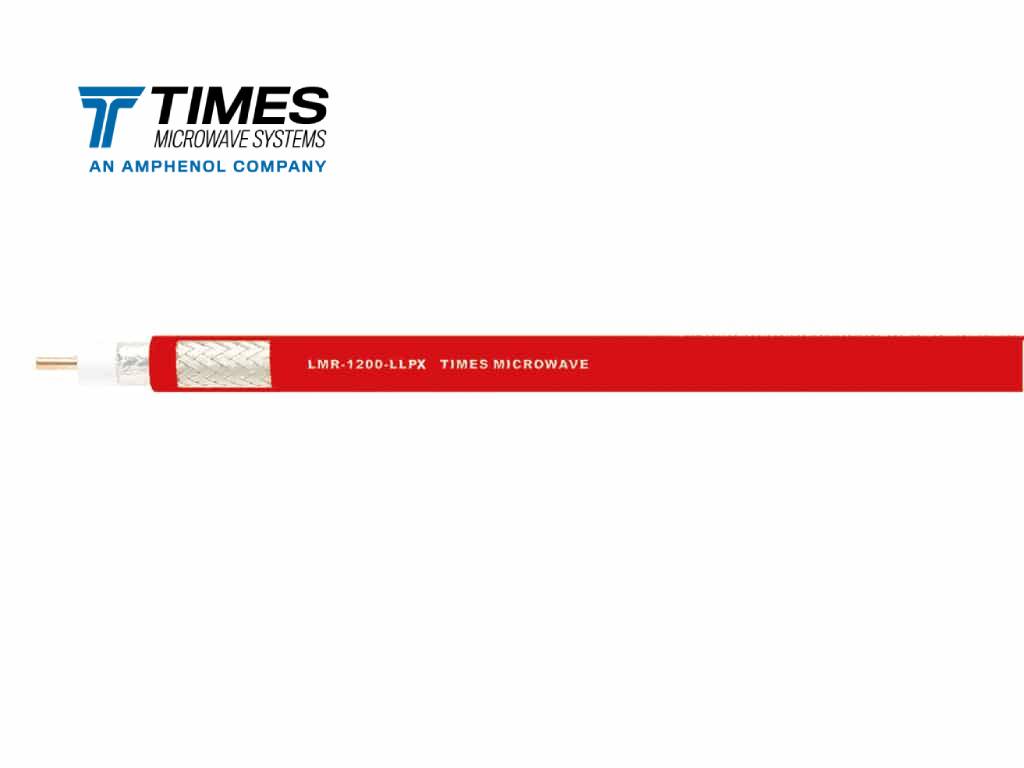

LMR-1200-LLPX

LMR-1200 Low Loss Plenum, listed CMP/MPP (PCC-FT6), red jacket

EZ Connectors are solderless connectors designed for quick, reliable terminations for coaxial cables. EZ connectors utilize a spring finger center contact which eliminates the need for soldering, reducing the risk of errors. The EZ design provides a quick, reliable termination which isn’t subject to the many variables associated with soldering such as cold solder joints, too much or too little solder, flux residue or melting of the dielectric. These connectors are ideal for applications where easy assembly and strong connections are crucial.

EZ-400-NMH-X

N male (plug) straight EZ style connector with a max frequency up to 6 GHz.

EZ-600-NMH-X

N male (plug) straight EZ style connector with a max frequency up to 6 GHz.

EZ-240-NMH-X

Type N, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-400-NF-X

Type N, female (jack), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-400-NMH-RA-X

Type N, male (plug), right angle, EZ style connector with a max frequency up to 6 GHz.

EZ-240-SM-X

Type SMA, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-400-BM-RA-X

Type BNC male (plug), right angle, EZ style connector with a max frequency up to 4 GHz.

EZ-240-TM-X

Type TNC, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-1200-716MC-2

7/16 DIN male (plug) straight EZ connector with a max frequency up to 3 GHz.

EZ-240-BM-X

Type BNC, male (plug), straight, EZ style connector with a max frequency up to 2.5 GHz.

EZ-240-TM-RA-X

Type BNC, male (plug), straight EZ style connector with a max frequency up to 2.5 GHz.

EZ-400-NMC-2-D

Type N, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-1200-78EIA-RA-2

Type 7/8 EIA Flange right angle EZ style connector with a max frequency up to 0.5 GHz.

EZ-400-NMH-PL-X

Type N male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-900-NMC-2-SP

Type N, male (plug), straight, EZ style connector with a max frequency up to 2.5 GHz.

EZ-600-NF-X

Type N female (jack), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-240-NMH-RA-X

Type N, male (plug), right angle, EZ style connector with a max frequency up to 6 GHz.

EZ-600-716M-X

7/16 DIN male (plug) straight EZ connector with a max frequency up to 6 GHz.

EZ-600-NMH-RA-X

Type N, male (plug), right angle, EZ style connector

EZ-400-NF-BH-X

Type N, female (jack), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-240-NF-X

N female (jack) straight EZ connector with a max frequency up to 6 GHz.

EZ-400-TM-RA-X

TNC male (plug) right angle EZ connector with a max frequency up to 6 GHz.

EZ-240-QM-X

Type QMA, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-400-BM-X

BNC male (plug) straight EZ connector with a max frequency up to 4 GHz.

EZ-195-SM-X

Type SMA, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-400-UM-X

Type UHF, male (plug), straight, EZ style connector with a max frequency up to 2.45 GHz.

EZ-900-78EIA-RA-2-SP

Type 7/8 EIA Flange, right angle, EZ style connector with a max frequency up to 1 GHz.

EZ-400-SM-X

Type SMA, male (plug), straight, EZ style connector with a max frequency up to 8 GHz.

EZ-600-TM-X

TNC male (plug) straight EZ connector with a max frequency up to 6 GHz.

EZ-600-NMC-2-D

N male (plug) straight EZ connector with a max frequency up to 6 GHz.

EZ-400-NMK-X

Type N, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-240-TM-RP-X

TNC, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-195-TM-X

Type TNC, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-400-FM-75-X

Type F, male (plug), straight, EZ style connector with a max frequency up to 2 GHz.

EZ-240-TM-RP-X

TNC, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-195-TM-X

Type TNC, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-400-FM-75-X

Type F, male (plug), straight, EZ style connector with a max frequency up to 2 GHz.

EZ-195-QM-X

Type QMA, male (plug), straight, EZ style connector with a max frequency up to 8 GHz.

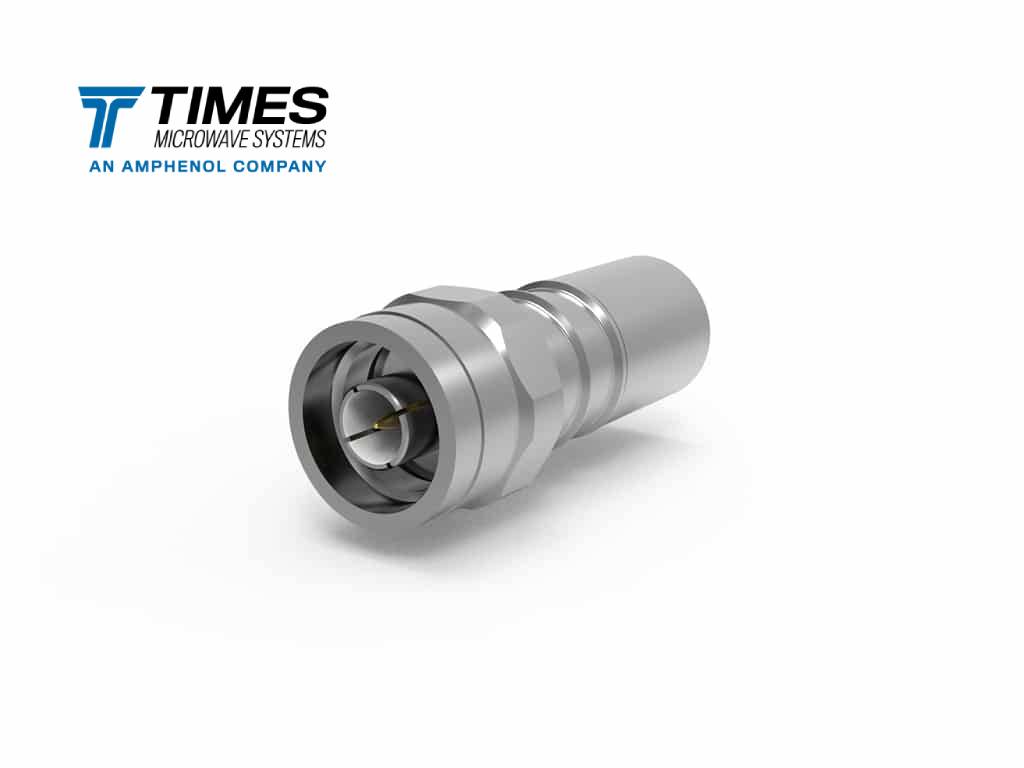

EZ-600-NMH-PL-X

Type N male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-900-NFC-2-SP

Type N, female (jack), straight, EZ style connector with a max frequency up to 6 GHz.

EZ-400-716M-X

7/16 DIN male (plug) straight EZ connector with a max frequency up to 3 GHz.

EZ-400-4310M-X

Type 4.3/10 mini DIN, male (plug), straight, EZ style connector with a max frequency up to 8 GHz.

EZ-240-SM-RA-X

Type SMA, male (plug), right angle, EZ style connector with a max frequency up to 6 GHz.

EZ-600-716M-RA-X

Type 7/16 DIN, male (plug), right angle, EZ style connector with a max frequency up to 3 GHz.

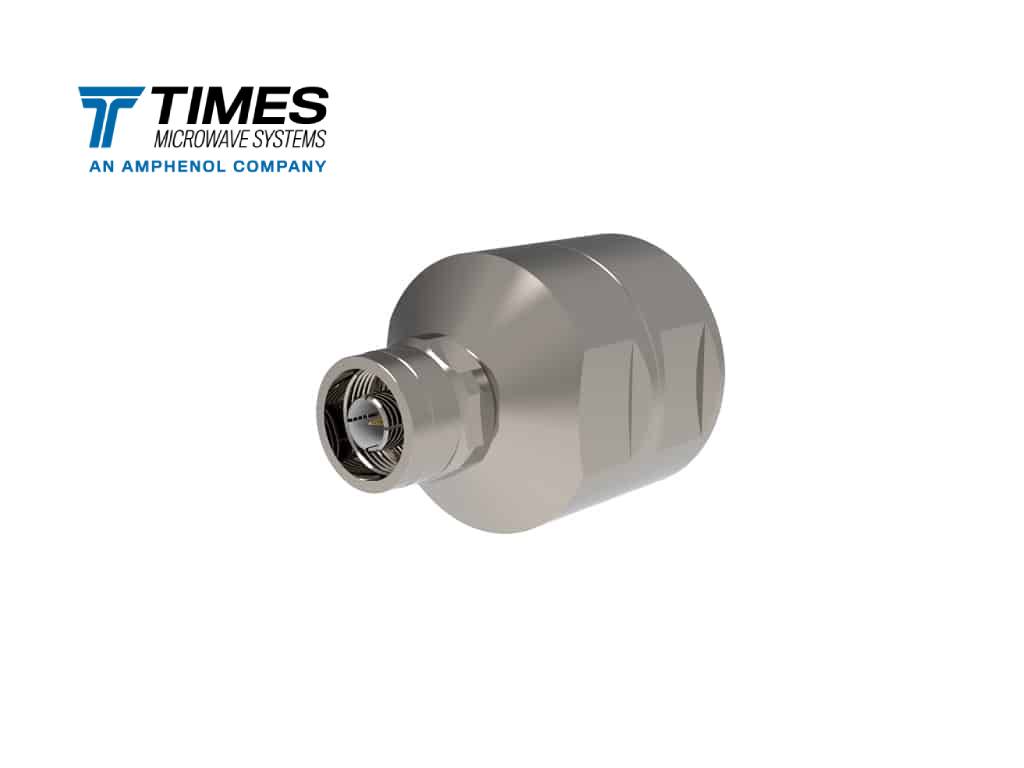

EZ-1200-NMC-2

N male (plug), straight, EZ type connector with a max frequency up to 6 GHz.

EZ-240-BM-RA-X

Type BNC, male (plug), right angle, EZ style connector

EZ-240-1023M-X

Type 1.0/2.3, male (plug), straight, EZ style connector with a max frequency up to 6 GHz.

Times Microwave Systems makes completely customized tools designed to eliminate these issues when terminating our cables. The hard case toolkits from have all of the tools needed for an installation are in one location. The cases are designed for the tools to fit neatly inside, making it easy to be sure you aren’t missing any tools for every installation.

Cutting

Times Microwave Systems’ cutting tools are spring loaded and easy to use by design.

Prep

Times Microwave Systems has developed a one step cable stripping tool that provides a sharp, clean cut every time.

Crimp

Times Microwave Systems developed our own line of tools, which includes a pin crimp tool for pin crimp connectors.

Specialty

Beyond the cutting, preparation, and crimp tools, some cables and assemblies require additional tools for installation.

Weather protective boot for TMQ4 and TMQ5 bundle coaxial assemblies

Accessories

In addition to the numerous tools, Times Microwave Systems offers the necessary accessories to complete installations for cable assemblies.

TK-195/200/240EZ-HC

Hardcase install tool kit for LMR^®-195, 200 and 240 connectors with hard foam cut-outs.

TK-400/400-75EZ-HC

Hard case installation tool kit for LMR^® 400 and LMR 400-75 X series connectors.

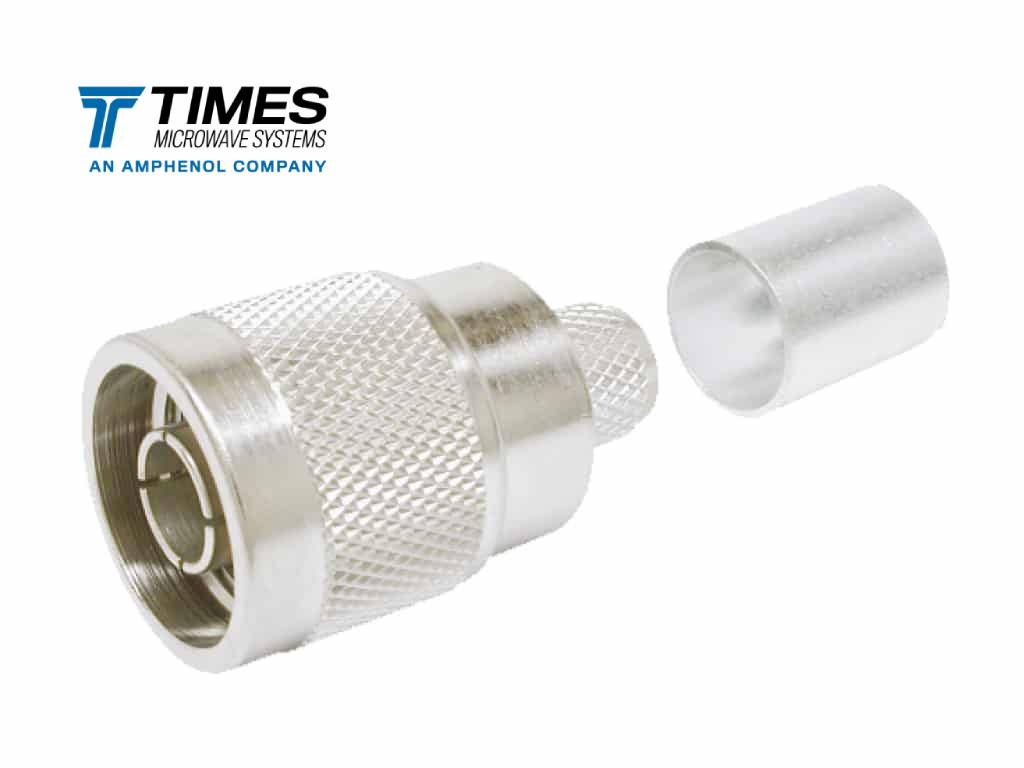

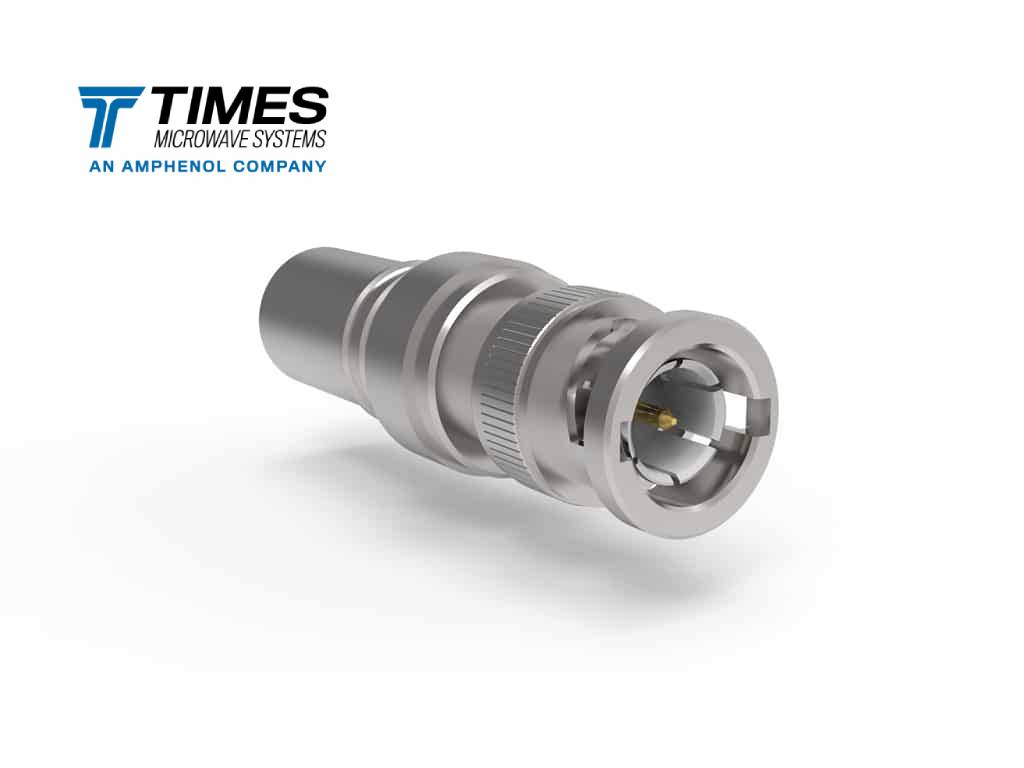

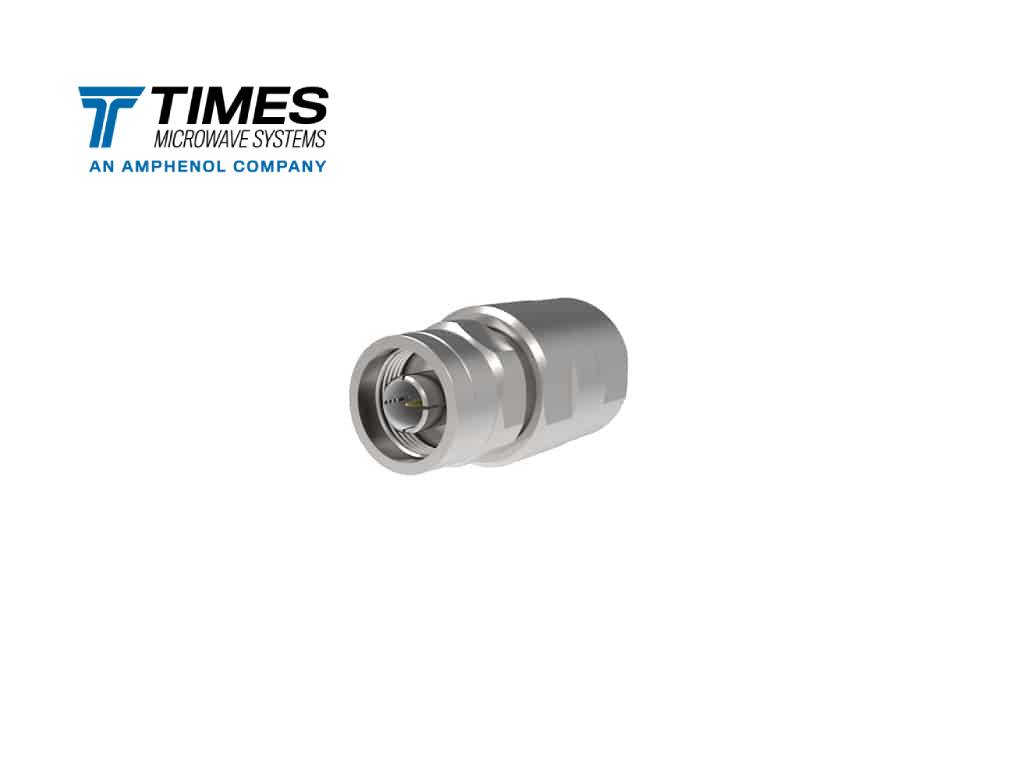

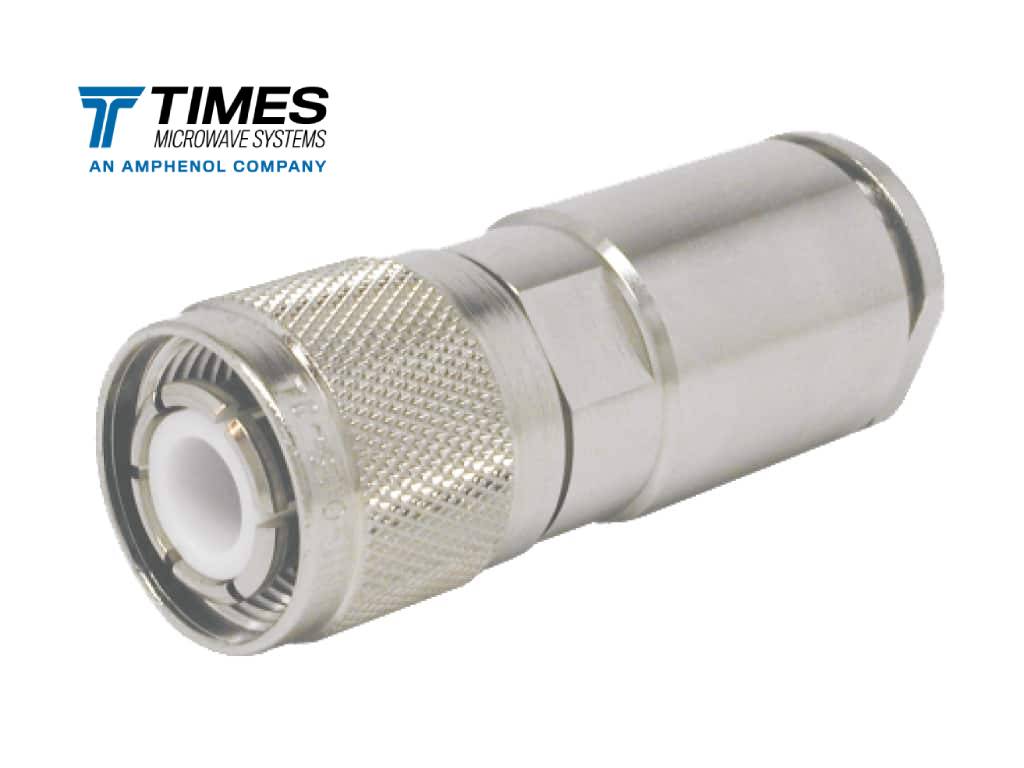

Our TC solder-pin connectors enjoy all of the positive attributes of our EZ connectors such as CST prep tool and WSB boot compatibility, tri-metal or bi-metal outer body plating, center contacts plated in accordance with MIL-STD-39012, excellent VSWR and elimination of the need to trim braid wires. TC connectors are required when working with our LMR^® Ultraflex cables which utilize a stranded center conductor.
