LMR-600-UF

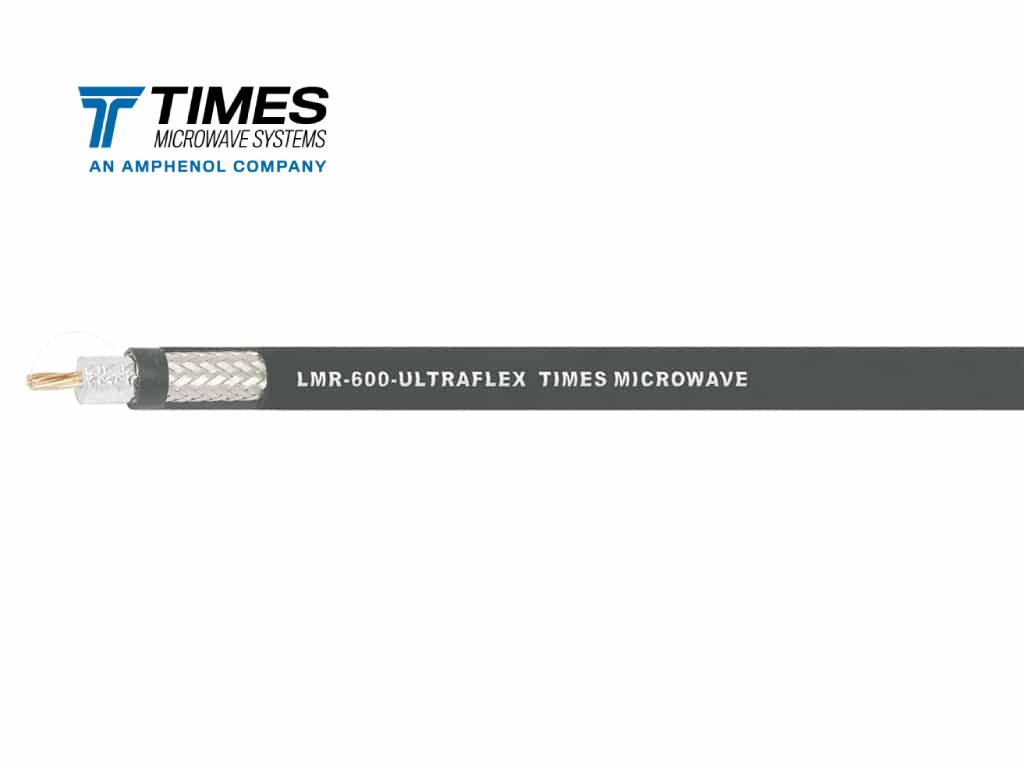

LMR®-600-UF 50 Ohms coax cable with a stranded center conductor and rubber jacket. Perfect for indoor and outdoor applications requiring multiple bending/flexing cycles.
Stock Code: 54044
LMR-600 cable/stranded center conductor and TPE jacket
Specifications
| Part NumberLMR-600-UF |
| Environment |
| JacketPVC |
| Overall Diameter (mm)14.986 |
| Overall Diameter (in)0.59 |
| Weight Kg/m0.2455 |
| Weight lb/ft0.165 |
| Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F) |
| Min. Bend Radius (mm)38.1 |
| Min. Bend Radius (in)1.5 |
| Bending Moment (Nm)2.374237425 |
| Bending Moment (ft-lb)1.75 |
| Max Frequency (GHz)6 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
