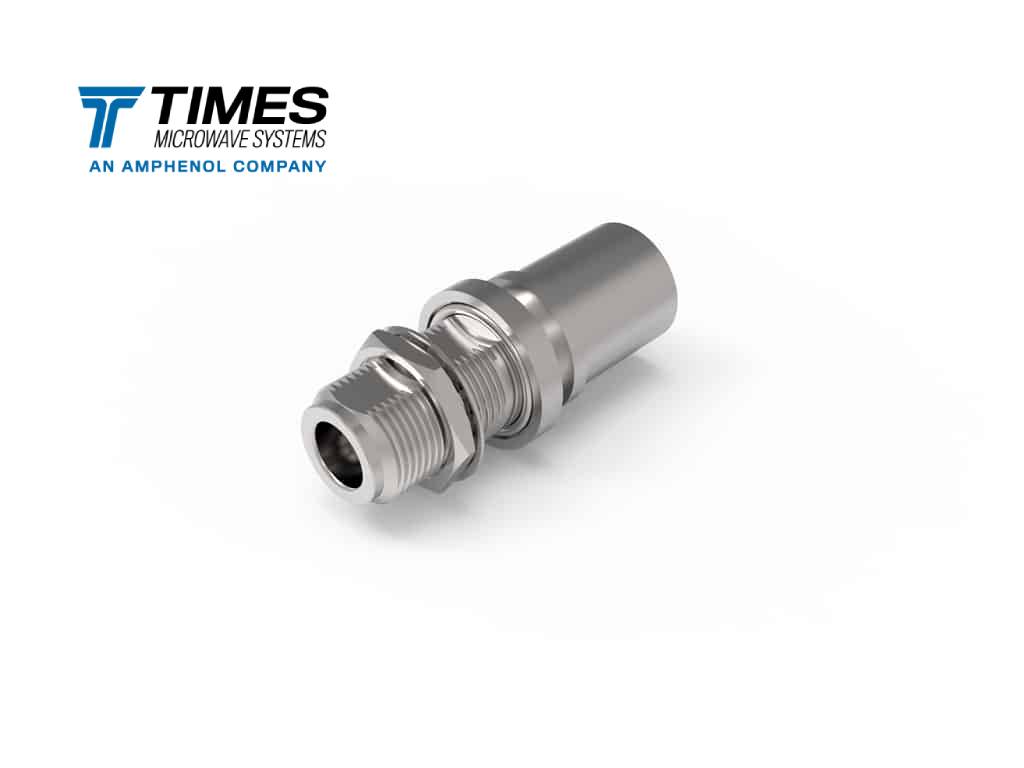

Type N, female (jack), straight, TC style connector for FBT-600, LMR®-600, TCOM®-600, and T-RAD®-600 coaxial cables. The TC-600-NF-BH features a solder-pin connector and is a perfect option for stranded center conductors. The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification.

Stock Code: 3190-589

N-female (jack)

Inventory Status
Distributor Qty Order
Microwave Components, LLC2Buy


Part NumberTC-600-NF-BH
Stock Code3190-589
Gender female (jack)
PIM RatingN/A
Impedance (ohms)50
Max Frequency (GHz)2.5
VSWR Freq<1.25:1
VSWR Frequency (GHz)2.5
Coupling NutN/A
Inner Contact AttachSolder
Outer Contact AttachCrimp
Body FinishSilver
Pin FinishGold
Length (mm)61
Length (in)2.4
Width (mm)22.4
Width (in)0.88
Weight (g)88.5
Weight (lb)0.2
