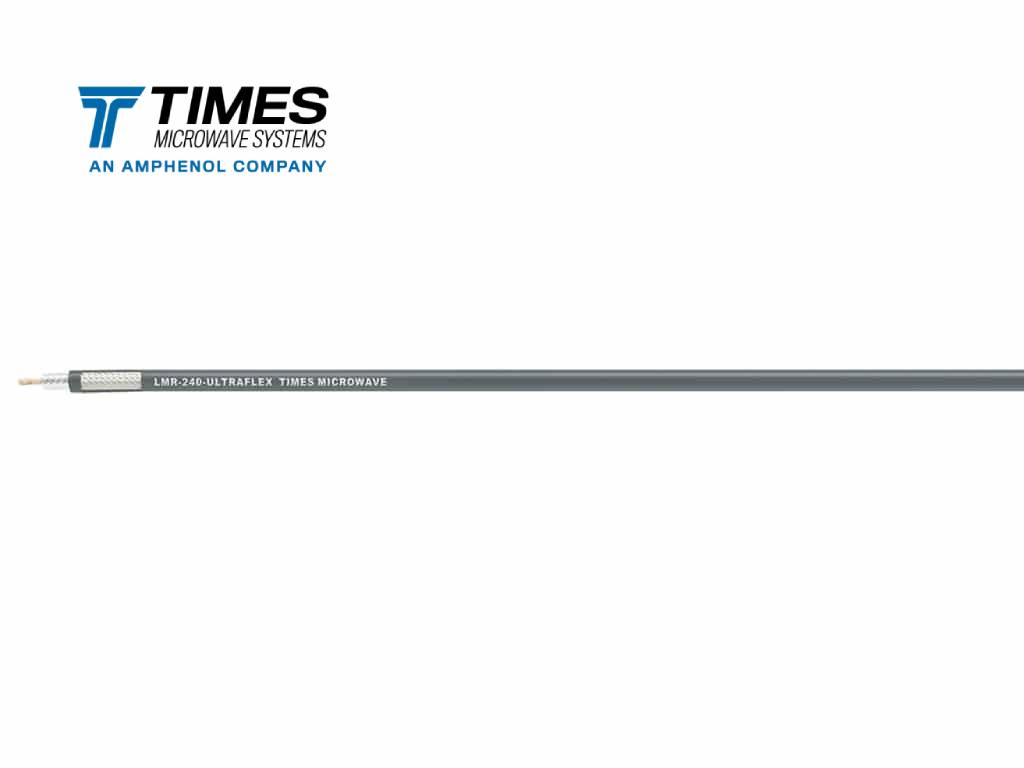

LMR-240-UF-FR

LMR®-240-UF-FR 50 Ohm coax cable features a stranded center conductor and a non-halogen, low smoke, fire-retardant jacket. Designed for high-flex applications, it’s ideal for tight routing spaces and frequent bending. Suitable for indoor RF systems needing flexibility, safety, and consistent signal performance in demanding environments.

Stock Code: 54143

LMR-240 w/stranded center conductor and black FR PE jacket

Inventory Status
In Stock Qty Order
Mouser Electronics115Buy

Specifications

Part NumberLMR-240-UF-FR
Environment
JacketFRPE
Overall Diameter (mm)6.1468
Overall Diameter (in)0.242
Weight Kg/m0.0506
Weight lb/ft0.034
Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F)
Min. Bend Radius (mm)19.05
Min. Bend Radius (in)0.75
Bending Moment (Nm)0.1695883875
Bending Moment (ft-lb)0.125
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)
