LMR-240-UF

LMR®-240-UF 50 Ohm coax cable features a highly flexible rubber jacket and stranded center conductor, ideal for installations requiring frequent bending or flexing. Suitable for both indoor and outdoor RF applications, it delivers reliable performance in dynamic environments such as mobile antennas, robotics, and temporary communication setups.

LMR-240-UF

Stock Code: 54041

LMR-240 LMR-240 w/stranded center conductor and TPE jacket

Inventory Status
Distributor Qty Order
TTI5500Buy
Powell Electronics6499Buy
Talley34739Buy
Mouser Electronics25999Buy
WireMasters8665Buy
DigiKey21882Buy
CDM Inc.2578Buy
RS500Buy
PEI-Genesis388Buy
PEI-Genesis388Buy
FDH Electronics1801Buy
FDH Electronics1801Buy
East Coast Microwave16247Buy

Specifications

Part NumberLMR-240-UF
Environment
JacketTPE
Overall Diameter (mm)6.096
Overall Diameter (in)0.24
Weight Kg/m0.0506
Weight lb/ft0.034
Operating Temp.°C (°F) -40° to 85°C
(-40° to 185°F)
Min. Bend Radius (mm)19.05
Min. Bend Radius (in)0.75
Bending Moment (Nm)0.1695883875
Bending Moment (ft-lb)0.125
Max Frequency (GHz)8
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-240-NMH-X TC-240-NF-PM-X TC-240-SF-BH-SS-X TC-240-SM-SS-X TC-240-716M TC-240-716M-RA-D TC-240-SM-RP TC-240-MUHF TC-240-FMEM-X TC-240-BM-X TC-240-4310M-X TC-240-NF-BH-X TC-240-SM-RA-SS-D TC-240-TM-RA-D TC-240-NMH-RA-D TC-240-TM-X TC-240-BM-RA-D

Can't find what you're looking for?

Build Your Own LMR® Assembly

Part Number Structure

lmr-240-uf-part-number

Cable Details

lmr-240-uf-details

Tools and Accessories

Grounding Kits

Grounding Kits
CCT-02

CCT-02
CCT-03

CCT-03
Cold Shrink Weatherproofing

Cold Shrink Weatherproofing
CST-240A

CST-240A
CT-240/200/195/100

CT-240/200/195/100
Grounding Bracket

Grounding Bracket

Documentation

lmr-guide-brochure-scaled-1

LMR Guide

Download
lmr-guide-brochure-european-version-featured

LMR Guide- European Version

Download
LMR-240-UF

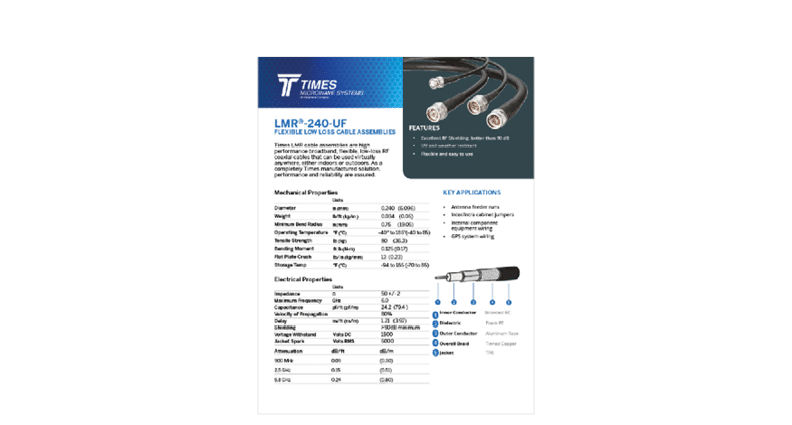

LMR-240-UF Datasheet

Download
