LMR-240-MA

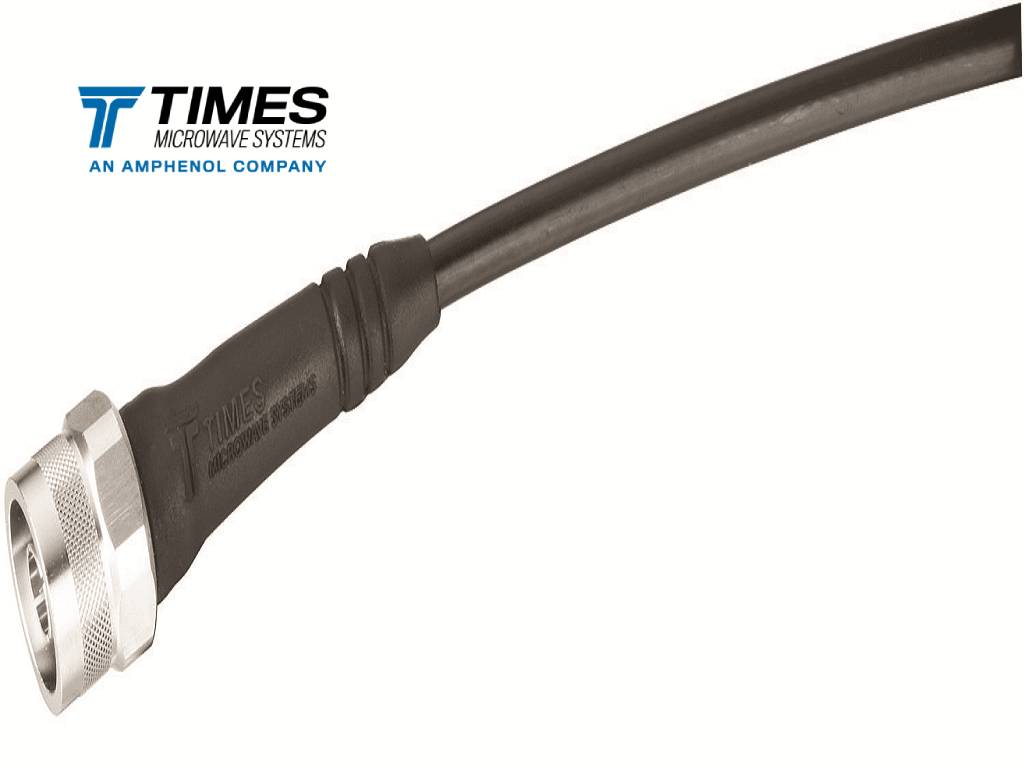

LMR®-240 is a high-performance 50 Ohm mobile antenna coaxial cable designed for reliable RF transmission in mobile and vehicle-mounted systems. It offers low signal loss, excellent shielding, and durability, making it ideal for fleet communications, GPS, emergency vehicles, and other demanding mobile RF applications.

Stock Code: 54046

LMR-240 High Performance Mobile Antenna Cable

Inventory Status
In Stock Qty Order

Specifications

Part NumberLMR-240-MA
Environment
JacketFRPVC
Overall Diameter (mm)6.096
Overall Diameter (in)0.24
Weight Kg/m0.0506
Weight lb/ft0.034
Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F)
Min. Bend Radius (mm)19.05
Min. Bend Radius (in)0.75
Bending Moment (Nm)0.339176775
Bending Moment (ft-lb)0.25
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-240-4310M-X TC-240-716M TC-240-716M-RA-D TC-240-BM-X TC-240-BM-RA-D TC-240-FMEM-X TC-240-MUHF TC-240-NF-BH-X TC-240-NF-PM-X TC-240-NMH-X TC-240-NMH-RA-D TC-240-SF-BH-SS-X TC-240-SM-SS-X TC-240-SM-RA-SS-D TC-240-SM-RP TC-240-TM-X TC-240-TM-RA-D EZ-240-1023M-X EZ-240-BM-RA-X EZ-240-BM-X EZ-240-716M-RA-X EZ-240-NF-X EZ-240-NF-BH-X EZ-240-NMH-RA-X EZ-240-QM-X EZ-240-QM-RA-X EZ-240-SF-X EZ-240-SM-X EZ-240-SM-RA-X EZ-240-TF-X EZ-240-TM-X EZ-240-TM-RP-X EZ-240-UM-X EZ-240-UM-RA-X EZ-240-NMH-X EZ-240-TM-RA-X
