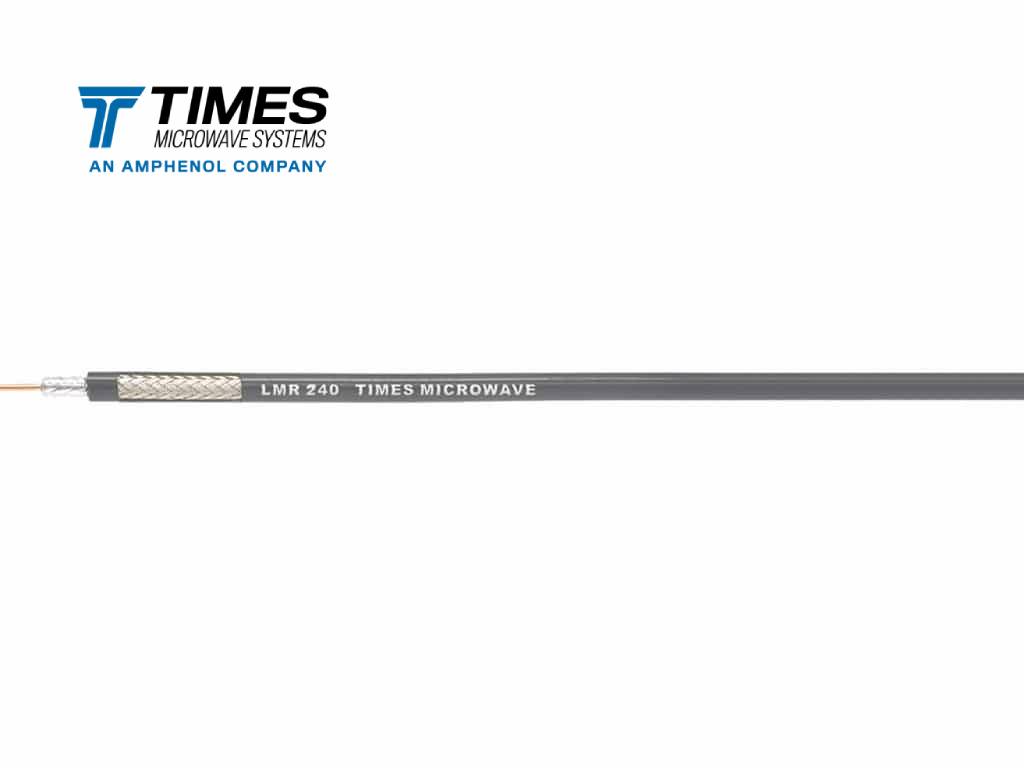

LMR-240-FR

LMR®-240-FR 50 Ohm coax cable with low smoke, fire-retardant, non-halogen jacket is ideal for indoor RF installations. It meets UL/NEC CMR, CSA FT4, FAA FAR25, and MSHA-P standards, making it a safe, high-performance choice for building runs and mining applications, excluding air handling plenums.

Stock Code: 54029

LMR-240 w/non-halogen FR jkt, listed CMR/MPR (PCC-FT4)

Inventory Status
In Stock Qty Order
Murray-Benjamin Electric13200Buy
Talley2632Buy
ICC1337Buy
WireMasters25912Buy
SEA Wire and Cable10000Buy
Heilind Electronics1337Buy
Graybar1175Buy
CDM Inc.9805Buy
Microwave Components, LLC1645Buy
Mouser Electronics8556Buy
DigiKey2623Buy
Arrow Electronics957Buy
TTI2000Buy
TTI2000Buy

Specifications

Part NumberLMR-240-FR
EnvironmentIndoor
JacketFR-PE
Overall Diameter (mm)6.096
Overall Diameter (in)0.24
Weight Kg/m
Weight lb/ft0
Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F)
Min. Bend Radius (mm)19.05
Min. Bend Radius (in)0.75
Bending Moment (Nm)0.34
Bending Moment (ft-lb)0.25
Max Frequency (GHz)6
Impedance (ohms)50
Power Handling (DWV)

Compatible with

TC-240-4310M-X TC-240-716M TC-240-716M-RA-D TC-240-BM-X TC-240-BM-RA-D TC-240-FMEM-X TC-240-MUHF TC-240-NF-BH-X TC-240-NF-PM-X TC-240-NMH-X TC-240-NMH-RA-D TC-240-SF-BH-SS-X TC-240-SM-SS-X TC-240-SM-RA-SS-D TC-240-SM-RP TC-240-TM-X TC-240-TM-RA-D EZ-240-1023M-X EZ-240-BM-RA-X EZ-240-BM-X EZ-240-716M-RA-X EZ-240-NF-X EZ-240-NF-BH-X EZ-240-NMH-RA-X EZ-240-QM-X EZ-240-QM-RA-X EZ-240-SF-X EZ-240-SM-X EZ-240-SM-RA-X EZ-240-TF-X EZ-240-TM-X EZ-240-TM-RP-X EZ-240-UM-X EZ-240-UM-RA-X EZ-240-NMH-X EZ-240-TM-RA-X
