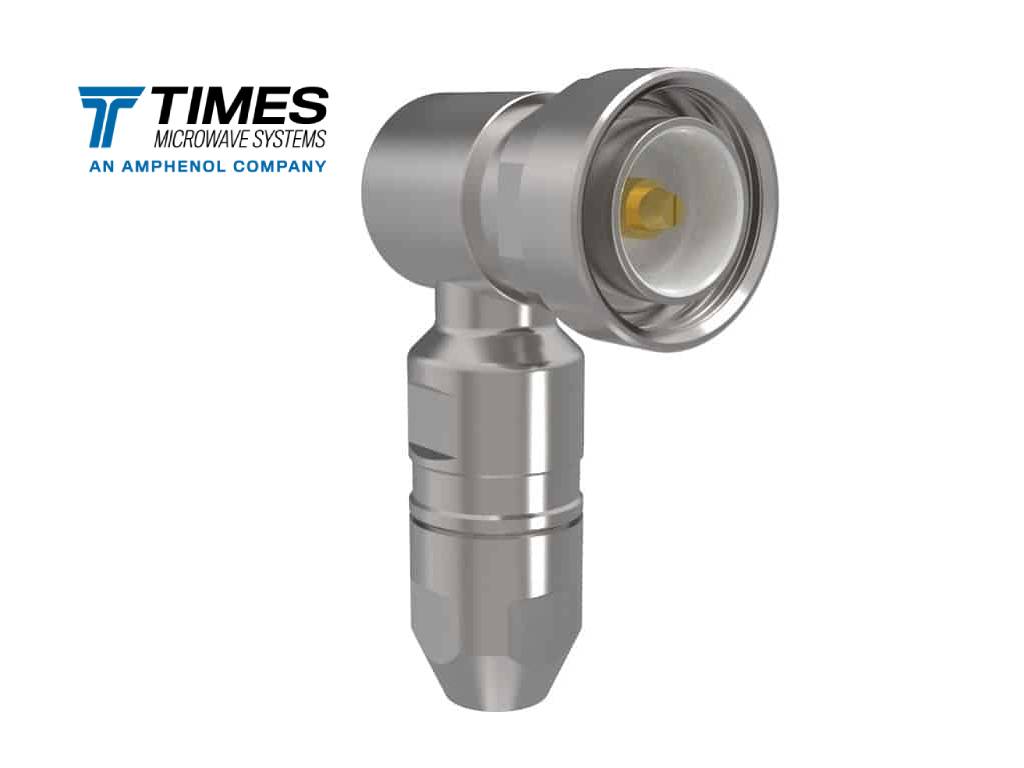

Type 7/16 DIN, male (plug), right angle, TC style connector for SFT-500 type cables.

Stock Code: 3190-6788

7/16 DIN, male, right angle

Build your Assembly

This a factory assembled custom assembly. The cable and connectors are not available for individual sale.

Connector B
Design Your Assembly


Part NumberTC-500T-716M-RA-CC
Stock Code3190-6788
Interface7/16 DIN
Gender male (plug)
OrientationRight Angle
PIM RatingNo
Impedance (ohms)50
Max Frequency (GHz)1
VSWR Freq1.3
VSWR Frequency (GHz)1
Coupling NutKnurl
Inner Contact AttachSolder
Outer Contact AttachClamp
Body FinishAlbaloy
Pin FinishSilver
Length (mm)83.2
Length (in)3.276
Width (mm)32
Width (in)1.26
Weight (g)
Weight (lb)

Compatible with
