SFT-500

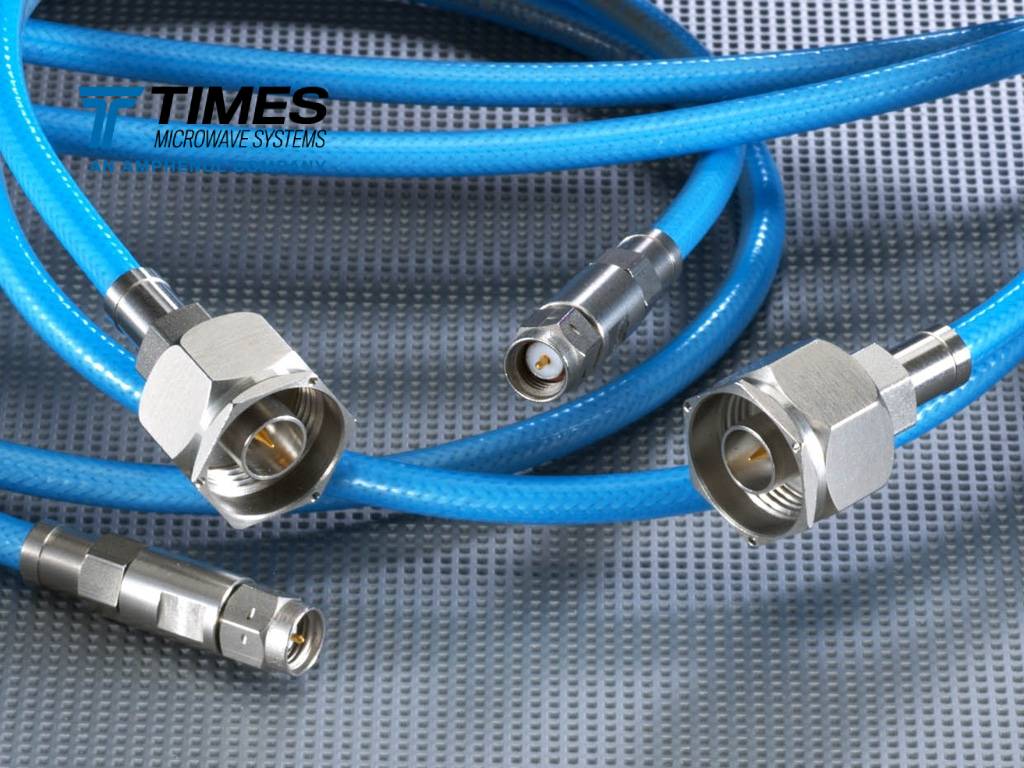

The SFT-500 is a high-power, flexible coaxial cable designed for low-loss performance up to 6 GHz. It features a stranded center conductor that allows a tight bend radius and enhanced flexibility. Ideal for demanding RF and microwave applications, the SFT-500 ensures consistent signal integrity, making it a reliable solution for high-frequency interconnect systems.
Stock Code: 510-0037
SFT-500
Request a Quote
Specifications
| Part NumberSFT-500 |
| Environment |
| JacketFEP |
| Overall Diameter (mm)12.446 |
| Overall Diameter (in)0.49 |
| Weight Kg/m0.3423 |
| Weight lb/ft0.23 |
| Operating Temp.°C (°F)
-55° to 200°C
(-67° to 392°F) |
| Min. Bend Radius (mm)38.1 |
| Min. Bend Radius (in)1.5 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)3 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Part Number Structure
Cable Details
