PTLS-400

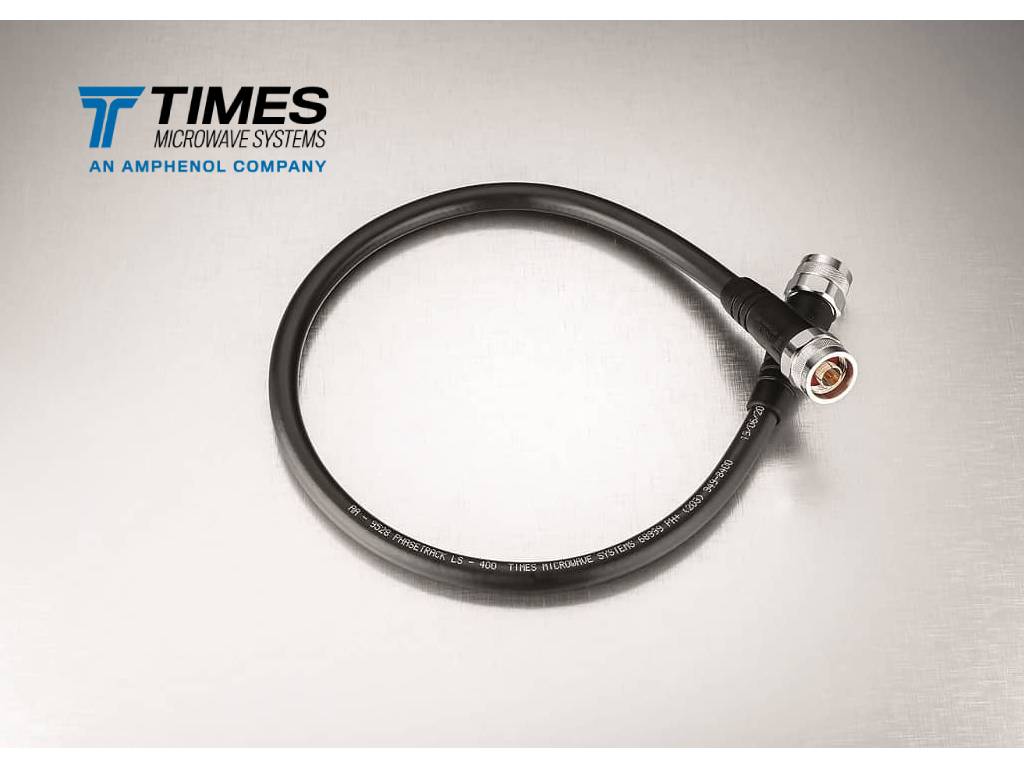

The PhaseTrack®400 is a Low-Smoke Zero-Halogen phase-stable coax assembly featuring a proprietary fluorocarbon dielectric, TF5®, eliminating the PTFE change phase occurring around 19 ºC. PhaseTrack assemblies have the same triple-shield construction used in our popular SF®, SFT®, SilverLine®, and MilTech® cables and are ideal for shipboard and other MIL-DTL-17 applications demanding stable phase over temperature.
Stock Code: AA-9528
PTLS-400
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Specifications
| Part NumberPTLS-400 |
| Environment |
| JacketLow Tox Polyolefin |
| Overall Diameter (mm)10.3 |
| Overall Diameter (in)0.405 |
| Weight Kg/m0.1449 |
| Weight lb/ft0.0974 |
| Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F) |
| Min. Bend Radius (mm)50.8 |
| Min. Bend Radius (in)2 |
| Bending Moment (Nm)0.6779 |
| Bending Moment (ft-lb)0.5 |
| Max Frequency (GHz)15 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
