CST-195
LMR-195-PVC

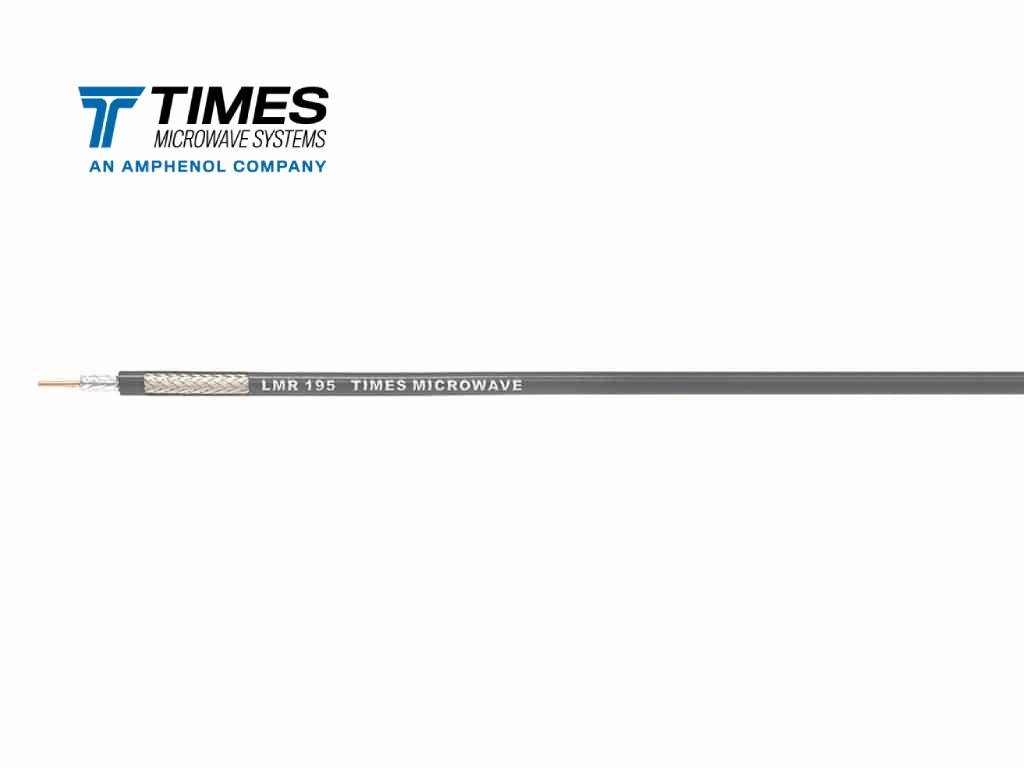

LMR®-195-PVC 50 Ohms coax cable with PVC jacket. General-purpose, RF cable for applications requiring better flexibility than polyethylene jackets.
Stock Code: 54215
LMR-195 Indoor Cable, Black PVC jacket
Specifications
| Part NumberLMR-195-PVC |
| Environment |
| JacketPE |
| Overall Diameter (mm)4.953 |
| Overall Diameter (in)0.195 |
| Weight Kg/m0.0313 |
| Weight lb/ft0.021 |
| Operating Temp.°C (°F)-40° to 85°C (-40° to 185°F) |
| Min. Bend Radius (mm)12.7 |
| Min. Bend Radius (in)0.5 |
| Bending Moment (Nm)0.27134142 |
| Bending Moment (ft-lb)0.2 |
| Max Frequency (GHz)6 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Part Number Structure
Cable Details
