PCT-401
TCP-401-716MC-LP

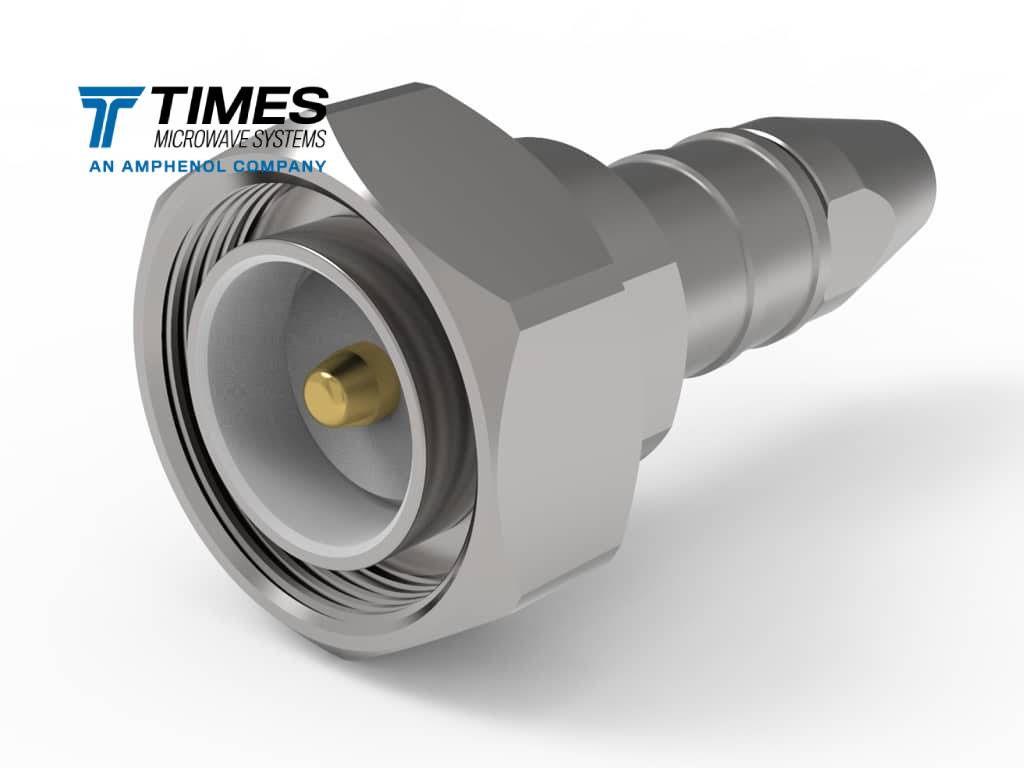

Type 7/16 DIN, male (plug), straight, TCP style connector for TFT-401 type cables.
Stock Code: 3190-6275
7/16 DIN-male (plug), field install, crimp pin
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberTCP-401-716MC-LP |
| Stock Code3190-6275 |
| Interface7/16 DIN |
| Gender Male (plug) |
| OrientationStraight |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq<1.3:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex |
| Inner Contact AttachSolder/Crimp |
| Outer Contact AttachClamp |
| Body FinishAlballoy |
| Pin FinishSilver |
| Length (mm)66 |
| Length (in)2.6 |
| Width (mm)36 |
| Width (in)1.42 |
| Weight (g)60 |
| Weight (lb)0.13 |
