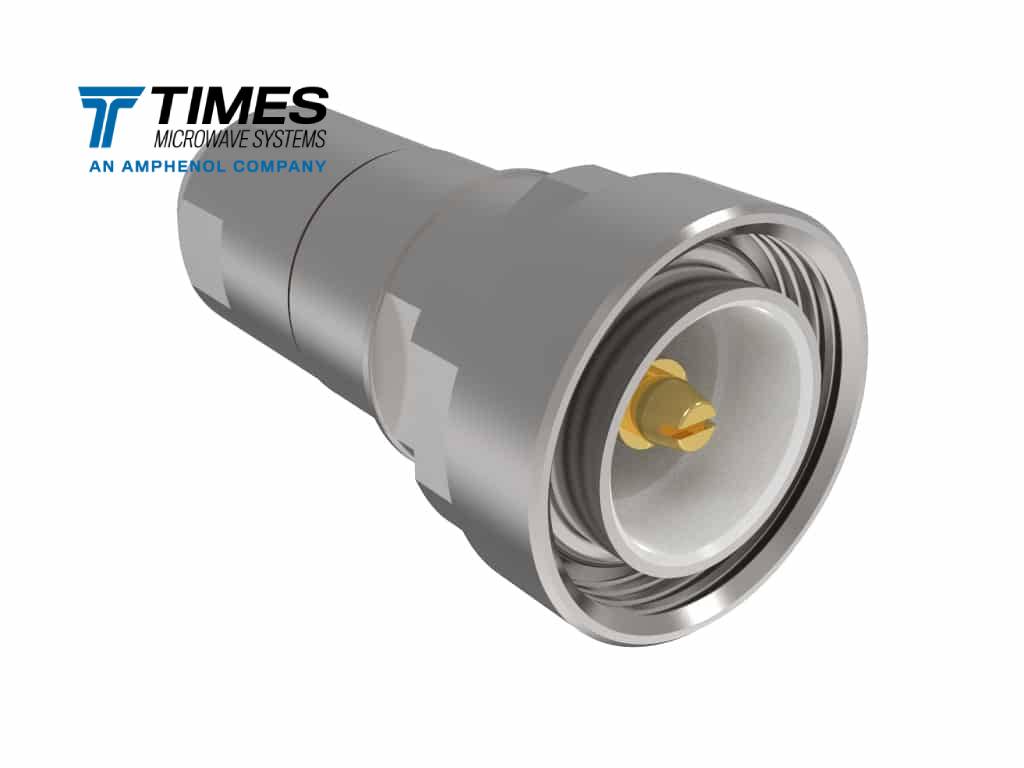

TC-600T-716M-CC
Type 7/16 DIN, male (plug), straight, TC style connector for HP-600A, HPL-600, LMR®-600-LLPX®, and SFT-600 type cables.
Stock Code: 3190-6623
7/16 DIN, male, straight
Request a Quote
Specifications
| Part NumberTC-600T-716M-CC |
| Stock Code3190-6623 |
| Interface7/16 DIN |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)2.5 |
| VSWR Freq1.2 |
| VSWR Frequency (GHz)2.5 |
| Coupling NutKnurl |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishSilver |
| Length (mm)63.8 |
| Length (in)2.512 |
| Width (mm)32 |
| Width (in)1.26 |
| Weight (g) |
| Weight (lb) |
