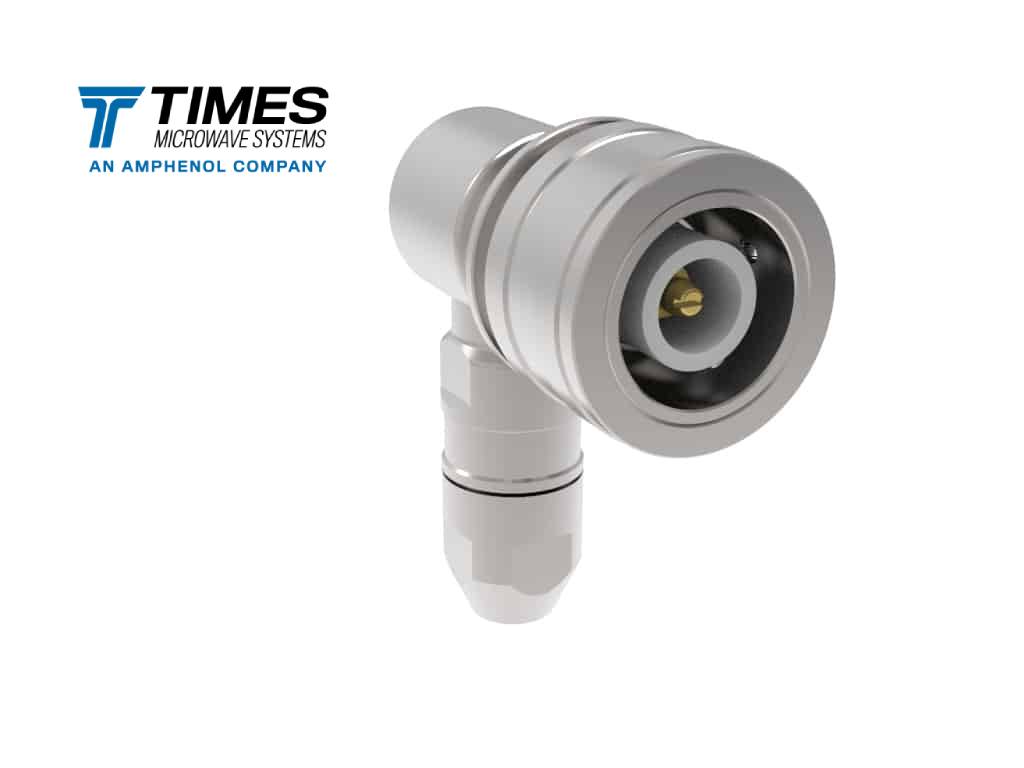

TC-500T-HQM-RA-CC
Type HPQD, male (plug), right angle, TC style connector for SFT-500 type cables.
Stock Code: 3190-6631
HPQD, male, right angle, with cable clamp
Request a Quote
Specifications
| Part NumberTC-500T-HQM-RA-CC |
| Stock Code3190-6631 |
| InterfaceHPQD |
| Gender Male (plug) |
| Orientation Right Angle |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)1 |
| VSWR Freq1.2 |
| VSWR Frequency (GHz)1 |
| Coupling Nut |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishGold |
| Length (mm)85.05 |
| Length (in)3.348 |
| Width (mm)40 |
| Width (in)1.575 |
| Weight (g) |
| Weight (lb) |
Compatible with
