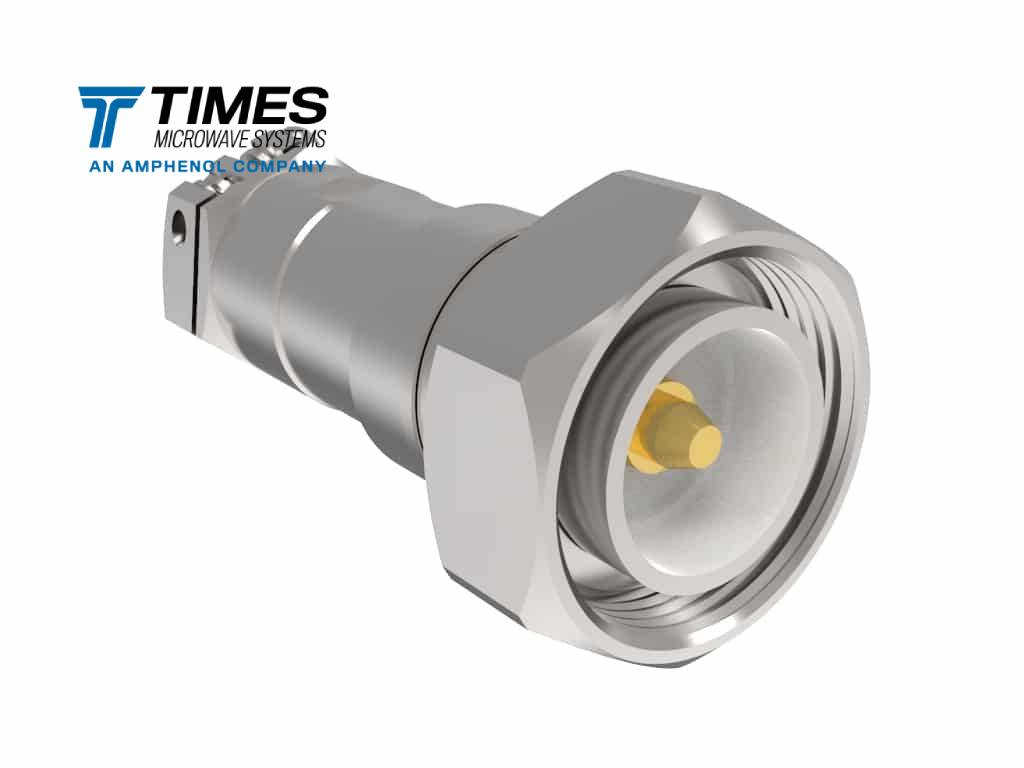

TC-393-716M-CL
Type 7/16 DIN, male (plug), straight, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-214, and SFT-393 type cables.
Stock Code: 3190-2692
7/16 DIN, male, straight
Request a Quote
Specifications
| Part NumberTC-393-716M-CL |
| Stock Code3190-2692 |
| Interface7/16 DIN |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)3 |
| VSWR Freq1.3 |
| VSWR Frequency (GHz)3 |
| Coupling NutHex |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishSilver |
| Length (mm)69.8 |
| Length (in)2.748 |
| Width (mm) |
| Width (in) |
| Weight (g) |
| Weight (lb) |
Compatible with
