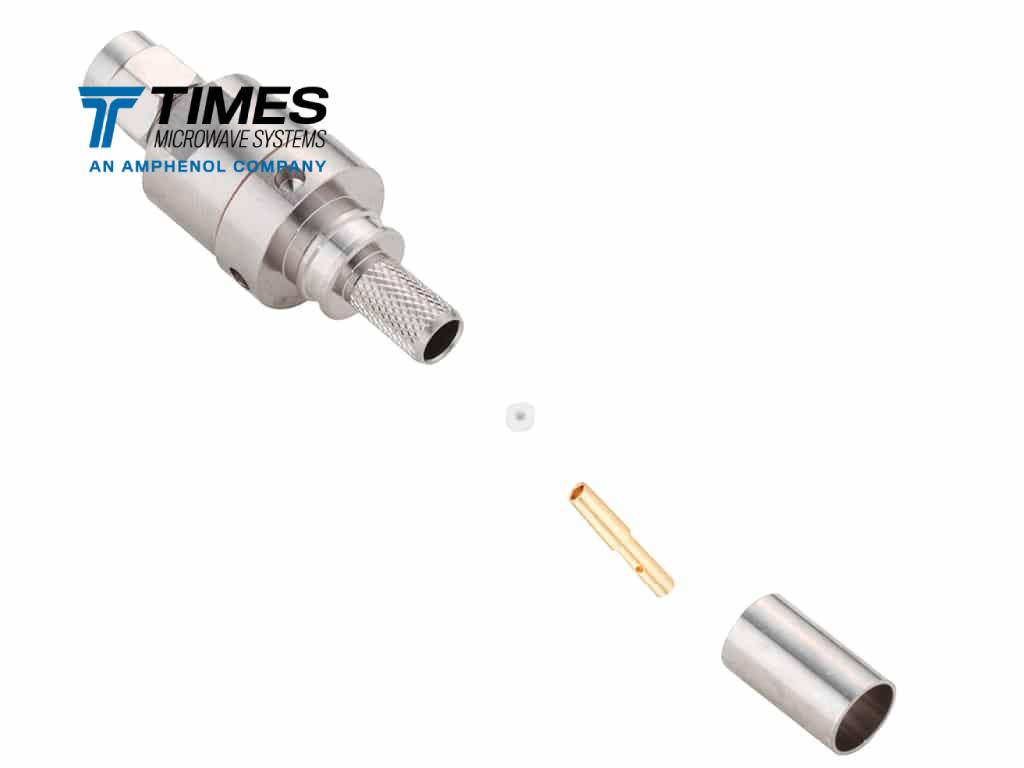

TC-3115-SM-X
Type SMA, male (plug), straight, TC style connector for TCA311501. The TC-3115-SM-X features a solder-pin connector and is a perfect option for stranded center conductors. SMA connectors are a lightweight, compact, high-performance coaxial RF connectors designed with a threaded coupling.
Stock Code: 3190-8055
Straight SMA male (plug) connector for TCA assemblies
Request a Quote
Specifications
| Part NumberTC-3115-SM-X |
| Stock Code3190-8055 |
| InterfaceSMA |
| Gender Male (plug) |
| OrientationStraight |
| PIM RatingN/A |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq<1.3:1 |
| VSWR Frequency (GHz)6 |
| Coupling NutHex |
| Inner Contact AttachSolder |
| Outer Contact AttachCrimp |
| Body FinishBi-Metal |
| Pin FinishGold |
| Length (mm)41.65 |
| Length (in)1.64 |
| Width (mm)15 |
| Width (in)0.59 |
| Weight (g)21.69 |
| Weight (lb)0.05 |
