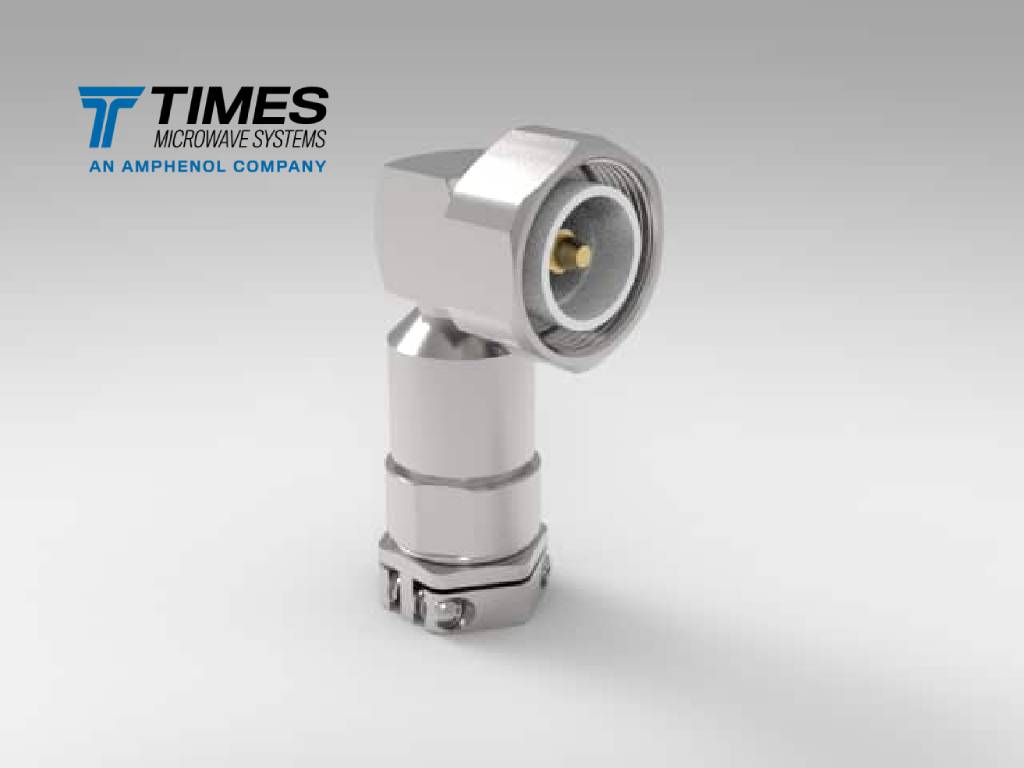

TC-226-716M-RA-CL
Type 7/16 DIN, male (plug), right angle, TC style connector for HPL-226, HPL-393, and SFT-226 type cables.
Stock Code: 3190-2625
7/16 DIN, male, right angle
Request a Quote
Specifications
| Part NumberTC-226-716M-RA-CL |
| Stock Code3190-2625 |
| Interface7/16 DIN |
| Gender Male (plug) |
| Orientation Right Angle |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz) |
| VSWR Freq |
| VSWR Frequency (GHz) |
| Coupling Nut |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishSilver |
| Length (mm)52 |
| Length (in)2.047 |
| Width (mm)32 |
| Width (in)1.26 |
| Weight (g) |
| Weight (lb) |
