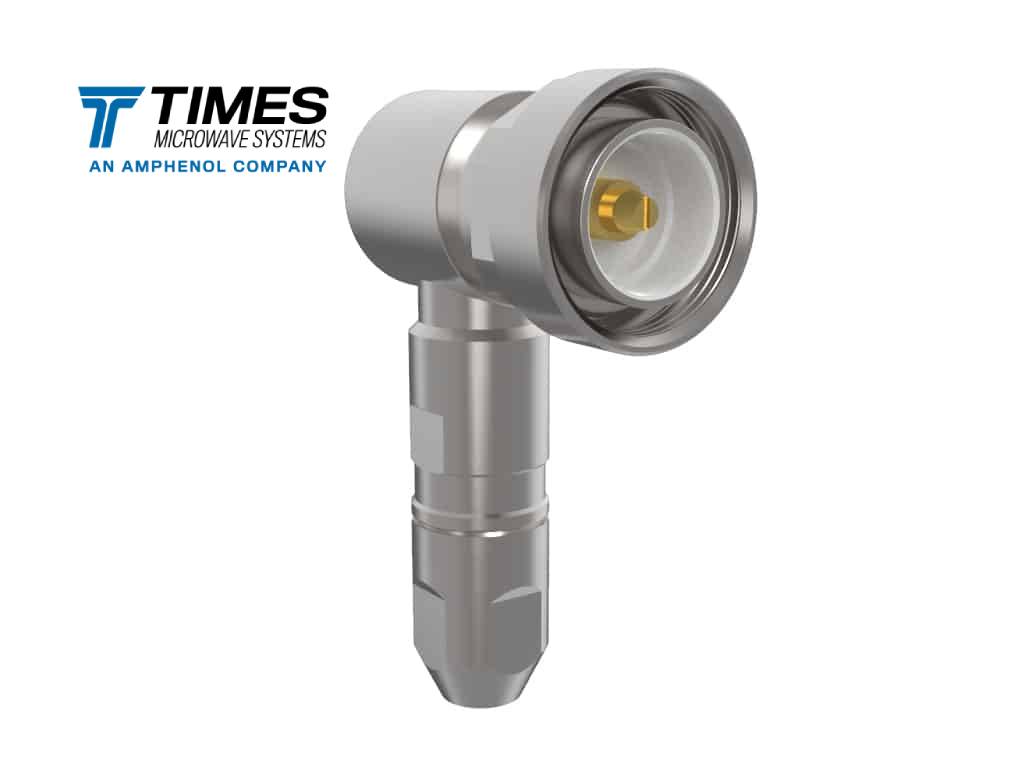

TC-214P-716M-RA-CC
Type 7/16 DIN, male (plug), right angle, TC style connector for HPL-393, RG-393-NPP-SN, RG-213, RG-223, and SFT-393 type cables.
Stock Code: 3190-6710
7/16 DIN, male, right angle
Request a Quote
Specifications
| Part NumberTC-214P-716M-RA-CC |
| Stock Code3190-6710 |
| Interface7/16 DIN |
| Gender Male (plug) |
| OrientationRight Angle |
| PIM RatingNo |
| Impedance (ohms)50 |
| Max Frequency (GHz)1 |
| VSWR Freq1.2 |
| VSWR Frequency (GHz)1 |
| Coupling NutKnurl |
| Inner Contact AttachSolder |
| Outer Contact AttachClamp |
| Body FinishAlbaloy |
| Pin FinishSilver |
| Length (mm)82.7 |
| Length (in)3.256 |
| Width (mm)32 |
| Width (in)1.26 |
| Weight (g) |
| Weight (lb) |
