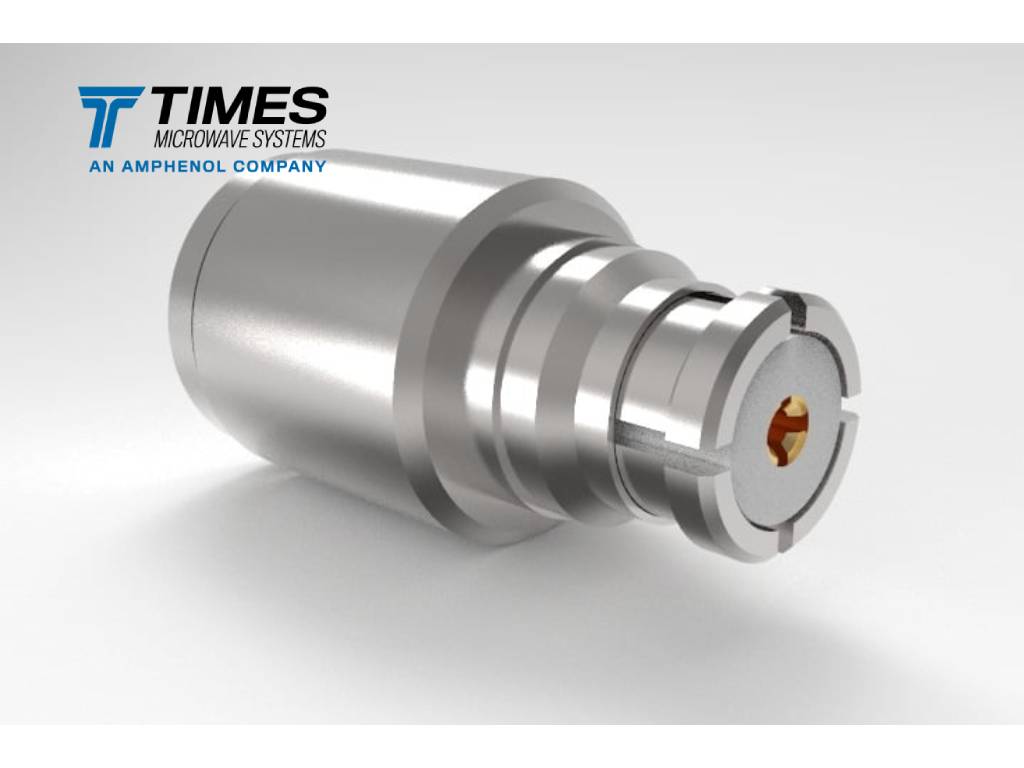

IB-047-SMPF
Type SMP, female (jack), straight, IB style connector for IB-047 type cables.
Stock Code: 47432
SMP, female, straight connector for InstaBend® 047
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberIB-047-SMPF |
| Stock Code47432 |
| InterfaceSMP |
| Gender Female (jack) |
| Orientation Straight |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz)40 |
| VSWR Freq1.35 |
| VSWR Frequency (GHz)12.4 |
| Coupling NutN/A |
| Inner Contact Attach |
| Outer Contact Attach |
| Body FinishGold Plate, MIL-DTL-45204 |
| Pin FinishGold Plate, MIL-DTL-45204 |
| Length (mm)8.51 |
| Length (in)0.335 |
| Width (mm)4.95 |
| Width (in)0.195 |
| Weight (g)0.85 |
| Weight (lb)0.002 |
Compatible with
