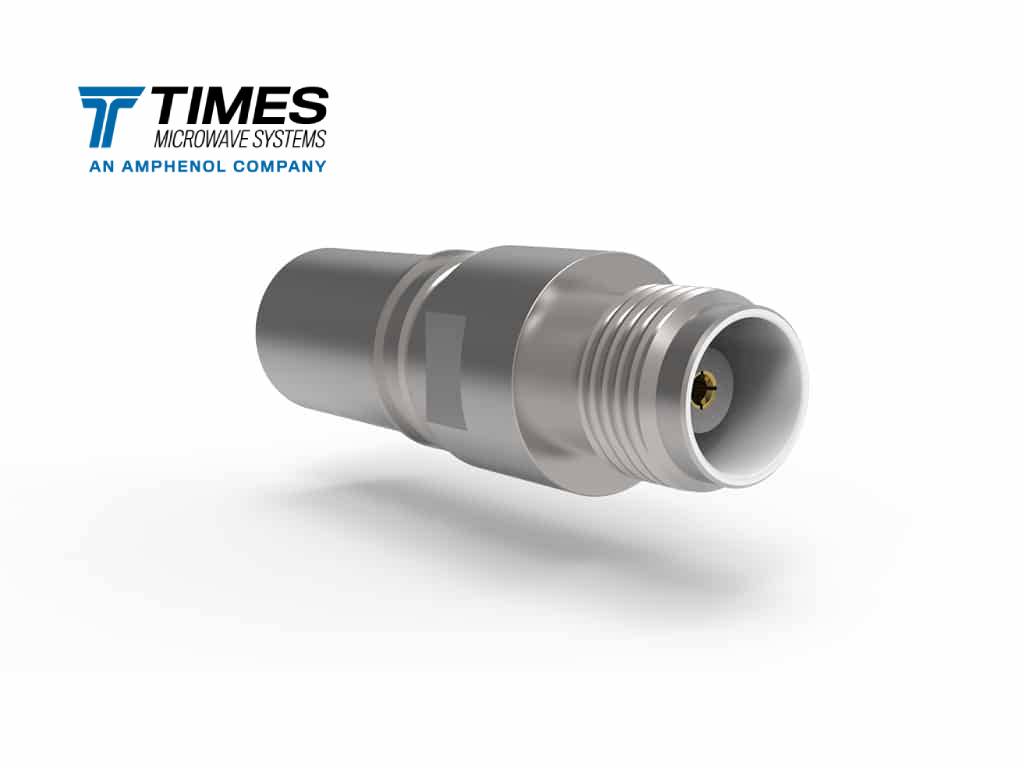

Type TNC, female (jack), straight, EZ style connector for FBT-400 and LMR®-400-LLPX® type cables. The EZ-400-TF-PL-X eliminates assembly errors and soldering with crimp-style outer contacts and spring finger inner contacts. It features a no-braid trim design, eliminating FOD and guaranteeing an optimal and consistent termination. The BeCu pins are designed to maximize surface contact and minimize current density. They provide a strong spring force making the EZ connectors a perfect choice for extreme cold and high- vibration applications where the center conductor might contract. The TNC is a miniature, threaded, weatherproof connector with a contact design similar to a BNC series and a higher frequency performance.
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
|Gender female (jack)|
|Max Frequency (GHz)6|
|VSWR Frequency (GHz)6|
|Inner Contact AttachSpring Finger|
|Outer Contact AttachCrimp|
Cold Shrink Weatherproofing
Weather Seal Strain Relief Boots
