CST-195
EZ-195-200-SF-X

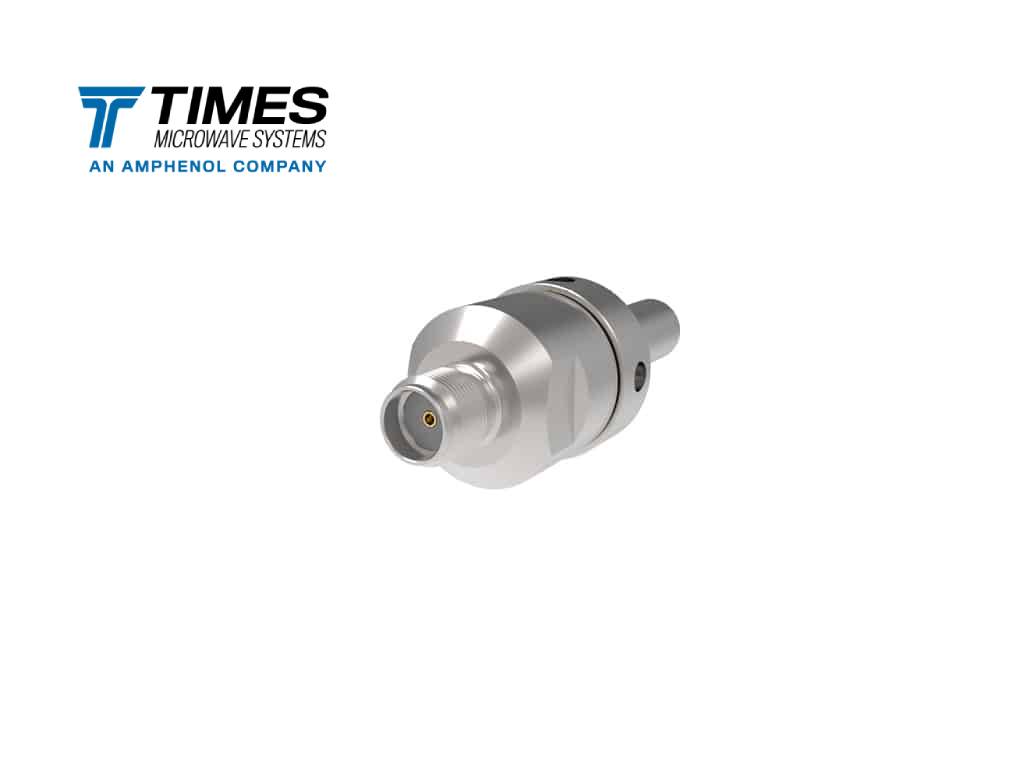

Type SMA, female (jack), straight, EZ style connector for LMR-195 type cables.
Stock Code: 3190-8002
SMA-female (jack)
Inventory Status
| Distributor | Qty | Order |
Specifications
| Part NumberEZ-195-200-SF-X |
| Stock Code3190-8002 |
| InterfaceSMA |
| Gender Female (jack) |
| OrientationStraight |
| PIM Rating |
| Impedance (ohms)50 |
| Max Frequency (GHz)8 |
| VSWR Freq<1.35:1 |
| VSWR Frequency (GHz)8 |
| Coupling NutN/A |
| Inner Contact AttachSpring Finger |
| Outer Contact AttachCrimp |
| Body FinishNickel |
| Pin FinishGold |
| Length (mm)38.9 |
| Length (in)1.53 |
| Width (mm)15 |
| Width (in)0.59 |
| Weight (g)19.51 |
| Weight (lb)0.04 |
Compatible with
Tools and Accessories
CCT-02
CCT-03
