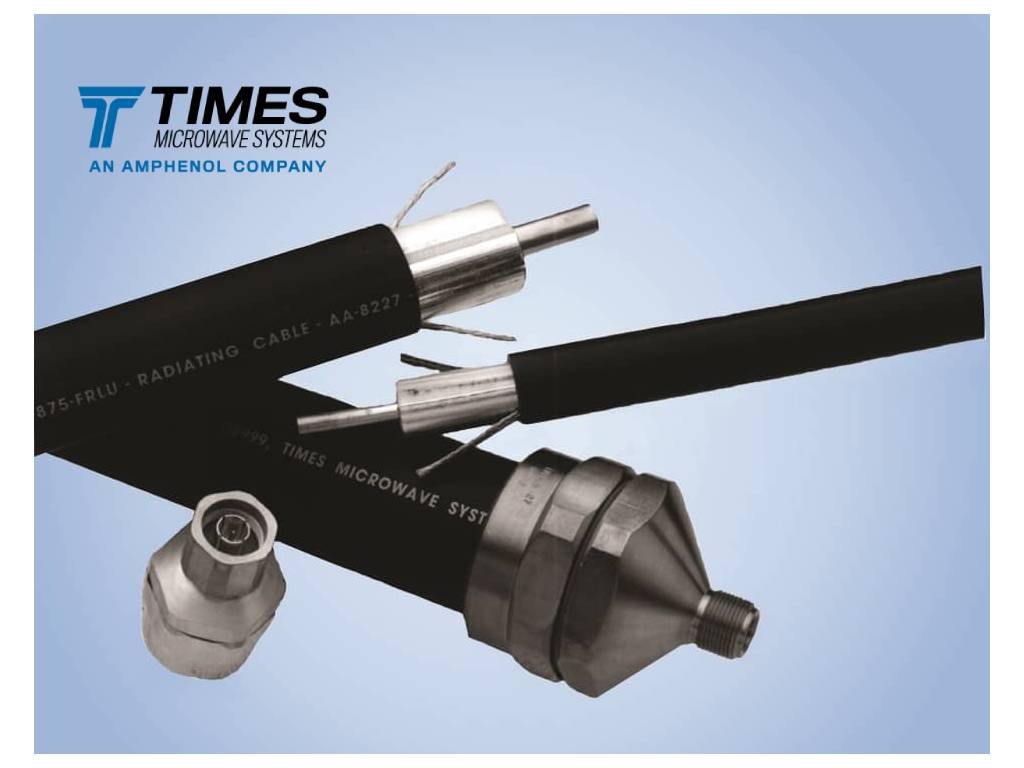

TRC-1250-FR

Standard cable, flame retardant jacket, Low-Smoke, Non-Halogen

Stock Code: 44003

Standard cable, flame retardent jacket, Low-Smoke, Non-Halogen

Inventory Status
In Stock Qty Order
Murray-Benjamin Electric200Buy

Specifications

Part NumberTRC-1250-FR
EnvironmentIndoor
JacketPolyolefin
Overall Diameter (mm)43.18
Overall Diameter (in)1.7
Weight Kg/m1.1161
Weight lb/ft0.75
Operating Temp.°C (°F)-40° to 80°C
(-40° to 176°F)
Min. Bend Radius (mm)342.9
Min. Bend Radius (in)13.5
Bending Moment (Nm)
Bending Moment (ft-lb)
Max Frequency (GHz)3
Impedance (ohms)50
Power Handling (DWV)9000

Compatible with

Part Number Structure

Cable Details
