PT-318

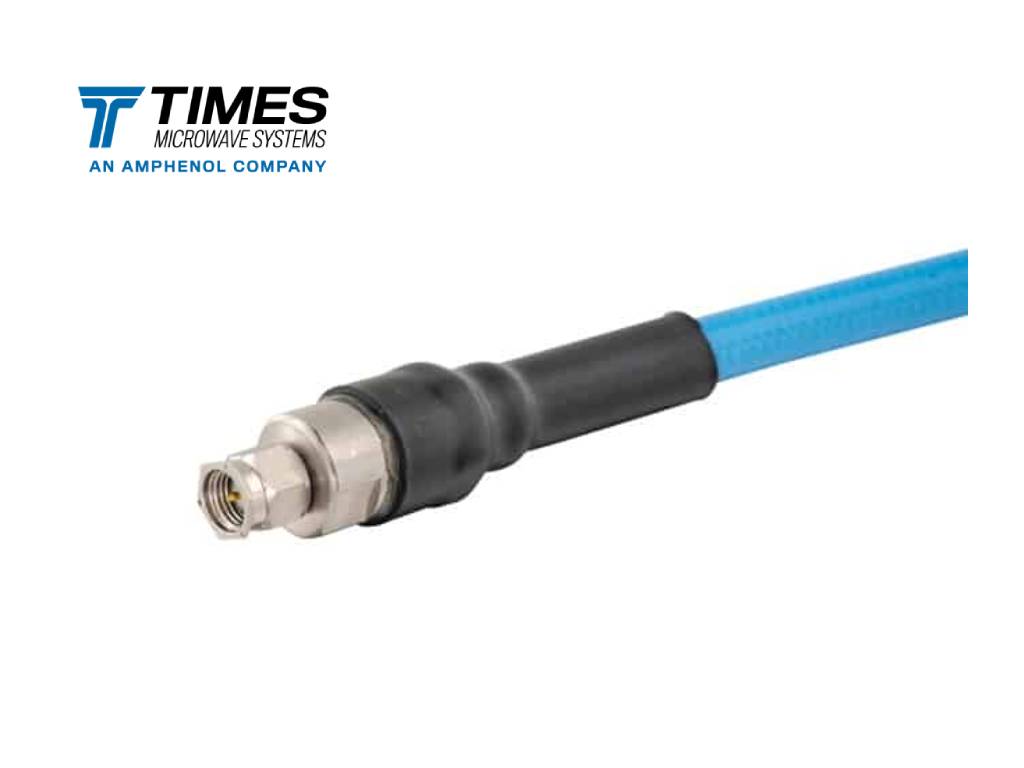

The PhaseTrack®318 is a Standard phase-stable coax assembly featuring a proprietary fluorocarbon dielectric, TF4®, eliminating the PTFE change phase occurring around 19 ºC. PhaseTrack assemblies have the same triple-shield construction used in our popular SF®, SFT®, SilverLine®, and MilTech® cables and are ideal for applications demanding stable phase over temperature.
Stock Code: AA-11241
PT-318
Build your Assembly
This a factory assembled custom assembly. The cable and connectors are not available for individual sale.
Connector A
Connector B
Specifications
| Part NumberPT-318 |
| Environment |
| JacketFEP |
| Overall Diameter (mm)8.001 |
| Overall Diameter (in)0.315 |
| Weight Kg/m0.1339 |
| Weight lb/ft0.09 |
| Operating Temp.°C (°F)-55° to 150°C (-85° to 302°F) |
| Min. Bend Radius (mm)44.45 |
| Min. Bend Radius (in)1.75 |
| Bending Moment (Nm) |
| Bending Moment (ft-lb) |
| Max Frequency (GHz)18.9 |
| Impedance (ohms)50 |
| Power Handling (DWV) |
Compatible with
Part Number Structure
Cable Details
